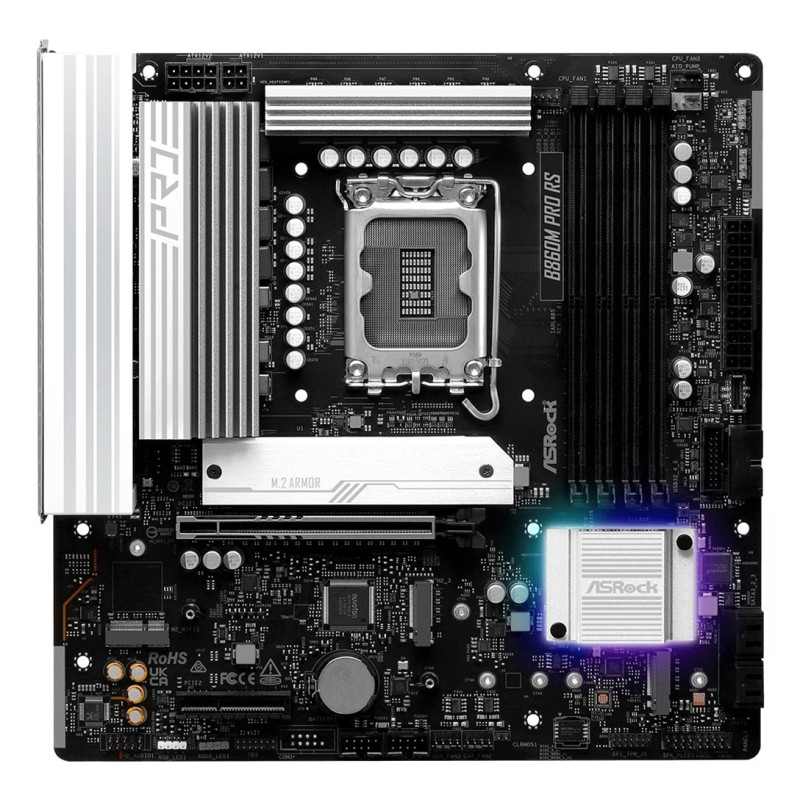

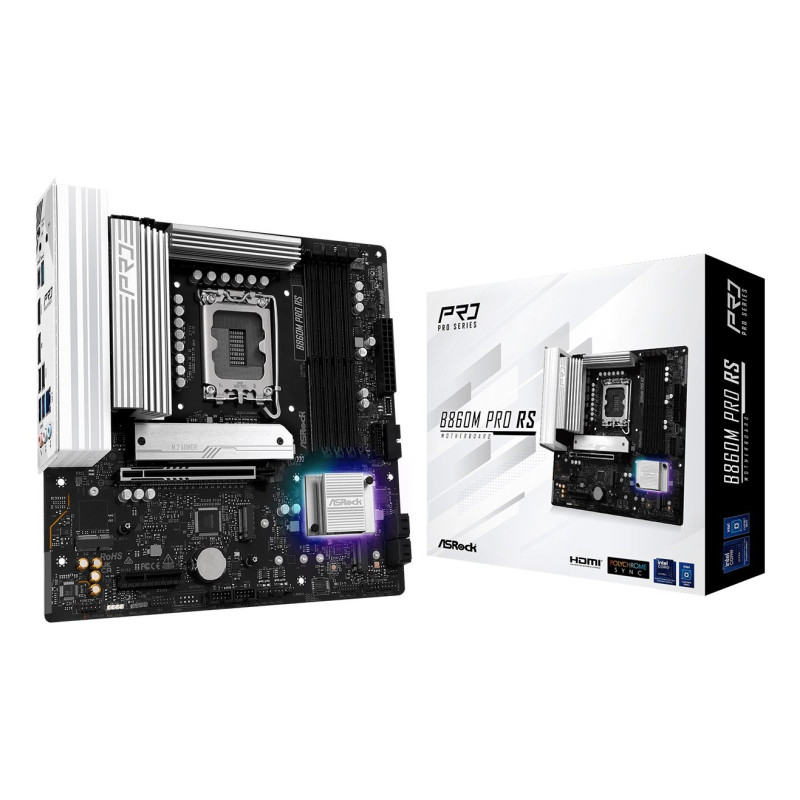

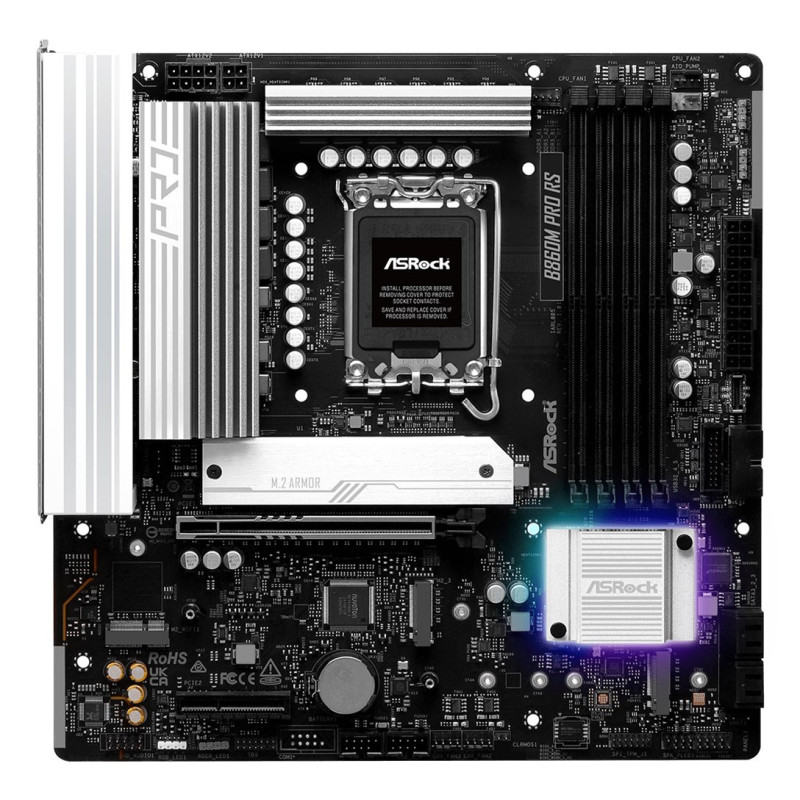

Motherboard - Asrock B860M Pro RS Intel B860 LGA 1851 DDR5 256GB 2.5GbE
Product reference:
14-4711581490277
The Asrock B860M Pro RS motherboard supports Intel LGA 1851 processors and up to 256 GB DDR5 memory with four DIMM slots. Its features include 7.1-channel audio, 2.5 Gigabit Ethernet, and multiple USB ports, including USB 3.2 Gen 2x2 Type-C.
Motherboard - Asrock B860M Pro RS Intel B860 LGA 1851 DDR5 256GB 2.5GbE
Product reference:
14-4711581490277
The Asrock B860M Pro RS motherboard supports Intel LGA 1851 processors and up to 256 GB DDR5 memory with four DIMM slots. Its features include 7.1-channel audio, 2.5 Gigabit Ethernet, and multiple USB ports, including USB 3.2 Gen 2x2 Type-C.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
Asrock B860M Pro Rs Intel B860 LGA 1851 Micro ATX
Compatible with LGA 1851 processors and up to 256GB of memory with four DIMM slots. Key features include 7.1-channel audio, 2.5 Gigabit Ethernet, and a variety of USB ports, including USB 3.2 Gen 8 Type-C.
- Compatible with Intel processors with LGA 1851 socket and Intel B860 chipset.
- Equipped with 4 DIMM slots for up to 256 GB of DDR5 memory.
- 7.1 channel sound system with Realtek ALC897 chip, ensuring high-quality sound.
- Multiple USB ports, HDMI, and DisplayPort are included, providing a variety of connectivity options.
Processor | |
|---|---|
| Processor socket | LGA 1851 (Socket V1) |
| Processor manufacturer | Intel |
Features | |
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC897 |
| Motherboard chipset | Intel B860 |
| Compatible Windows operating systems | Windows 11 x64 |
| Motherboard format type | micro ATX |
| Motherboard chipset family | Intel |
Memory | |
| Memory slot type | DIMMs |
| Number of memory slots | 4 |
| Compatible memory types | DDR5-SDRAM |
| Memory channels | Dual channel |
| Unbuffered memory | Yes |
| Maximum internal memory | 256GB |
Weight and dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
Network | |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Dragon RTL8125BG |
Internal I/O | |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| RGB LED pin connector | Yes |
| Number of RGB LED pin connectors | 4 |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |
| Number of SATA III connectors | 4 |
| CPU cooler connector | Yes |
| ATX power connector (24-pin) | Yes |
| Number of CPU cooler connectors | 2 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) ports | 2 |
| Number of USB 2.0 ports | 2 |
| Number of chassis cooler connections | 3 |
| Number of EPS power connections (8-pin) | 1 |
| Front panel audio connector | Yes |
BIOS | |
| BIOS type | EFI AMI |
Memory controllers | |
| Compatible memory disk interfaces | M.2, SATA III |
| RAID levels | 10, 0, 5, 1 |
| Number of compatible memory drives | 7 |
| RAID support | Yes |

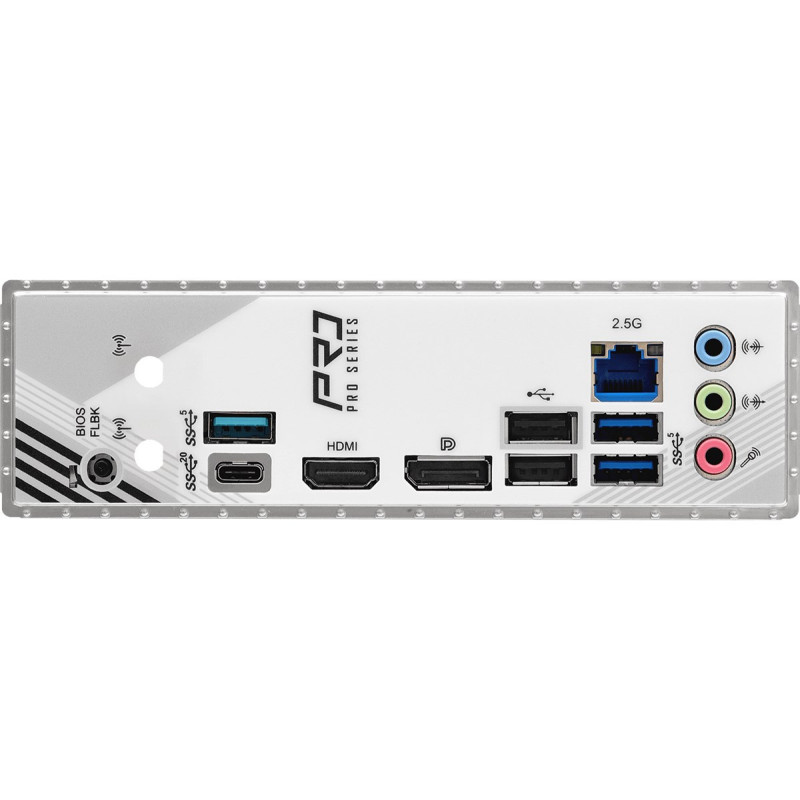

Rear panel I/O ports | |
| Line-in | Yes |
| Microphone in | Yes |
| Number of USB 3.2 Gen 2x2 Type-C ports | 1 |
| Number of USB 2.0 ports | 2 |
| Number of DisplayPort ports | 1 |
| DisplayPort version | 1.4 |
| Number of HDMI ports | 2 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
Expansion slots | |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x4 (Gen 4.x) slots | 1 |
| M.2 (M) number of sockets | 1 |
Safety warning | |
| Warnings | Do not twist or modify the motherboard to avoid damage. When disposing of the product, please follow local electronics recycling regulations. If you have any installation problems, please contact a qualified technician. |
| Height | 60mm |
| Length | 300mm |
| Weight | 1000g |
| Width | 300mm |
