Motherboard - ASRock B860M Pro-A WiFi LGA 1851, DDR5, 256GB, Wi-Fi, Bluetooth
Product reference:
14-4711581490307
The ASRock B860M Pro-A WiFi LGA 1851 motherboard supports Intel LGA 1851 processors and up to 256 GB DDR5 memory with four DIMM slots. It features Wi-Fi, Bluetooth, 2.5 Gigabit Ethernet, and a variety of USB ports.
Motherboard - ASRock B860M Pro-A WiFi LGA 1851, DDR5, 256GB, Wi-Fi, Bluetooth
Product reference:
14-4711581490307
The ASRock B860M Pro-A WiFi LGA 1851 motherboard supports Intel LGA 1851 processors and up to 256 GB DDR5 memory with four DIMM slots. It features Wi-Fi, Bluetooth, 2.5 Gigabit Ethernet, and a variety of USB ports.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

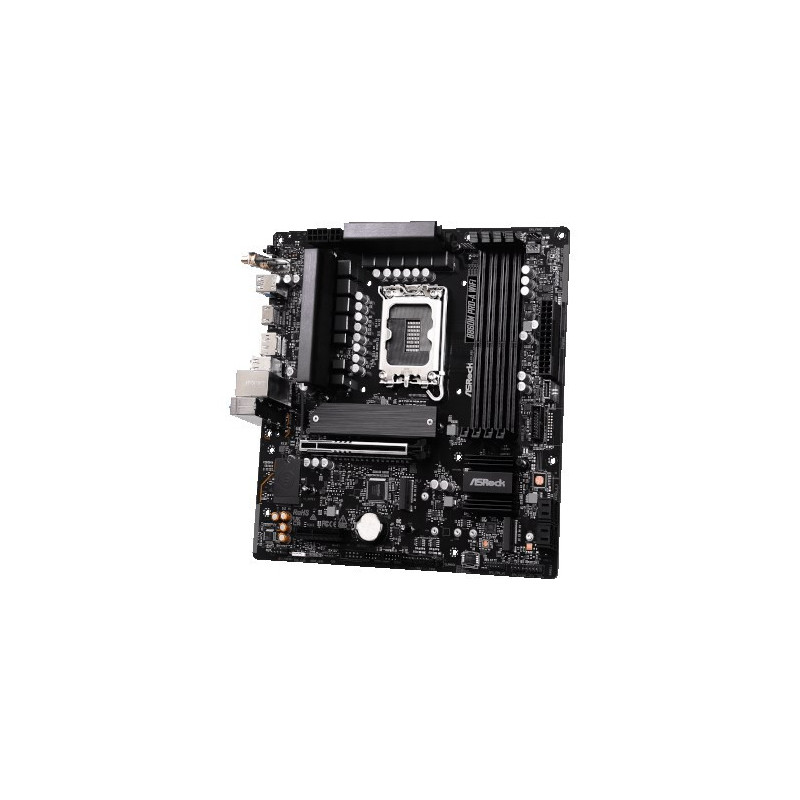

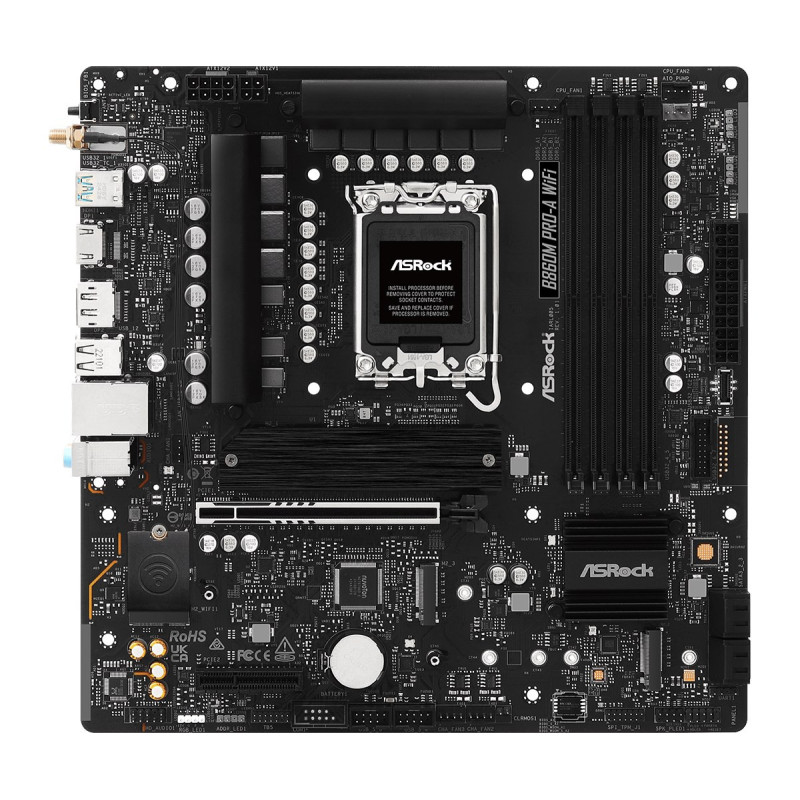

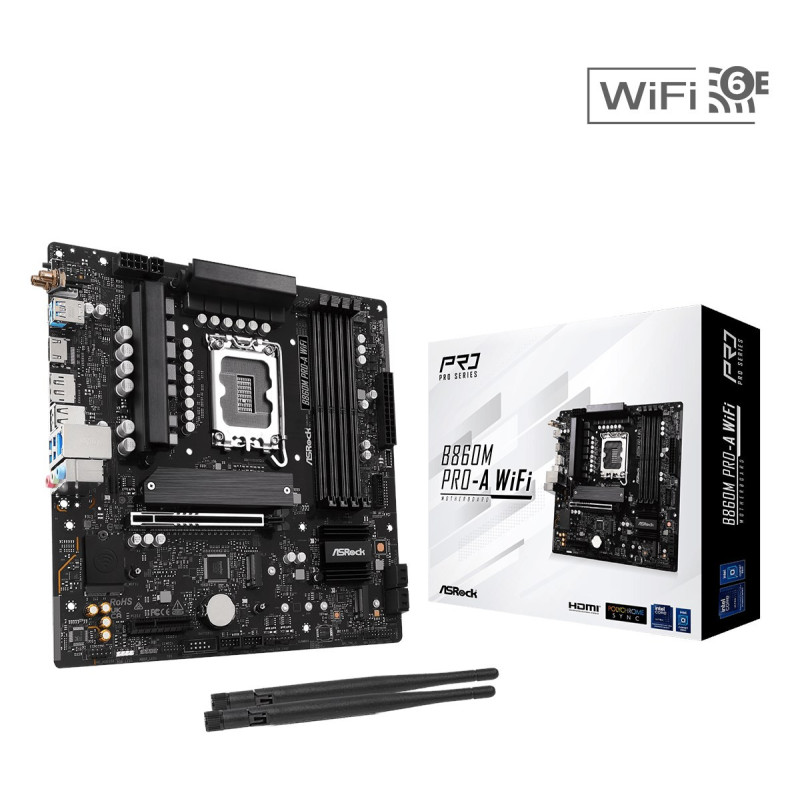

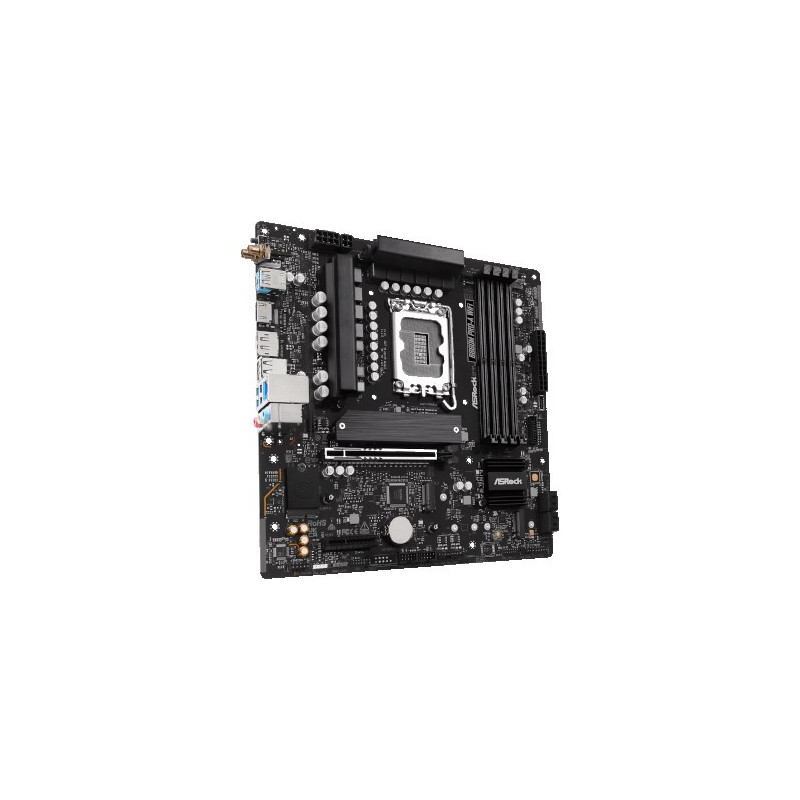

ASRock B860M Pro-A WiFi motherboard
Compatible with Intel LGA 1851 processors and supports up to 256 GB DDR5 memory with four DIMM slots. Key features include Wi-Fi, Bluetooth, 2.5 Gigabit Ethernet, and multiple USB ports.
- Enables the use of Intel LGA 1851 processors with a maximum memory capacity of 256 GB.
- Supports dual-channel DDR5 memory and 7.1-channel audio output to ensure an immersive experience.
- Equipped with Wi-Fi and Bluetooth connectivity, as well as 2.5 Gigabit Ethernet for fast networking.
- Multiple USB ports and M.2 slots for expansion are included.
Processor | |
|---|---|
| Multiple processor sockets | LGA 1851 |
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
Features | |
| Motherboard chip | Intel B860 |
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC897 |
| Motherboard format type | micro ATX |
| Supported Windows operating systems | Windows 11 x64 |
Memory | |
| ECC compatibility | No |
| Unbuffered memory | Yes |
| Memory channels | Dual channel |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slot type | DIMMs |
Weight and dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
Network | |
| LAN controller | Dragon RTL8125BG |
| Ethernet LAN data rates | 10,100,1000,2500 Mbps |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
Internal I/O | |
| ATX power connector (24-pin) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of CPU cooler connections | 2 |
| USB 2.0 ports | 2 |
| Number of water pump connections | 1 |
| Number of chassis cooler connections | 3 |
| Number of SATA III connectors | 4 |
| TPM connector | Yes |
| 12V power connector | Yes |
| RGB LED pin connector | Yes |
BIOS | |
| BIOS type | UEFI AMI |
Memory controllers | |
| RAID levels | 10, 5, 0, 1 |
| RAID support | Yes |
| Supported memory device interfaces | M.2, PCI Express 4.0, SATA III |
| Supported storage device types | HDD and SSD |
Rear panel I/O ports | |
| Number of USB 2.0 ports | 2 |
| HDMI version | 2.1 |
| Number of antennas | 2 |
| Number of USB 3.2 Gen 1 ports | 3 |
| Number of HDMI ports | 2 |
| Flashback BIOS button | Yes |
| USB connection type | USB Type-C, USB Type-A |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports | 1 |
Expansion slots | |
| 1-o M.2 the highest PCI Express generation | 5.0 |
| M.2 (M) number of sockets | 3 |
| 1-o M.2 maximum key size | 2280 |
Safety warning | |
| Warnings | In case of installation problems, please contact a qualified technician. When disposing of the product, please follow local electronics recycling regulations. Do not open or modify the motherboard to avoid damage. |
| Height | 80mm |
| Length | 350mm |
| Weight | 1300g |
| Width | 350mm |
