Motherboard - Asrock B860M LiveMixer WiFi Intel B860 LGA 1851 micro ATX
Product reference:
14-4711581490314
The Asrock B860M LiveMixer WiFi motherboard supports Intel processors with the LGA 1851 socket and has dual-channel DDR5 memory with a maximum capacity of 256 GB. It is also equipped with Wi-Fi 6E, Bluetooth 5.3 and a variety of USB ports for convenient connectivity.
Motherboard - Asrock B860M LiveMixer WiFi Intel B860 LGA 1851 micro ATX
Product reference:
14-4711581490314
The Asrock B860M LiveMixer WiFi motherboard supports Intel processors with the LGA 1851 socket and has dual-channel DDR5 memory with a maximum capacity of 256 GB. It is also equipped with Wi-Fi 6E, Bluetooth 5.3 and a variety of USB ports for convenient connectivity.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

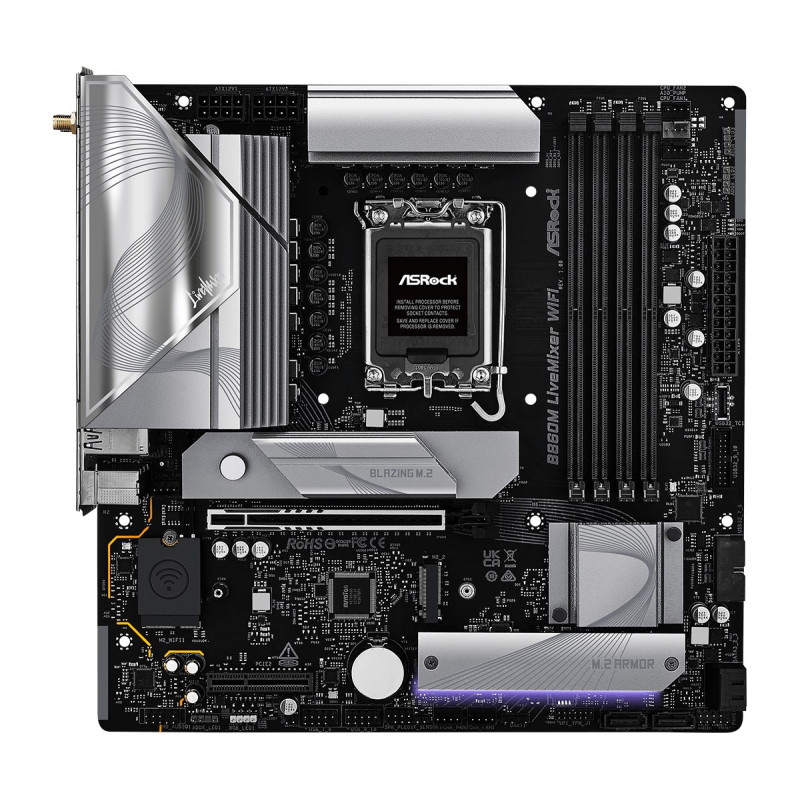

Asrock B860M LiveMixer WiFi Intel B860 LGA 1851 (Socket V1) Micro ATX
Compatible with Intel processors with LGA 1851 socket and features dual-channel DDR5 memory with a maximum capacity of 256 GB. Equipped with Wi-Fi 6E, Bluetooth 5.3 and multiple USB ports for connectivity.
- Compatible with Intel processors with LGA 1851 socket, ensuring high performance.
- Equipped with Wi-Fi 6E and Bluetooth 5.3, ensuring fast and reliable connectivity.
- Features 7.1 channel audio with Realtek ALC1220, providing an immersive audio experience.
- Memory can be expanded up to 256 GB with 4 DIMM slots for improved multitasking.
Processor | |
|---|---|
| Processor socket | LGA 1851 (Socket V1) |
| Processor manufacturer | Intel |
Graphics | |
| Graphics card family | Intel |
| Integrated graphics card | Yes |
Features | |
| Windows operating system support | Windows 11 x64 |
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC1220 |
| Audio output channels | 7.1 channels |
| Motherboard chip | Intel B860 |
Memory | |
| Unbuffered memory | Yes |
| ECC compatibility | Non-ECC |
| Memory channels | Dual channel |
| Maximum internal memory capacity | 256GB |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Memory slot type | DIMMs |
Weight and dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
Network | |
| Wi-Fi standards | Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), 802.11b, 802.11a, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| LAN controller | Dragon RTL8125BG |
| Wi-Fi | Yes |
| Bluetooth version | 5.3 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
Internal I/O | |
| USB 2.0 ports | 2 |
| EPS power connector (8-pin) | Yes |
| Number of CPU cooler connections | 2 |
| Number of EPS power connections (8-pin) | 2 |
| Front panel audio connector | Yes |
| CPU cooler connector | Yes |
| Number of SATA III connectors | 4 |
| RGB LED pin connector | Yes |
| TPM connector | Yes |
| ATX power connector (24-pin) | Yes |
| Number of RGB LED pin connectors | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of chassis cooler connections | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
BIOS | |
| BIOS type | UEFI AMI |
Package contents | |
| Cables included | SATA |
Memory controllers | |
| Supported storage drive interfaces | M.2, SATA III |
| RAID support | Yes |
| RAID levels | 1, 0, 5, 10 |

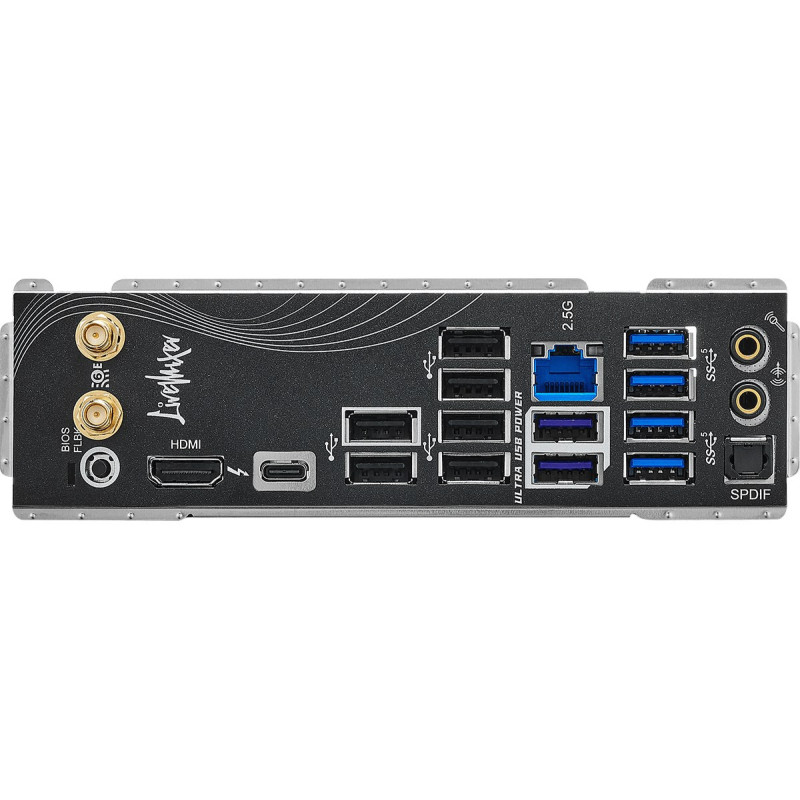

Rear panel I/O ports | |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| S/PDIF out port | Yes |
| Number of HDMI ports | 1 |
| Number of USB 2.0 ports | 6 |
| Number of Thunderbolt ports | 1 |
| Microphone input | Yes |
Expansion slots | |
| PCI Express x16 (Gen 5.x) slots | 1 |
| M.2 (M) number of sockets | 1 |
| PCI Express x4 (Gen 4.x) slots | 1 |
| Height | 50mm |
| Length | 320mm |
| Weight | 1500g |
| Width | 260 mm |
