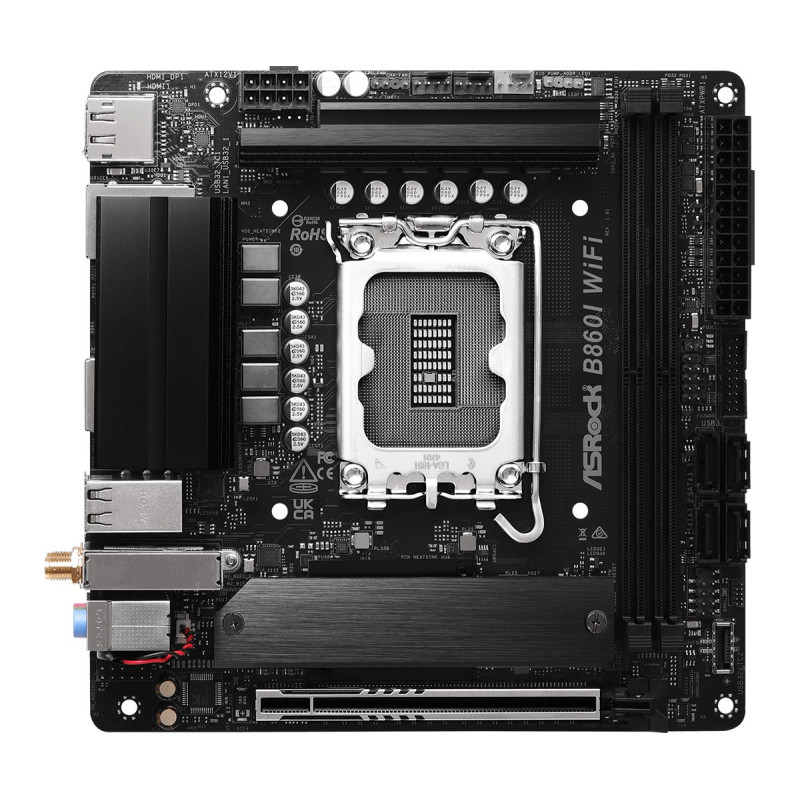

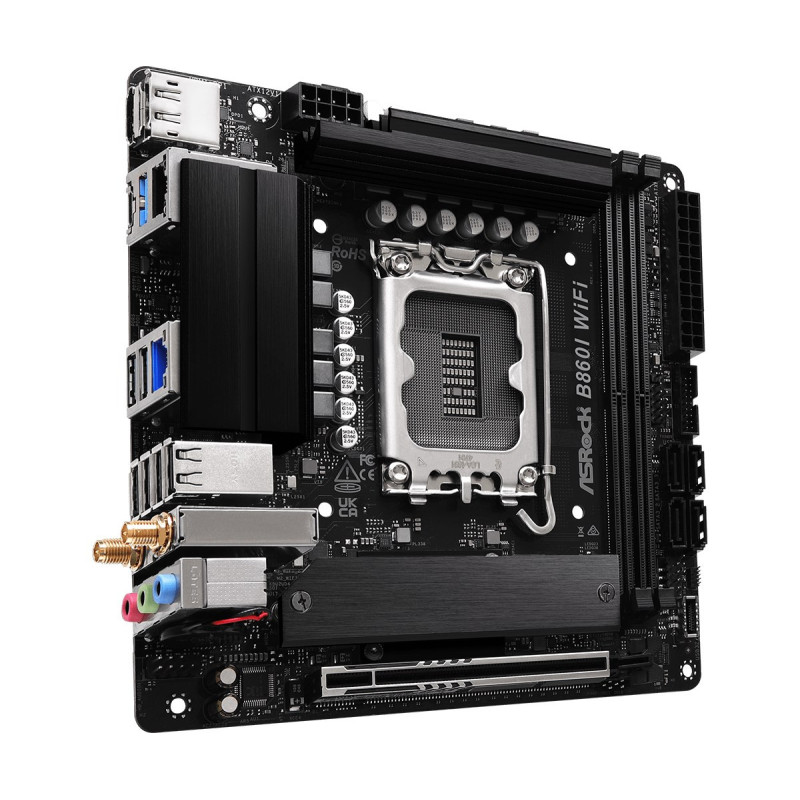

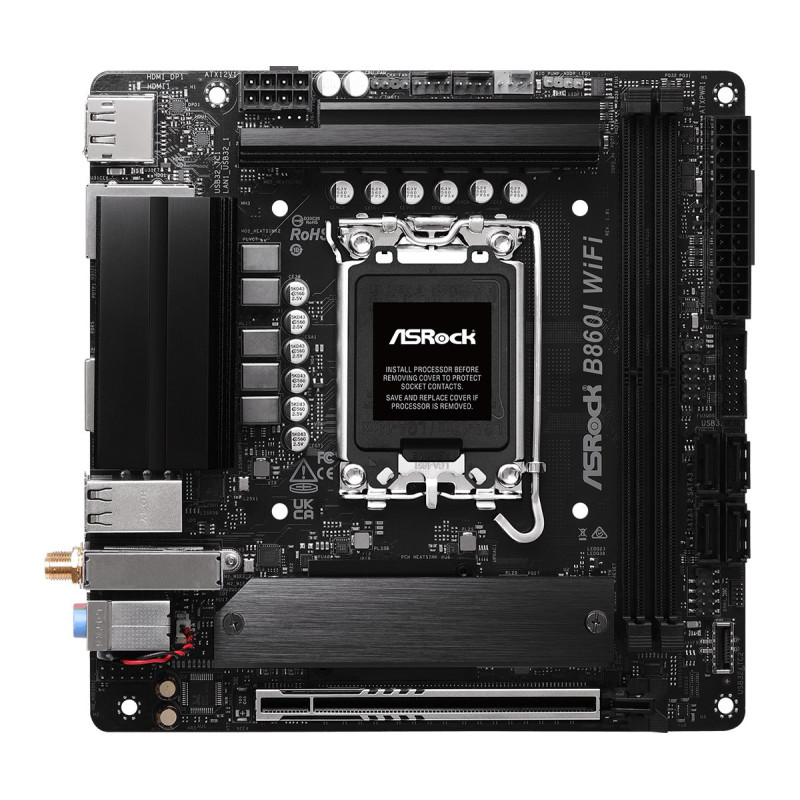

Motherboard - Asrock B860I WiFi Intel B860 LGA 1851 mini ITX
Product reference:
14-4711581490321
It supports Intel processors with the LGA 1851 socket and has a mini ITX form factor. The device features Wi-Fi 6E, dual-channel DDR5 memory support, and multiple USB ports, including USB 3.2 Gen 2.
Motherboard - Asrock B860I WiFi Intel B860 LGA 1851 mini ITX
Product reference:
14-4711581490321
It supports Intel processors with the LGA 1851 socket and has a mini ITX form factor. The device features Wi-Fi 6E, dual-channel DDR5 memory support, and multiple USB ports, including USB 3.2 Gen 2.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
Asrock B860I Wifi Intel B860 LGA 1851 Mini ITX
It favorably accepts Intel processors with the LGA 1851 socket and has a mini ITX form factor. It features Wi-Fi 6E, dual-channel DDR5 memory support, and a wide range of USB ports, including USB 3.2 Gen 2.
- It favorably accepts Intel processors with an LGA 1851 socket and up to 128 GB of DDR5 memory.
- Equipped with Wi-Fi 6E and Bluetooth 5.3, ensuring fast wireless connectivity.
- Compact mini ITX format, ideal for small computers without compromising on performance.
- Advanced audio with Realtek ALC897 chipset, providing 7.1 channel output.
Processor | |
|---|---|
| Processor socket | LGA 1851 (Socket V1) |
| Processor manufacturer | Intel |
Graphics | |
| Graphics card family | Intel |
| Integrated graphics card | Yes |
Features | |
| Motherboard chipset family | Intel |
| Supported Windows operating systems | Windows 11 x64 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Motherboard format | mini-ITX |
| Motherboard chip | Intel B860 |
Memory | |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual channel |
| Memory slot type | DIMMs |
| Unbuffered memory | Yes |
| Maximum internal memory | 128GB |
| Number of memory slots | 2 |
| ECC compatibility | Non-ECC |
Weight and dimensions | |
| Width | 170mm |
| Depth | 170mm |
Network | |
| Wi-Fi standards | Wi-Fi 4 (802.11n), 802.11b, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), 802.11g |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Ethernet LAN | Yes |
| LAN controller | Dragon RTL8125BG |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
Internal I/O | |
| RGB LED pin connector | Yes |
| Front panel audio connector | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| ATX power connector (24-pin) | Yes |
| USB 2.0 ports | 1 |
| Number of SATA III connectors | 4 |
| EPS power connector (8-pin) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Number of CPU fan connectors | 1 |
| Number of RGB LED pin connectors | 1 |
| Number of EPS power connections (8-pin) | 1 |
BIOS | |
| BIOS type | UEFI AMI |
Memory controllers | |
| RAID levels | 1, 5, 0, 10 |
| RAID support | Yes |
| Supported storage device interface types | M.2, SATA III |

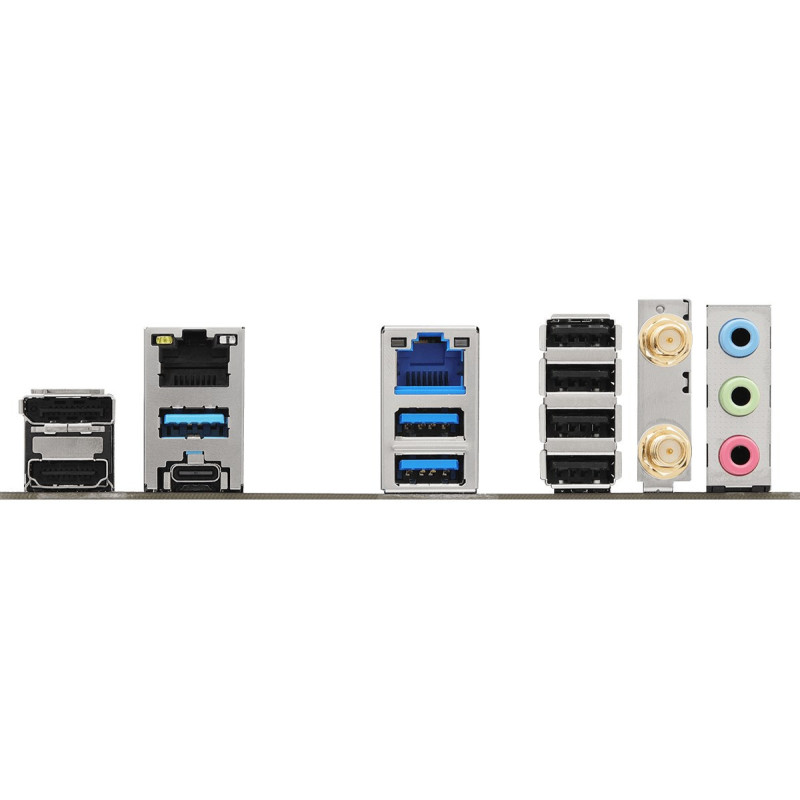

Rear panel I/O ports | |
| DisplayPort quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| DisplayPort version | 1.4 |
| Number of HDMI ports | 1 |
| Microphone input | Yes |
| Number of USB 2.0 ports | 4 |
| Line-in | Yes |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
Expansion slots | |
| M.2 (M) number of sockets | 1 |
| Number of PCI Express x16 (Gen 5.x) slots | 1 |
| Height | 50mm |
| Length | 250mm |
| Weight | 950g |
| Width | 250mm |
