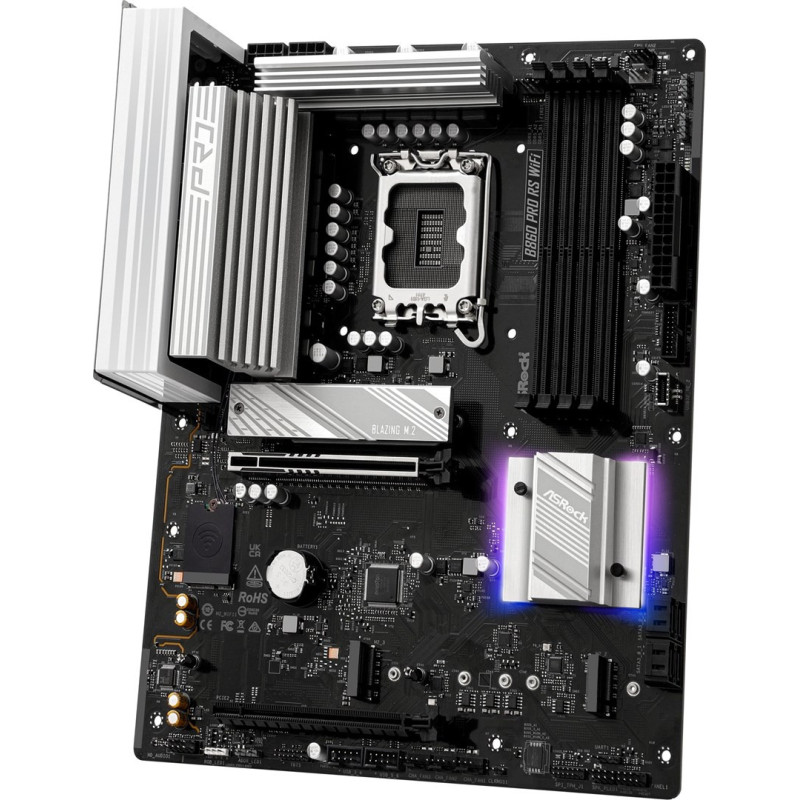

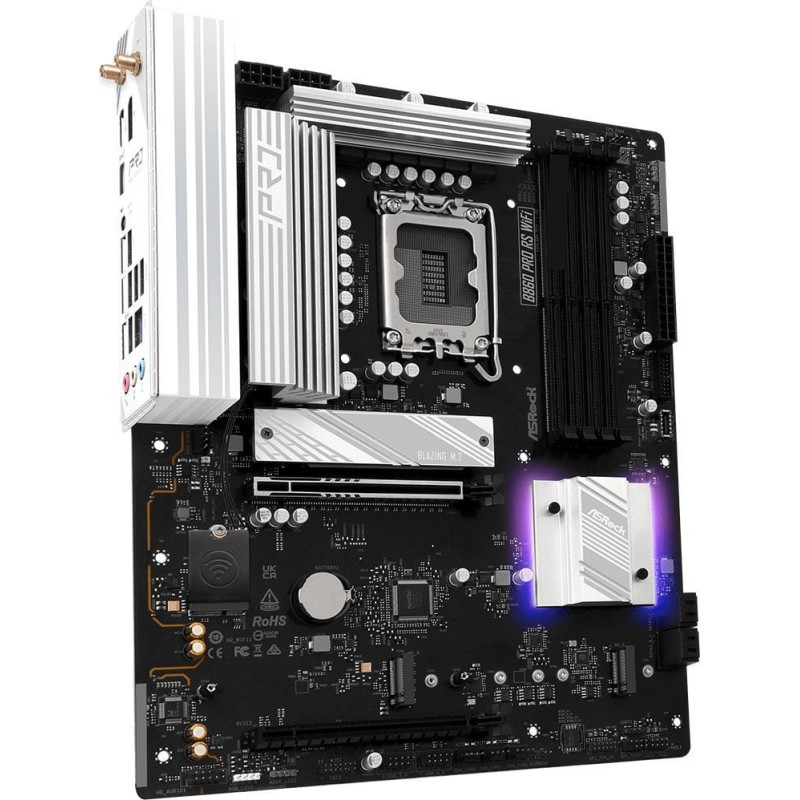

Motherboard - ASRock B860 Pro RS WiFi ATX DDR5 Wi-Fi 6E
Product reference:
14-4711581490239
The ASRock B860 Pro RS WiFi motherboard supports Intel Core Ultra processors and features an ATX form factor design. It features four DDR5 memory slots, Wi-Fi 6E, and a variety of USB ports for connectivity.
Motherboard - ASRock B860 Pro RS WiFi ATX DDR5 Wi-Fi 6E
Product reference:
14-4711581490239
The ASRock B860 Pro RS WiFi motherboard supports Intel Core Ultra processors and features an ATX form factor design. It features four DDR5 memory slots, Wi-Fi 6E, and a variety of USB ports for connectivity.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
Motherboard - ASRock B860 Pro RS WiFi
The ASRock B860 Pro RS WiFi motherboard supports Intel Core Ultra processors and has a ATX form factor. It includes four DDR5 memory slots, Wi-Fi 6E and multiple USB ports for connectivity options.
- Supports Intel Core Ultra processors with LGA1851 socket, ensuring high performance.
- Equipped with Wi-Fi 6E and Bluetooth 5.3, ensuring fast and reliable wireless connectivity.
- Rich with 4 DIMM slots supporting up to 256GB of DDR5 memory for improved multitasking.
- Multiple USB ports and 7.1 channel audio are included to ensure a complete multimedia experience.
Processor | |
|---|---|
| Processor socket | LGA1851 |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Processor manufacturer | Intel |
| Maximum number of SMP processors | 1 |
Features | |
| Motherboard chip family | Intel |
| Motherboard format type | ATX |
| Sound chip | Realtek ALC897 |
| Motherboard chip | Intel B860 |
| Supported Windows operating systems | Windows 11 |
| Audio output channels | 7.1 channels |
| Operating system architecture | 64-bit |
Memory | |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual channel |
| Unbuffered memory | Yes |
| Maximum internal memory | 256GB |
| Memory slot type | DIMMs |
| Supported memory frequency (max) | 8666MHz |
Weight and dimensions | |
| Depth | 244 mm |
| Width | 305mm |
Network | |
| Ethernet LAN | Yes |
| Wi-Fi standard | Wi-Fi 6E (802.11axe) |
| LAN controller | Dragon RTL8125BG |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| MU-MIMO | Yes |
Internal I/O | |
| USB 2.0 ports | 2 |
| Front panel audio connector | Yes |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 4 |
| CPU fan connector | Yes |
| ATX power connector (24-pin) | Yes |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) ports | 1 |
| Number of USB Type-C ports | 1 |
| RGB LED pin connector | Yes |
BIOS | |
| BIOS type | UEFI AMI |
Memory controllers | |
| Supported RAID configurations | 0,1,5,10 |
| RAID recovery | Yes |

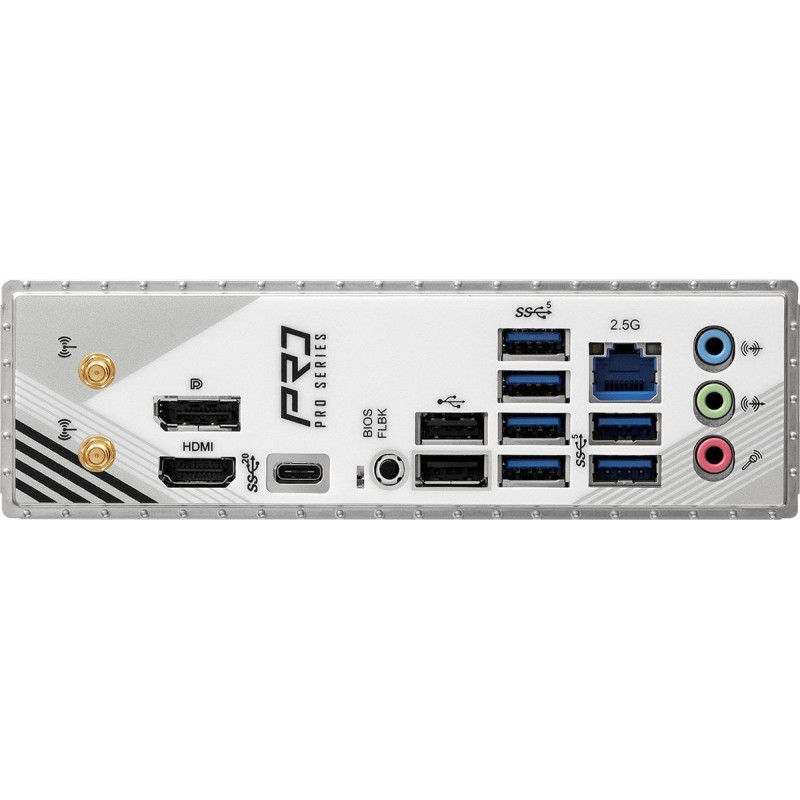

Rear panel I/O ports | |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 6 |
| DisplayPort version | 1.4 |
| Number of DisplayPorts | 1 |
| Number of HDMI ports | 1 |
| Number of USB 3.2 Gen 2x2 Type-C ports | 1 |
| MIC input | 1 |
| Line-in | Yes |
| Number of USB 2.0 Type-A ports | 2 |
| Number of Wi-Fi antenna ports | 2 |
Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
Safety warning | |
| Warnings | Do not disassemble to avoid damage to internal components and void warranty. Dispose of according to local electronic waste regulations. Avoid contact with liquids to prevent electronic damage. |
| Height | 100mm |
| Length | 300mm |
| Weight | 1500g |
| Width | 400mm |
