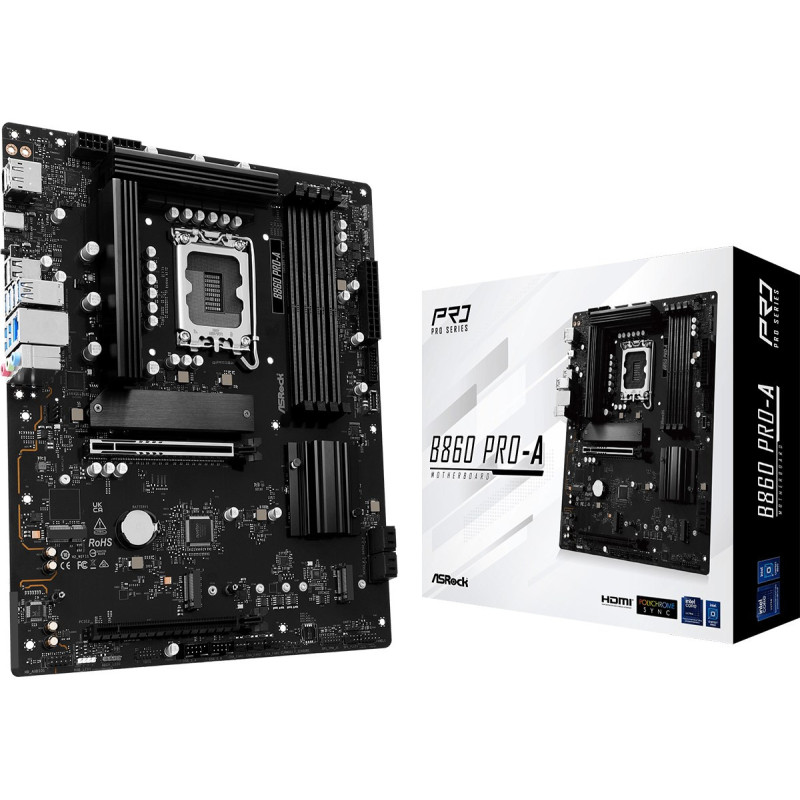

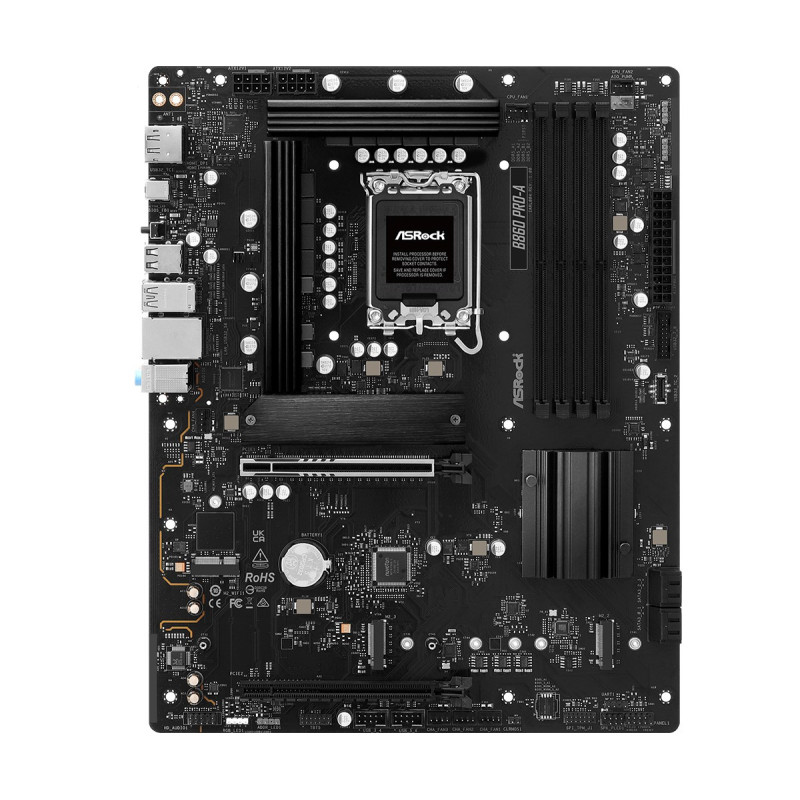

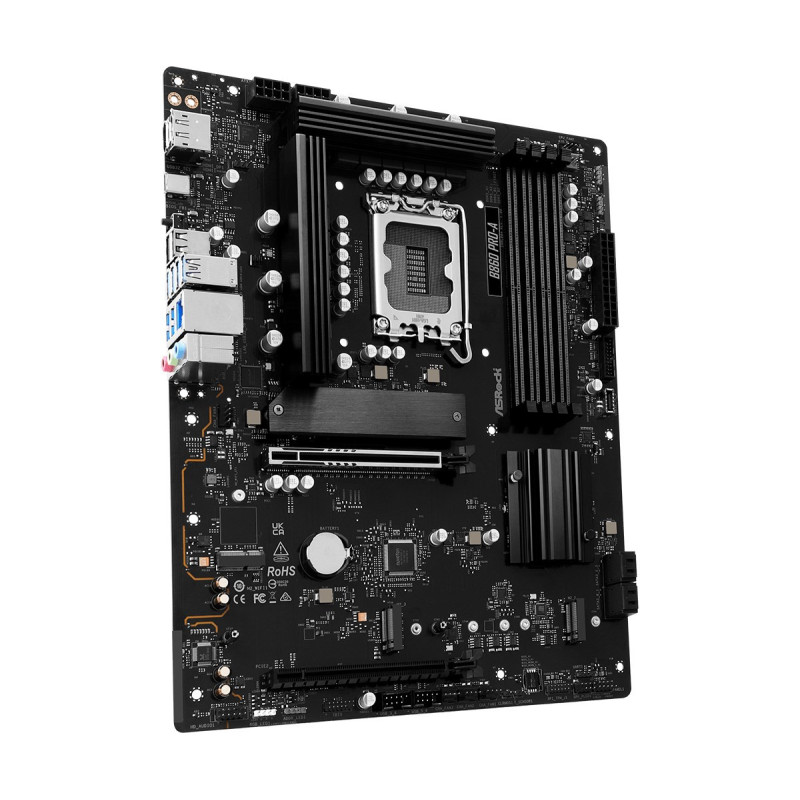

Motherboard - Asrock B860 Pro-A Intel B860 LGA 1851 ATX 2.5 Gigabit Ethernet DDR5
Product reference:
14-4711581490246
The Asrock B860 Pro-A motherboard supports Intel processors with the LGA 1851 socket and features Intel UHD graphics technology. It offers four DIMM slots for DDR5 memory, a maximum capacity of 256 GB, and 2.5 Gigabit Ethernet connectivity.
Motherboard - Asrock B860 Pro-A Intel B860 LGA 1851 ATX 2.5 Gigabit Ethernet DDR5
Product reference:
14-4711581490246
The Asrock B860 Pro-A motherboard supports Intel processors with the LGA 1851 socket and features Intel UHD graphics technology. It offers four DIMM slots for DDR5 memory, a maximum capacity of 256 GB, and 2.5 Gigabit Ethernet connectivity.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
Asrock B860 Pro-A Intel B860 LGA 1851 (Socket V1) ATX
This motherboard supports Intel processors with LGA 1851 socket and features Intel UHD graphics. It offers four DIMM slots for DDR5 memory, a maximum capacity of 256 GB, and includes 2.5 Gigabit Ethernet connectivity.
- Supports Intel processors with LGA 1851 (Socket V1) for improved performance.
- Equipped with Intel® UHD graphics and 7.1 channel sound, ensuring an immersive multimedia experience.
- ATX format board with 4 DIMM slots, supporting up to 256 GB DDR5 memory.
- Includes advanced connectivity options with 2.5 Gigabit Ethernet and multiple USB ports.
Processor | |
|---|---|
| Processor socket | LGA 1851 (Socket V1) |
| Processor manufacturer | Intel |
Graphics | |
| Graphics card family | Intel |
| Integrated graphics card | Yes |
Features | |
| Supported Windows operating systems | Windows 11 x64 |
| Motherboard chip | Intel B860 |
| Audio chip | Realtek ALC897 |
| Motherboard chipset family | Intel |
Memory | |
| ECC compatibility | Non-ECC |
| Memory slot type | DIMMs |
| Supported memory types | DDR5-SDRAM |
| Unbuffered memory | Yes |
| Memory channels | Dual channel |
| Number of memory slots | 4 |
| Maximum internal memory capacity | 256GB |
Weight and dimensions | |
| Depth | 244 mm |
| Width | 305mm |
Network | |
| LAN controller | Dragon RTL8125BG |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
Internal I/O | |
| Number of EPS power connections (8-pin) | 2 |
| Number of RGB LED connectors | 4 |
| Number of CPU cooler connections | 2 |
| USB 2.0 ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| Number of SATA III connectors | 4 |
| ATX power connector (24-pin) | Yes |
| TPM connector | Yes |
| Number of chassis cooler connections | 4 |
BIOS | |
| BIOS type | EFI AMI |
Memory controllers | |
| RAID support | Yes |
| RAID levels | 10, 1, 0 |
| Supported memory device interfaces | M.2, SATA III |

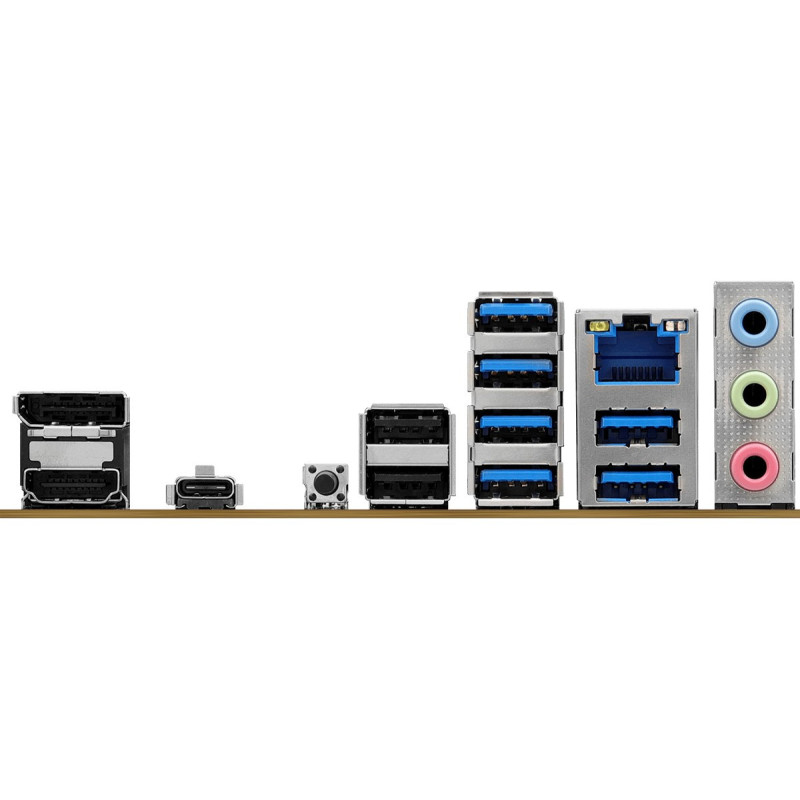

Rear panel I/O ports | |
| Number of USB 3.2 Gen 2x2 Type-C ports | 1 |
| Number of DisplayPort ports | 1 |
| DisplayPort version | 1.4 |
| Number of USB 2.0 ports | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of HDMI ports | 1 |
| Microphone input | Yes |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 6 |
| Line-in | Yes |
Expansion slots | |
| PCI Express x16 (Gen 5.x) slots | 1 |
| M.2 (M) number of sockets | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Height | 50mm |
| Length | 320mm |
| Weight | 1500g |
| Width | 260 mm |
