Motherboard - Asrock B850M Pro RS AM5 Micro ATX DDR5, 4 DIMM, 3 M.2, 7.1 Audio
Product reference:
14-4711581490345
The Asrock B850M Pro RS AM5 Micro ATX DDR5 motherboard supports AMD Ryzen 7000, 8000 and 9000 series processors with AM5 socket. It has 4 DIMM slots for up to 256 GB of DDR5 memory, 3 M.2 slots and a 7.1 channel audio system.
Motherboard - Asrock B850M Pro RS AM5 Micro ATX DDR5, 4 DIMM, 3 M.2, 7.1 Audio
Product reference:
14-4711581490345
The Asrock B850M Pro RS AM5 Micro ATX DDR5 motherboard supports AMD Ryzen 7000, 8000 and 9000 series processors with AM5 socket. It has 4 DIMM slots for up to 256 GB of DDR5 memory, 3 M.2 slots and a 7.1 channel audio system.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
Asrock B850M Pro RS AMD B850 Socket AM5 Micro ATX
Facilitates the use of AMD Ryzen 7000, 8000 and 9000 series processors with AM5 socket. Key features: 4 DIMM slots allowing up to 256 GB DDR5 memory, 3 M.2 slots and 7.1 channel audio system.
- Compatible with AMD Ryzen 8000, 9000 and 7000 series processors using the AM5 socket.
- Equipped with 4 DIMM slots, allowing up to 256 GB of DDR5 memory.
- Offers advanced connectivity, including 2.5 Gigabit Ethernet and multiple USB ports.
- Micro ATX format, ideal for compact computers without sacrificing performance.
Processor | |
|---|---|
| Processor socket | AM5 socket |
| Composite processor types | AMD Ryzen 8000 series, AMD Ryzen 9000 series, AMD Ryzen 7000 series |
| Processor manufacturer | AMD |
Graphics | |
| Support for parallel processing technology | Not supported |
| HDCP | Yes |
| Maximum resolution | 3840 x 2160 pixels |
Features | |
| Motherboard chip | AMD B850 |
| Product color | Black |
| Sound chip | Realtek ALC897 |
| Motherboard format type | Micro ATX |
| Audio output channels | 7.1 channels |
| Windows operating system support | Windows 10 x64, Windows 11 x64 |
Memory | |
| Unbuffered memory | Yes |
| Maximum internal memory | 256GB |
| Memory slot type | DIMMs |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual channel |
| Number of memory slots | 4 |
| ECC compatibility | ECC and Non-ECC |
Weight and dimensions | |
| Depth | 244 mm |
| Width | 244 mm |
Network | |
| LAN controller | Dragon RTL8125BG |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
Internal I/O | |
| Number of USB 3.2 Gen 1 ports | 3 |
| Number of SATA III connectors | 4 |
| Number of USB 2.0 ports | 2 |
| Front panel audio connector | Yes |
| ATX power connector (24-pin) | Yes |
| TPM connector | Yes |
| EPS power connector (8-pin) | Yes |
| RGB LED pin connector | Yes |
| CPU cooler connector | Yes |
| 12V power connector | Yes |
| Number of chassis cooler connections | 3 |
| Number of CPU cooler connections | 2 |
| Number of RGB LED pin connectors | 1 |
| Number of EPS power connections (8-pin) | 1 |
BIOS | |
| BIOS type | UEFI AMI |
Memory controllers | |
| Supported storage device types | HDD and SSD |
| Supported memory device interfaces | PCI Express 4.0, PCI Express 5.0, SATA III |
| RAID support | Yes |
| RAID levels | 1, 0, 10 |
| Number of supported storage devices | 7 |

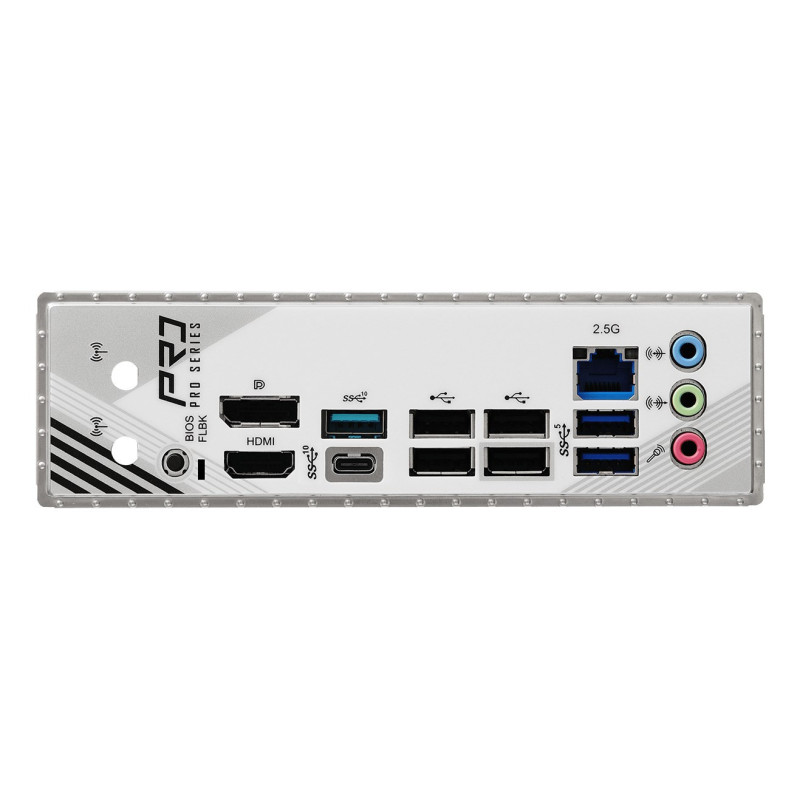

Rear panel I/O ports | |
| Number of USB 2.0 ports | 4 |
| USB connection type | USB Type-C, USB Type-A |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPort version | 1.4 |
| Number of DisplayPorts | 1 |
| Line-in | Yes |
| Microphone input | Yes |
| Headphone outputs | 3 |
| Number of USB 3.2 Gen 2 Type-A ports | 1 |
| HDMI version | 2.1 |
| Number of USB 3.2 Gen 2 Type-C ports | 1 |
| Number of USB 3.2 Gen 1 Type-A ports | 2 |
| Number of HDMI ports | 1 |
Expansion slots | |
| M.2 (M) number of sockets | 3 |
| 1-o M.2 the highest PCI Express generation | 5.0 |
| 3-o M.2 the highest PCI Express generation | 4.0 |
| 1-o M.2 maximum key size | 2280 |
| PCI Express x4 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| 2-o M.2 maximum key size | 2280 |
| 3-o M.2 maximum key size | 2280 |
| 2-o M.2 the highest PCI Express generation | 4.0 |
| Height | 50mm |
| Length | 400mm |
| Weight | 1200g |
| Width | 300mm |
