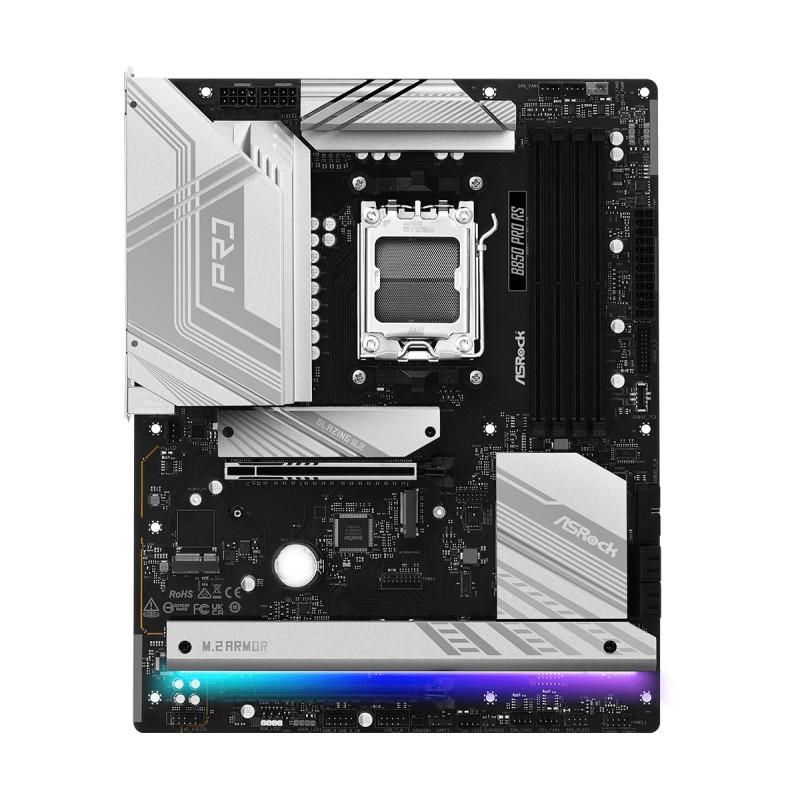

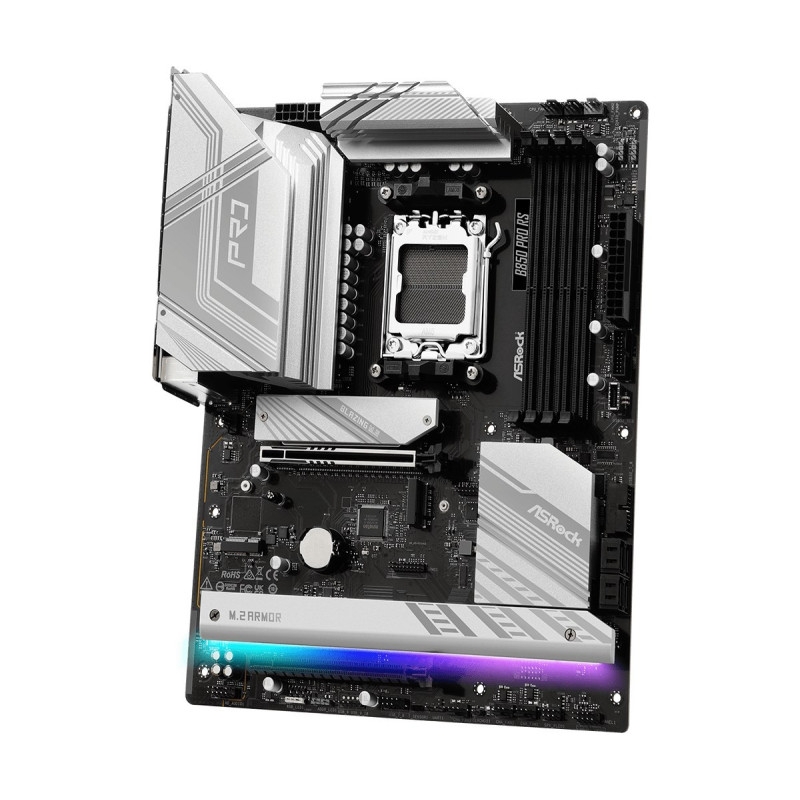

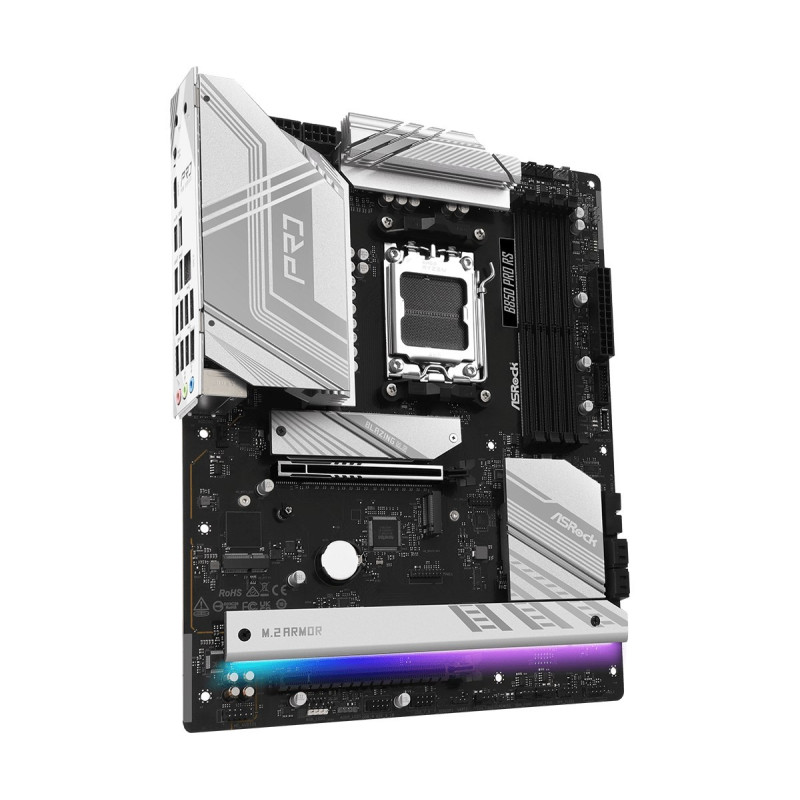

Motherboard - Asrock B850 Pro RS AMD B850 Socket AM5 ATX
Product reference:
14-4711581490161
The Asrock B850 Pro RS motherboard supports AMD Ryzen 7000, 8000 and 9000 series processors with AM5 socket. It has 4 DIMM slots for DDR5 memory, 2.5 Gigabit Ethernet and RAID support for storage.
Motherboard - Asrock B850 Pro RS AMD B850 Socket AM5 ATX
Product reference:
14-4711581490161
The Asrock B850 Pro RS motherboard supports AMD Ryzen 7000, 8000 and 9000 series processors with AM5 socket. It has 4 DIMM slots for DDR5 memory, 2.5 Gigabit Ethernet and RAID support for storage.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
Asrock B850 Pro RS AMD B850 Socket AM5 ATX
Compatible with AMD Ryzen 7000, 8000 and 9000 series processors using Socket AM5. Key features: 4 DIMM slots for DDR5 memory, 2.5 Gigabit Ethernet and RAID support for storage.
- Compatible with AMD Ryzen 7000, 8000 and 9000 series processors using Socket AM5.
- Equipped with 4 DIMM slots, allowing up to 256 GB of DDR5 memory, ensuring high performance.
- Offers an advanced sound system with 7.1 channel output and Realtek ALC897 audio chip to experience immersive sound quality.
- Includes multiple USB ports, HDMI output, and 2.5 Gigabit Ethernet for better connectivity.
Processor | |
|---|---|
| Processor manufacturer | AMD |
| Composite processor types | AMD Ryzen 7000 series, AMD Ryzen 8000 series, AMD Ryzen 9000 series |
| Processor socket | Socket AM5 |
Features | |
| Motherboard chipset family | AMD |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Composite Windows operating systems | Windows 11 x64, Windows 10 x64 |
| Motherboard format type | ATX |
| Motherboard chip | AMD B850 |
Memory | |
| ECC compatibility | ECC |
| Memory channels | Dual channel |
| Memory slot type | DIMMs |
| Types of compound memory | DDR5-SDRAM |
| Number of memory slots | 4 |
| Maximum internal memory | 256GB |
Weight and dimensions | |
| Width | 305mm |
| Depth | 244 mm |
Network | |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| LAN controller | Dragon RTL8125BG |
| Ethernet interface type | 2.5 Gigabit Ethernet |
Internal I/O | |
| Number of CPU cooler connections | 2 |
| Number of USB 3.2 Gen 2x2 ports | 1 |
| Number of EPS power connections (8-pin) | 2 |
| RGB LED pin connector | Yes |
| TPM connector | Yes |
| CPU cooler connector | Yes |
| EPS power connector (8-pin) | Yes |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) ports | 2 |
| Front panel audio connector | Yes |
| ATX power connector (24-pin) | Yes |
| Number of SATA III connectors | 4 |
| Number of USB 2.0 ports | 2 |
| Number of chassis cooler connections | 4 |
BIOS | |
| BIOS type | UEFI AMI |
Storage controls | |
| Composite storage device interfaces | M.2, SATA III |
| RAID support | Yes |
| RAID levels | 1, 0, 10 |

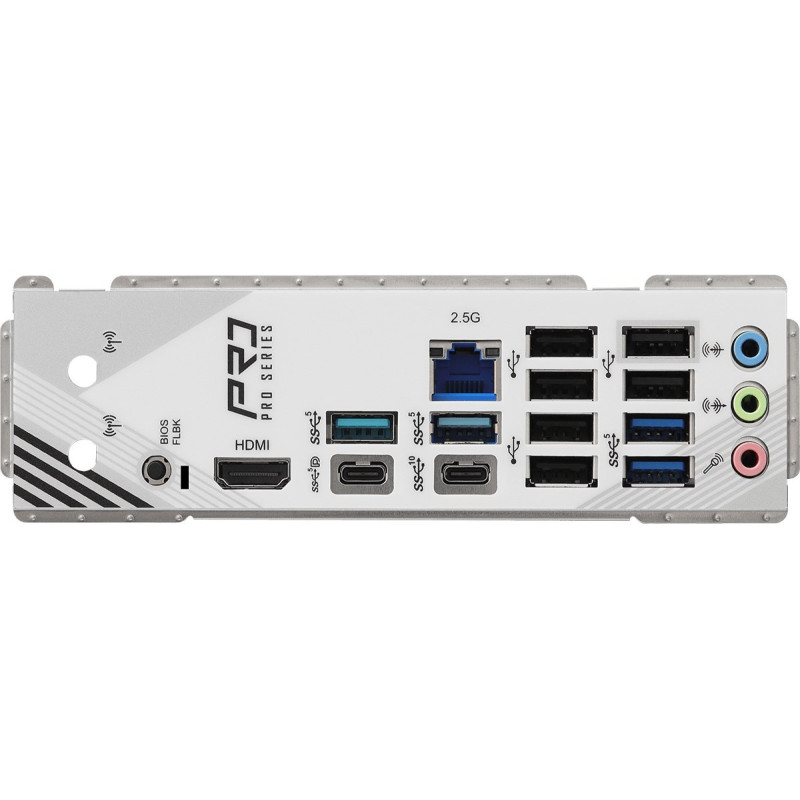

Rear panel I/O ports | |
| Number of HDMI ports | 1 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports | 1 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 4 |
| Number of USB 2.0 ports | 6 |
| Microphone input | Yes |
| Line input | Yes |
Expansion slots | |
| PCI Express x16 (Gen 5.x) slots | 1 |
| M.2 (M) number of sockets | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Height | 100mm |
| Length | 400mm |
| Weight | 1600g |
| Width | 300mm |
