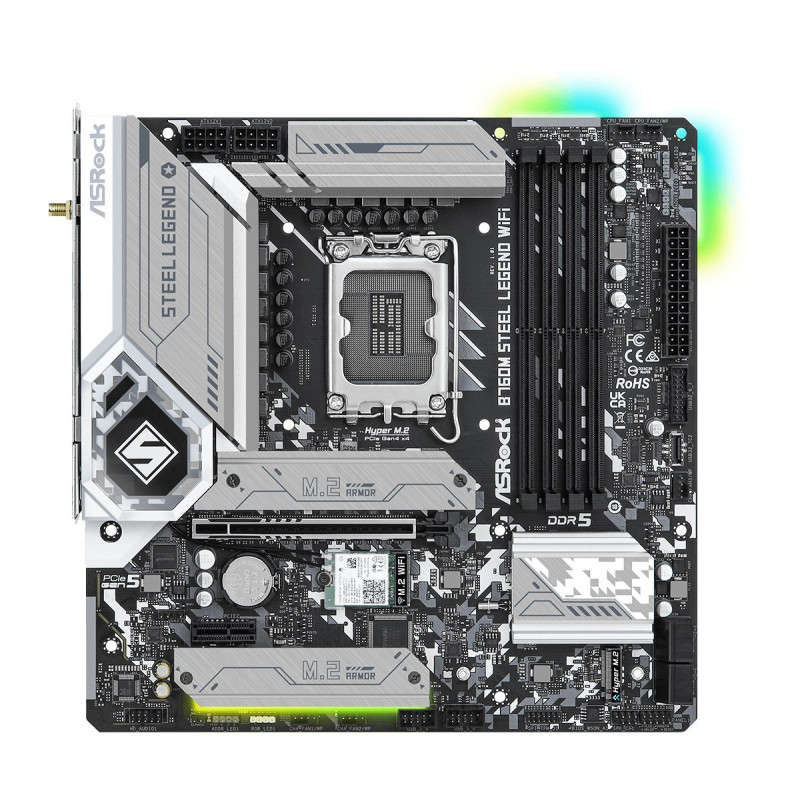

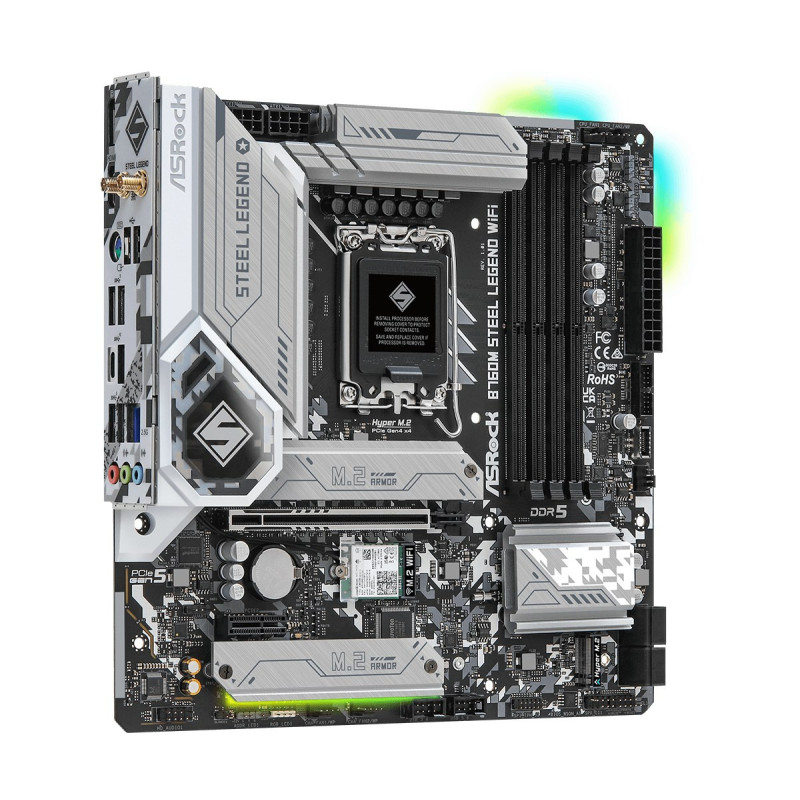

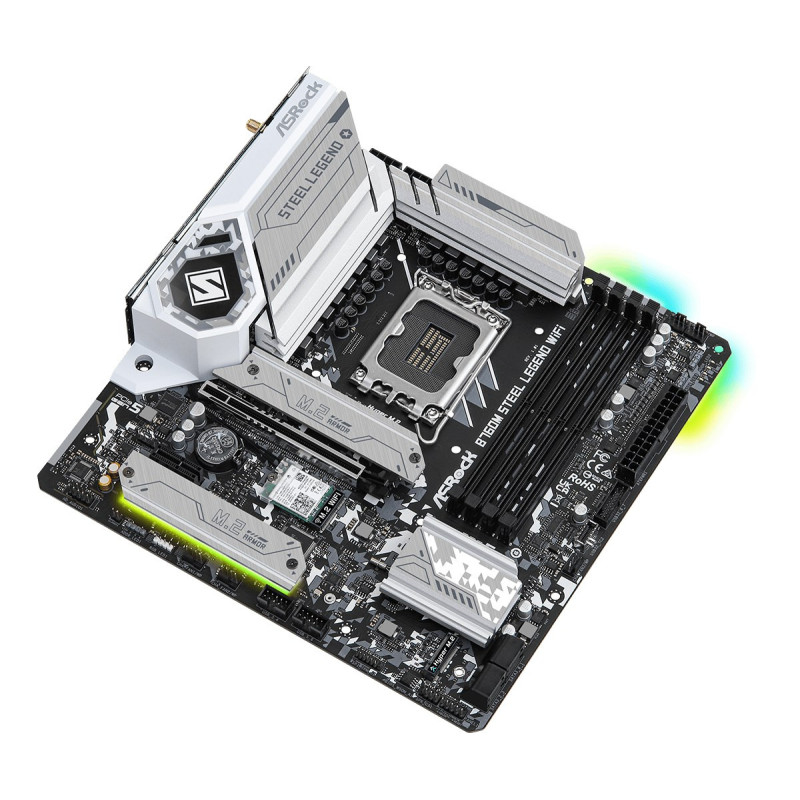

Motherboard - Asrock B760M Steel Legend WiFi
Product reference:
14-4710483941795
The ASRock B760M Steel Legend WiFi supports up to 128GB of DDR5 memory, features Wi-Fi 6E, and a modern LAN controller for fast and stable connections. In addition, this micro ATX motherboard offers extensive connectivity options, including M.2 and HDMI outputs.
Motherboard - Asrock B760M Steel Legend WiFi
Product reference:
14-4710483941795
The ASRock B760M Steel Legend WiFi supports up to 128GB of DDR5 memory, features Wi-Fi 6E, and a modern LAN controller for fast and stable connections. In addition, this micro ATX motherboard offers extensive connectivity options, including M.2 and HDMI outputs.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
Micro ATX motherboard - Asrock B760m Steel Legend WiFi
ASRock B760M Steel Legend WiFi is a micro ATX motherboard designed for Intel Core i5, i7 and i9 processors. It features the latest Intel B760 chipset, Wi-Fi 6E (802.11ax) and 2.5 Gigabit Ethernet.
Main features
- Facilitates up to 128 GB of DDR5-SDRAM memory support
- Equipped with Dragon RTL8125BG LAN controller and Wi-Fi 6E
- Has 4 SATA III connectors and supports M.2 storage devices
Processor | |
|---|---|
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Maximum number of SMP processors | 1 |
| Processor socket | LGA 1700 |
Features | |
| Motherboard chipset family | Intel |
| Supported Windows operating systems | Windows 11 x64, Windows 10 x64 |
| Motherboard chipset | Intel B760 |
| Motherboard format type | micro ATX |
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC897 |
Memory | |
| Maximum internal memory | 128GB |
| Memory slot type | DIMMs |
| Unbuffered memory | Yes |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual channel |
| ECC compatibility | Non-ECC |
Weight and dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
Network | |
| LAN controller | Dragon RTL8125BG |
| Wi-Fi standards | 802.11b, Wi-Fi 4 (802.11n), 802.11a, 802.11g, Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth version | 5.3 |
| Ethernet LAN | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Bluetooth | Yes |
Internal I/O | |
| RGB LED pin connector | Yes |
| CPU cooler connector | Yes |
| USB 2.0 ports | 2 |
| Front panel audio connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| ATX power connector (24-pin) | Yes |
| TPM connector | Yes |
| Number of SATA III connectors | 4 |
BIOS | |
| BIOS type | UEFI AMI |
Package contents | |
| Cables included | SATA |
Memory controllers | |
| Supported storage device types | HDD and SSD |
| Supported memory device interfaces | M.2, SATA III |

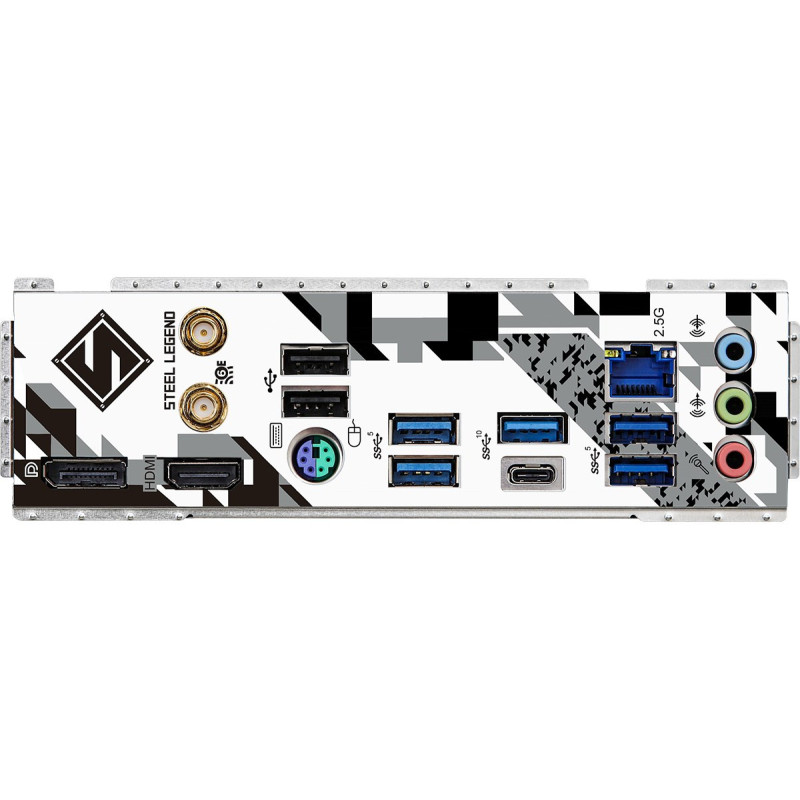

Rear panel I/O connectors | |
| Number of DisplayPorts | 1 |
| Number of USB 2.0 ports | 2 |
| PS/2 number of ports | 1 |
| Line-in | Yes |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports | 1 |
| Number of HDMI ports | 1 |
| Microphone | Yes |
| DisplayPort version | 1.4 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports | 1 |
Expansion slots | |
| PCI Express x4 (Gen 1.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x1 (Gen 4.x) slots | 1 |
| M.2 (M) number of sockets | 1 |
| Height | 62 mm |
| Length | 282 mm |
| Weight | 1375 grams |
| Width | 262 mm |
