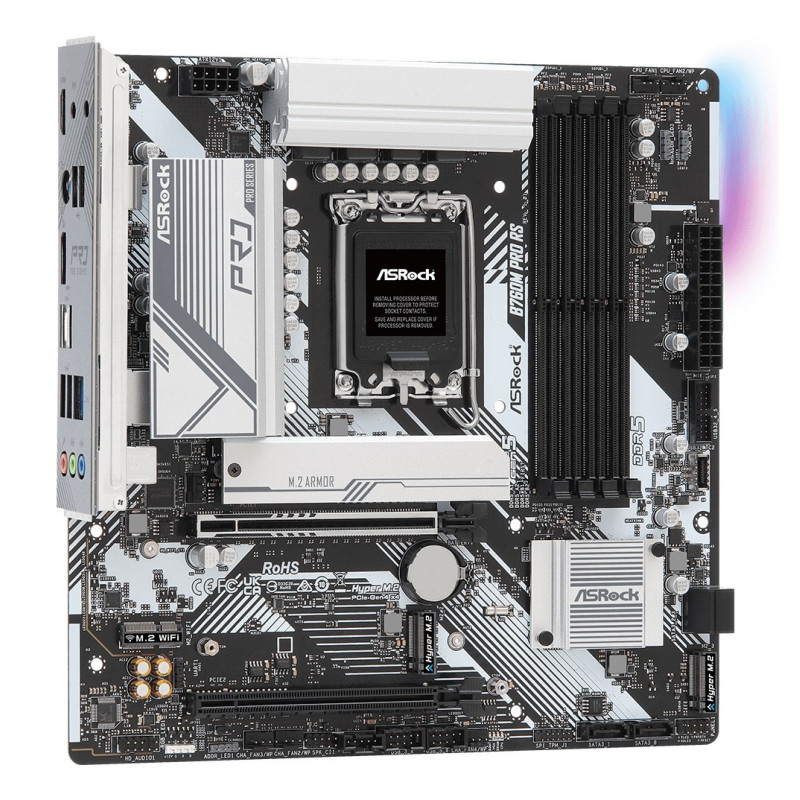

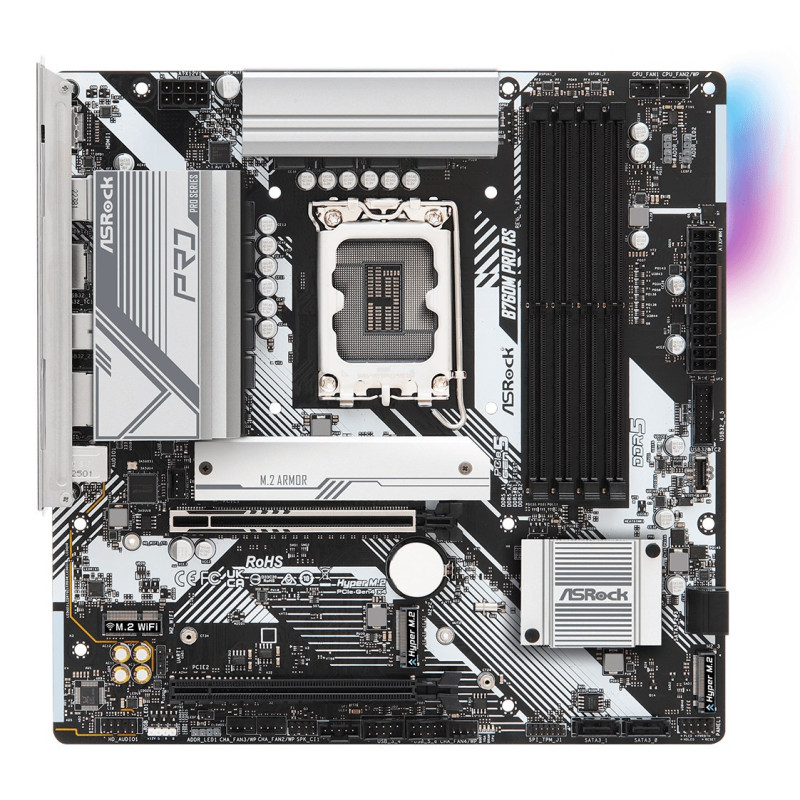

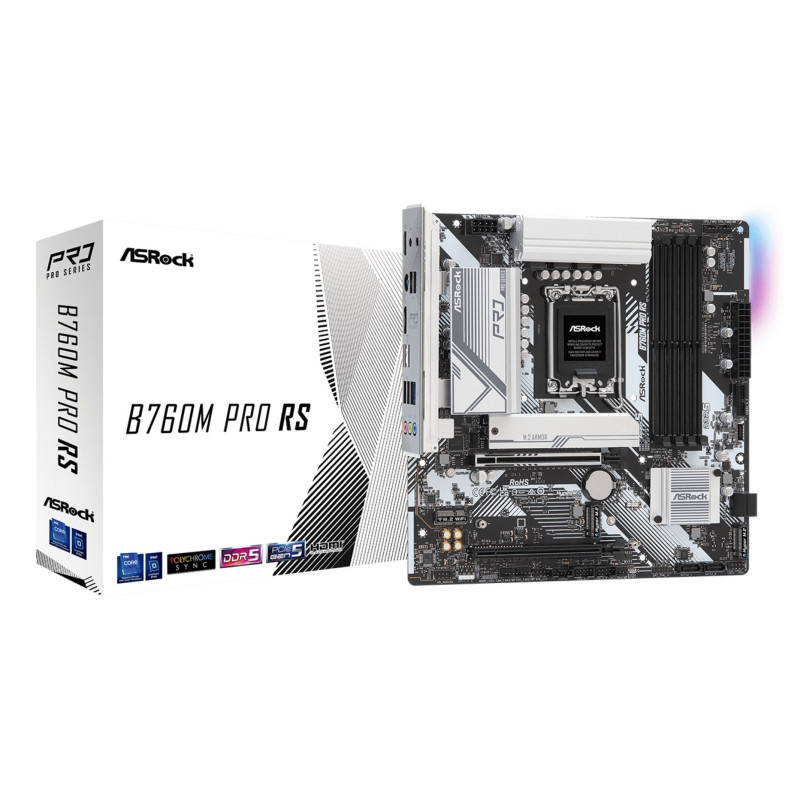

Motherboard - Asrock B760M Pro RS Intel B760 LGA 1700 DDR5 256GB 2.5GbE
Product reference:
14-4710483942723
The Asrock B760M Pro RS motherboard supports Intel® Core™ i5, i7 and i9 processors, with a maximum capacity of 256 GB of DDR5-SDRAM memory. It has 2.5 Gigabit Ethernet, multiple USB ports and supports M.2 and SATA III storage interfaces.
Motherboard - Asrock B760M Pro RS Intel B760 LGA 1700 DDR5 256GB 2.5GbE
Product reference:
14-4710483942723
The Asrock B760M Pro RS motherboard supports Intel® Core™ i5, i7 and i9 processors, with a maximum capacity of 256 GB of DDR5-SDRAM memory. It has 2.5 Gigabit Ethernet, multiple USB ports and supports M.2 and SATA III storage interfaces.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
Asrock B760M Pro Rs Intel B760 LGA 1700 Micro ATX
Compatible with Intel® Core™ i5, i7 and i9 processors, up to 256 GB of internal storage with DDR5-SDRAM. Key features include 2.5 Gigabit Ethernet, multiple USB ports, and support for M.2 and SATA III storage interfaces.
- Compatible with Intel® Core™ i5, i7 and i9 processors with LGA 1700 socket.
- Micro ATX format board with maximum 256 GB internal memory using DDR5-SDRAM.
- Equipped with 2.5 Gigabit Ethernet for fast network connectivity and a Realtek ALC897 7.1 channel sound system.
- Includes multiple USB ports, HDMI, and DisplayPort for a variety of connectivity options.
Processor | |
|---|---|
| Processor manufacturer | Intel |
| Maximum number of SMP processors | 1 |
| Composite processor models | Intel® Core™ i5, i7, i9 |
| Processor socket | LGA 1700 |
Memory | |
| Number of memory slots | 4 |
| Memory channels | Dual channels |
| Memory slot type | DIMMs |
| ECC compatibility | Non-ECC |
Weight and dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
Network | |
| LAN controller | Realtek RTL8125-BG |
Internal I/O | |
| Number of SATA III connectors | 4 |
| ATX power connector (24-pin) | Yes |
| Thunderbolt connectors | 1 |
| RGB LED connector | Yes |
| Front panel audio connector | Yes |
| Number of USB 2.0 ports | 6 |
| CPU cooler connector | Yes |
| TPM connector | Yes |
BIOS | |
| BIOS type | UEFI AMI |
Memory controllers | |
| Supported memory types | HDD and SSD |

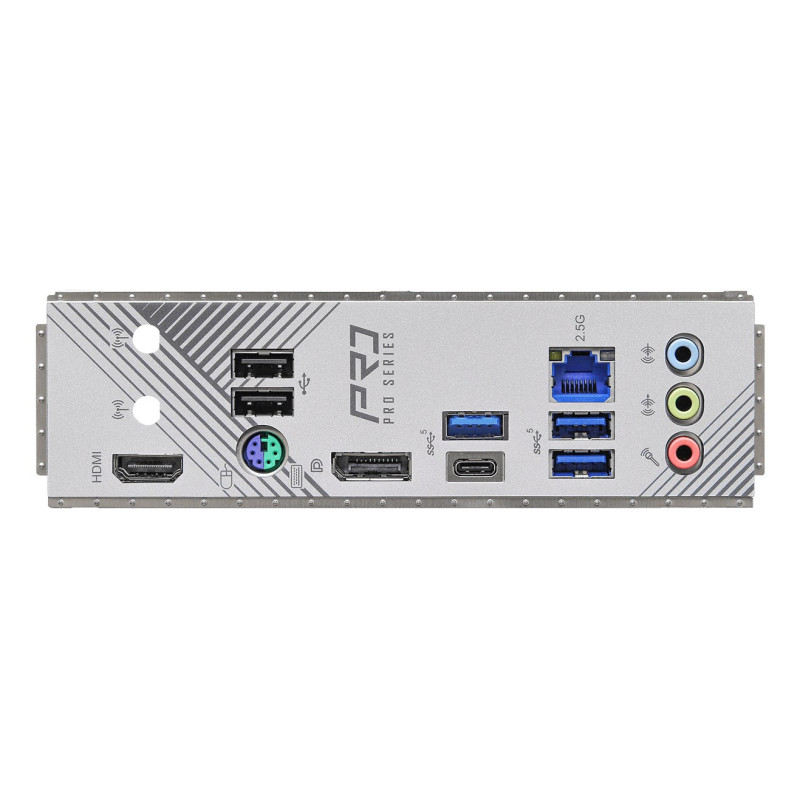

Rear panel I/O ports | |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of USB 3.2 Gen 1 Type-A ports | 3 |
| DisplayPort version | 1.4 |
| Number of DisplayPorts | 1 |
| Microphone input | Yes |
| PS/2 number of ports | 1 |
| Line-In | Yes |
| Number of USB 3.2 Gen 1 Type-C ports | 1 |
| Number of HDMI ports | 1 |
| Number of USB 2.0 ports | 2 |
Expansion slots | |
| PCI Express x16 (Gen 5.x) slots | 1 |
| M.2 (M) number of sockets | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Height | 60mm |
| Length | 260mm |
| Weight | 1300g |
| Width | 260mm |
