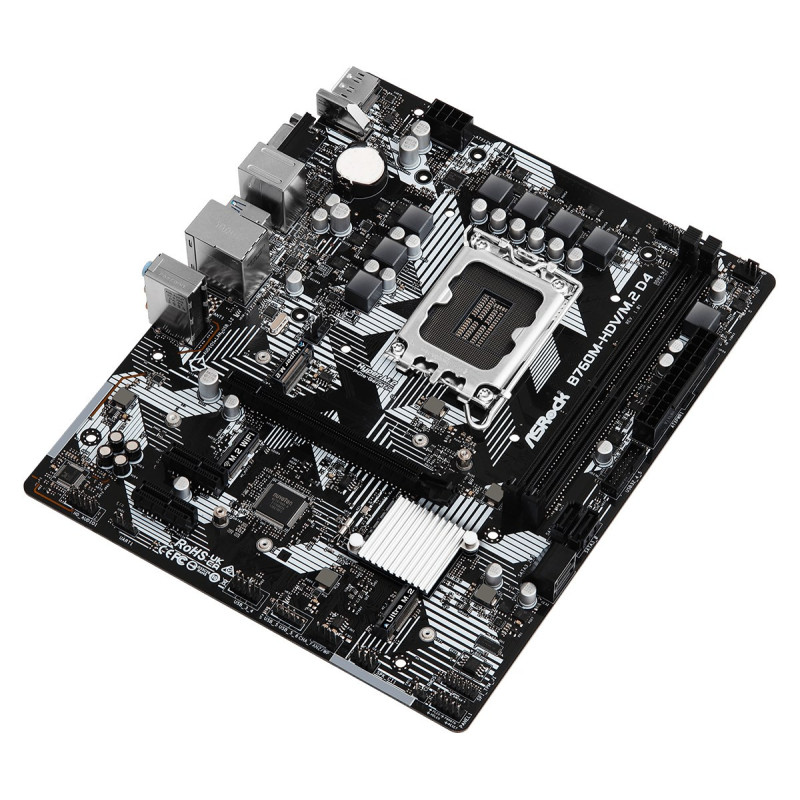

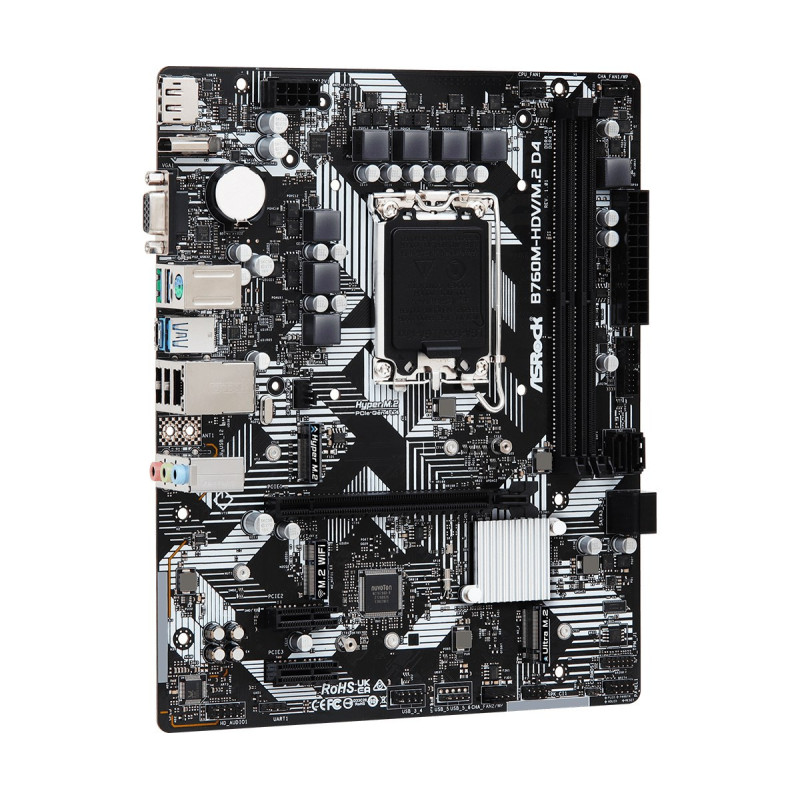

Motherboard - Asrock B760M-HDV / M.2 D4 Intel B760 LGA 1700 'Micro ATX'
Product reference:
14-4710483942020
The Asrock B760M-HDV/M.2 D4 motherboard supports up to 5333 MHz DDR4 memory, has one M.2 slot with PCIe Gen 4x interface, and four SATA III ports for efficient memory expansion with RAID 0, 1, 5, and 10 support.
Motherboard - Asrock B760M-HDV / M.2 D4 Intel B760 LGA 1700 'Micro ATX'
Product reference:
14-4710483942020
The Asrock B760M-HDV/M.2 D4 motherboard supports up to 5333 MHz DDR4 memory, has one M.2 slot with PCIe Gen 4x interface, and four SATA III ports for efficient memory expansion with RAID 0, 1, 5, and 10 support.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
Motherboard - Asrock B760m-hdv/m.2
Asrock B760M-HDV/M.2 D4 is a high-quality micro ATX motherboard designed for Intel Core series processors, offering exceptional power delivery and connectivity options.
Main features
- Enables Intel Core i7, i9, i3 and i5 processors
- Dual-channel DDR4 memory support with speeds up to 5333 MHz
- 1 x M.2 slot with PCIe Gen 4x and SATA interfaces
- Supports RAID levels 0, 1, 5, and 10
Processor | |
|---|---|
| Processor socket | LGA 1700 |
| Maximum number of SMP processors | 1 |
| Compatible processor series | Intel® Core™ i7, Intel® Core™ i9, Intel® Core™ i3, Intel® Core™ i5 |
| Processor manufacturer | Intel |
Graphics | |
| HDCP | Yes |
| Support for parallel processing technology | Not supported |
Features | |
| Audio output channels | 7.1 channels |
| Motherboard chipset family | Intel |
| Audio chip | Realtek ALC897 |
| Motherboard chip | Intel B760 |
| Motherboard format type | micro ATX |
| Supported Windows operating systems | Windows 10 Education x64, Windows 11 x64 |
Memory | |
| Supported memory clock speeds | 3200, 4400, 5333MHz |
| Maximum internal memory | 64GB |
| Non-volatile memory | Yes |
| Number of memory slots | 2 |
| Memory channels | Dual channel |
| Memory slot type | DIMMs |
| Supported memory types | DDR4-SDRAM |
Weight and dimensions | |
| Depth | 201 mm |
| Width | 244 mm |
Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| LAN controller | Realtek RTL8111H |
| Wi-Fi | No |
Internal I/O | |
| Front panel connector | Yes |
| ATX power connector (24-pin) | Yes |
| USB 2.0 ports | 3 |
| Enclosure burglary connector | Yes |
| Number of SATA III connectors | 4 |
| CPU cooler connector | Yes |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
BIOS | |
| BIOS type | UEFI AMI |
Package contents | |
| Cables included | SATA |
Memory controllers | |
| RAID support | Yes |
| RAID levels | 1, 10, 0, 5 |
| Supported memory device interfaces | M.2, SATA III |

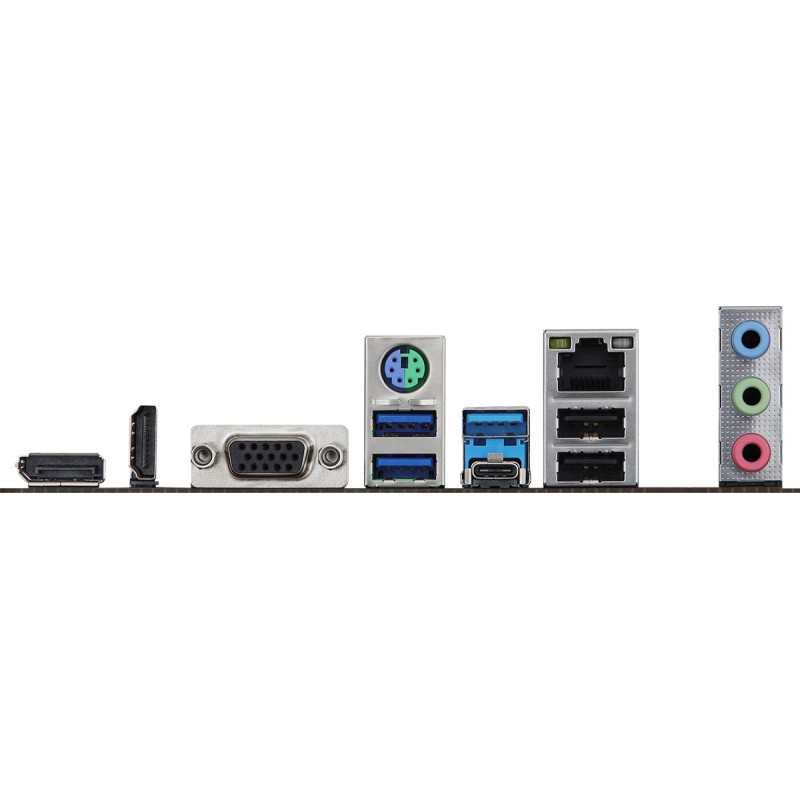

Rear panel I/O ports | |
| DisplayPort version | 1.4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 3 |
| Microphone input | Yes |
| Line-in | Yes |
| Number of VGA (D-Sub) ports | 1 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports | 1 |
| Number of HDMI ports | 1 |
| PS/2 number of ports | 1 |
| Number of DisplayPorts | 1 |
| Number of USB 2.0 ports | 2 |
Expansion slots | |
| M.2 (M) number of sockets | 1 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Height | 100mm |
| Length | 400mm |
| Weight | 1000g |
| Width | 300mm |
