Motherboard - ASRock B760M-H2 / M.2
Product reference:
14-4710483944215
The motherboard supports up to 96 GB of DDR5-SDRAM memory, features an Intel B760 chipset, Realtek ALC897 audio chip, and Dragon RTL8125BG LAN controller, ensuring fast and reliable connectivity.
Motherboard - ASRock B760M-H2 / M.2
Product reference:
14-4710483944215
The motherboard supports up to 96 GB of DDR5-SDRAM memory, features an Intel B760 chipset, Realtek ALC897 audio chip, and Dragon RTL8125BG LAN controller, ensuring fast and reliable connectivity.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

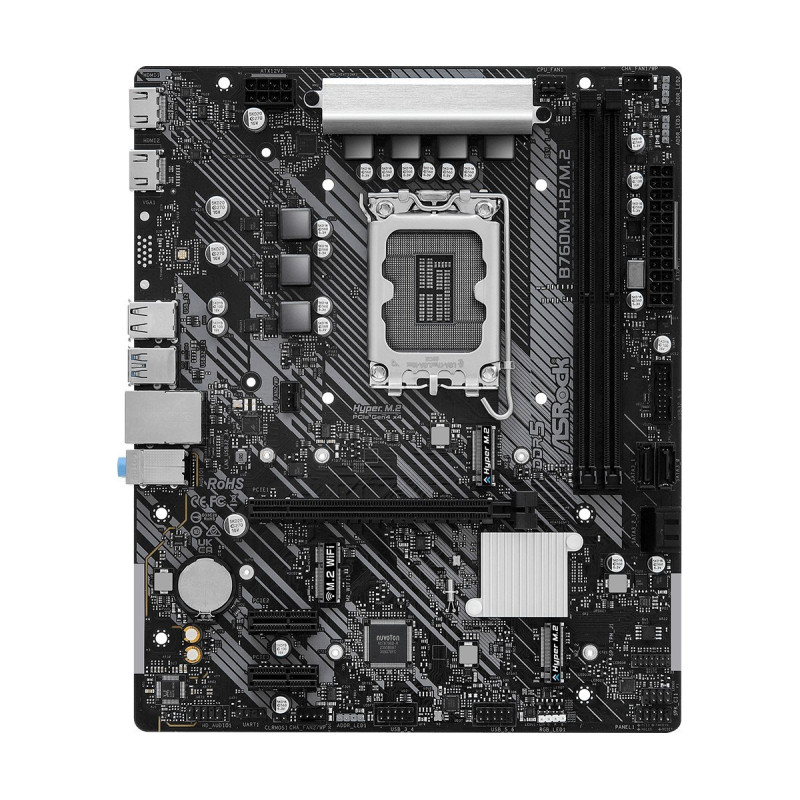

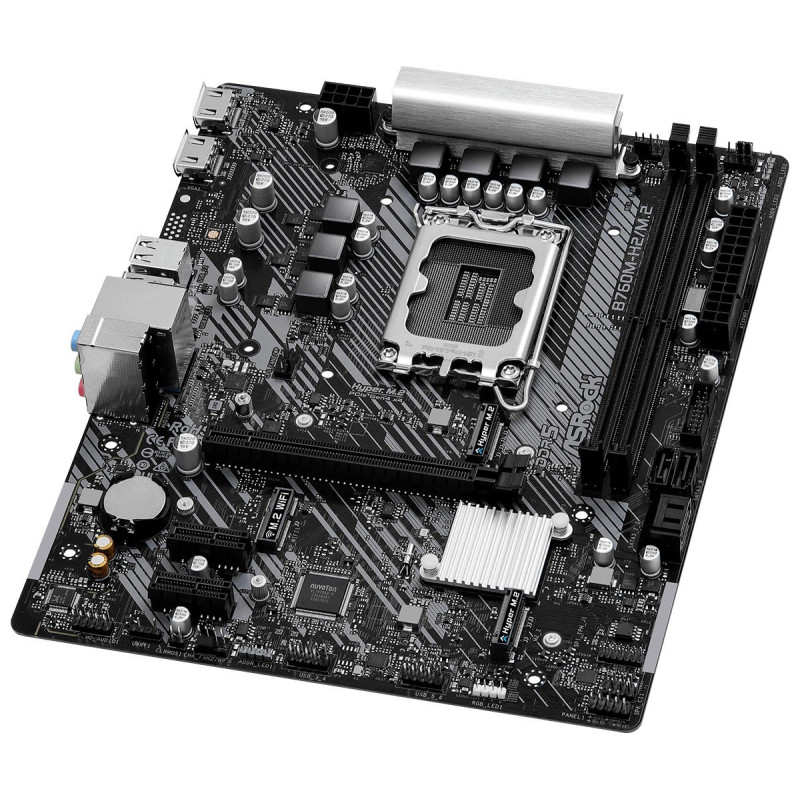

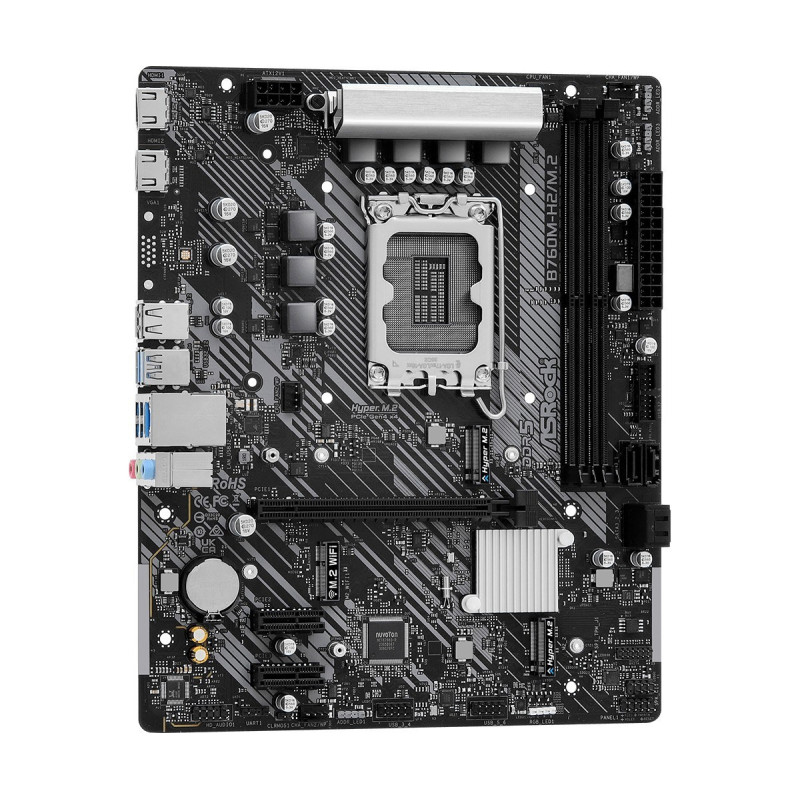

ASRock B760M-H2/M.2
The ASRock B760M-H2/M.2motininė board is in the Micro ATX format with the Intel B760 chipset, supporting up to 96 GB of DDR5-SDRAM memory. It has a Realtek ALC897 audio chip, a Dragon RTL8125BG LAN controller, and Wi-Fi connectivity.
Main features
- Supports up to 96 GB of DDR5-SDRAM memory
- Intel B760 microchip
- Realtek ALC897 audio chip
- Dragon RTL8125BG LAN controller and Wi-Fi connection
Technical specifications
- Motherboard format type: Micro ATX
- Chip: Intel B760
- Processor socket: LGA 1700
- Memory type: DDR5-SDRAM
- Maximum internal memory: 96 GB
Processor | |
|---|---|
| Compatible processor series | Intel® Core™ i3, i5, i7, i9 |
| Maximum number of SMP processors | 1 |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
Graphics | |
| Support for parallel processing technology | Not supported |
Features | |
| Motherboard chip | Intel B760 |
| Motherboard format type | Micro ATX |
| Audio output channels | 7.1 channels |
| Supported Windows operating systems | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | Intel |
| Audio chip | Realtek ALC897 |
Memory | |
| Unbuffered memory | Yes |
| Maximum internal memory | 96GB |
| Supported memory types | DDR5-SDRAM |
| Memory slot type | DIMMs |
| Number of memory slots | 2 |
Weight and dimensions | |
| Depth | 201 mm |
| Width | 244 mm |
Network | |
| LAN controller | Dragon RTL8125BG |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | Yes (antenna required) |
Internal I/O | |
| 12V power connector (8-pin) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| LED connection | Yes |
| ATX power connector (24-pin) | Yes |
| Front panel audio connector | Yes |
| CPU cooler connector | Yes |
| USB 2.0 ports | 2 |
| Number of SATA III connectors | 4 |
| TPM connector | Yes |
BIOS | |
| BIOS type | UEFI AMI |
Memory controllers | |
| RAID levels | 0, 1, 5, 10 |
| Supported storage drive types | HDD SSD |
| RAID support | Yes |
| Supported storage drive interfaces | M.2, SATA III |

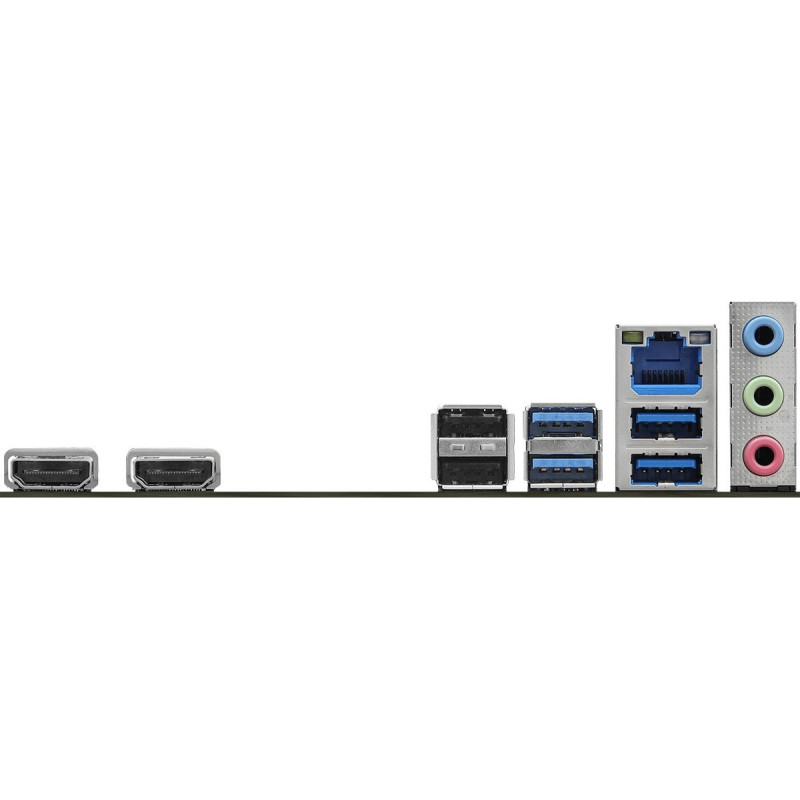

Rear panel I/O connectors | |
| Number of HDMI ports | 2 |
| Number of USB 2.0 ports | 2 |
| WiFi-AP antenna connector | 2 |
| Number of audio connectors | 3 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 4 |
| Ethernet LAN (RJ-45) connections | 1 |
Expansion slots | |
| M.2 (M) number of sockets | 1 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Height | 50mm |
| Length | 400mm |
| Weight | 1600g |
| Width | 300mm |
