Motherboard - ASRock B760I Lightning WiFi Mini-ITX
Product reference:
14-4710483946677
The ASRock B760I Lightning WiFi Mini-ITX motherboard delivers ultra-fast WiFi connectivity and robust power delivery, ideal for high-end gaming in limited spaces.
Motherboard - ASRock B760I Lightning WiFi Mini-ITX
Product reference:
14-4710483946677
The ASRock B760I Lightning WiFi Mini-ITX motherboard delivers ultra-fast WiFi connectivity and robust power delivery, ideal for high-end gaming in limited spaces.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

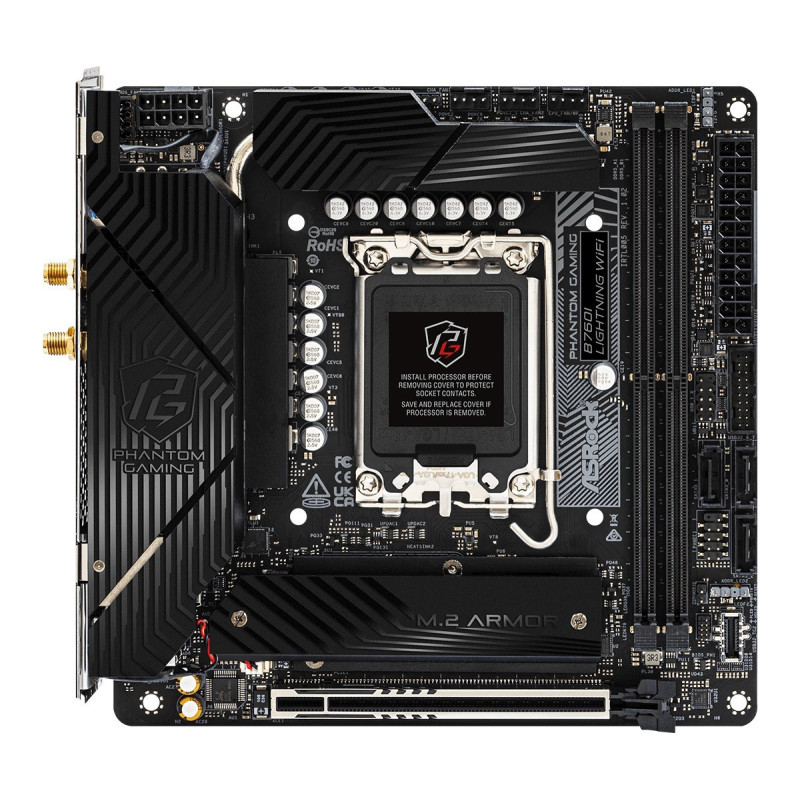

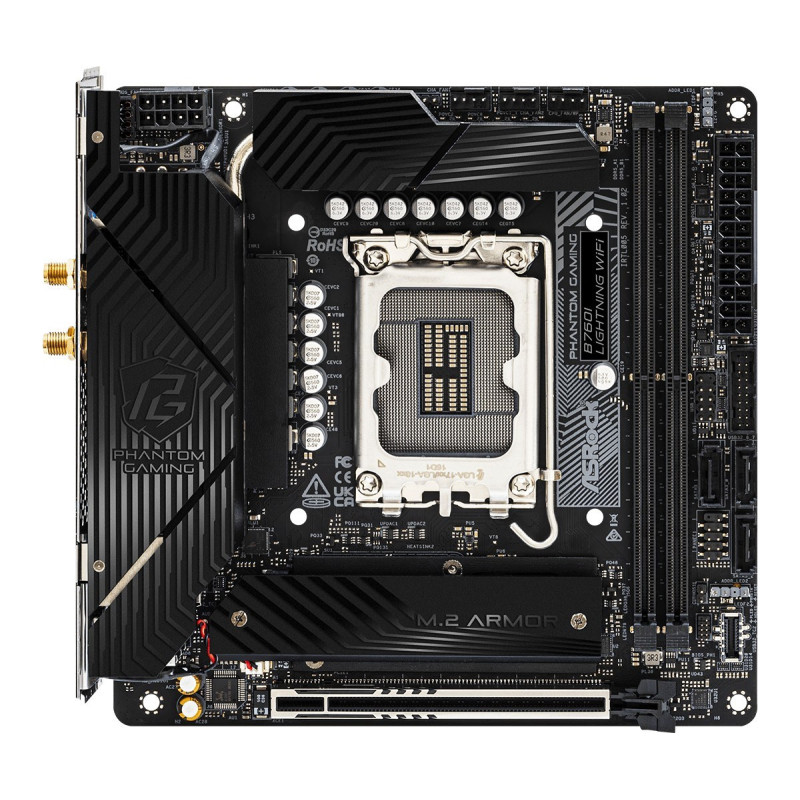

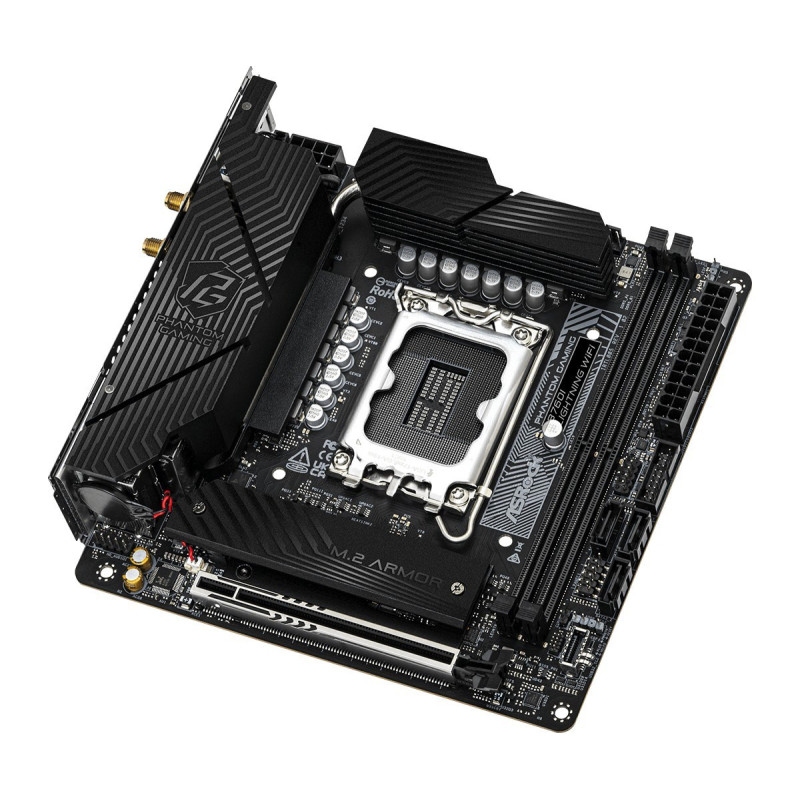

ASRock B760I Lightning WiFi Mini-ITX
Elevate your PC's capabilities with the ASRock B760I Lightning WiFi Mini-ITX motherboard! With super-fast WiFi, solid power delivery, and a compact design, it's perfect for high-end gaming in limited spaces.
- Comprises Intel® Core™ i3, i5, i7, i9, Celeron® and Pentium® Gold processors (LGA 1700)
- Maximum resolution of 7680 x 4320 pixels for stunning images
- Dual-channel DDR5 memory support with a maximum frequency of 8600 MHz
- Integrated 2.5 Gigabit Ethernet and Wi-Fi 6E for fast connectivity
- Compact Mini-ITX form factor design, ideal for space-saving solutions
Processor | |
|---|---|
| Supported processor sockets | LGA 1700 |
| Compatible processor series | Intel® Core™ i3, i5, i7, i9, Intel® Celeron®, Intel® Pentium® Gold |
| Processor manufacturer | Intel |
Graphics | |
| Maximum resolution | 7680 x 4320 pixels |
Features | |
| Supported operating systems | Windows 11 x64, Windows 10 x64 |
| Product color | Black |
| Motherboard chip | Intel B760 |
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC897 |
| Motherboard format type | Mini-ITX |
Memory | |
| Number of memory slots | 2 |
| Memory type | DDR5-SDRAM |
| Maximum memory frequency | 8600MHz |
| Memory channels | Dual channel |
| Maximum internal memory | 96GB |
Weight and dimensions | |
| Depth | 170mm |
| Width | 170mm |
Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11ax, 802.11ac, 802.11n, 802.11g, 802.11b, Wi-Fi 6E (802.11axe) |
| Bluetooth version | 5.3 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
Internal I/O | |
| USB Type-C port on the front panel | Yes |
| Number of addressable LED sockets | 2 |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| 12V power connector | Yes |
| Number of SATA III connectors | 3 |
| Front panel audio connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| ATX power connector (24-pin) | Yes |
| USB 2.0 ports | 1 |
BIOS | |
| BIOS type | UEFI AMI |
Package contents | |
| Cables included | SATA |
| Antennas included | Yes |
| Screws included | Yes |
Memory controllers | |
| Number of supported storage drives | 5 |
| RAID levels | 0, 1, 5 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| Supported storage drive types | HDD and SSD |

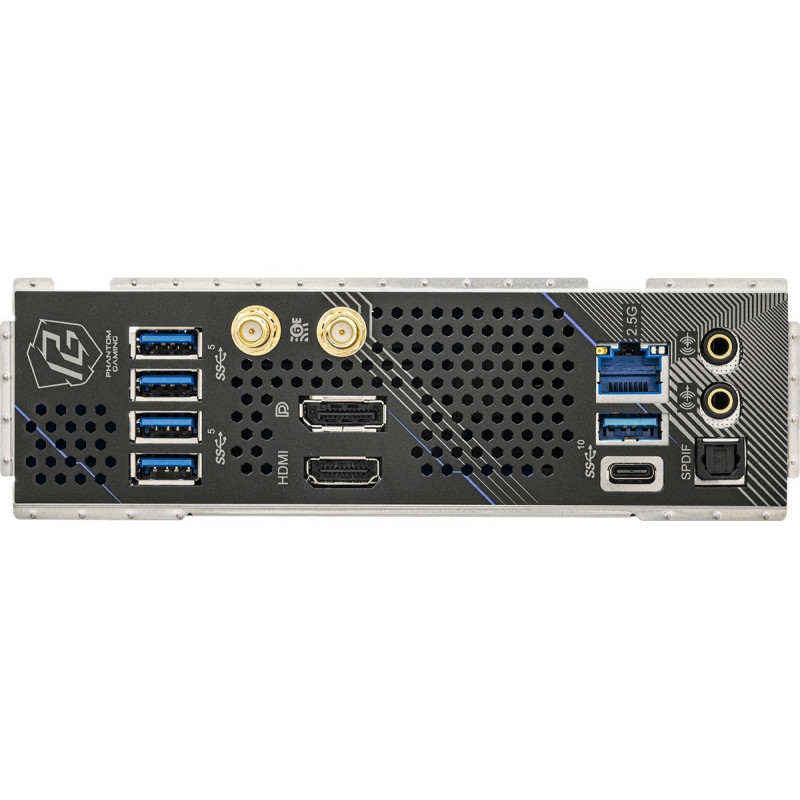

Rear panel I/O connectors | |
| Number of USB 3.2 Gen 1 ports | 4 |
| Number of USB 3.2 Gen 2 Type-C ports | 1 |
| SPDIF optical output | Yes |
| Number of HDMI ports | 1 |
| WiFi-AP antenna connector | 2 |
| Line out | Yes |
| MIC input | 1 |
| Number of USB 3.2 Gen 2 Type-A ports | 1 |
| USB connection type | USB Type-C, USB Type-A |
| Number of DisplayPorts | 1 |
| Number of Ethernet LAN (RJ-45) connections | 1 |
| DisplayPort version | 1.4 |
Expansion slots | |
| PCI Express x16 (Gen 5.x) slots | 1 |
| M.2 (M) number of sockets | 2 |
| Height | 190 mm |
| Length | 235 mm |
| Weight | 1100g |
| Width | 100mm |
