Motherboard - Asrock B650D4U AMD B650 Express AM5 Socket 'Micro ATX'
Product reference:
14-4711430520988
The Asrock B650D4U motherboard supports up to 32 GB of DDR5-SDRAM memory with a speed of 5200 MHz and is compatible with AMD Ryzen 3 and Ryzen 5 processors via the AM5 socket, ensuring fast and efficient performance.
Motherboard - Asrock B650D4U AMD B650 Express AM5 Socket 'Micro ATX'
Product reference:
14-4711430520988
The Asrock B650D4U motherboard supports up to 32 GB of DDR5-SDRAM memory with a speed of 5200 MHz and is compatible with AMD Ryzen 3 and Ryzen 5 processors via the AM5 socket, ensuring fast and efficient performance.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

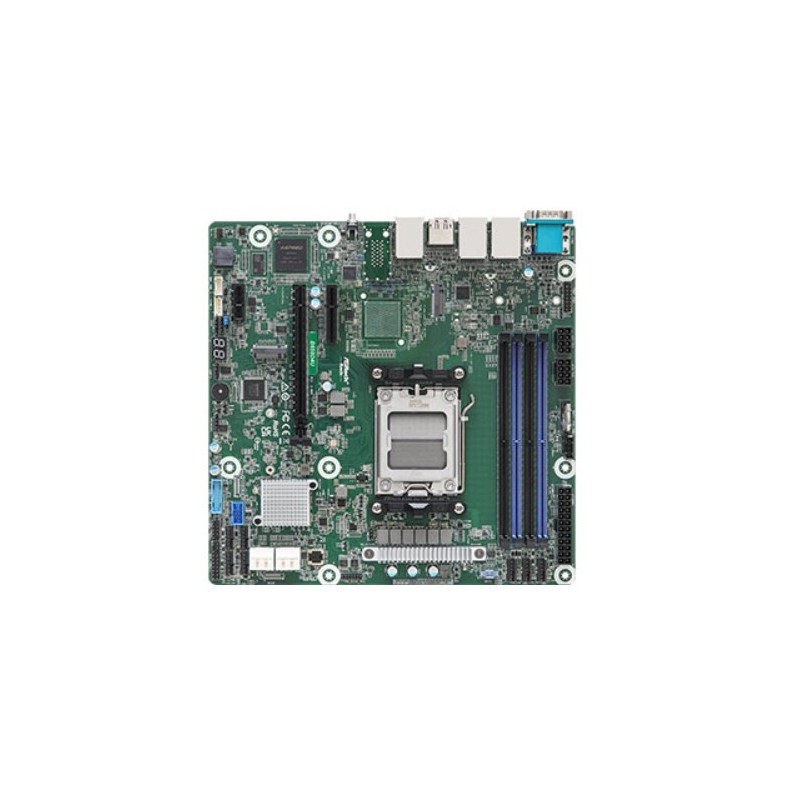

Motherboard - Asrock B650D4U
The Asrock B650D4U is a micro ATX motherboard designed for server applications that supports AMD Ryzen 3 and Ryzen 5 processors via the Socket AM5 interface.
Main features
- Supports up to 32 GB DDR5-SDRAM memory (ECC and Non-ECC)
- Quad-channel architecture with speeds up to 5200 MHz
- Integrated Aspeed AST2600 video controller
Processor | |
|---|---|
| Processor socket | Socket AM5 |
| Maximum number of SMP processors | 1 |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen™ 3, AMD Ryzen™ 5 |
Image | |
| Integrated graphics card model | Aspeed AST2600 |
Features | |
| The component is intended for | For the server |
| Computer health monitoring | Processor, Voltage, Fan |
| Motherboard form factor | micro ATX |
| Motherboard chipset | AMD B650 Express |
| Motherboard chipset family | AMD |
Memory | |
| Memory voltage | 1.1V |
| Supported memory types | DDR5-SDRAM |
| Memory slot type | DIMMs |
| Supported memory clock speed (max) | 5200MHz |
| ECC | Yes |
| Supported memory clock speeds | 5200, 3600MHz |
| Maximum internal memory | 32GB |
| Non-ECC | Yes |
| Number of memory slots | 4 |
Operating conditions | |
| Operating relative humidity (HH) | 20 - 90% |
| Operating temperature (OT) | 10 - 35 °C |
| Storage temperature (TT) | -40 - 70 °C |
Weight and dimensions | |
| Width | 243.8 mm |
| Depth | 243.8 mm |
Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
Internal I/O | |
| ATX power connector (24-pin) | Yes |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |
| Number of COM ports | 1 |
| Number of SATA III connectors | 4 |
BIOS | |
| System Management BIOS (SMBIOS) version | 3.5 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 6.4 |
Storage controls | |
| Supported storage device interfaces | M.2, SATA III |
| RAID support | Yes |
| RAID levels | 10, 1, 0 |

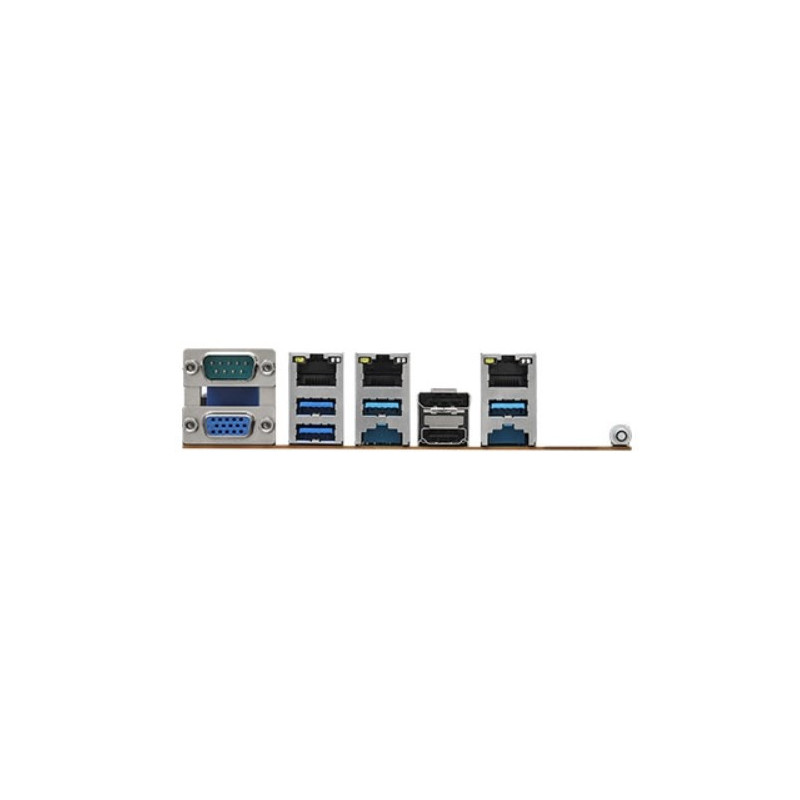

Rear panel I/O connectors | |
| Number of serial ports | 1 |
| IPMI LAN (RJ-45) connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A connectors quantity | 4 |
| Number of Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) connector quantity | 1 |
| Number of HDMI ports | 1 |
Expansion slots | |
| PCI Express x4 (Gen 4.x) slots | 1 |
