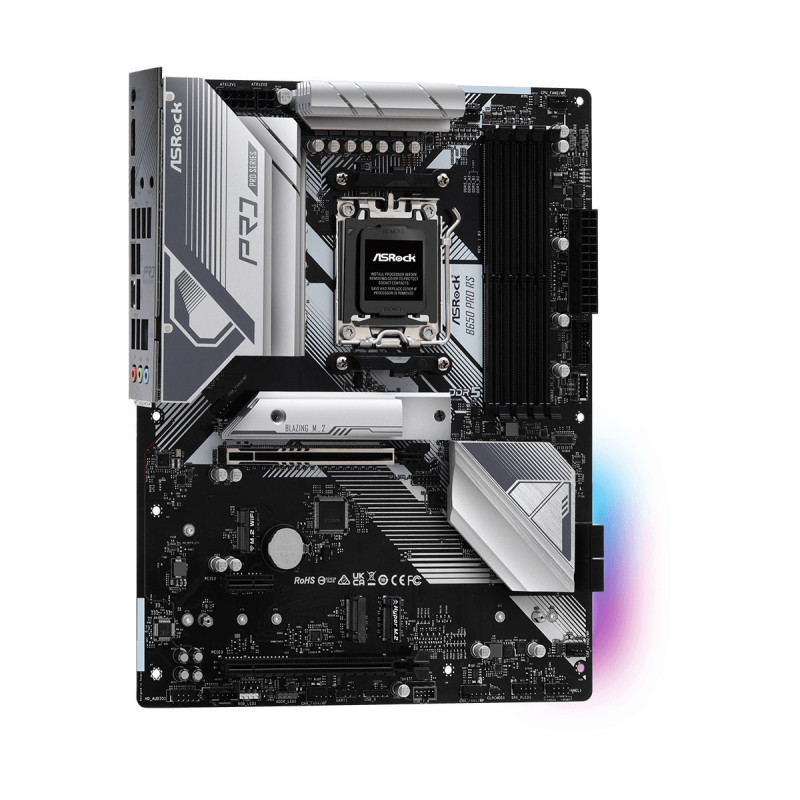

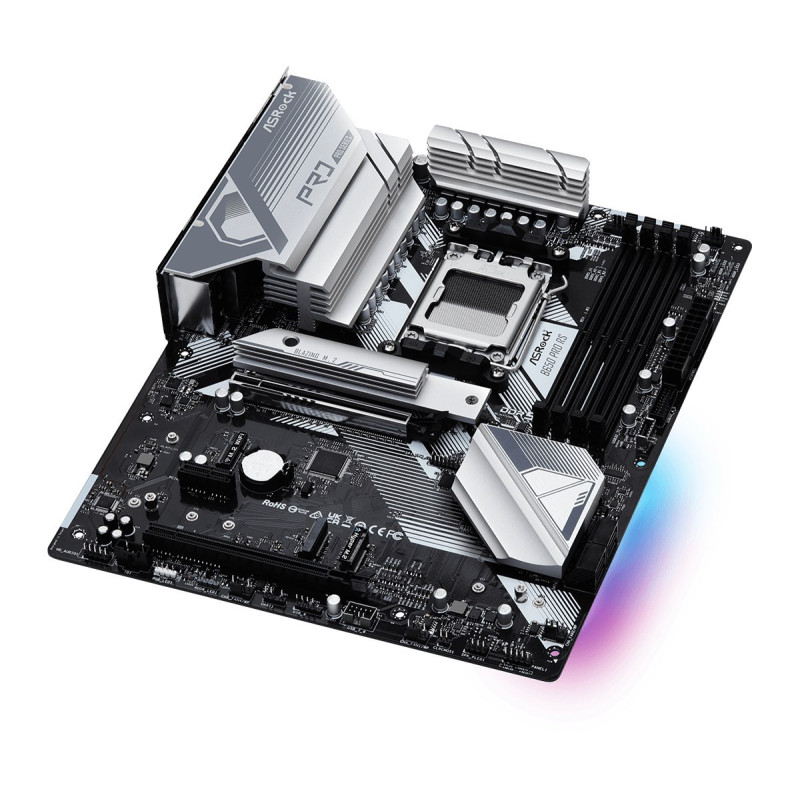

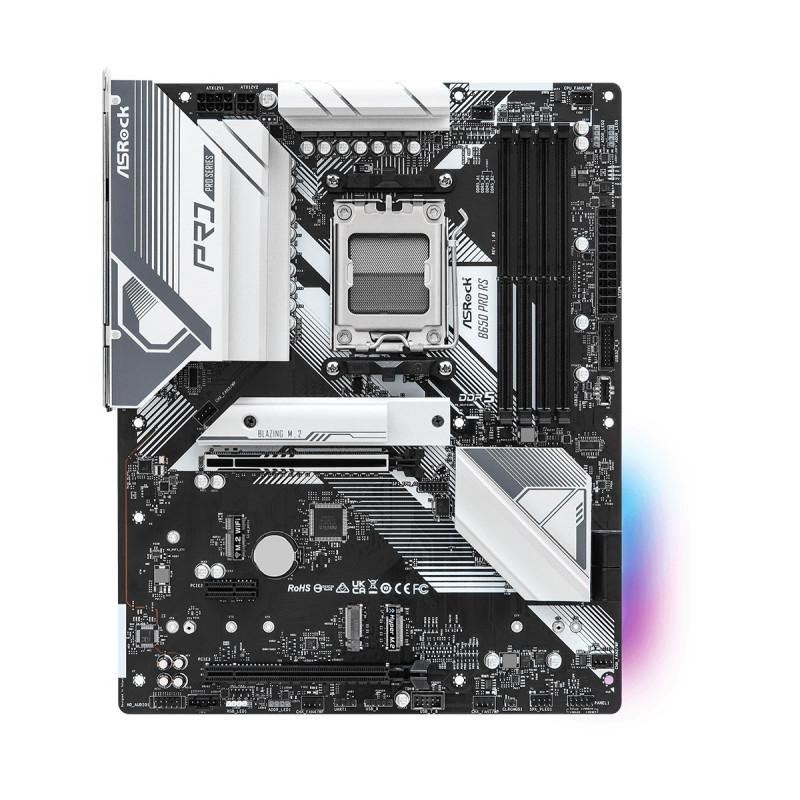

Motherboard - Asrock B650 Pro RS AM5 ATX
Product reference:
14-4710483940750
AM5 socket for AMD processors, supporting up to 128 GB DDR5 RAM.
Motherboard - Asrock B650 Pro RS AM5 ATX
Product reference:
14-4710483940750
AM5 socket for AMD processors, supporting up to 128 GB DDR5 RAM.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
Asrock B650 Pro RS
AM5 socket for AMD processors. Supports up to 128GB DDR5 RAM.
- Processor socket: Socket AM5
- Maximum internal memory: 128 GB DDR5
- Audio output: 7.1 channels with Realtek ALC897
- Ethernet interface: 2.5 Gigabit Ethernet
- Form factor: ATX
Processor | |
|---|---|
| Maximum number of SMP processors | 1 |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 series |
| Processor socket | Socket AM5 |
Features | |
| Motherboard chipset | AMD |
| Audio output channels | 7.1 channels |
| Supported Windows operating systems | Windows 10 Pro x64, Windows 11 x64 |
| Audio chip | Realtek ALC897 |
| Motherboard chipset | AMD B650 |
| Motherboard form factor | ATX |
Memory | |
| Number of memory slots | 4 |
| Memory slot type | DIMMs |
| Supported memory types | DDR5-SDRAM |
| Maximum internal memory | 128GB |
| Memory channels | Dual channels |
| Unsaved memory | Yes |
| ECC compatibility | ECC Non-ECC |
| Supported memory frequencies | 7200 |
Weight and dimensions | |
| Depth | 244 mm |
| Width | 305mm |
Network | |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Dragon RTL8125BG |
Internal I/O | |
| RGB LED pin connector | Yes |
| Front panel audio connector | Yes |
| Number of SATA III connectors | 2 |
| Thunderbolt connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| ATX power connector (24-pin) | Yes |
| TPM connector | Yes |
| CPU cooler connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 2.0 ports | 2 |
BIOS | |
| BIOS type | UEFI AMI |
Memory controllers | |
| Supported storage drive types | HDD SSD |
| RAID levels | 10, 0, 1 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2, SATA III |

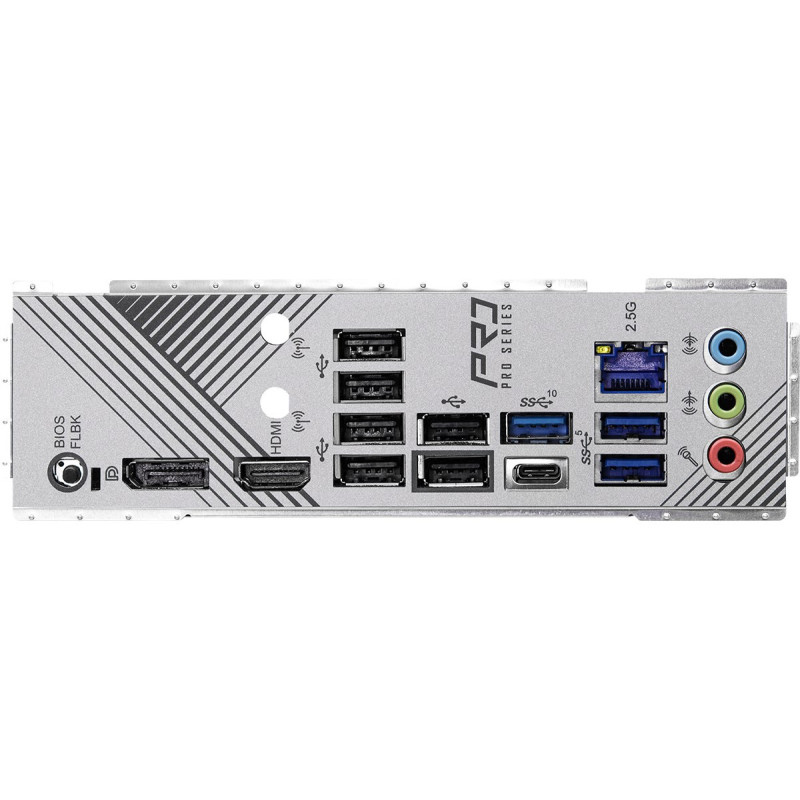

Rear panel I/O ports | |
| DisplayPort quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| DisplayPort version | 1.4 |
| Number of USB 2.0 ports | 6 |
| Headphone outputs | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| Microphone input | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of HDMI ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Expansion slots | |
| M.2 (M) number of sockets | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x1 (Gen 4.x) slots | 1 |
Safety warning | |
| Warnings | Do not disassemble to avoid damage to internal components and void warranty. Dispose of in accordance with local electronic waste disposal regulations. Avoid contact with liquids to prevent damage to electronics. |
| Height | 95 mm |
| Length | 385 mm |
| Weight | 2040 grams |
| Width | 320mm |
