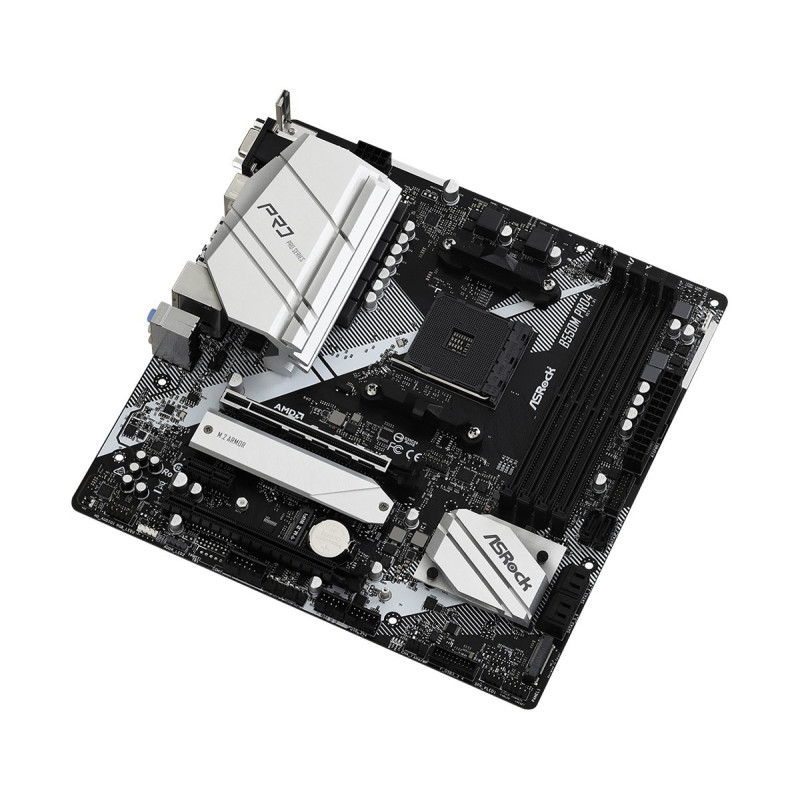

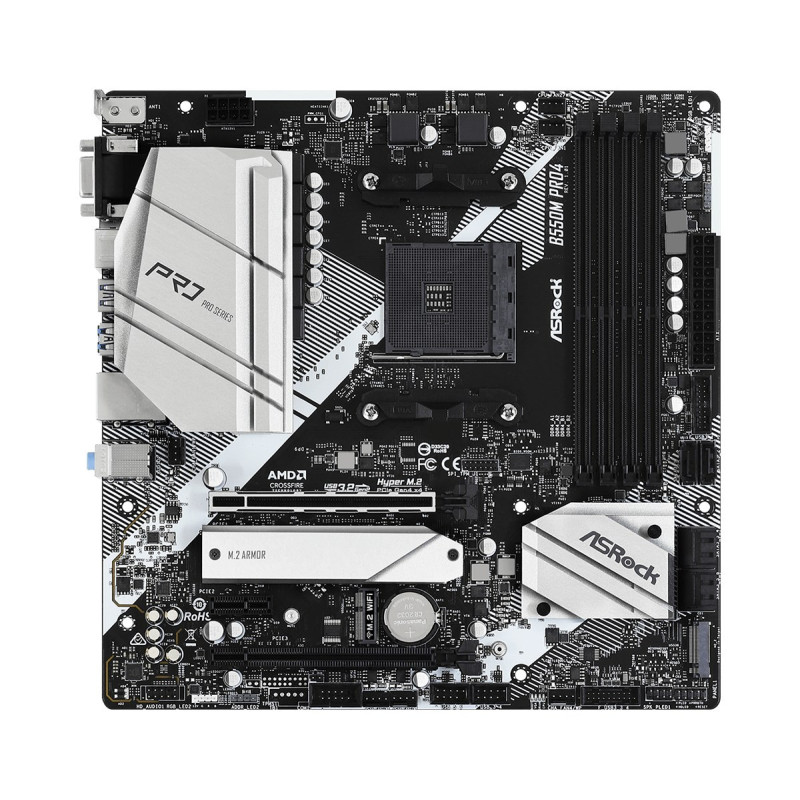

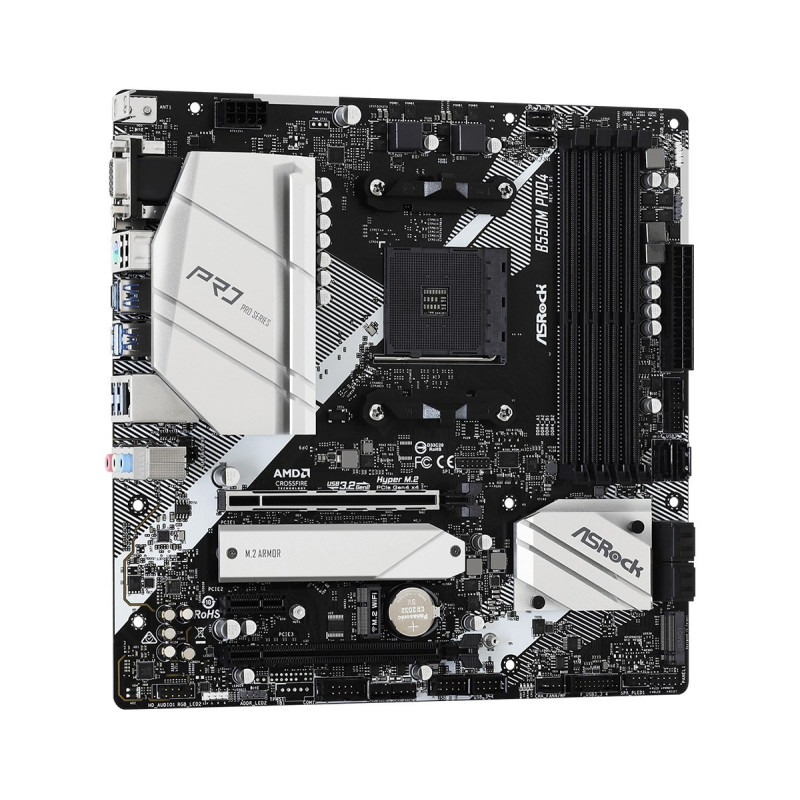

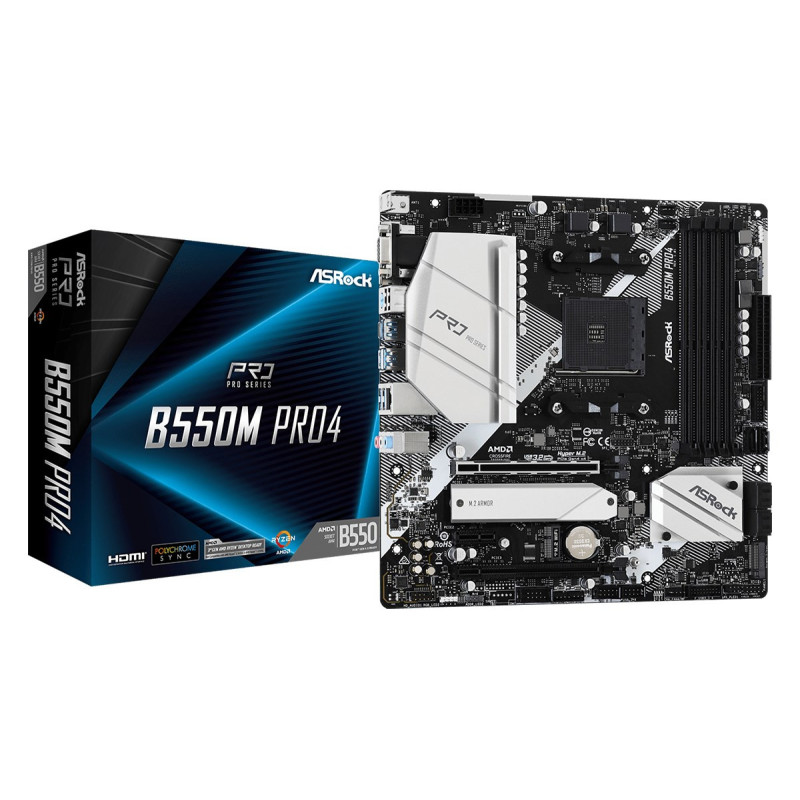

Motherboard - Asrock B550M Pro4 AM4 Micro ATX 128GB DDR4 7.1 Audio Gigabit Ethernet
Product reference:
14-4710483931598
Supports 3rd generation AMD Ryzen™ processors with up to 128GB DDR4 memory. The device features 7.1 channel audio, 6 SATA III ports, and Gigabit Ethernet with Wake-on-LAN.
Motherboard - Asrock B550M Pro4 AM4 Micro ATX 128GB DDR4 7.1 Audio Gigabit Ethernet
Product reference:
14-4710483931598
Supports 3rd generation AMD Ryzen™ processors with up to 128GB DDR4 memory. The device features 7.1 channel audio, 6 SATA III ports, and Gigabit Ethernet with Wake-on-LAN.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
Asrock B550M Pro4 Socket AM4 Micro ATX AMD B550
Compatible with 3-osios generation AMD Ryzen™ processors, supports up to 128 GB DDR4 memory. Offers 7.1 channel audio, 6 SATA III ports, and Gigabit Ethernet with Wake-on-LAN.
- Compatible with 3-osios generation AMD Ryzen™ processors for powerful performance
- Maximum 128 GB of DDR4 memory, speeds from 2133 MHz to 4533 MHz
- 7.1 channel audio output with Realtek ALC1200 audio chip
- Versatile storage options with 6 SATA III ports and M.2 support

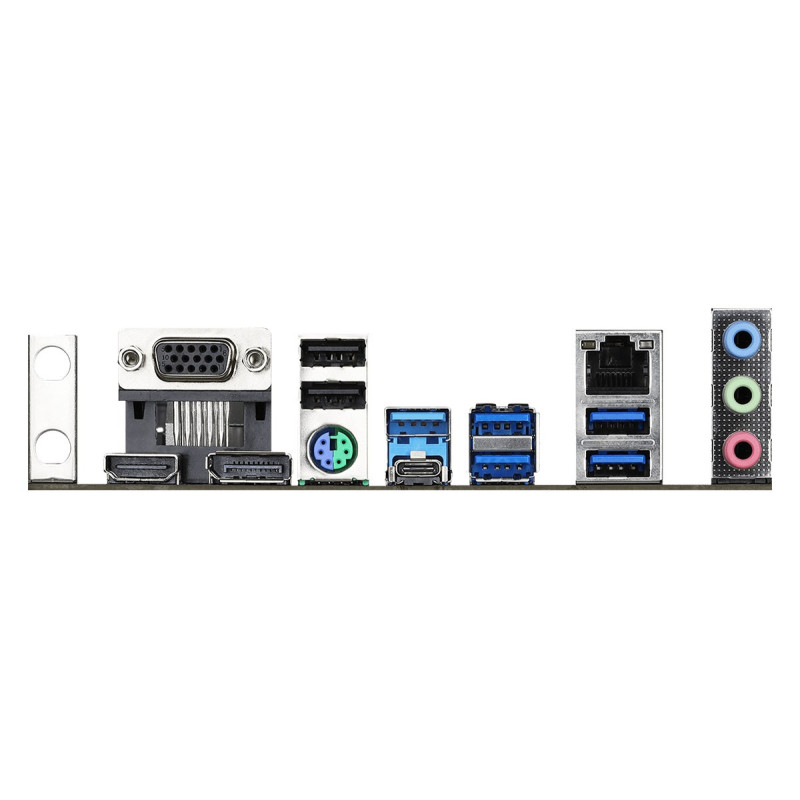

- Includes 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-A connectors and 1 USB 3.2 Gen 2 (3.1 Gen 2) Type-A connector
- 1 DisplayPort and 1 HDMI connector for video outputs
- 1 PS/2 connector for older devices
- 1 VGA (D-Sub) connector for additional video options
Processor | |
|---|---|
| Maximum number of SMP processors | 1 |
| Processor socket | Socket AM4 |
| Composite processor models | 3-osios generations AMD Ryzen™ 3, 5, 7, 9 |
| Processor manufacturer | AMD |
Graphics | |
| Support for parallel processing technology | Not supported |
Features | |
| Audio output channels | 7.1 channels |
| Motherboard chip | AMD B550 |
| Audio chip | Realtek ALC1200 |
| Motherboard format type | micro ATX |
Memory | |
| Supported memory frequencies | 2133MHz to 4533MHz |
| Maximum internal memory | 128GB |
| Number of memory slots | 4 |
| Memory channels | Dual channels |
| Supported memory types | DDR4-SDRAM |
Weight and dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
Network | |
| LAN controller | Realtek RTL8111H |
| Wake-on-LAN ready | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
Internal I/O | |
| Number of COM ports | 1 |
| ATX power connector (24-pin) | Yes |
| USB 2.0 ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports | 1 |
| RGB LED pin connector | Yes |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |
| Front panel connector | Yes |
| Number of SATA II connectors | 6 |
| Height | 65 mm |
| Length | 280 mm |
| Weight | 1350g |
| Width | 270mm |
