Motherboard - Asrock B550M Phantom Gaming 4 AM4 Socket 'Micro ATX' AMD B550
Product reference:
14-4710483932755

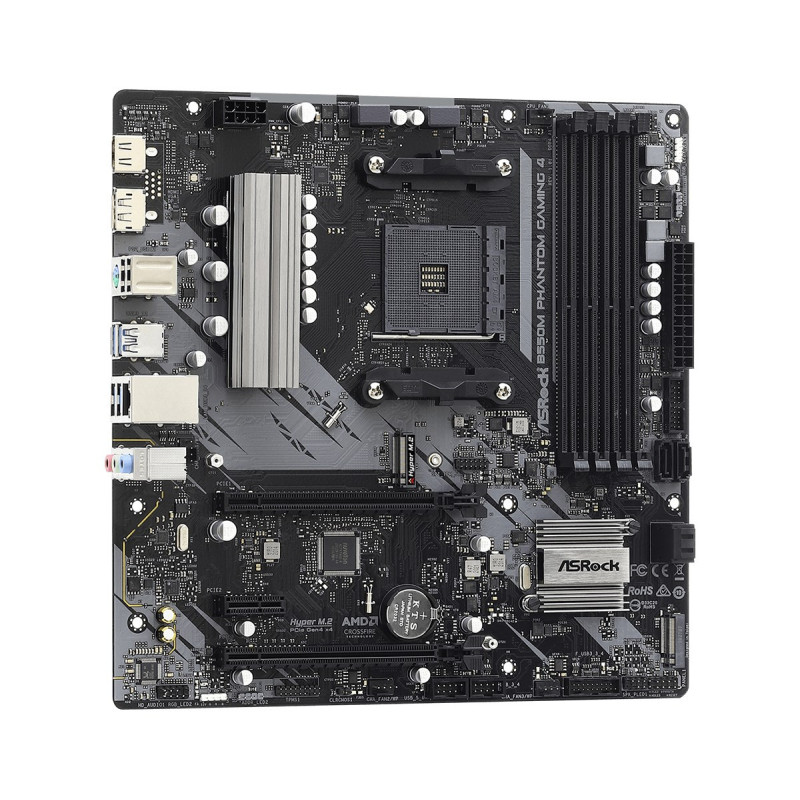

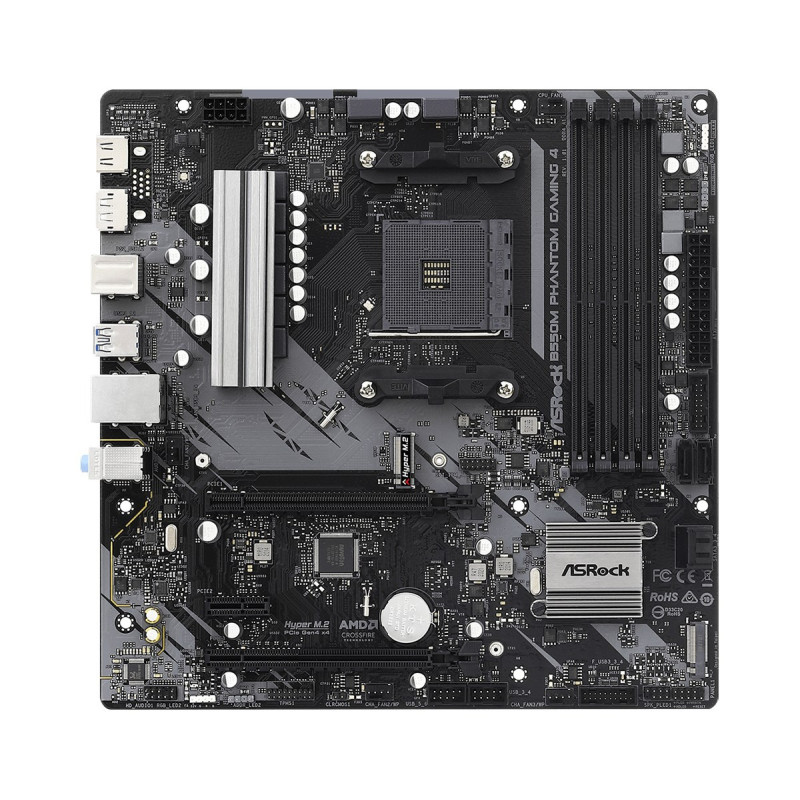

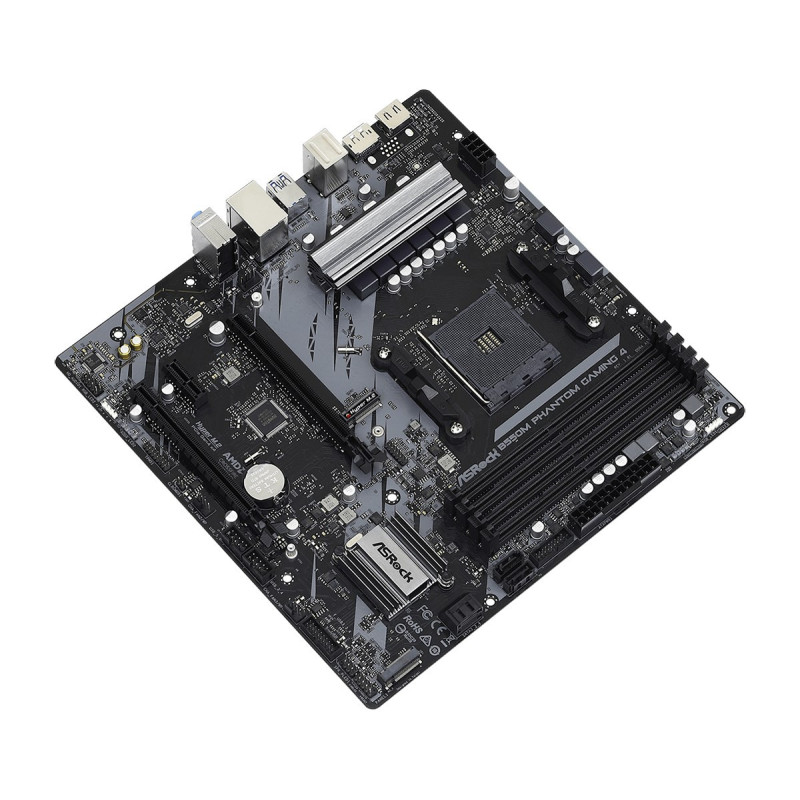

Asrock B550M Phantom Gaming 4 - a compact 'micro ATX' motherboard with the AMD B550 chip, supporting three PCI Express x16 slots and having HDMI and DisplayPort connectors.
Motherboard - Asrock B550M Phantom Gaming 4 AM4 Socket 'Micro ATX' AMD B550
Product reference:
14-4710483932755
Asrock B550M Phantom Gaming 4 - a compact 'micro ATX' motherboard with the AMD B550 chip, supporting three PCI Express x16 slots and having HDMI and DisplayPort connectors.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
Asrock B550M Phantom Gaming AM4 Micro ATX
The Asrock B550M Phantom Gaming is a micro ATX motherboard for AMD Ryzen processors, featuring a modern design ideal for gamers and content creators. It supports the latest AMD B550 chipset.
Main features
- Motherboard chipset: AMD B550
- PCI Express x16 (Gen 3.x) slots: 3
- Ethernet LAN (RJ-45): 1
Processor | |
|---|---|
| Processor socket | Socket AM4 |
| Maximum number of SMP processors | 1 |
| Compatible processor series | AMD Ryzen™ 5, AMD Ryzen™ 3, AMD Ryzen™ 7, 3-osios generations AMD Ryzen™ 9 |
| Processor manufacturer | AMD |
Graphics | |
| DirectX version | 12.0 |
| Maximum resolution | 5120 x 2880 pixels |
| HDCP | Yes |
Features | |
| Audio output channels | 7.1 channels |
| Motherboard format type | micro ATX |
| PC health monitoring | Temperature, Voltage, Fan |
| Supported Windows operating systems | Windows 10 x64 |
Memory | |
| Supported memory clock speeds | 2133-4466MHz |
| Unbuffered memory | Yes |
| Maximum internal memory | 128GB |
| Number of memory slots | 4 |
| Supported memory types | DDR4-SDRAM |
Weight and dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
Network | |
| Wake-on-LAN ready | Yes |
| LAN controller | Realtek RTL8111H |
| Ethernet interface type | Gigabit Ethernet |
Internal I/O | |
| USB 2.0 ports | 2 |
| USB 3.2 Gen 1 connectors | 2 |
| Front panel audio connector | Yes |
| Number of chassis fan connectors | 3 |
| 12V power connector | Yes |
| RGB LED pin connector | Yes |
| Number of SATA III connectors | 4 |
| TPM connector | Yes |
| CPU fan connector | Yes |
| ATX power connector (24-pin) | Yes |
BIOS | |
| BIOS type | UEFI AMI |
Package contents | |
| Cables included | SATA |
| Add drivers | Yes |
Memory controllers | |
| Supported storage drive types | HDD SSD |
| Supported storage drive interfaces | Serial ATA III |

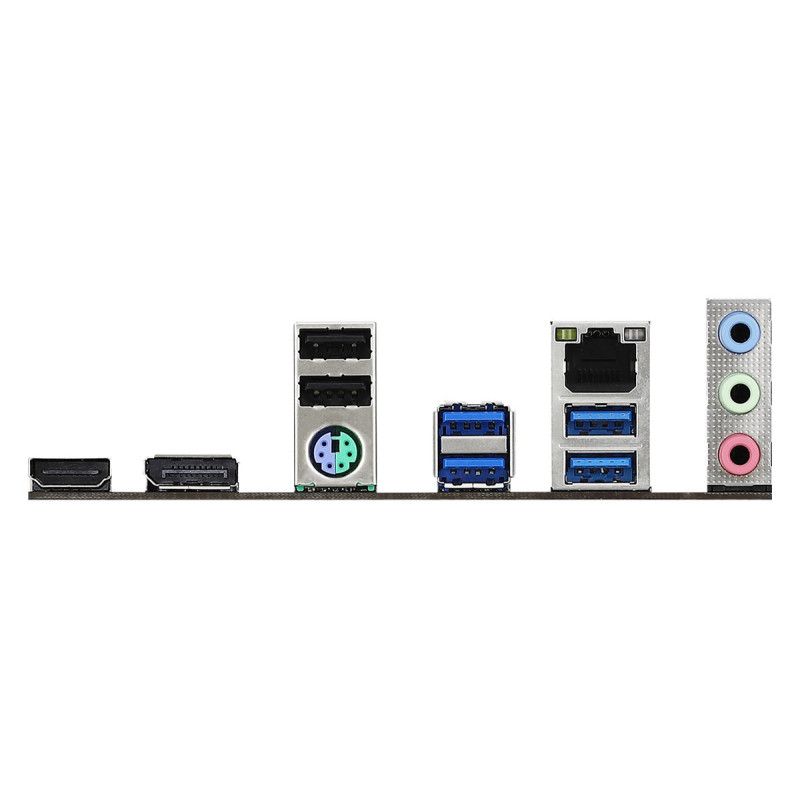

Rear panel I/O ports | |
| DisplayPort version | 1.4 |
| Number of DisplayPorts | 1 |
| PS/2 number of ports | 1 |
| Number of USB 3.2 Gen 1 Type-A ports | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of HDMI ports | 1 |
| Number of USB 2.0 ports | 2 |
| HDMI version | 2.1 |
Expansion slots | |
| M.2 (M) number of sockets | 1 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 3 |
| Height | 160mm |
| Length | 275 mm |
| Weight | 1096 grams |
| Width | 260 mm |
