Motherboard - Asrock B550M-ITX / ac AM4 Socket
Product reference:
14-4710483931727
The Asrock B550M-ITX/ac supports 3rd generation AMD Ryzen processors and offers dual-channel memory support up to 64GB DDR4, as well as integrated Wi-Fi 5 and Bluetooth 4.2 connectivity.
Motherboard - Asrock B550M-ITX / ac AM4 Socket
Product reference:
14-4710483931727
The Asrock B550M-ITX/ac supports 3rd generation AMD Ryzen processors and offers dual-channel memory support up to 64GB DDR4, as well as integrated Wi-Fi 5 and Bluetooth 4.2 connectivity.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
Motherboard - Asrock B550M-ITX/ac Socket AM4
Asrock B550M-ITX/ac is a mini ITX motherboard designed for 3-osios generation Ryzen processors. It features dual-channel unbuffered memory support and integrated Wi-Fi 5 connectivity.
Main features
- Supports 3-osios generation AMD Ryzen 5, 7, 9 and 3 series processors
- Dual-channel unbuffered memory support up to 64 GB DDR4-SDRAM
- Wi-Fi 5 (802.11ac) and Bluetooth 4.2
- Realtek ALC887 audio chip with 7.1 channel output
Processor | |
|---|---|
| Maximum number of SMP processors | 1 |
| Processor socket | Socket AM4 |
| Compatible processor series | 3-osios generations AMD Ryzen 5, 7, 9, 3 |
| Processor manufacturer | AMD |
Graphics | |
| Integrated graphics card | Yes |
| Graphics card family | AMD |
| Video card | Radeon Vega |
| HDCP | Yes |
| DirectX version | 12.0 |
Features | |
| Motherboard chipset family | AMD |
| Motherboard format type | mini-ITX |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| Motherboard chipset | AMD B550 |
Memory | |
| Supported memory clock speeds | 3466, 2133, 4200, 2933, 3600, 4333, 4600, 4533, 2400, 3800, 4466, 3200, 4266, 2667, 3733, 4400, 3866, 4133, 4000 MHz |
| Maximum internal memory | 64GB |
| Memory channels | Dual channel |
| Unbuffered memory | Yes |
| Number of memory slots | 2 |
| Memory slot type | DIMMs |
| Supported memory types | DDR4-SDRAM |
Weight and dimensions | |
| Width | 170mm |
| Depth | 170mm |
Network | |
| Wi-Fi standards | 802.11b, 802.11g, 802.11n, 802.11a, 802.11ac |
| Wake-on-LAN ready | Yes |
| Wi-Fi | Yes |
| LAN controller | Realtek RTL8111H |
| Bluetooth | Yes |
| Ethernet LAN | Yes |
| Bluetooth version | 4.2 |
| Ethernet interface type | Gigabit Ethernet |
Internal I/O | |
| CPU cooler connector | Yes |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| USB 2.0 ports | 2 |
| ATX power connector (24-pin) | Yes |
| Number of SATA III connectors | 4 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) ports | 2 |
| RGB LED pin connector | Yes |
BIOS | |
| BIOS type | UEFI AMI |
Package contents | |
| Add drivers | Yes |
Memory controllers | |
| Supported storage drive interfaces | M.2, Serial ATA III |

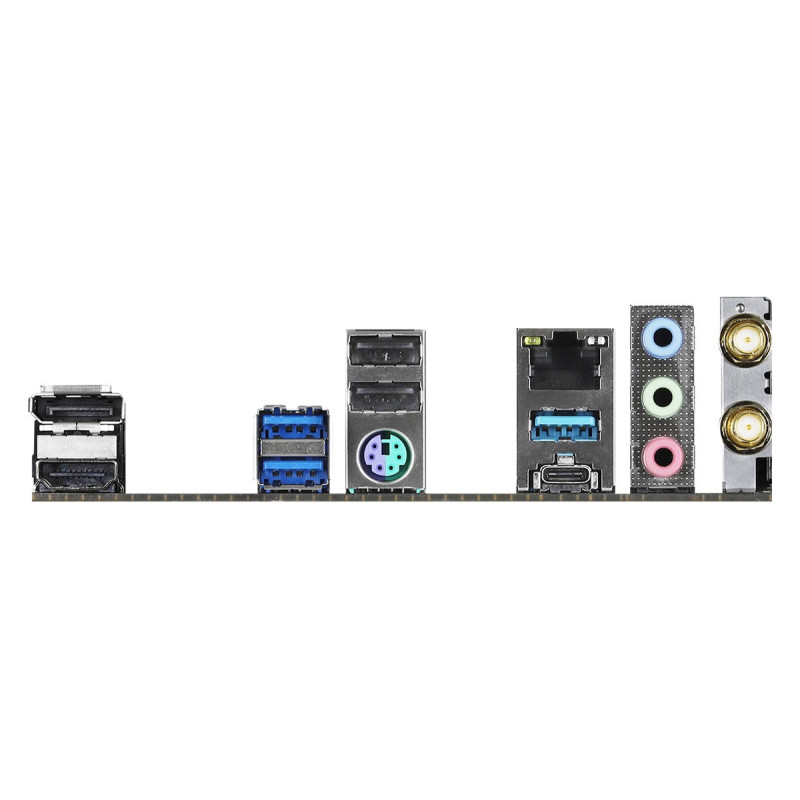

Rear panel I/O ports | |
| DisplayPort version | 1.4 |
| DisplayPort quantity | 1 |
| PS/2 number of ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Number of HDMI ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of USB 2.0 ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Height | 210 mm |
| Length | 280 mm |
| Weight | 857 grams |
| Width | 60mm |
