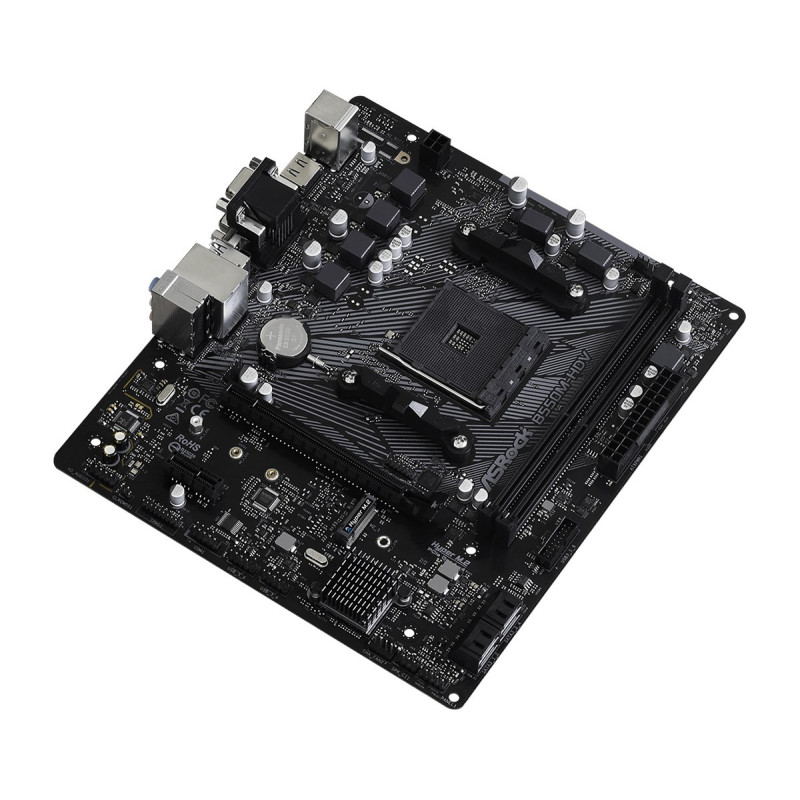

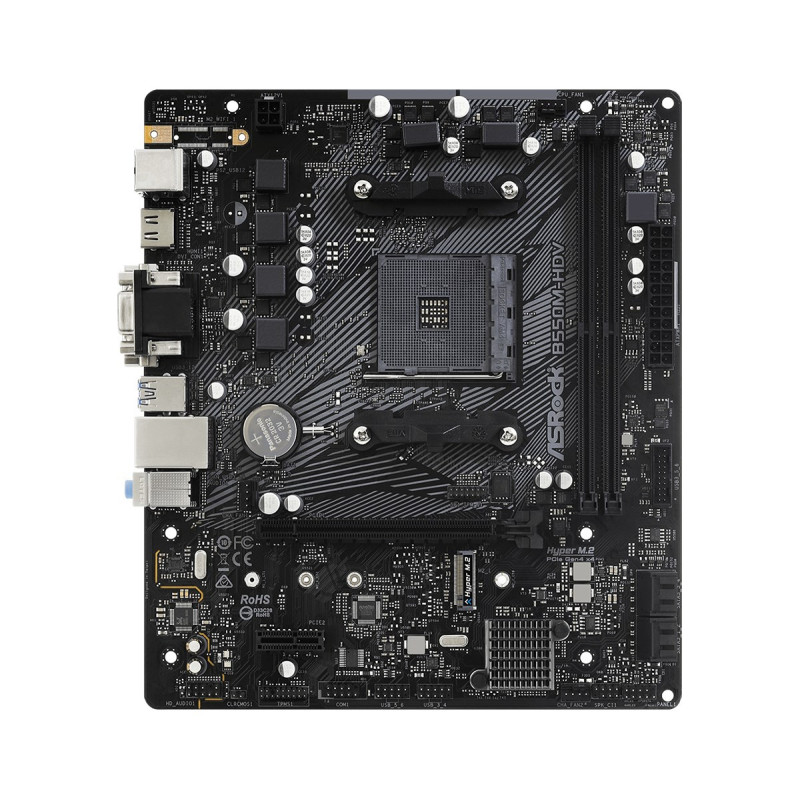

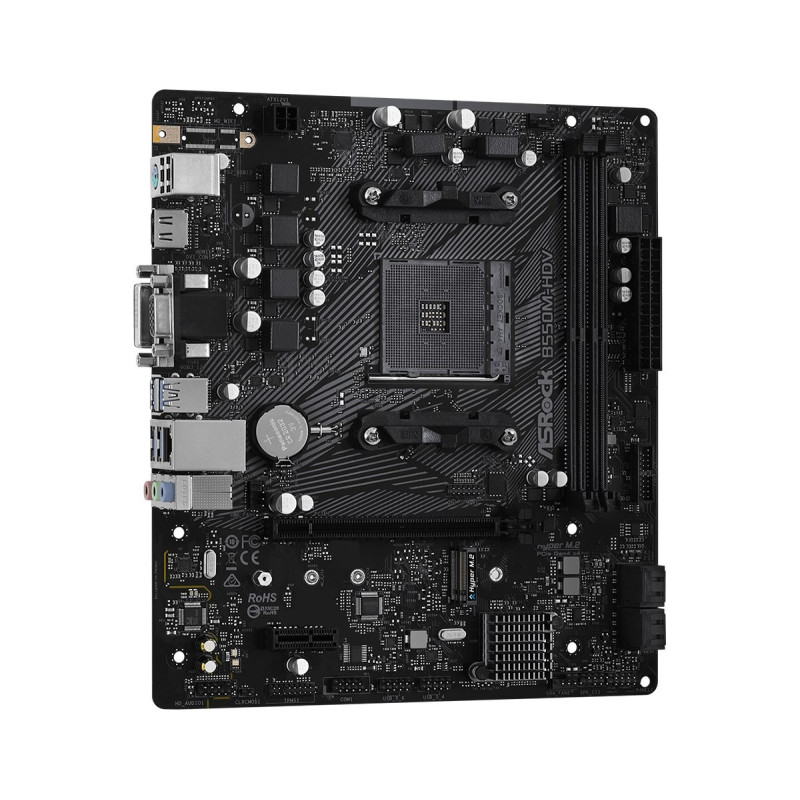

Motherboard - Asrock B550M-HDV AM4 Micro ATX
Product reference:
14-4710483931635
The Asrock B550M-HDV motherboard supports up to 64 GB of DDR4 memory, has integrated Radeon Vega graphics, and a Realtek RTL8111H LAN controller for fast internet connectivity.
Motherboard - Asrock B550M-HDV AM4 Micro ATX
Product reference:
14-4710483931635
The Asrock B550M-HDV motherboard supports up to 64 GB of DDR4 memory, has integrated Radeon Vega graphics, and a Realtek RTL8111H LAN controller for fast internet connectivity.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
Asrock B550M-HDV AM4 Micro ATX B550
Asrock B550M-HDV is a micro ATX AMD B550 motherboard designed for AM4 socket 3-osios generation Ryzen processors. The board features integrated Radeon Vega graphics and supports dual-channel DDR4 memory.
Main features
- Integrated Radeon Vega graphics
- Dual-channel DDR4 memory support
- Micro ATX format
- Realtek ALC887 audio chip
Processor | |
|---|---|
| Maximum number of SMP processors | 1 |
| Processor socket | AM4 |
| Compatible processors | AMD Ryzen 3, 5, 7, 9 (3-osios generations) |
| Processor manufacturer | AMD |
Graphics | |
| HDCP | Yes |
| Integrated graphics card | Yes |
| Graphics card family | AMD |
| Video card | Radeon Vega |
| DirectX version | 12.0 |
Features | |
| Motherboard chip | AMD B550 |
| Motherboard format | micro ATX |
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC887 |
Memory | |
| Supported memory clock speeds | 2133-4666MHz |
| Maximum internal memory | 64GB |
| Number of memory slots | 2 |
| Memory slot type | DIMMs |
| Memory channels | Dual channel |
| Supported memory types | DDR4-SDRAM |
Weight and dimensions | |
| Width | 230mm |
| Depth | 201 mm |
Network | |
| LAN controller | Realtek RTL8111H |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
| Wake-on-LAN ready | Yes |
| Ethernet LAN | Yes |
Internal I/O | |
| Front panel audio connector | Yes |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 2 |
| TPM connector | Yes |
| Number of USB 2.0 ports | 4 |
| CPU fan connector | Yes |
| ATX power connector (24-pin) | Yes |
| Number of USB 3.2 Gen 1 ports | 2 |
BIOS | |
| BIOS type | UEFI AMI |
Package contents | |
| Add drivers | Yes |
Memory controllers | |
| Supported memory device interfaces | M.2, Serial ATA III |

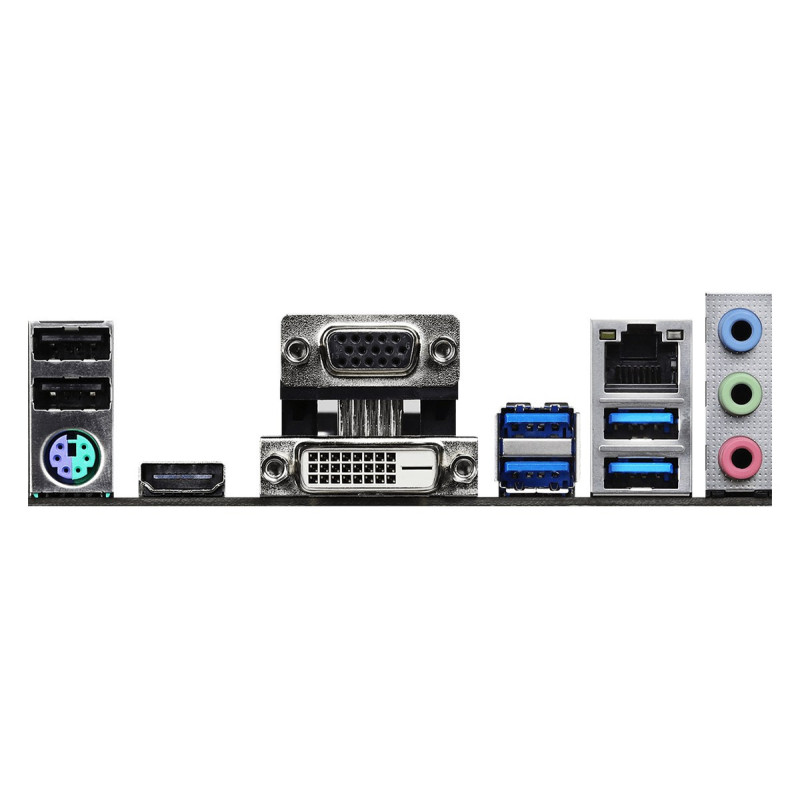

Rear panel I/O connectors | |
| Number of Ethernet LAN (RJ-45) connections | 1 |
| Number of DVI-D connectors | 1 |
| Number of VGA (D-Sub) connectors | 1 |
| PS/2 number of connections | 1 |
| Number of USB 3.2 Gen 1 Type-A ports | 4 |
| Number of HDMI ports | 1 |
| Number of USB 2.0 ports | 2 |
| Height | 60mm |
| Length | 280mm |
| Weight | 844 grams |
| Width | 250mm |
