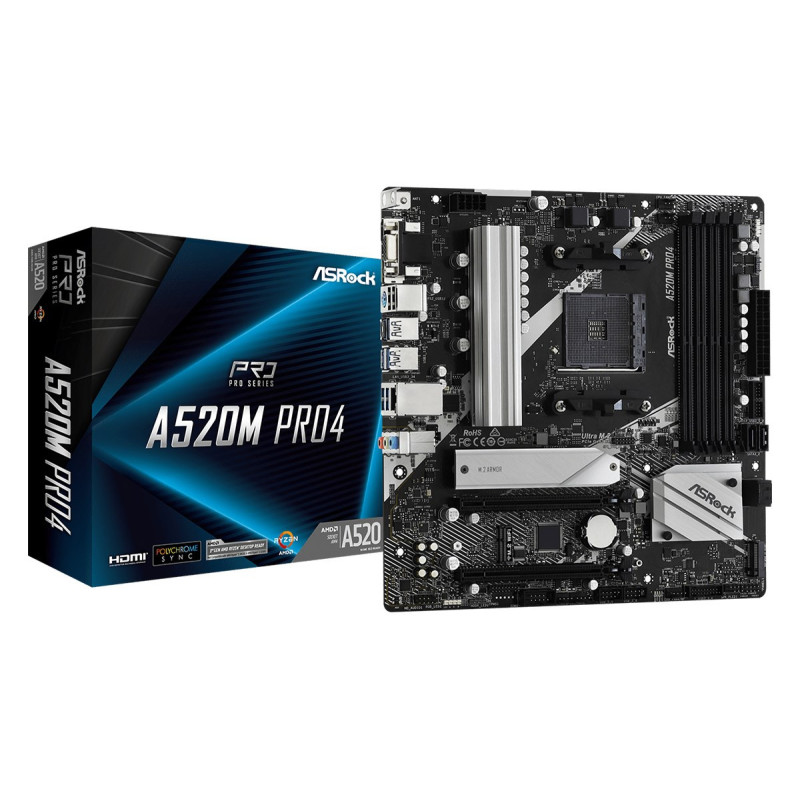

Motherboard - Asrock A520M Pro4 Micro ATX
Product reference:
14-4710483932076
The Asrock A520M Pro4 motherboard supports AMD Ryzen processors and offers dual-channel DDR4 memory up to 4600 MHz and fast Gigabit Ethernet connectivity.
Motherboard - Asrock A520M Pro4 Micro ATX
Product reference:
14-4710483932076
The Asrock A520M Pro4 motherboard supports AMD Ryzen processors and offers dual-channel DDR4 memory up to 4600 MHz and fast Gigabit Ethernet connectivity.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

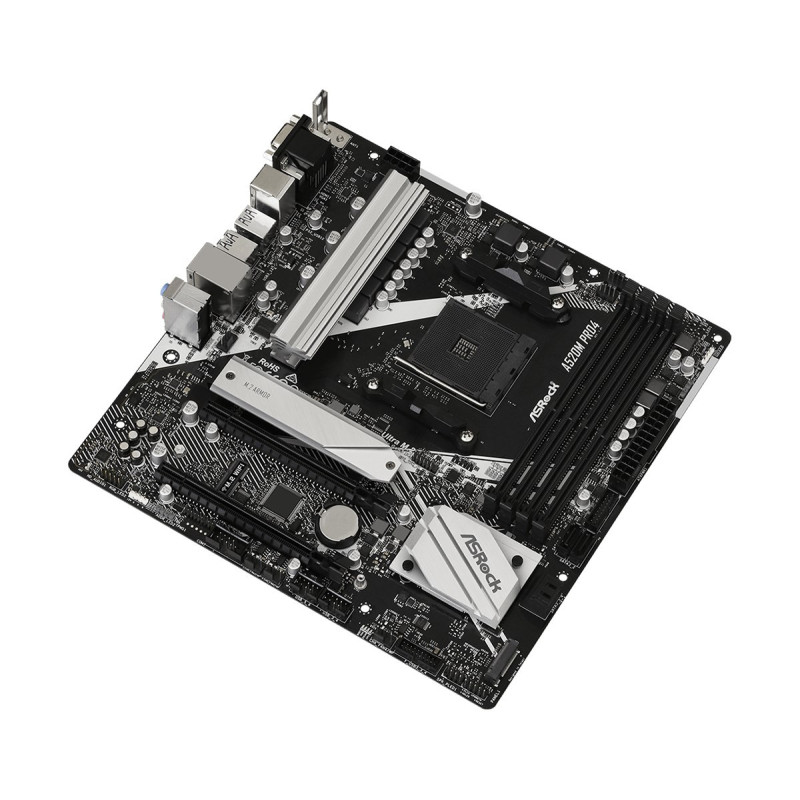

Motherboard - Asrock A520M Pro4
Asrock A520M Pro4 is a micro ATX motherboard designed for AMD Ryzen 3000 series processors. It features a solid selection of specifications and connectors, making it ideal for a variety of applications.
Main features
- Supports AMD Ryzen 9, Ryzen 7, Ryzen 5 and Ryzen 3 series processors
- Dual-channel DDR4 memory support with speeds up to 4600 MHz
- Realtek RTL8111H LAN controller with Gigabit Ethernet connection
- UEFI AMI BIOS for easy setup and customization
Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | 3-osios generations AMD Ryzen™ 9, 7, 5, 3 |
Graphics | |
| Graphics card family | AMD |
| Video card | Radeon Vega |
Features | |
| Audio output channels | 7.1 channels |
| Motherboard format type | micro ATX |
| Motherboard chipset family | AMD |
Memory | |
| Memory channels | Dual channel |
| Supported memory clock speeds | 2133-4600MHz |
| Memory slot type | DIMMs |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Maximum internal memory | 64GB |
Weight and dimensions | |
| Width | 230mm |
| Depth | 201 mm |
Network | |
| LAN controller | Realtek RTL8111H |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wake-on-LAN ready | Yes |
Internal I/O | |
| Front panel audio connector | Yes |
| USB 3.2 Gen 1 connectors | 1 |
| USB 2.0 ports | 2 |
BIOS | |
| BIOS type | UEFI AMI |
Memory controllers | |
| Supported storage drive interfaces | M.2, Serial ATA III |
| Number of HDD supported | 5 |

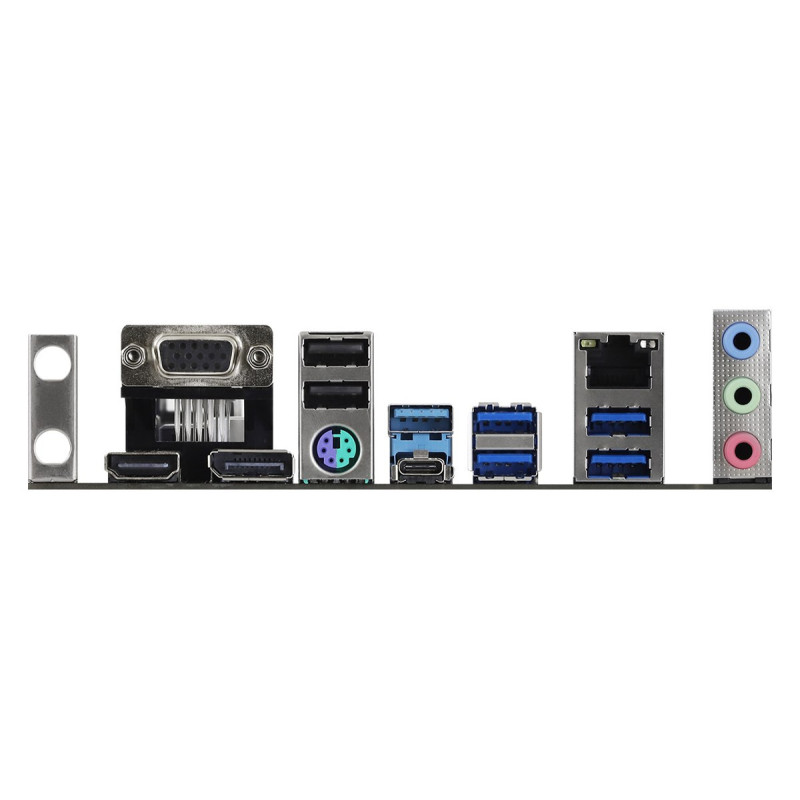

Rear panel I/O connectors | |
| Number of USB 2.0 ports | 2 |
| PS/2 number of connections | 1 |
| Number of Ethernet LAN (RJ-45) connections | 1 |
| Number of HDMI ports | 1 |
| Number of USB 3.2 Gen 1 Type-A ports | 4 |
| Number of VGA (D-Sub) connectors | 1 |
| Height | 270mm |
| Length | 63 mm |
| Weight | 1145 grams |
| Width | 280 mm |
