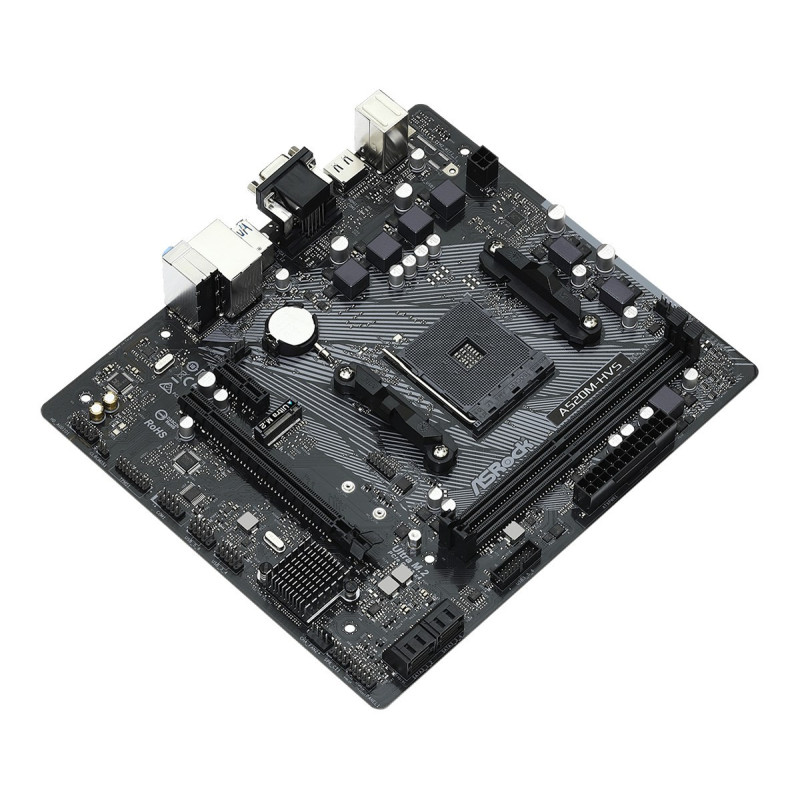

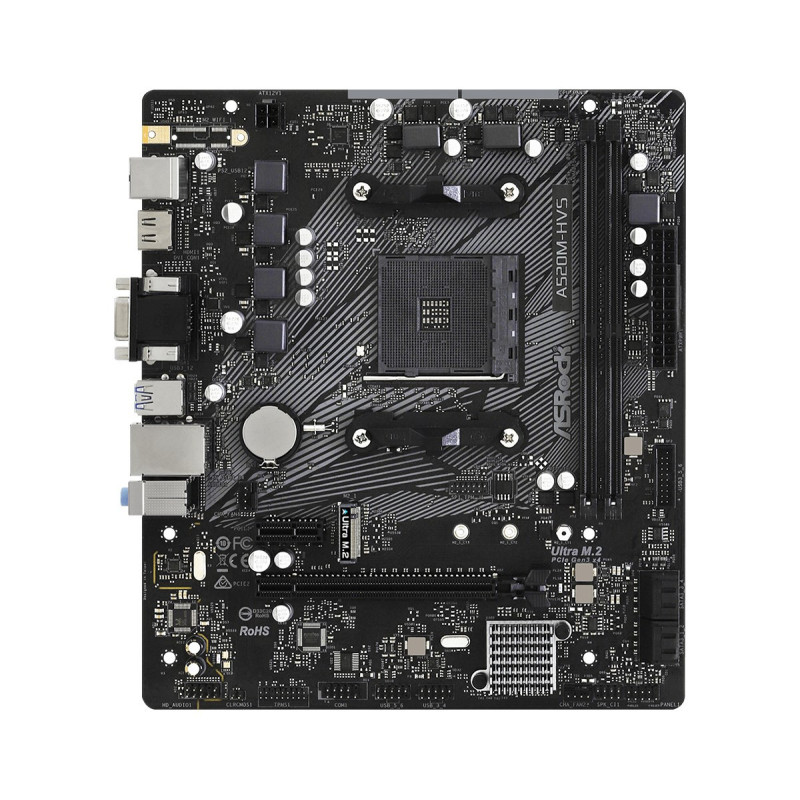

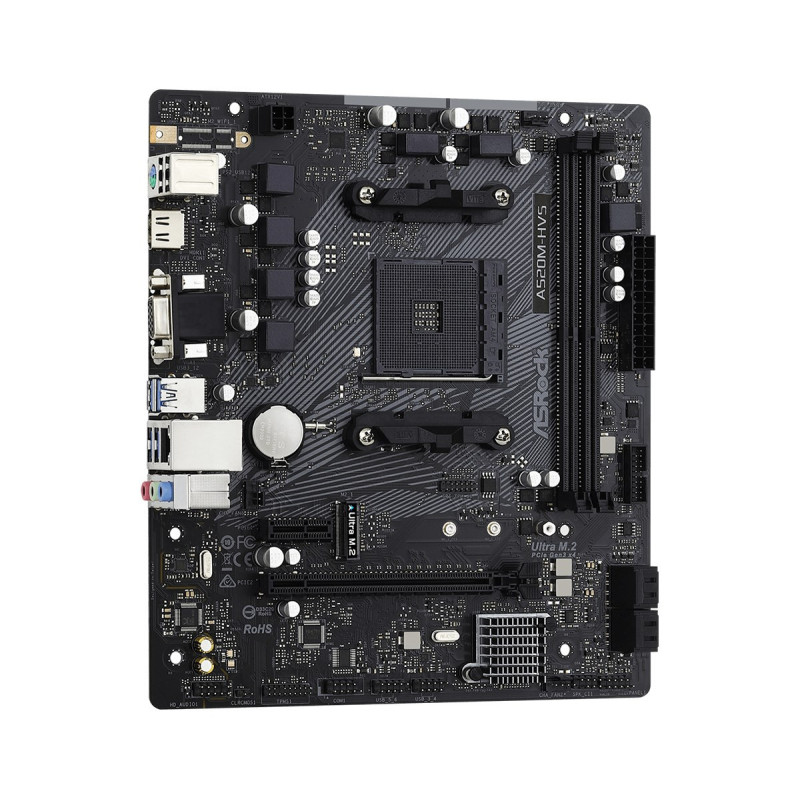

Motherboard - Asrock A520M-HVS AMD A520 Socket AM4 micro ATX
Product reference:
14-4710483932311
AM4 socket micro ATX motherboard with AMD A520 chipset and Radeon Vega graphics. Supports up to 64 GB of unbuffered RAM, dual-channel memory, and Gigabit Ethernet.
Motherboard - Asrock A520M-HVS AMD A520 Socket AM4 micro ATX
Product reference:
14-4710483932311
AM4 socket micro ATX motherboard with AMD A520 chipset and Radeon Vega graphics. Supports up to 64 GB of unbuffered RAM, dual-channel memory, and Gigabit Ethernet.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
Asrock A520M-HVS
Asrock A520M-HVS is a micro ATX motherboard compatible with AMD Ryzen processors, offering a compact design for efficient use of space.
Main features
- Supports AMD Ryzen 3-osios generation processors, including Ryzen 5, Ryzen 7, and Ryzen 9
- Dual-channel memory support up to 64 GB RAM
- Realtek RTL8111H LAN controller with Gigabit Ethernet interface
Processor | |
|---|---|
| Compatible processor series | 3-osios generations AMD Ryzen 5, 3-osios generations AMD Ryzen™ 9, 3-osios generations AMD Ryzen™ 3, 3-osios generations AMD Ryzen™ 7 |
| Processor socket | Socket AM4 |
| Processor manufacturer | AMD |
Graphics | |
| Graphics card family | AMD |
| Video card | Radeon Vega |
Features | |
| Motherboard chip | AMD A520 |
| Motherboard format type | micro ATX |
| Audio output channels | 7.1 channels |
| Motherboard chipset family | AMD |
Memory | |
| Number of memory slots | 2 |
| Memory slot type | DIMMs |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual channels |
| Unbuffered memory | Yes |
| Supported memory clock speeds | 2133, 2400, 2666, 2933, 3200, 3466, 3600, 3733, 3800, 3866, 4000, 4133, 4200, 4266, 4333, 4400, 4466, 4500, 4533 |
| Maximum internal memory | 64GB |
Weight and dimensions | |
| Depth | 201 mm |
| Width | 230mm |
Network | |
| Wake-on-LAN ready | Yes |
| Wi-Fi | No |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| LAN controller | Realtek RTL8111H |
Internal I/O | |
| ATX power connector (24-pin) | Yes |
| USB 2.0 ports | 2 |
| Front panel audio connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of COM ports | 1 |
| CPU cooler connector | Yes |
| Number of chassis cooler connections | 2 |
BIOS | |
| BIOS type | UEFI AMI |
Package contents | |
| Cables included | SATA |
| Add drivers | Yes |
Memory controllers | |
| Number of HDD supported | 5 |
| Supported memory device interfaces | M.2, SATA III |

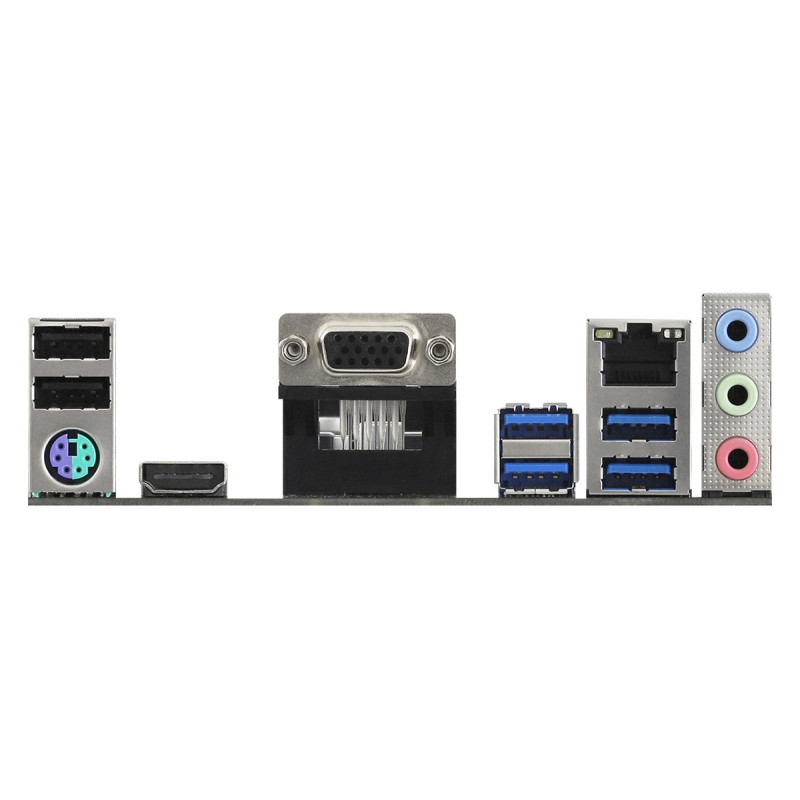

Rear panel I/O connectors | |
| PS/2 number of connections | 1 |
| Microphone input | Yes |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 4 |
| Number of HDMI ports | 1 |
| Number of Ethernet LAN (RJ-45) connections | 1 |
| Number of USB 2.0 ports | 2 |
| Number of VGA (D-Sub) connectors | 1 |
Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Height | 270mm |
| Length | 240mm |
| Weight | 780g |
| Width | 60mm |
