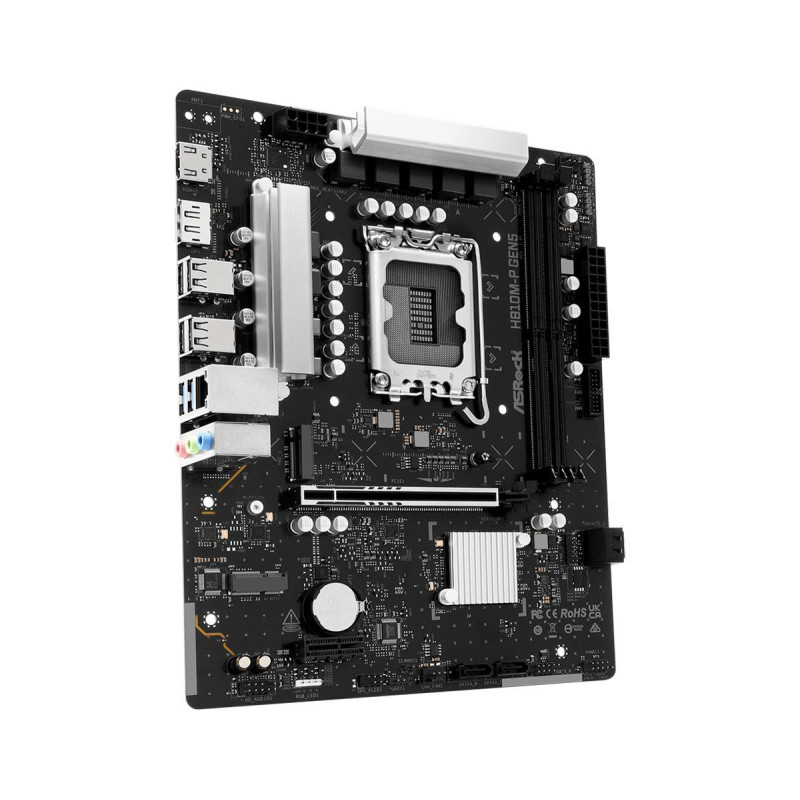

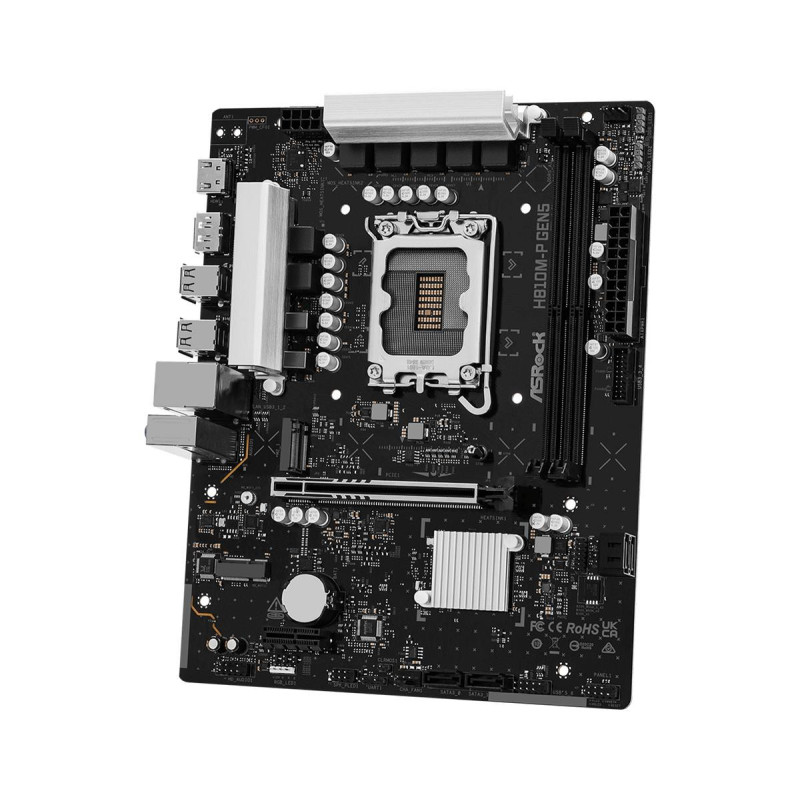

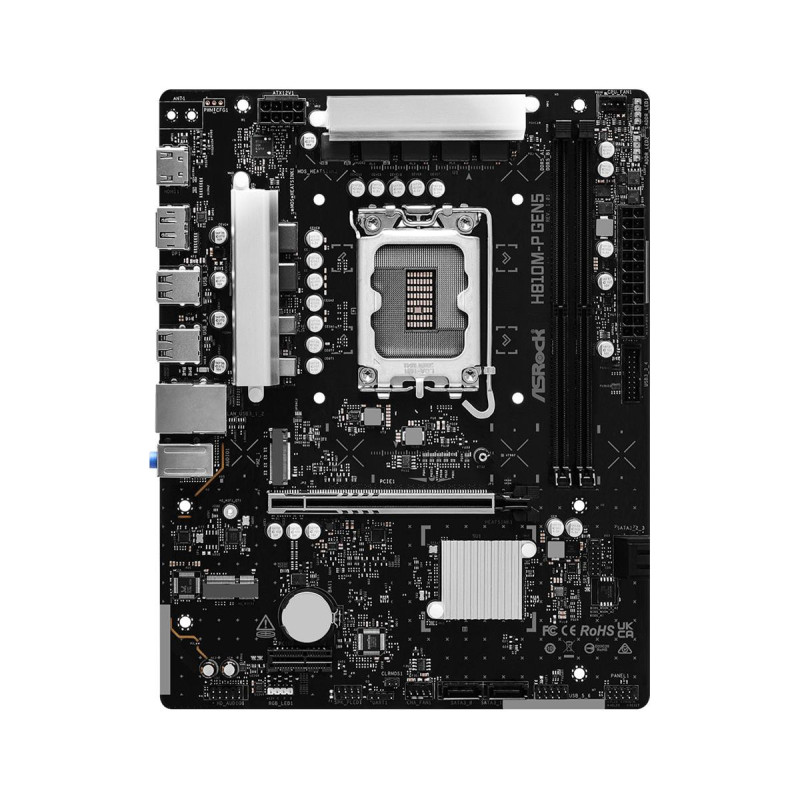

Mainboard, ASROCK, Intel H810, LGA 1851 (Socket V1), micro ATX, RAM DDR5-SDRAM, 2xSlots, 1xNumber of M.2 (M) slots, H810
Product reference: 2-4711581494206

Mainboard, ASROCK, Intel H810, LGA 1851 (Socket V1), micro ATX, RAM DDR5-SDRAM, 2xSlots, 1xNumber of M.2 (M) slots, H810

Product reference: 2-4711581494206
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
84,32 €
Product in warehouse

Guarantee
36 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*

Hyper M.2 Gen4 x4

Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.



Aluminum Heatsink

The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.



POLYCHROME RGB

This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.



SignalRGB

SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.



M.2 (KEY E) For WiFi

Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.

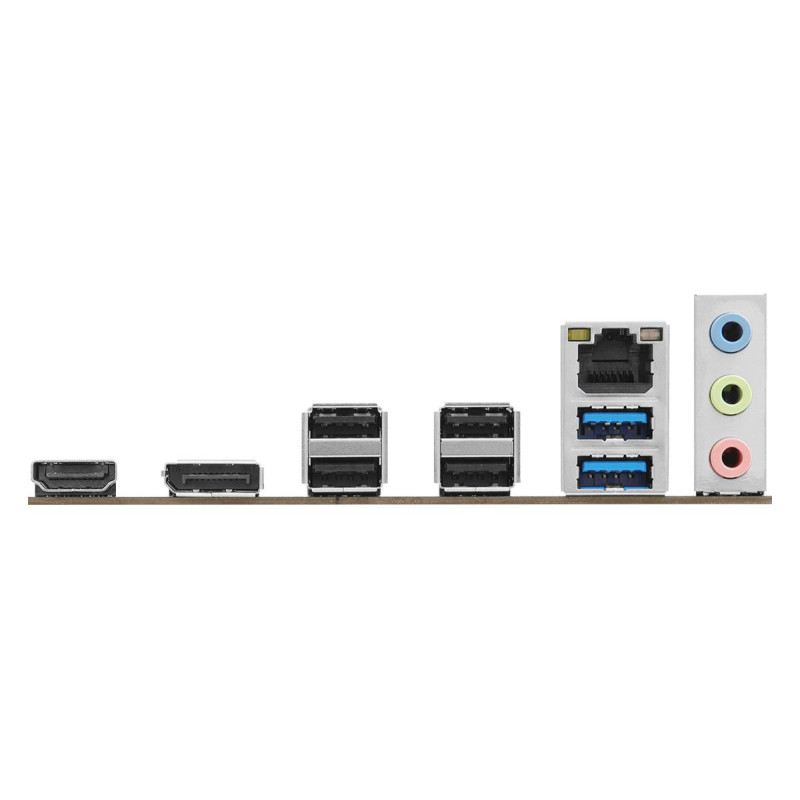

Dual Graphics Outputs

Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.


Atminties angų skaičius 2
Atminties angų tipas DIMM
Atminties kanalai Dviejų kanalų
ATX maitinimo jungtis Taip
BIOS atminties dydis 256 Mbit
BIOS tipas EFI AMI
Bruto svoris 0.99 kg
Centrinio procesoriaus ventiliatoriaus jungčių skaičius 1
CPU fan jungtis Taip
ECC suderinamumas Ne-ECC
EPS maitinimo jungtis (8-kaisčiai) Taip
EPS maitinimo jungčių (8 kontaktų) skaičius 1
Ethernet LAN (RJ-45) portų kiekis 1
Ethernet LAN jungtis Taip
Garso išvesties kanalai 7.1 kanalai
Garso lustas Realtek ALC897
HDCP Taip
HDCP versija 2.3
HDMI portų kiekis 1
Ilgis 193 mm
LAN kontroleris Realtek RTL8111H
M.2 (M) angų skaičius 1
Maksimali vidinė atmintis 128 GB
Maksimalus SMP procesorių skaičius 1
Mikrofonas, line-in jack Taip
Motininės plokštės formos faktorius "micro ATX"
Motininės plokštės sisteminio valdiklio šeima Intel
Nebuferizuota atmintis Taip
Neto svoris 0.9 kg
Pagrindinės plokštės lustas Intel H810
Palaikomi atminties tipai DDR5-SDRAM
Palaikomi saugojimo kaupiklių sąsajos SATA III,M.2
Palaikomi saugojimo kaupiklių tipai HDD & SSD
Palaikomos "Windows" operacinės sistemos Windows 11 x64
Plotis 244 mm
Pridėti kabeliai SATA
Pridėti sraigtai Taip
Priekinio skydelio audio jungtis Taip
Procesoriaus gamintojas Intel
Procesoriaus lizdas LGA 1851 (Socket V1)
Procesorių suderinamumas Intel Core Ultra (Series 2)
RGB LED kontaktų pagrindas Taip
RGB šviesos diodų kontaktų grupių skaičius 2
SATA III jungčių skaičius 4
Shipping Box Depth 54.5 cm
Shipping Box Height 28.5 cm
Shipping Box Weight 9.9 kg
Shipping Box Width 31.5 cm
Summary Asrock H810M-P Gen5. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, M.2, Supported storage drive types: HDD & SSD. LAN controller: Realtek RTL8111H. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Taikoma PC
TPM jungtis Taip
Unit Box Height 0.06
Unit Box Length 0.265
Unit Box Width 0.26
Unit Brutto Volume 0.004893 cubm
USB 2.0 jungtys 1
USB 2.0 portų kiekis 4
USB 3.2 (3.1 1 kart.) A tipo prievadų skaičius 2
USB 3.2 (3.1 1 kart.) jungtys 1
Vendor Homepage https://www.asrock.com/MB/Intel/H810M-P%20Gen5/index.asp#Overview
Vieneto aukštis 6 cm
Vieneto gylis 26.5 cm
Vieneto plotis 26 cm
Vienetų skaičius vienoje siuntimo dėžėje 10
Įvedimas Taip
Šasi fenų jungčių skaičius 1
"DisplayPort" kiekis 1
"DisplayPort" versija 1.4
"PCI Express x1 (Gen 4.x)" lizdai 1
"PCI Express x16" ("Gen 5.x") lizdai 1
"Wi-Fi" Ne
