Mainboard, MSI, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR5, Memory slots 4, 1xPCI-Express 3.0 1x, 1xPCI-Express
Product reference:
2-4711377154017
Mainboard, MSI, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR5, Memory slots 4, 1xPCI-Express 3.0 1x, 1xPCI-Express
Product reference:
2-4711377154017
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Lithuania in
3 - 5
business days

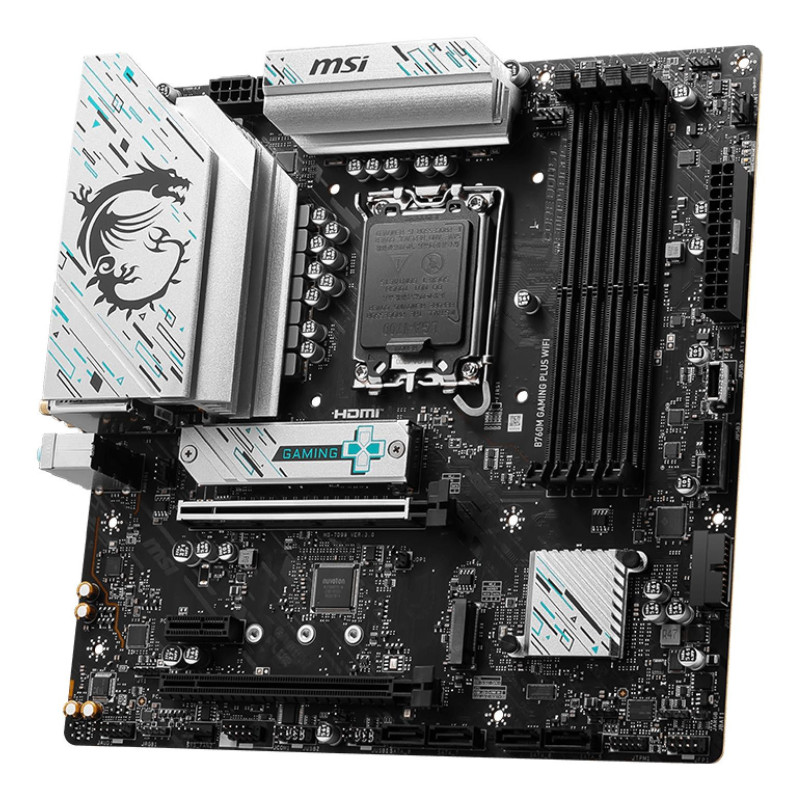

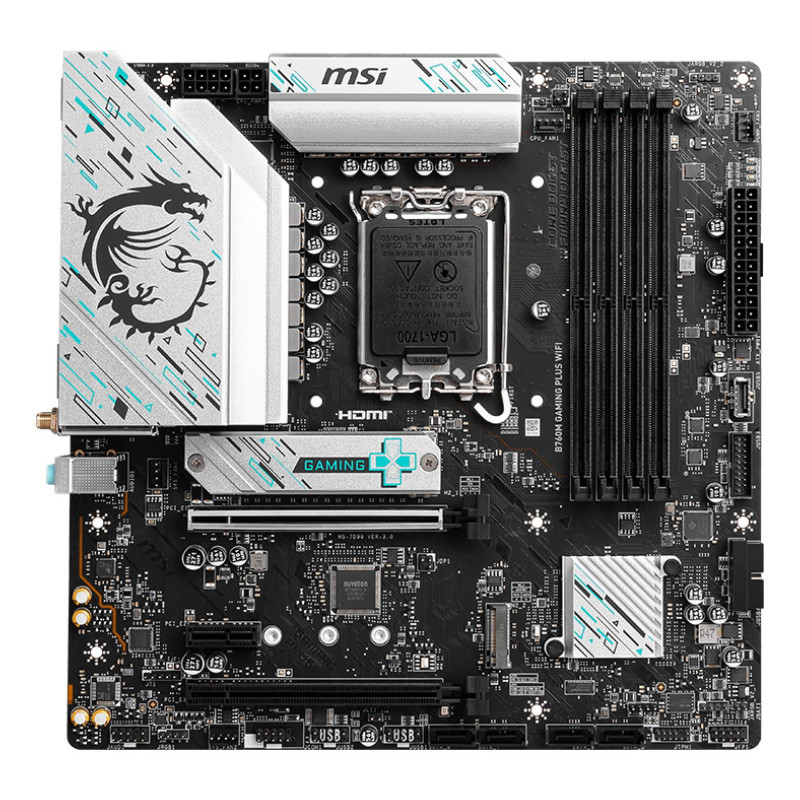

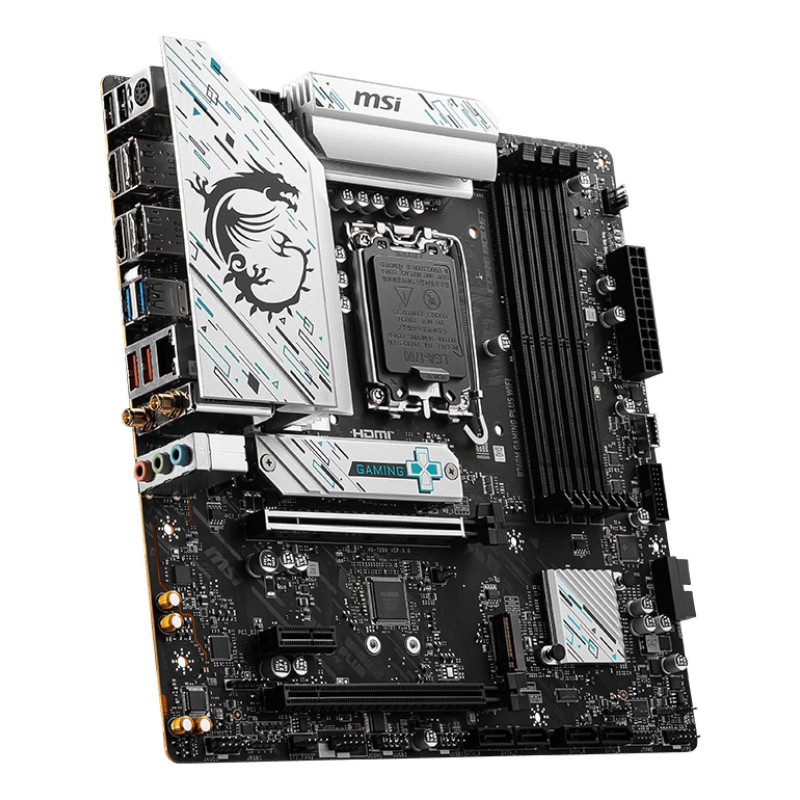

B760M GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want it all.
LIGHTNING GEN 4 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.
REINFORCED ,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
- Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2 10G
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- High Quality PCB: 6-layer PCB made by 2oz thickened copper
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
| ACPI version | 6.4 |
| ATX Power connector (24-pin) | Yes |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Clear CMOS jumper | Yes |
| Compatible processor series | Intel® Celeron®/Intel® Pentium® Gold |
| Component for | PC |
| CPU fan connector | Yes |
| Depth | 243.84 mm |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 2 |
| ECC сompatibility | Non-ECC |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| Maximum internal memory | 192 GB |
| Maximum number of SMP processors | 1 |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Model | B760M GAMING PLUS WIFI |
| Motherboard chipset | Intel B760 |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Number of memory slots | 4 |
| Number of SATA III connectors | 4 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| Power source type | ATX |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Product Net Weight | 1.1 kg |
| RAID levels | 0/1/10/5 |
| RAID support | Yes |
| RGB LED pin header | Yes |
| Shipping Box Depth | 55.5 cm |
| Shipping Box Height | 33 cm |
| Shipping Box Weight | 13.37 kg |
| Shipping Box Width | 30 cm |
| Summary | MSI B760M GAMING PLUS WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11ad, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel |
| Supported memory clock speed (max) | 6800 MHz |
| Supported memory clock speeds | 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800 MHz |
| Supported memory types | DDR5-SDRAM |
| Supported processor sockets | LGA 1700 |
| Supported storage drive interfaces | M.2,SATA III |
| System Management BIOS (SMBIOS) version | 3.5 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| TPM connector | Yes |
| Unit Box Height | 0.055 |
| Unit Box Length | 0.3 |
| Unit Box Width | 0.0275 |
| Unit Calculated Volume | 0.005495 cubm |
| Unit Calculated Weight | 1.34 kg |
| Unit Depth | 30 cm |
| Unit Height | 5.5 cm |
| Unit Width | 2.75 cm |
| Units per Shipping Box | 10 |
| USB 2.0 connectors | 4 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Vendor Homepage | https://www.msi.com/Motherboard/B760M-GAMING-PLUS-WIFI/Overview |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a/802.11ad/802.11b/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax) |
| Width | 243.84 mm |
| Windows operating systems supported | Windows 10/Windows 11 |
