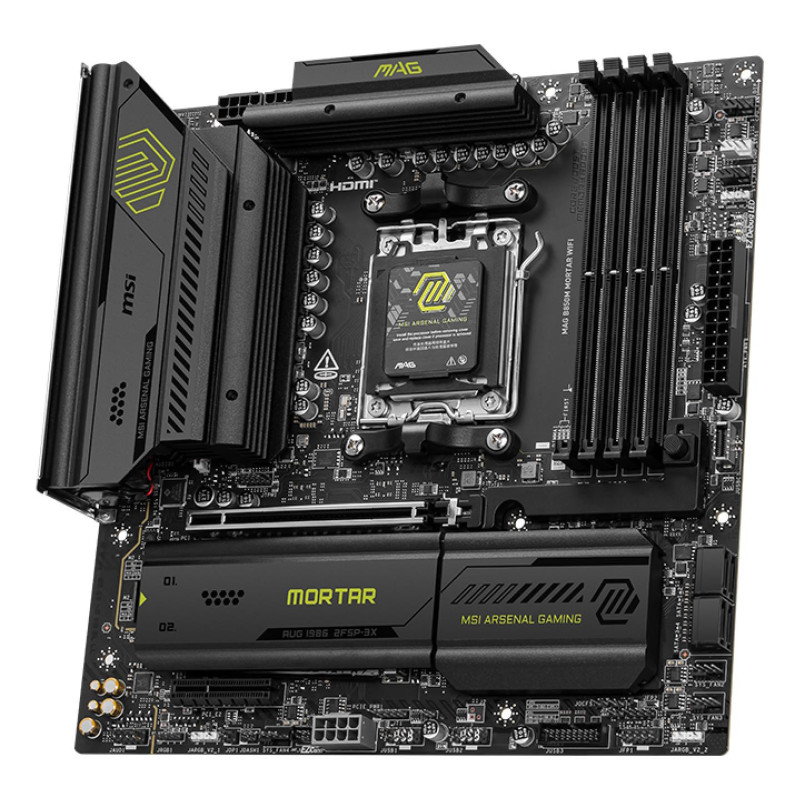

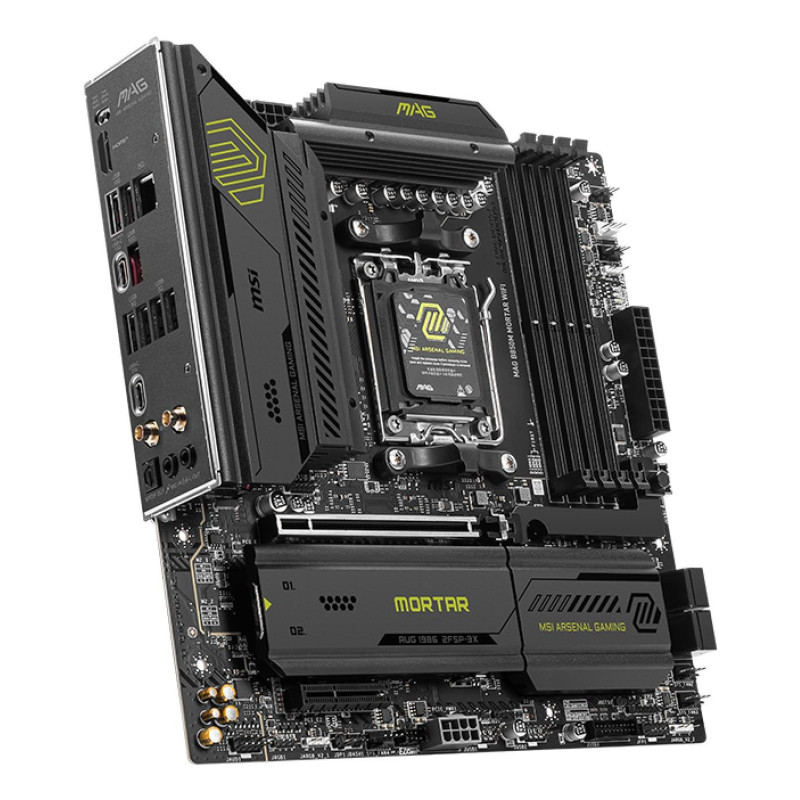

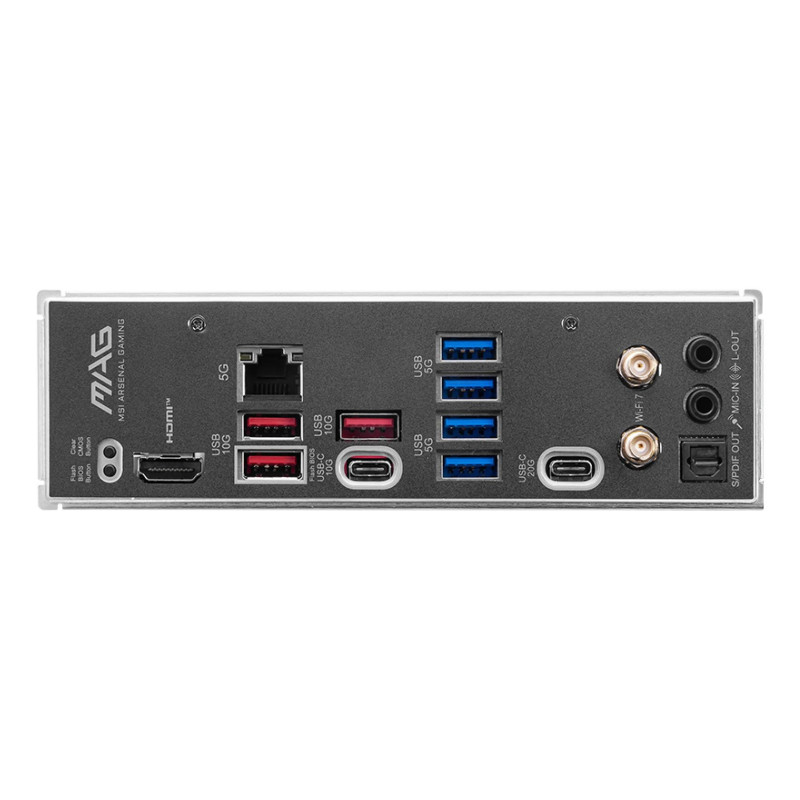

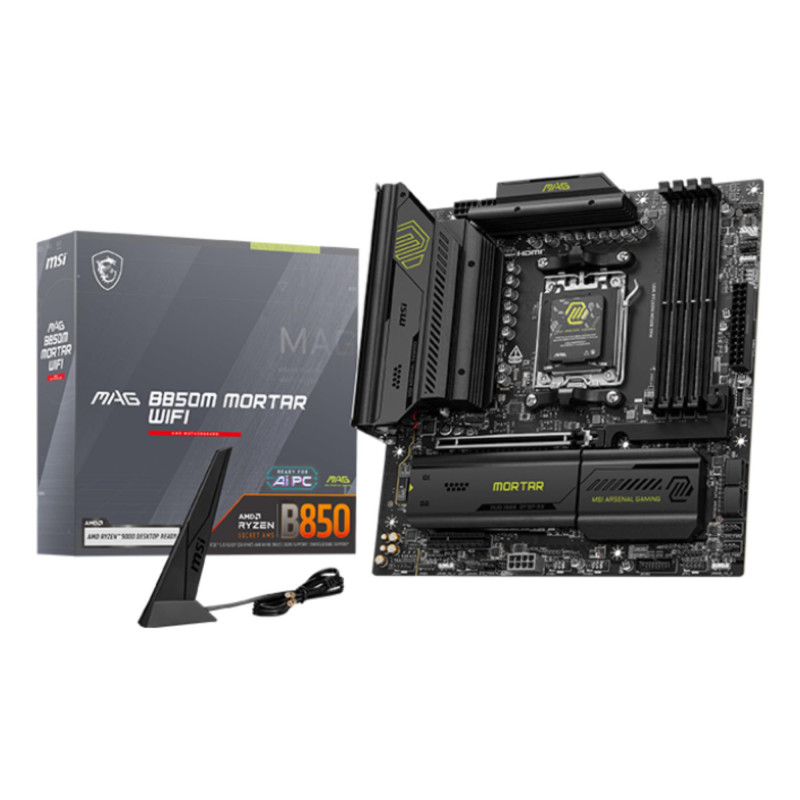

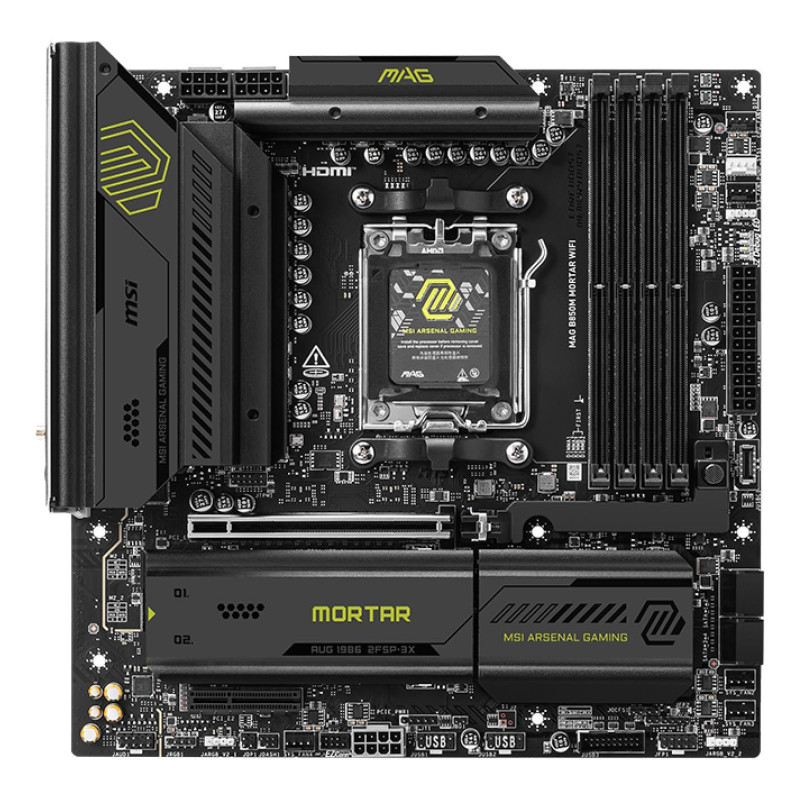

MSI MAG B850M MORTAR WIFI
MAG B850M MORTAR WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with true Wi-Fi 7 solution, 5G LAN, USB 20Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it's ready for the battlefield of AMD Ryzen™ 9000 series processors.
MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
- Ultra Performance: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, 20G USB Type-C
- 5G LAN with Wi-Fi 7 Solution: the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost 5: Reward your ears with studio-grade sound quality for the most immersive gaming experience
| 1st M.2 highest PCI Express generation | 5.0 |
| 1st M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 2280 |
| ACPI version | 6.5 |
| ATX Power connector (24-pin) | Yes |
| Audio chip | Realtek ALC4080 |
| Audio output channels | 7.1 channels |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Compatible processor series | AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series |
| Component for | PC |
| CPU fan connector | Yes |
| Depth | 243.84 mm |
| ECC сompatibility | Non-ECC |
| Ethernet interface type | 5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Maximum internal memory | 256 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Model | MAG B850M MORTAR WIFI |
| Motherboard chipset | AMD B850 |
| Motherboard chipset family | AMD |
| Motherboard form factor | micro ATX |
| Number of CPU fan connectors | 2 |
| Number of HDDs supported | 4 |
| Number of M.2 (M) slots | 3 |
| Number of memory slots | 4 |
| Number of RGB LED pin headers | 3 |
| Number of SATA III connectors | 4 |
| Number of storage drives supported | 7 |
| Number of water pump connectors | 1 |
| On-board graphics card | No |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x16 slots | 1 |
| PCI Express x4 slots | 1 |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Product colour | Black |
| Product Net Weight | 0.8 kg |
| RAID levels | 0/1/10 |
| RAID support | Yes |
| RGB LED pin header | Yes |
| Shipping Box Depth | 56 cm |
| Shipping Box Height | 30.5 cm |
| Shipping Box Weight | 19.27 kg |
| Shipping Box Width | 37.7 cm |
| Summary | MSI MAG B850M MORTAR WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD |
| Supported memory clock speed (max) | 8200 MHz |
| Supported memory clock speeds | 4800/5600/6400/8200 MHz |
| Supported memory types | DDR5-SDRAM |
| Supported processor sockets | Socket AM5 |
| Supported storage drive interfaces | M.2 |
| Supported storage drive types | HDD & SSD |
| System Management BIOS (SMBIOS) version | 3.7 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Total number of SATA connectors | 4 |
| Unit Box Height | 0.07 |
| Unit Box Length | 0.282 |
| Unit Box Width | 0.271 |
| Unit Calculated Volume | 0.006439 cubm |
| Unit Calculated Weight | 1.93 kg |
| Units per Shipping Box | 10 |
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Vendor Homepage | https://www.msi.com/Motherboard/MAG-B850M-MORTAR-WIFI/Specification |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be) |
| Width | 243.84 mm |
| Windows operating systems supported | Windows 11 x64 |
