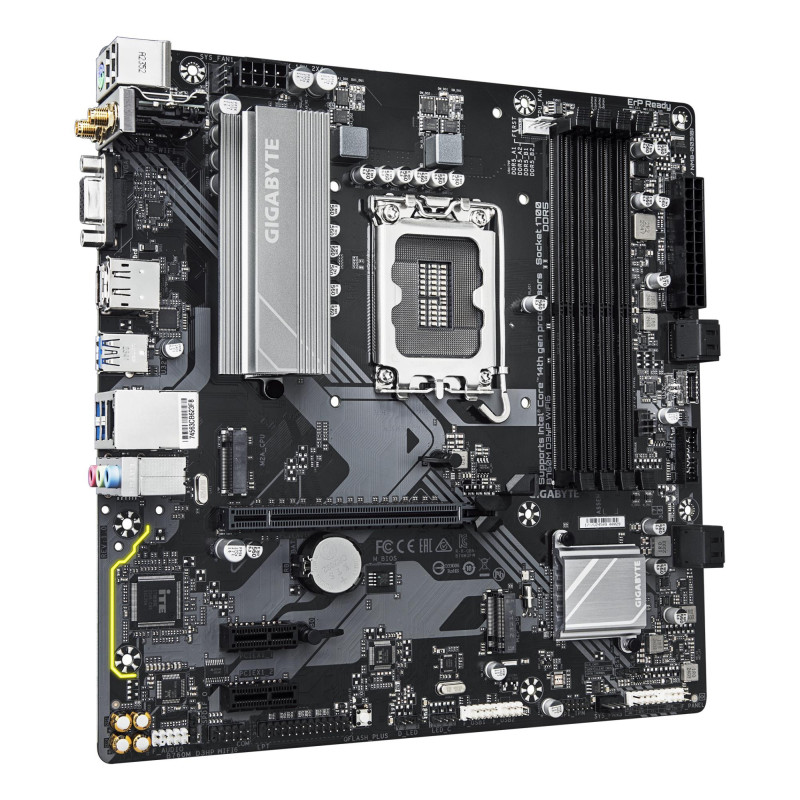

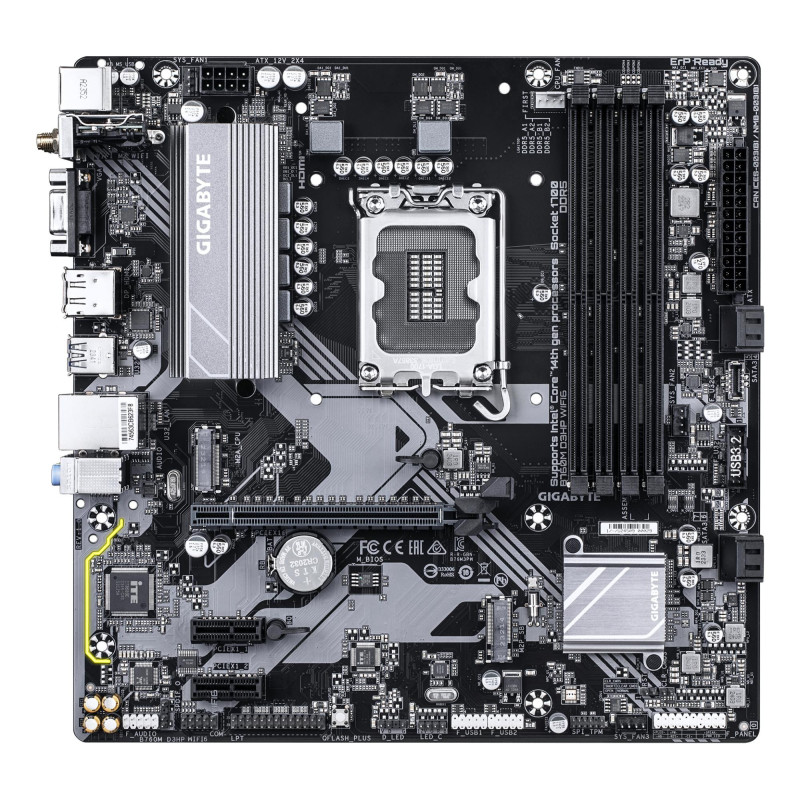

Mainboard, GIGABYTE, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR5, Memory slots 4, B760MD3HPWIFI61.0
Product reference:
2-4719331867638
Mainboard, GIGABYTE, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR5, Memory slots 4, B760MD3HPWIFI61.0
Product reference:
2-4719331867638
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Lithuania in
3 - 5
business days
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- Supports Intel Core 14th/ 13th /12th processors
- Unparalleled Performance: Hybrid 4+1+1 Phases Digital VRM Solution
- Dual Channel DDR5: 4*DIMMs XMP Memory Module Support
- Next Generation Storage: 2*PCIe 4.0 x4 M.2 Connectors
- Fast Networks: GbE LAN & Wi-Fi 6 802.11ax

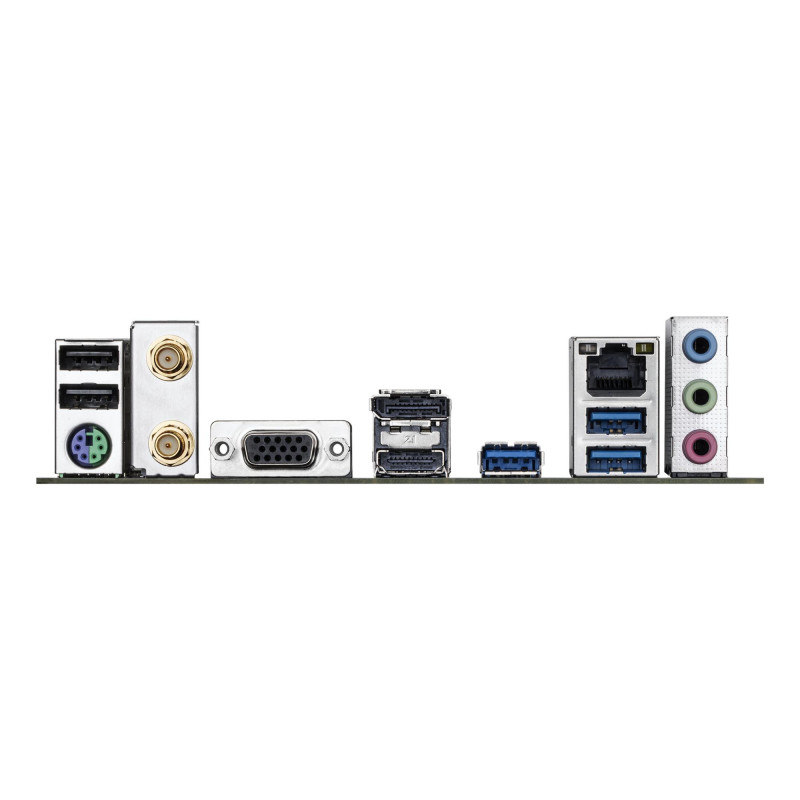

- Extended Connectivity: Front USB-C 5Gb/s, DP, HDMI, D-Sub
- Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
| 12V power connector | Yes |
| 1st M.2 highest PCI Express generation | 4.0 |
| 1st M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| ACPI version | 5.0 |
| Antenna included | Yes |
| ATX Power connector (24-pin) | Yes |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Batteries included | Yes |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Battery weight | 3 g |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Clear CMOS jumper | Yes |
| Compatible processor series | Intel Core/Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i3 14th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i5 14th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i7 14th Gen/Intel Core i9 12th Gen/Intel® Celeron® |
| Component for | PC |
| Cooling type | Passive |
| CPU fan connector | Yes |
| Depth | 244 mm |
| Desktop Management Interface (DMI) version | 2.7 |
| DirectX version | 12.0 |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| ECC сompatibility | ECC & Non-ECC |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| HDCP | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Height | 35 mm |
| LAN controller | Realtek RTL8111H |
| Line-in | Yes |
| Lithium weight per battery | 0.07 g |
| Maximum internal memory | 192 GB |
| Maximum internal memory per slot | 48 GB |
| Maximum resolution | 4096 x 2304 pixels |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Model | B760M D3HP WIFI6 |
| Motherboard chipset | Intel B760 Express |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Number of battery cells | 1 |
| Number of chassis fan connectors | 3 |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of HDDs supported | 4 |
| Number of M.2 (M) slots | 2 |
| Number of memory slots | 4 |
| Number of RGB LED pin headers | 2 |
| Number of SATA III connectors | 4 |
| Number of storage drives supported | 6 |
| Package depth | 265 mm |
| Package height | 54 mm |
| Package weight | 1200 g |
| Package width | 265 mm |
| Parallel connector | Yes |
| Parallel processing technology support | Not supported |
| PC health monitoring | Fan/Temperature/Voltage/Water cooling |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Power source type | ATX |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Product colour | Dark brown |
| Product Net Weight | 0.5 kg |
| Products per shipping (inner) case | 1 pc(s) |
| PS/2 ports quantity | 1 |
| RAID levels | 0/1/10/5 |
| RAID support | Yes |
| RGB LED pin header | Yes |
| S/PDIF out connector | Yes |
| Screws included | Yes |
| Serial port headers | 1 |
| Shipping Box Depth | 56 cm |
| Shipping Box Height | 29.5 cm |
| Shipping Box Weight | 12 kg |
| Shipping Box Width | 37.5 cm |
| Summary | GIGABYTE B760M D3HP WIFI6 Motherboard - Supports Intel Core 14th Gen CPUs, 4+1+1 Phases Digital VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, Wi-Fi 6, GbE LAN, USB 3.2 Gen1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H, Top Wi-Fi standard: Wi-Fi 6 (802.11ax) |
| Supported memory clock speed (max) | 5600 MHz |
| Supported memory clock speeds | 4400/4800/5200/5600 MHz |
| Supported memory types | DDR5-SDRAM |
| Supported processor sockets | LGA 1700 |
| Supported storage drive interfaces | M.2,PCI Express 4.0,SATA III |
| Supported storage drive types | HDD & SSD |
| System Management BIOS (SMBIOS) version | 2.7 |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| Unit Box Height | 0.07 |
| Unit Box Length | 0.275 |
| Unit Box Width | 0.27 |
| Unit Calculated Volume | 0.006195 cubm |
| Unit Calculated Weight | 1.2 kg |
| Unit Depth | 27.5 cm |
| Unit Height | 7 cm |
| Unit Width | 27 cm |
| Units per Shipping Box | 10 |
| USB 2.0 connectors | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Vendor Homepage | https://www.gigabyte.com/ |
| VGA (D-Sub) ports quantity | 1 |
| Warranty period | 3 year(s) |
| Weight | 1110 g |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Width | 244 mm |
| WiFi-AP antenna jack | 2 |
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 |
| WLAN controller model | Realtek RTL8851BE |
