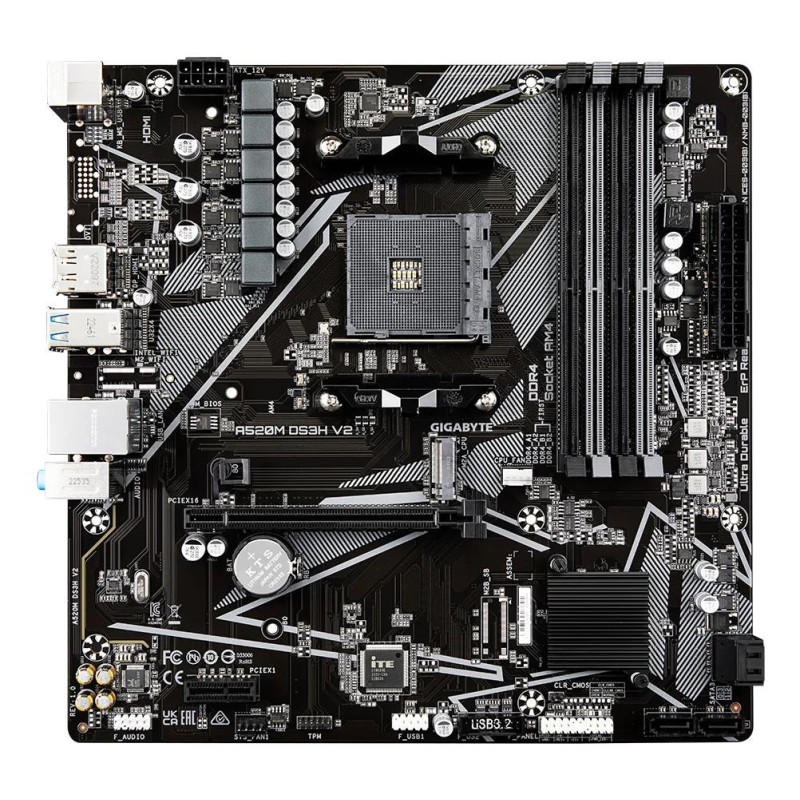

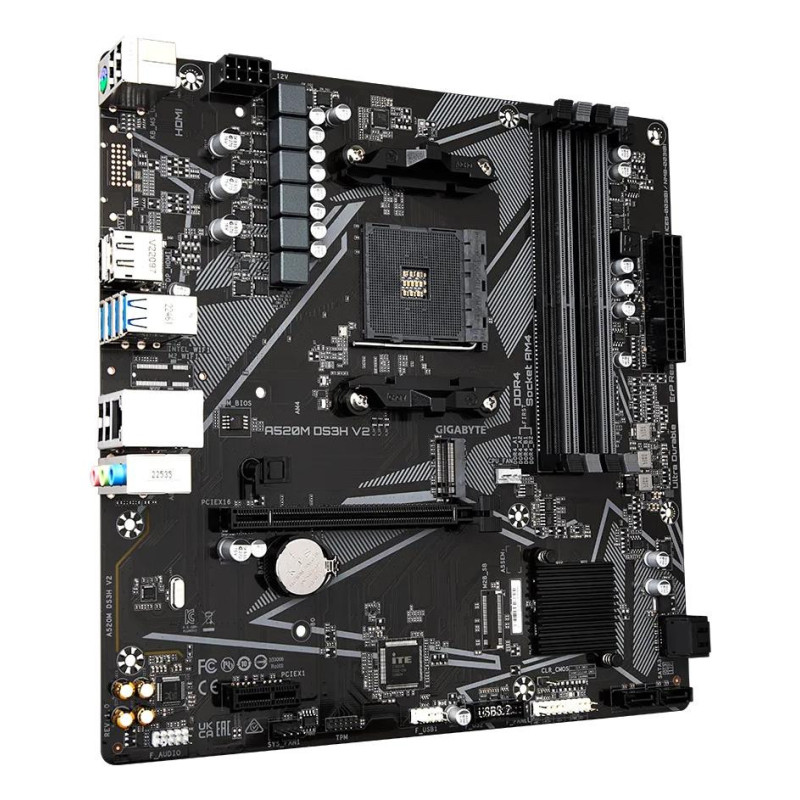

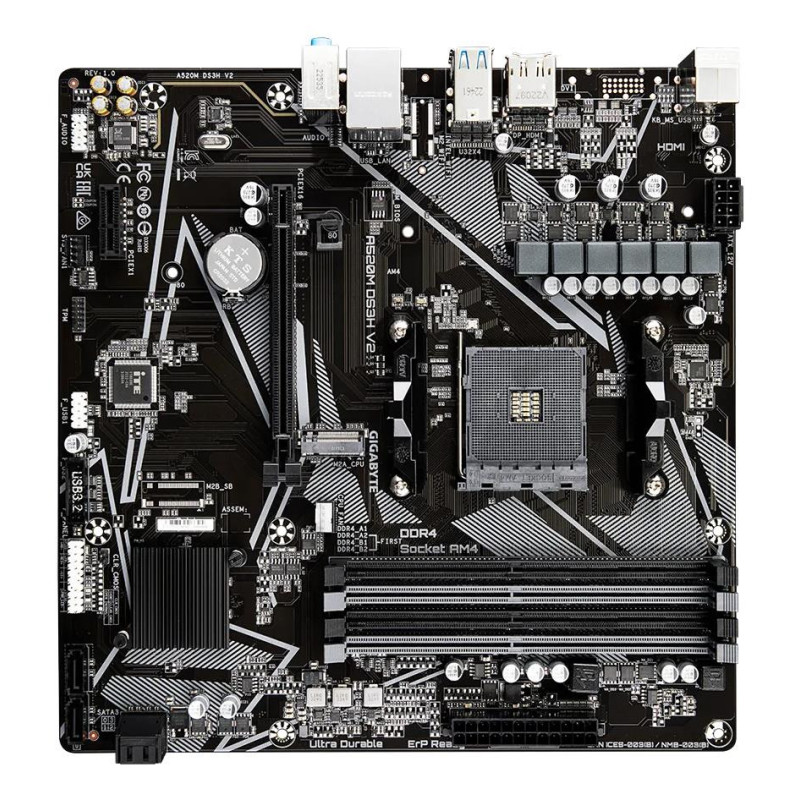

Mainboard, GIGABYTE, AMD A520, SAM4, Micro-ATX, Memory DDR4, Memory slots 4, A520MDS3HV2
Product reference:
2-4719331854690
Mainboard, GIGABYTE, AMD A520, SAM4, Micro-ATX, Memory DDR4, Memory slots 4, A520MDS3HV2
Product reference:
2-4719331854690
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Lithuania in
3 - 5
business days
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- Ultra Durable™ PCIe 3.0 x16 Slot
- NVMe PCIe 3.0 M.2 Connectors
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- GbE LAN with Bandwidth Management
- Rear DisplayPort and HDMI for Multi-display Support
- Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Anti-Sulfur Resistors Design
| 12V power connector | Yes |
| ACPI version | 5.0 |
| ATX Power connector (24-pin) | Yes |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| Batteries included | Yes |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Battery weight | 3 g |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Bundled software | Norton Internet Security (OEM version) Realtek 8118 Gaming LAN Bandwidth Control Utility |
| Cables included | SATA |
| Clear CMOS button | Yes |
| Clear CMOS jumper | Yes |
| Compatible processor series | AMD Ryzen 3000 Series/AMD Ryzen Threadripper 3000 Series/AMD Ryzen Threadripper PRO 3000 WX-Series |
| Component for | PC |
| Cooling type | Active |
| Country of origin | China |
| CPU fan connector | Yes |
| Depth | 244 mm |
| Desktop Management Interface (DMI) version | 2.7 |
| Digital audio optical out | 1 |
| Discrete graphics support | Yes |
| DisplayPort version | 2.0 |
| DisplayPorts quantity | 1 |
| Drivers included | Yes |
| DVI-D ports quantity | 1 |
| ECC сompatibility | ECC & Non-ECC |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| HDCP | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Height | 35 mm |
| Lithium weight per battery | 0.07 g |
| Maximum internal memory | 128 GB |
| Maximum internal memory supported by processor | 128 GB |
| Maximum number of SMP processors | 1 |
| Maximum resolution | 5120 x 2880 pixels |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Model | A520M DS3H V2 |
| Motherboard chipset family | AMD |
| Motherboard form factor | micro ATX |
| Number of battery cells | 1 |
| Number of displays supported | 3 |
| Number of EATX power connectors | 1 |
| Number of HDDs supported | 4 |
| Number of M.2 (M) slots | 1 |
| Number of memory slots | 4 |
| Number of SATA III connectors | 4 |
| Number of storage drives supported | 5 |
| Package depth | 265 mm |
| Package height | 54 mm |
| Package weight | 810 g |
| Package width | 265 mm |
| PC health monitoring | CPU/LED/Power supply/Temperature/Voltage |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Power fan connector | Yes |
| Power source type | ATX |
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Product colour | Black |
| Product Net Weight | 0.7 kg |
| Products per shipping (inner) case | 1 pc(s) |
| PS/2 ports quantity | 1 |
| RAID levels | 0/1/10 |
| RAID support | Yes |
| Serial port headers | 1 |
| Shipping Box Depth | 57 cm |
| Shipping Box Height | 29 cm |
| Shipping Box Weight | 8.9 kg |
| Shipping Box Width | 28.5 cm |
| Summary | GIGABYTE A520M DS3H V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 4733MHz DDR4 (OC), PCIe 3.0 x16, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 5120 x 2880 pixels. USB connector type: USB Type-A |
| Supported memory clock speeds | 2133/2400/2667/2933/3200/3333/3600/4000/4400/4733 MHz |
| Supported memory module capacities | 16GB/1GB/2GB/32GB/4GB/8GB |
| Supported memory types | DDR4-SDRAM |
| Supported processor sockets | Socket AM4 |
| Supported storage drive interfaces | M.2,SATA III |
| Supported storage drive types | HDD & SSD |
| System Management BIOS (SMBIOS) version | 2.7 |
| Total number of SATA connectors | 4 |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| Unit Box Height | 0.055 |
| Unit Box Length | 0.27 |
| Unit Box Width | 0.265 |
| Unit Calculated Volume | 0.004711 cubm |
| Unit Calculated Weight | 0.89 kg |
| Unit Depth | 27 cm |
| Unit Height | 5.5 cm |
| Unit Width | 26.5 cm |
| Units per Shipping Box | 10 |
| USB 2.0 connectors | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB connector type | USB Type-A |
| Vendor Homepage | https://www.gigabyte.com/Motherboard/A520M-DS3H-V2-rev-10#kf |
| Warranty period | 3 year(s) |
| Wi-Fi | No |
| Width | 244 mm |
| Windows operating systems supported | Windows 10 x64 |
