Mainboard, ASUS, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR5, Memory slots 2, 2xPCI-Express 4.0 1x, 1xPCI-Expres
Product reference:
2-4711387198506
Mainboard, ASUS, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR5, Memory slots 2, 2xPCI-Express 4.0 1x, 1xPCI-Expres
Product reference:
2-4711387198506
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Lithuania in
3 - 5
business days

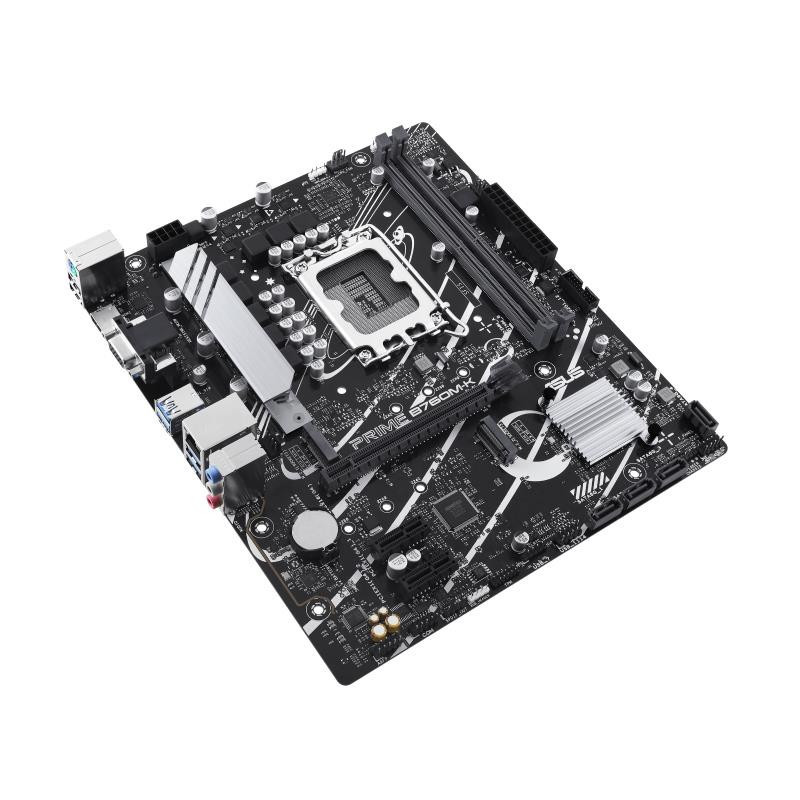

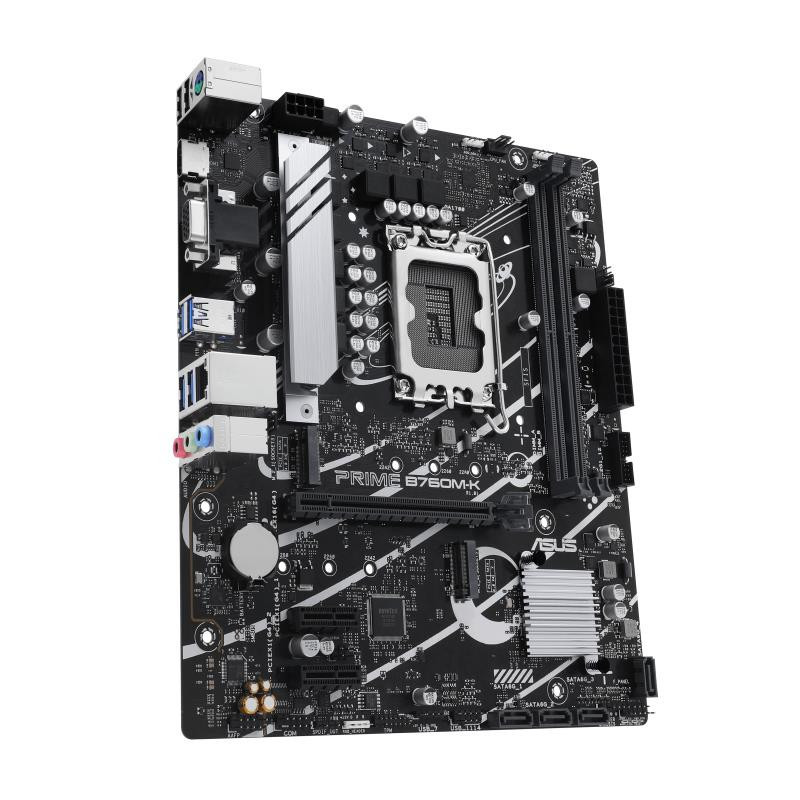

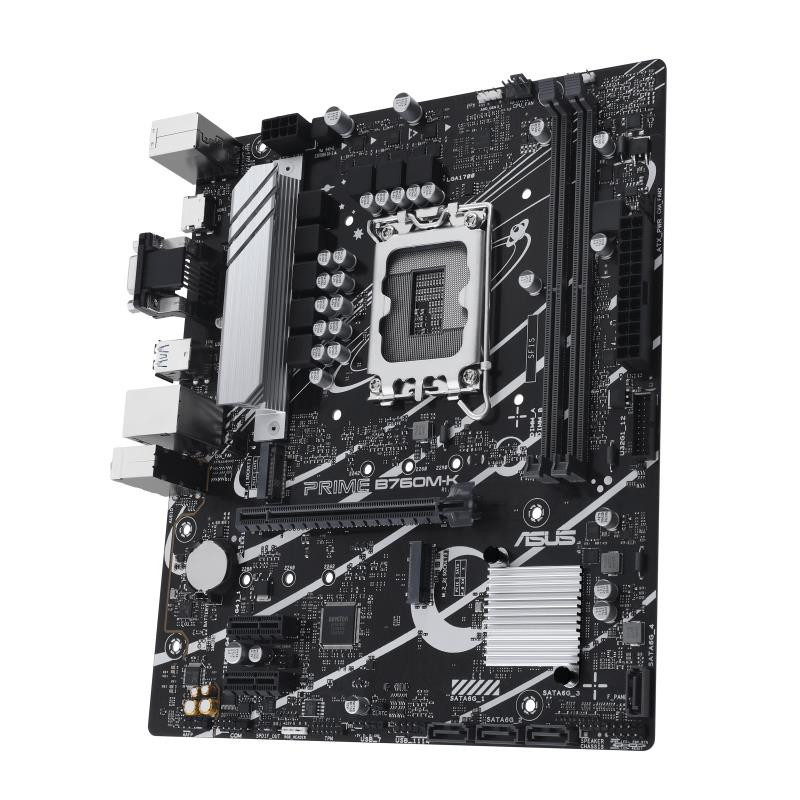

B760M-K
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-K provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Intelligent Control
ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
All-Around Energy Efficiency
The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
- Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
- Ultrafast Connectivity: PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet and front USB 3.2 Gen 1 support
- Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
| 12V power connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Audio output channels | 7.1 channels |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Cables included | SATA |
| Compatible processor series | Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold |
| Component for | PC |
| CPU fan connector | Yes |
| Depth | 211 mm |
| ECC сompatibility | Non-ECC |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| HDMI ports quantity | 1 |
| Maximum internal memory | 96 GB |
| Maximum number of SMP processors | 1 |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Model | PRIME B760M-K |
| Motherboard chipset | Intel B760 |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Number of chassis fan connectors | 1 |
| Number of COM connectors | 1 |
| Number of HDDs supported | 4 |
| Number of M.2 (M) slots | 2 |
| Number of memory slots | 2 |
| Number of SATA III connectors | 4 |
| Number of storage drives supported | 6 |
| Package depth | 263 mm |
| Package height | 51.5 mm |
| Package weight | 1015 g |
| Package width | 270 mm |
| Parallel processing technology support | Not supported |
| PCI Express x1 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Product Net Weight | 0.7 kg |
| PS/2 ports quantity | 1 |
| RAID levels | 0/1/10/5 |
| RAID support | Yes |
| RGB LED pin header | Yes |
| S/PDIF out connector | Yes |
| S/PDIF out port | Yes |
| Shipping Box Depth | 56.5 cm |
| Shipping Box Height | 29.5 cm |
| Shipping Box Weight | 10.2 kg |
| Shipping Box Width | 29 cm |
| Summary | ASUS PRIME B760M-K. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel |
| Supported memory clock speed (max) | 8000 MHz |
| Supported memory clock speeds | 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/8000 MHz |
| Supported memory types | DDR5-SDRAM |
| Supported processor sockets | LGA 1700 |
| Supported storage drive interfaces | M.2,SATA III |
| Supported storage drive types | HDD & SSD |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| Unit Box Height | 0.055 |
| Unit Box Length | 0.275 |
| Unit Box Width | 0.265 |
| Unit Calculated Volume | 0.004834 cubm |
| Unit Calculated Weight | 1.02 kg |
| Units per Shipping Box | 10 |
| USB 2.0 connectors | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Vendor Homepage | https://www.asus.com/motherboards-components/motherboards/prime/prime-b760m-k/ |
| VGA (D-Sub) ports quantity | 1 |
| Wi-Fi | No |
| Width | 244 mm |
| Windows operating systems supported | Windows 10 x64/Windows 11 |
