Mainboard, ASUS, AMD X870E, Socket AM5, ATX, RAM DDR5-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes, 5xNumber of M.2 (M) slot
Product reference:
2-4711636595704
Mainboard, ASUS, AMD X870E, Socket AM5, ATX, RAM DDR5-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes, 5xNumber of M.2 (M) slot
Product reference:
2-4711636595704
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Lithuania in
3 - 5
business days

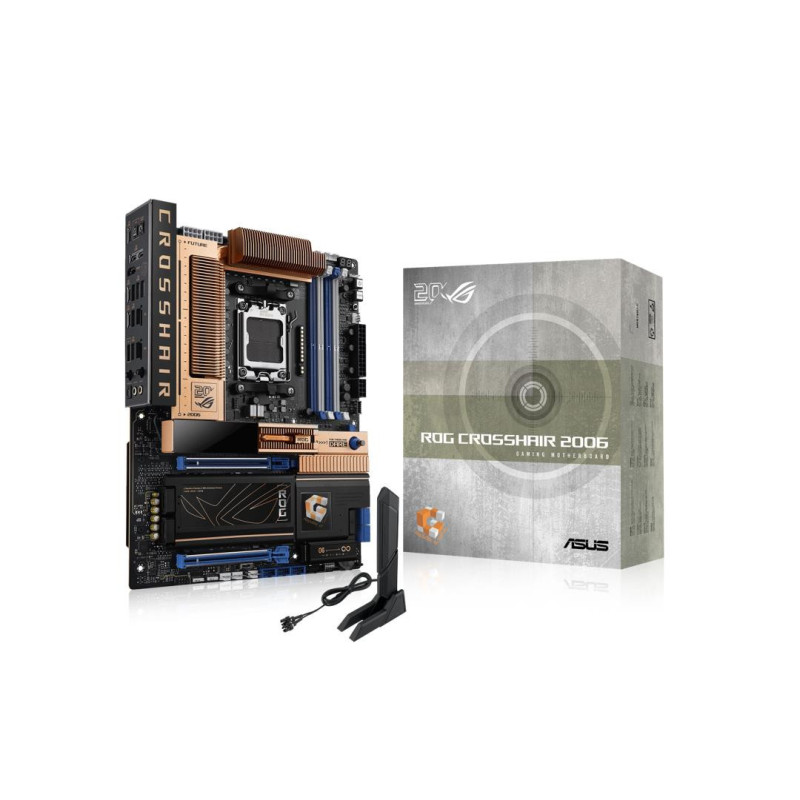

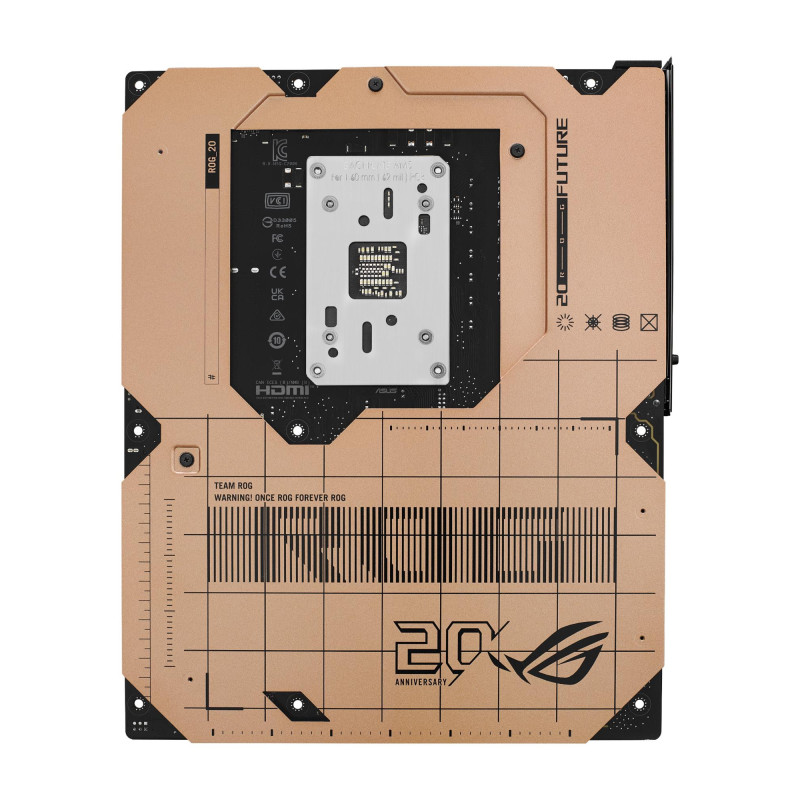

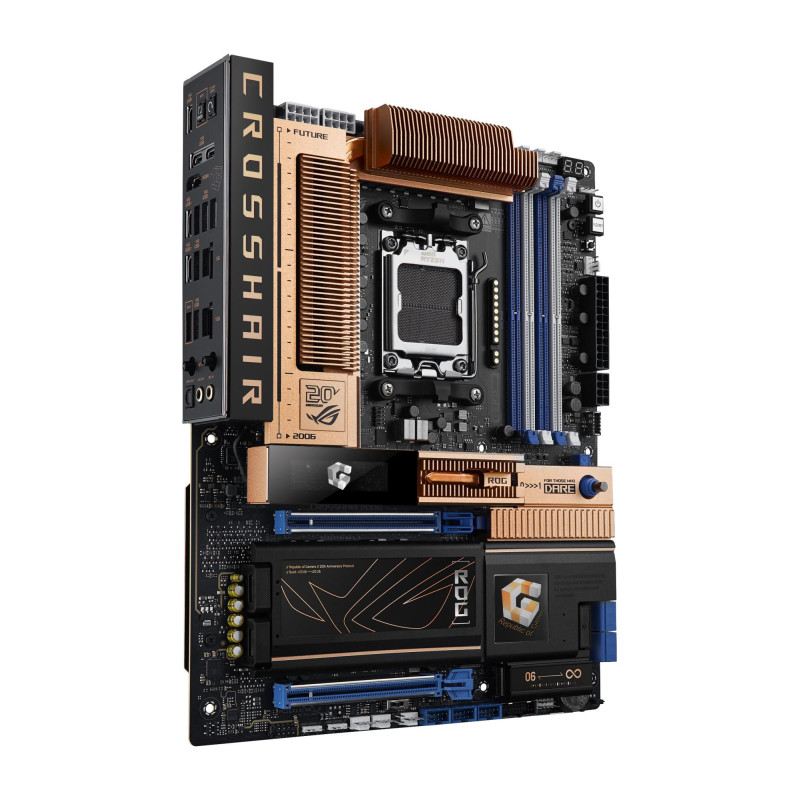

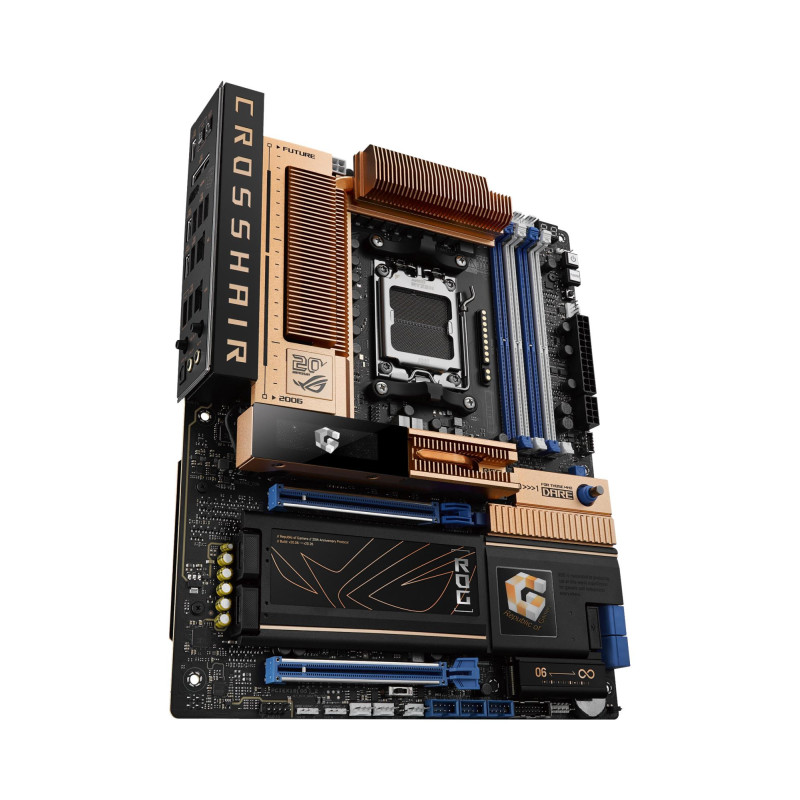

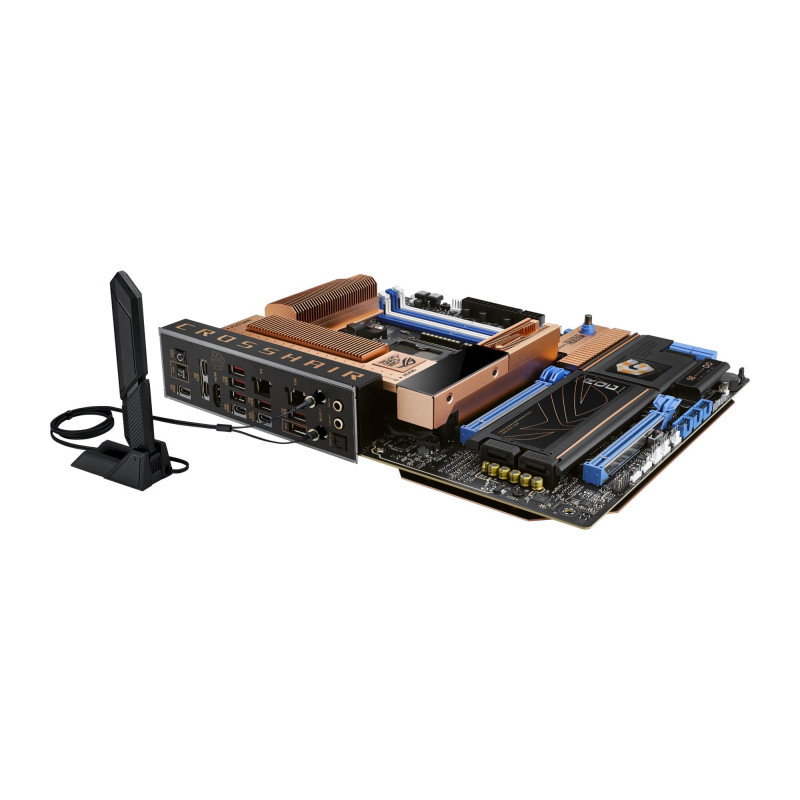

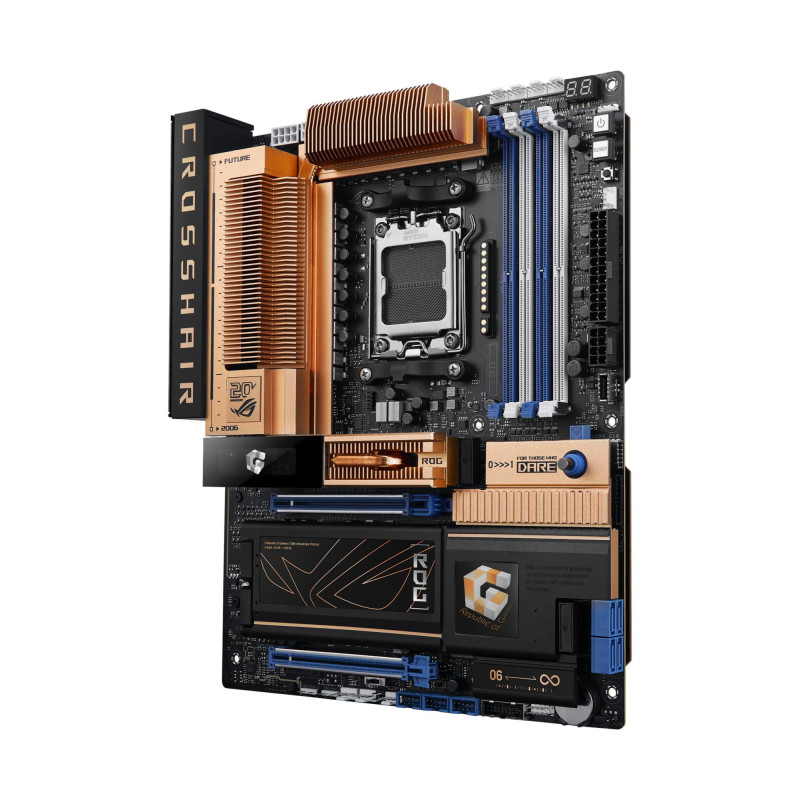

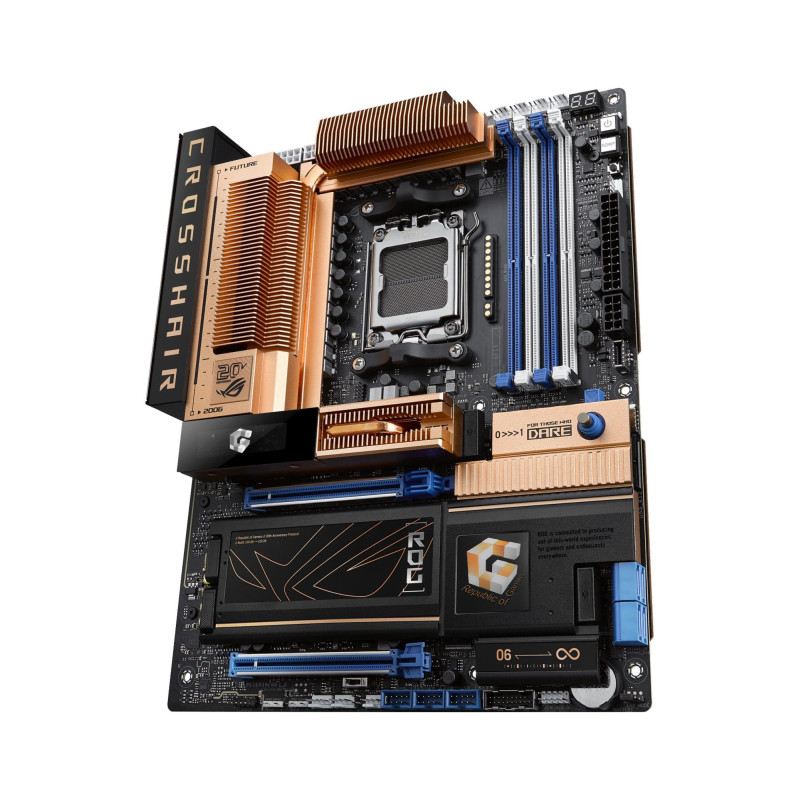

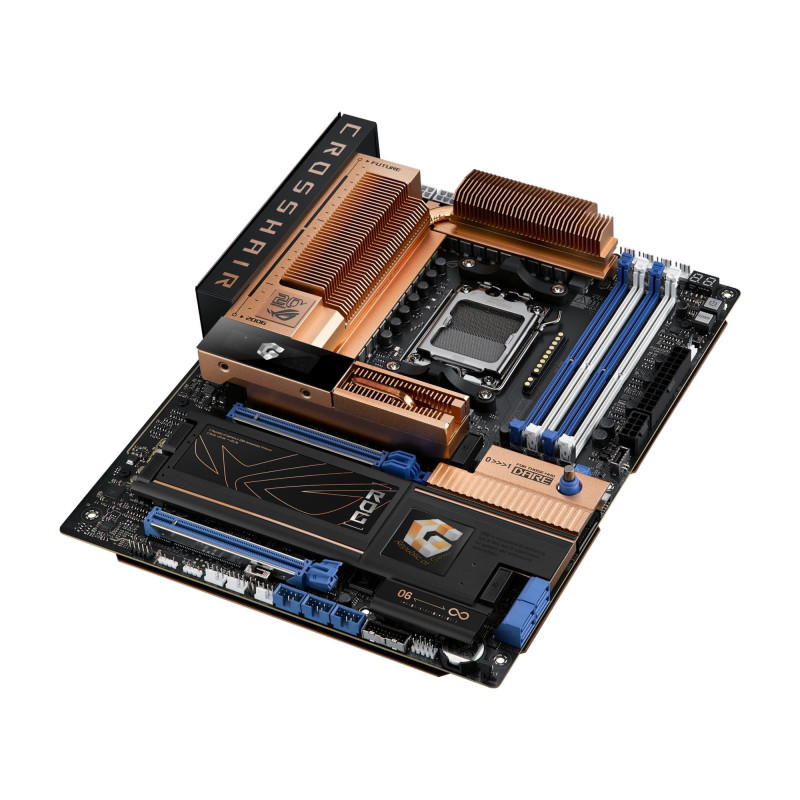

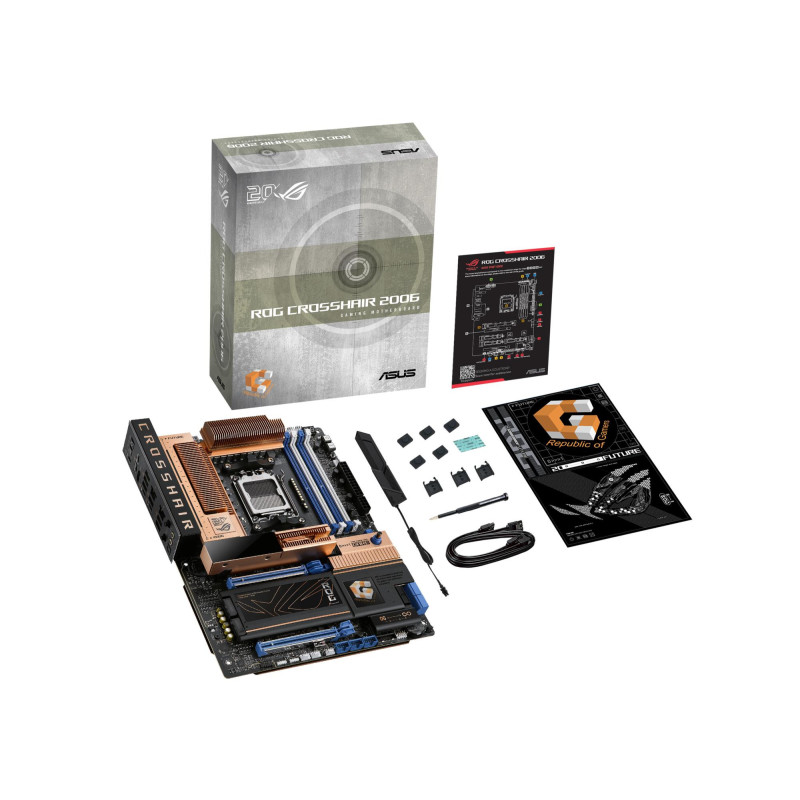

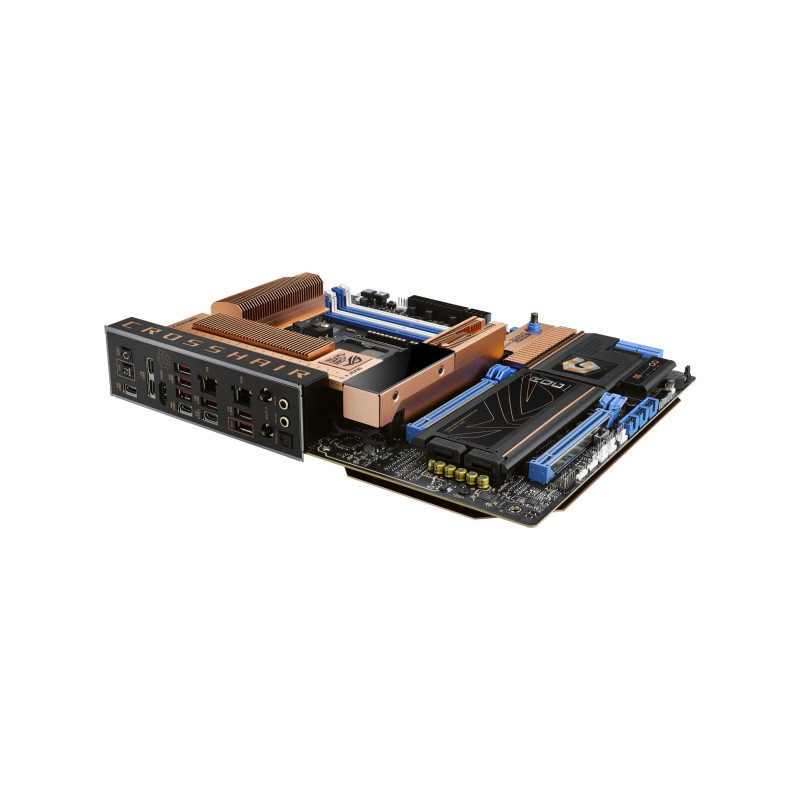

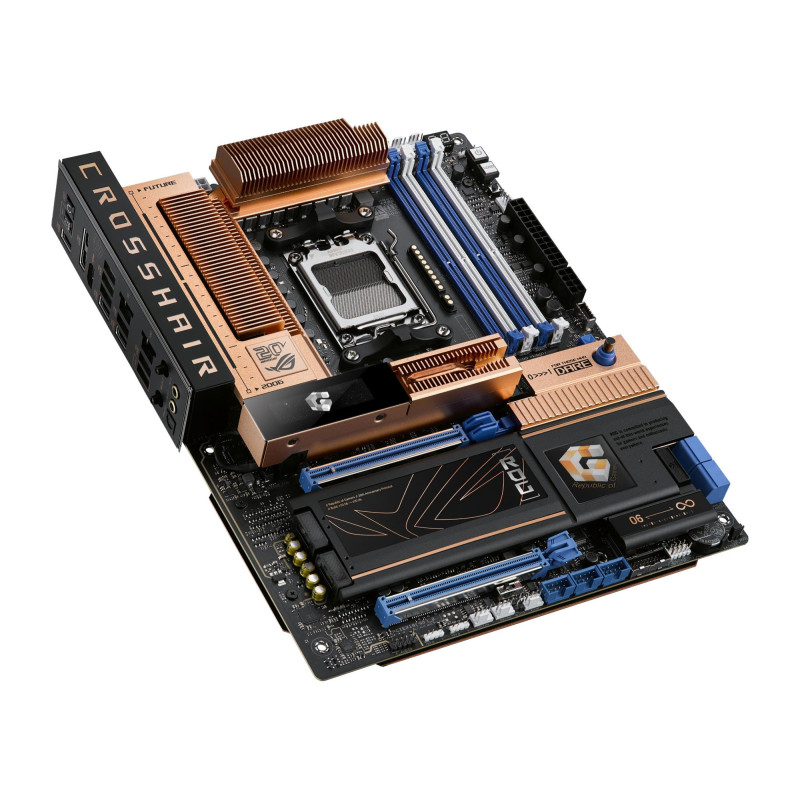

ROG Crosshair 2006
The ROG Crosshair 2006 celebrates the 20th anniversary of the very first ROG motherboard with a retro-inspired copper color design and signature OLED animation. This flagship platform also offers advanced power delivery and cutting-edge memory technologies, blending heritage with modern performance.
Personalization
The ROG Crosshair 2006 includes LiveDash, a built-in 2-inch OLED panel that shows useful information and features customizable graphics. During the power-on, self-test (POST) phase, the OLED shows key stats in simple language using traditional POST codes. In normal operation, the panel can be programmed to show CPU frequency, device temperatures, or fan speeds. You can also personalize the default OLED GIF with a preferred image or animation.
*Supports custom animation uploads in 256x64 pixel monochrome format (up to 100KB).
| 12V power connector | Yes |
| 1st M.2 highest PCI Express generation | 5.0 |
| 1st M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 2280 |
| 4th M.2 highest PCI Express generation | 4.0 |
| 4th M.2 largest key size | 2280 |
| 5th M.2 highest PCI Express generation | 4.0 |
| 5th M.2 largest key size | 2230 |
| Antenna included | Yes |
| ATX Power connector (24-pin) | Yes |
| Audio chip | Realtek ALC4082 |
| Audio output channels | 7.1 channels |
| BIOS memory size | 512 Mbit |
| BIOS type | UEFI AMI |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Cables included | SATA |
| Compatible processor series | AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series |
| Component for | PC |
| CPU fan connector | Yes |
| Depth | 244 mm |
| ECC сompatibility | ECC & Non-ECC |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | 10 Gigabit Ethernet/5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| HDMI ports quantity | 1 |
| Height | 50 mm |
| Maximum internal memory | 256 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Motherboard chipset | AMD X870E |
| Motherboard chipset family | AMD |
| Motherboard form factor | ATX |
| Number of chassis fan connectors | 4 |
| Number of HDDs supported | 4 |
| Number of M.2 (M) slots | 5 |
| Number of memory slots | 4 |
| Number of RGB LED pin headers | 3 |
| Number of SATA III connectors | 4 |
| Number of storage drives supported | 9 |
| Number of temperature sensor headers | 1 |
| Package depth | 312 mm |
| Package height | 108 mm |
| Package weight | 5572 g |
| Package width | 370 mm |
| Parallel processing technology support | Not supported |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| Power source type | ATX |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Product colour | Black/Gold |
| Product Net Weight | 4 kg |
| RAID levels | 0/1/10/5 |
| RAID support | Yes |
| RGB LED pin header | Yes |
| S/PDIF out port | Yes |
| Screws included | Yes |
| Shipping Box Depth | 43 cm |
| Shipping Box Height | 52 cm |
| Shipping Box Weight | 11.9499998092651 kg |
| Shipping Box Width | 36 cm |
| Summary | ASUS ROG CROSSHAIR 2006. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 5 Gigabit Ethernet, 10 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD |
| Supported memory types | DDR5-SDRAM |
| Supported processor sockets | Socket AM5 |
| Supported storage drive interfaces | M.2,SATA III |
| Supported storage drive types | HDD & SSD |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Unbuffered memory | Yes |
| Unit Box Height | 0.41 |
| Unit Box Length | 0.335 |
| Unit Box Width | 0.135 |
| Unit Calculated Volume | 0.04025 cubm |
| Unit Calculated Weight | 5.97 kg |
| Units per Shipping Box | 2 |
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 3 |
| USB 3.2 Gen 2x2 connectors | 2 |
| USB4 Gen 3x2 ports quantity | 2 |
| Vendor Homepage | https://rog.asus.com/motherboards/rog-crosshair/rog-crosshair-2006/ |
| Weight | 2506 g |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Width | 305 mm |
| WiFi-AP antenna jack | 1 |
| Windows operating systems supported | Windows 11 |
| WLAN controller model | MediaTek MT7927 |
