Mainboard, ASUS, AMD X870E, SAM5, EATX, Memory DDR5, Memory slots 4, CROSSHAIRX870EEXTREME
Product reference:
2-4711387984963
Mainboard, ASUS, AMD X870E, SAM5, EATX, Memory DDR5, Memory slots 4, CROSSHAIRX870EEXTREME
Product reference:
2-4711387984963
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Lithuania in
3 - 5
business days

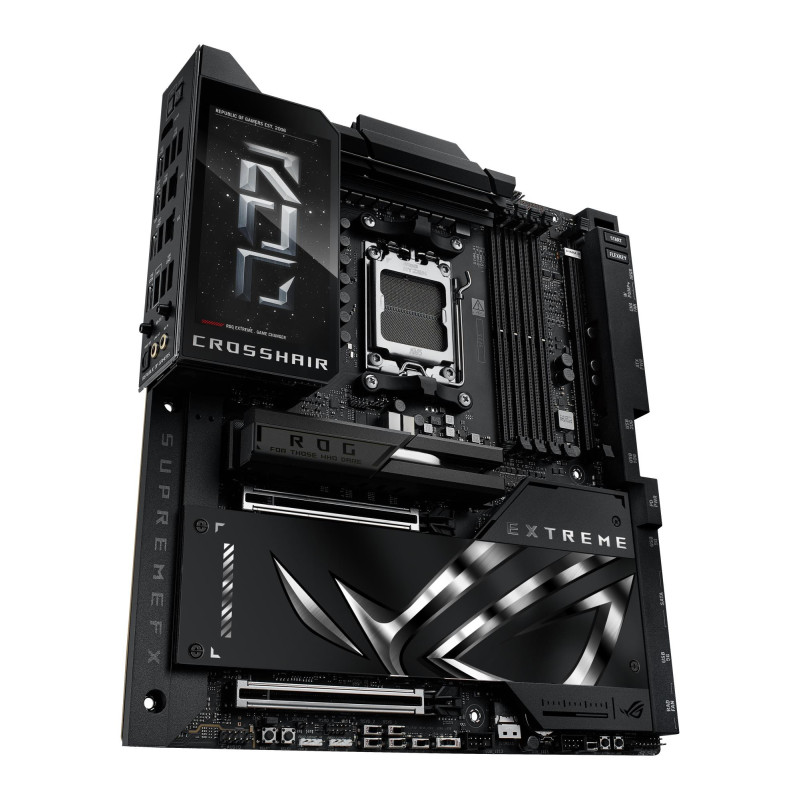

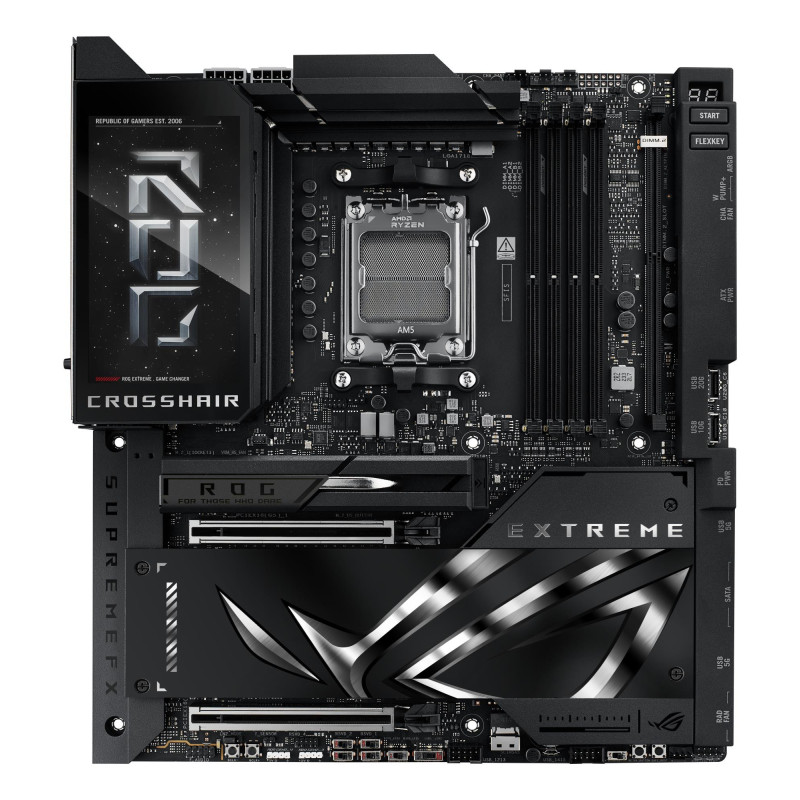

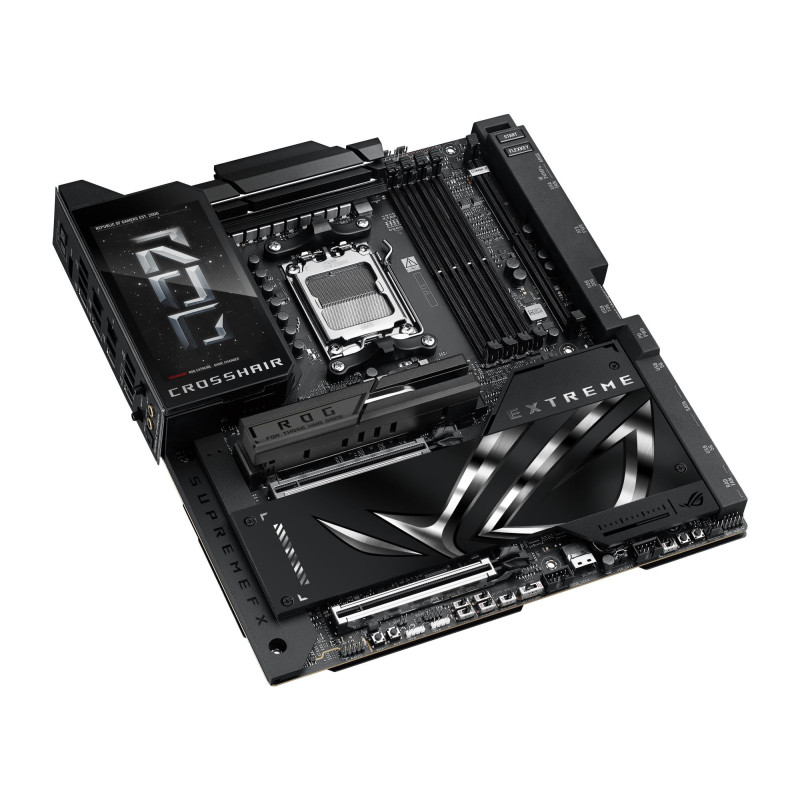

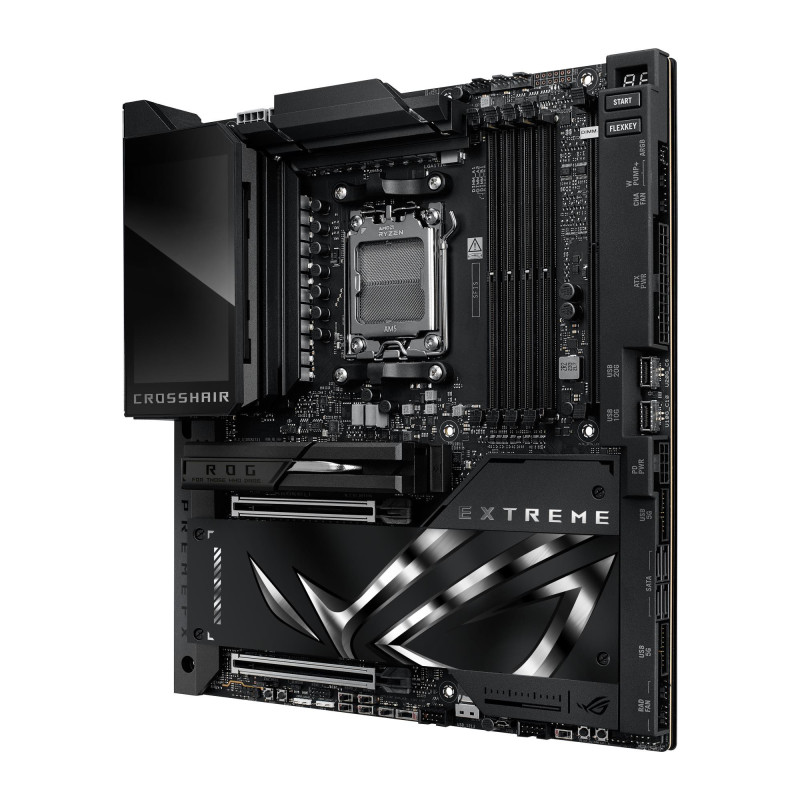

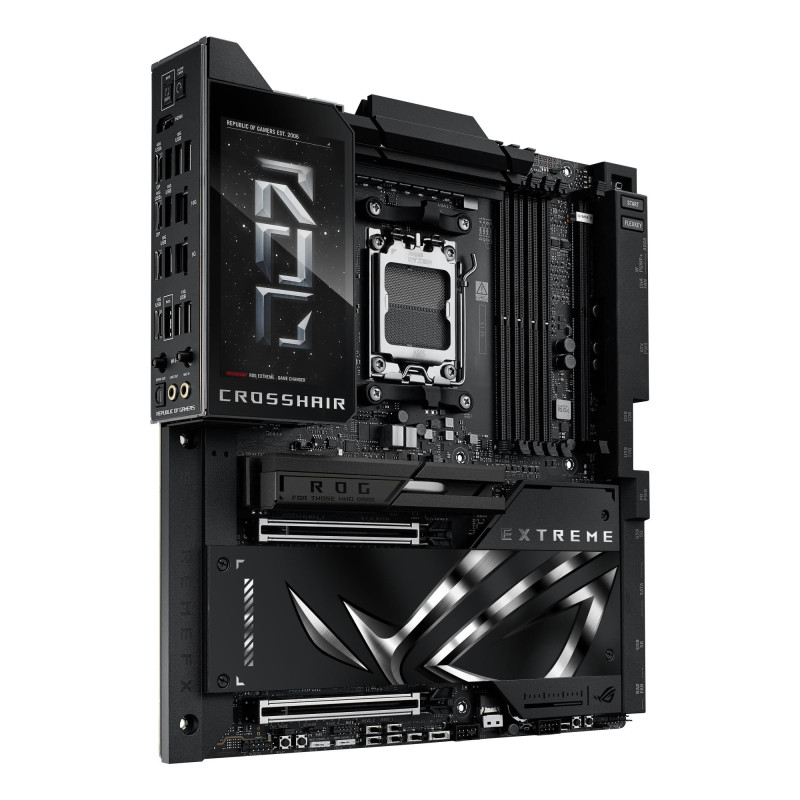

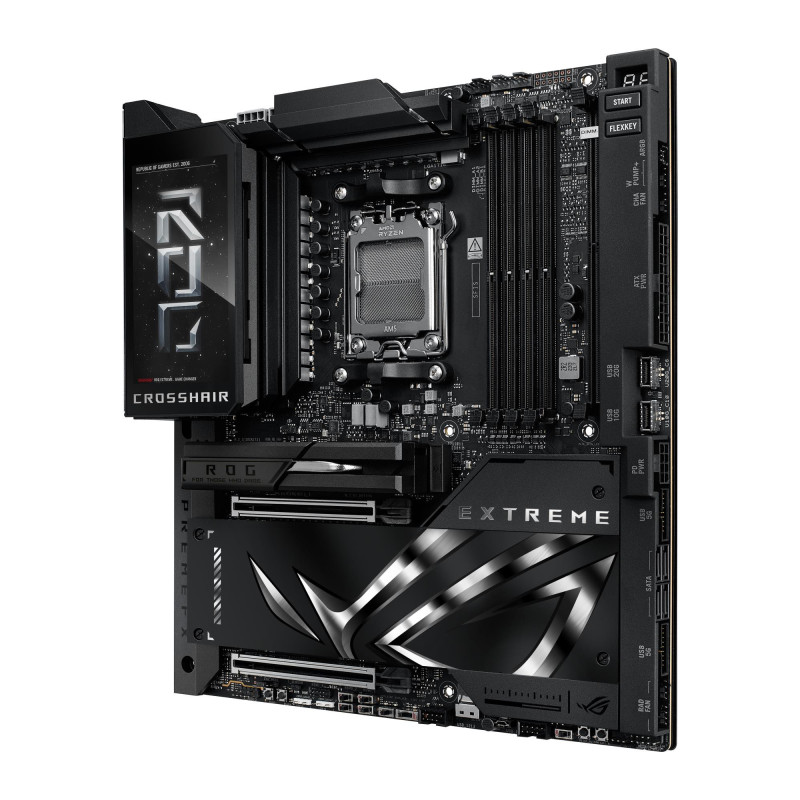

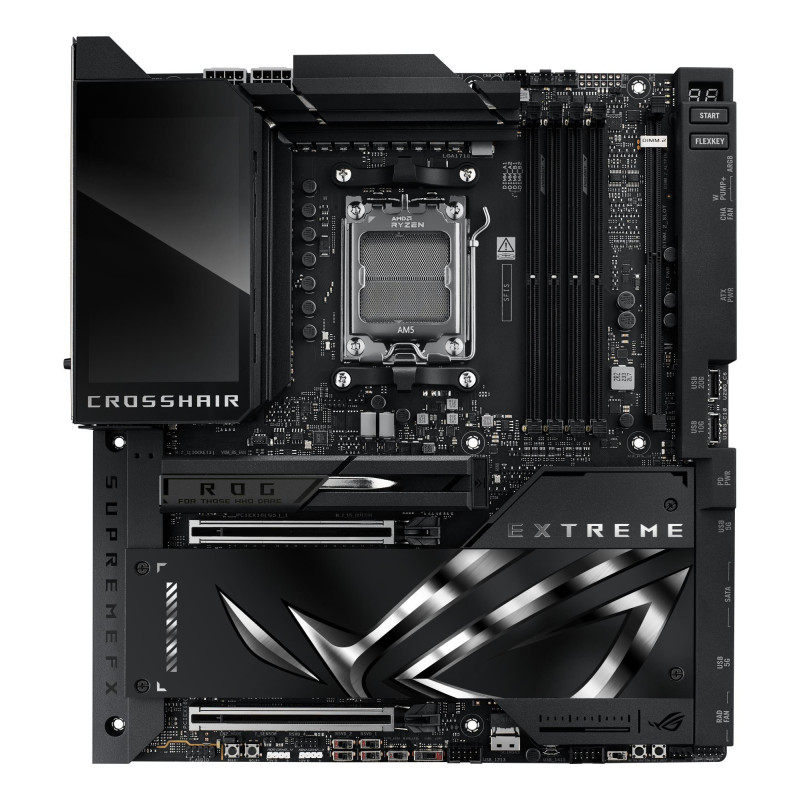

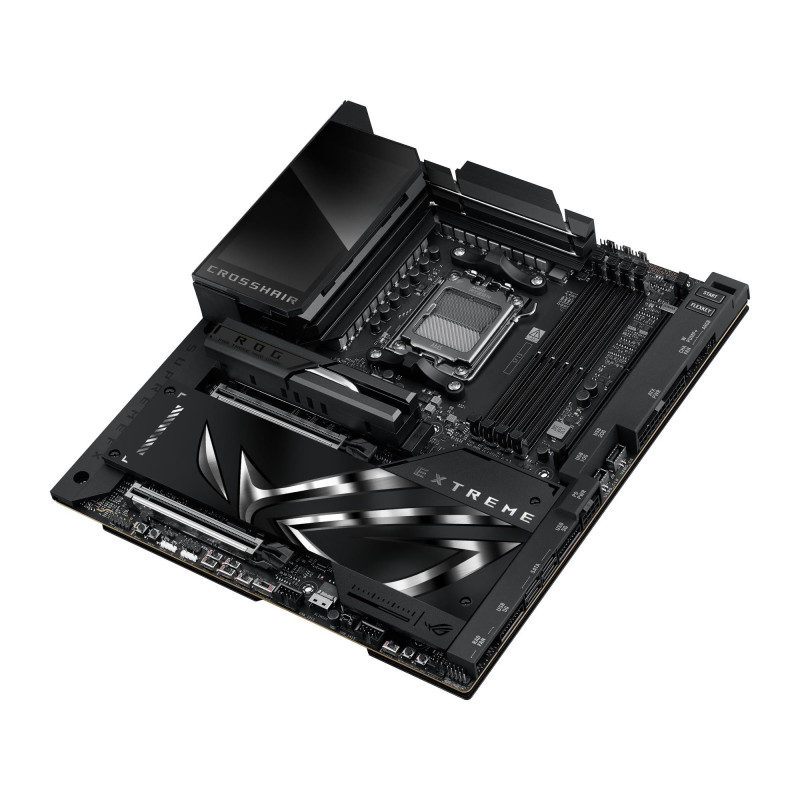

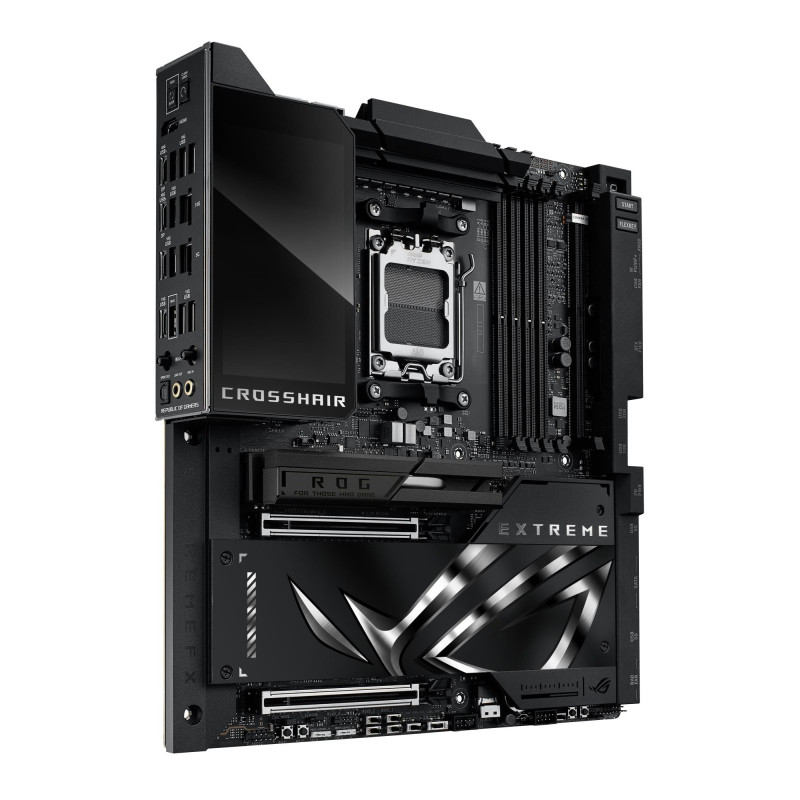

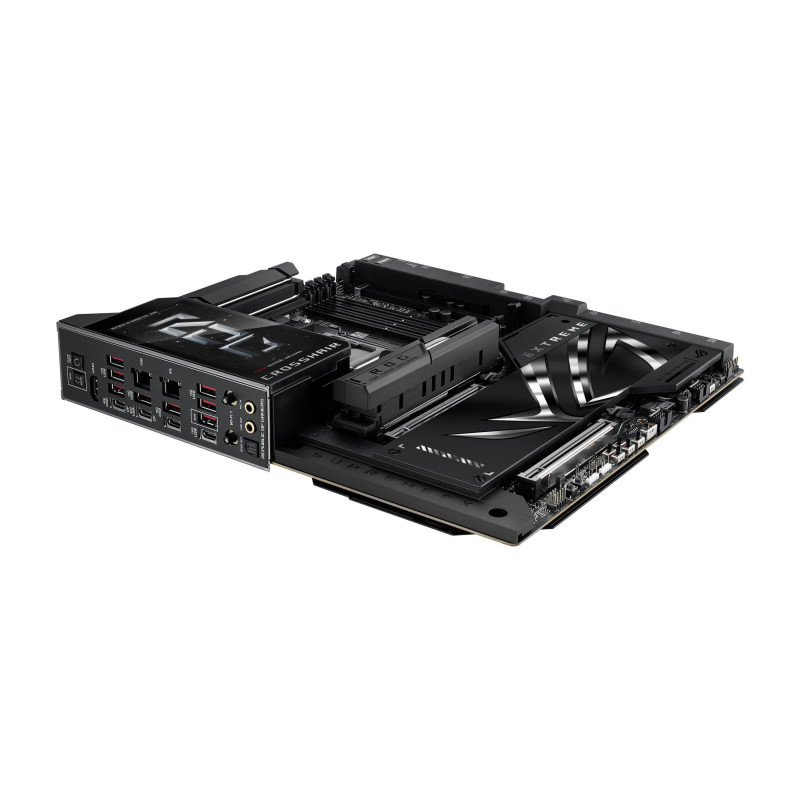

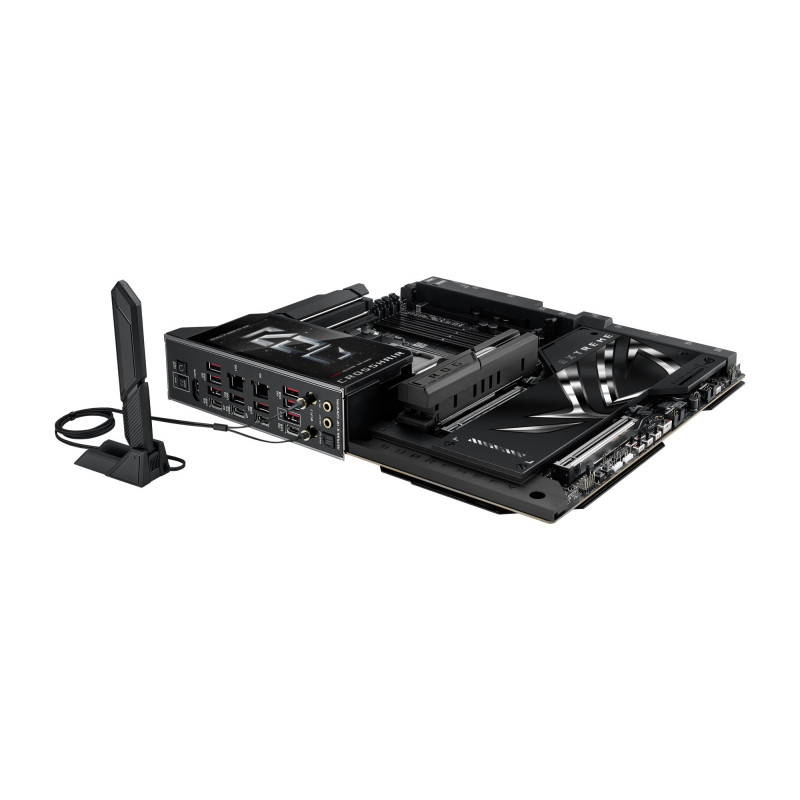

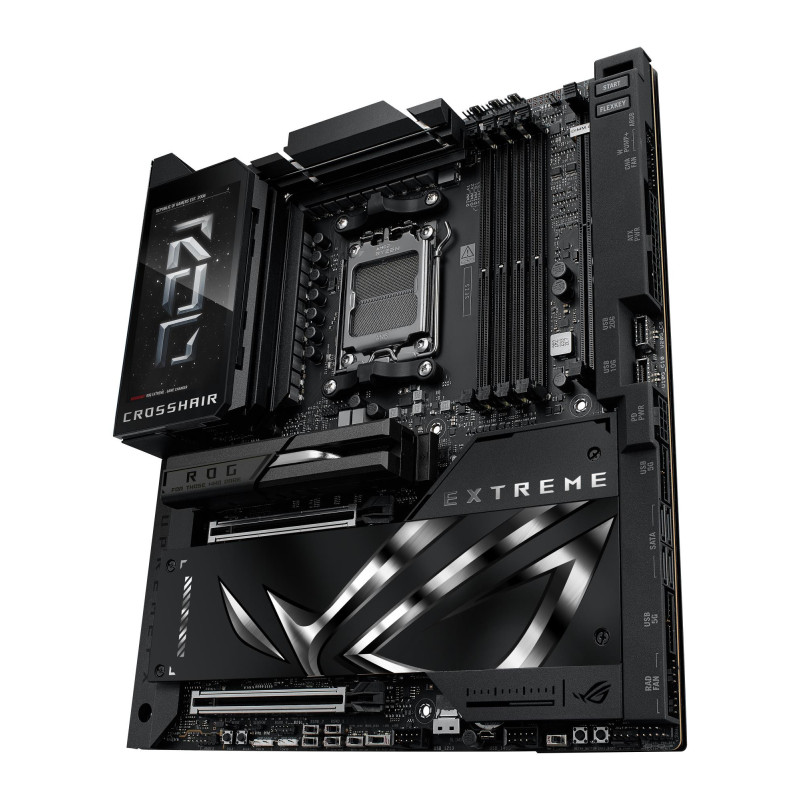

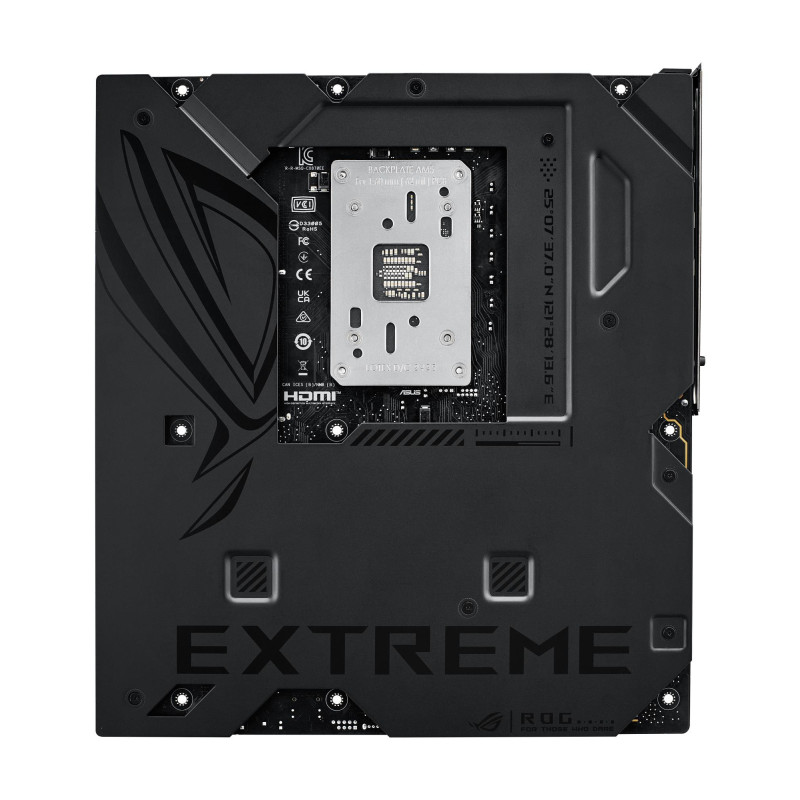

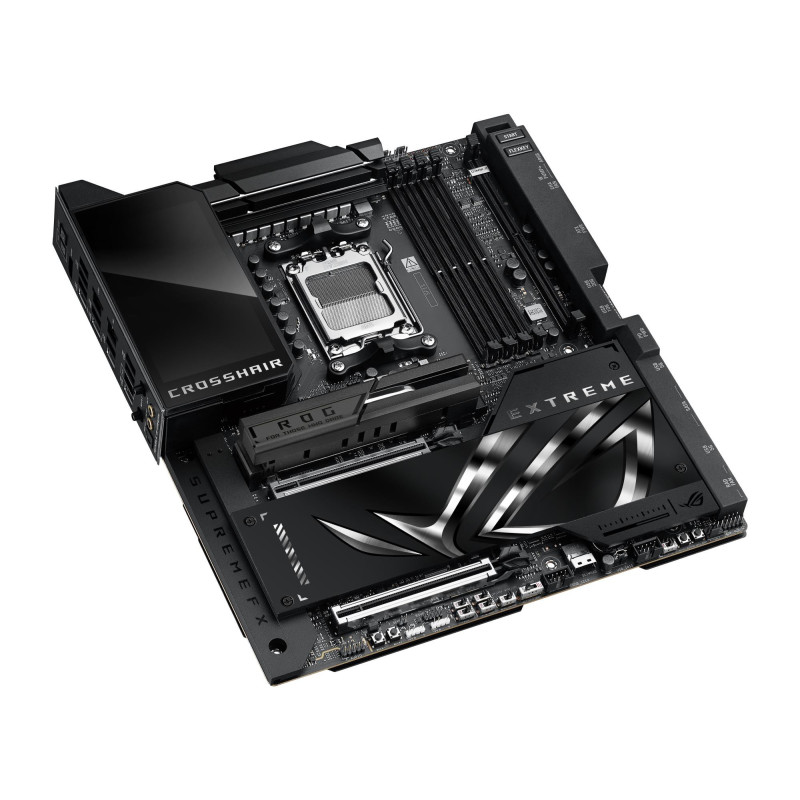

ROG Crosshair X870E Extreme
The ROG Crosshair X870E Extreme is the flagship AMD Ryzen™ 9000 series motherboard, designed for the most discerning users. It provides the ultimate foundation for AM5 CPUs, DDR5 memory, and PCIe® 5.0 components to ensure maximum performance and future-readiness. Its comprehensive connectivity includes USB4®, and the integrated 5-inch LCD offers a unique way to monitor system performance or add a touch of personalized style.
ASUS AI CACHE BOOST
Supercharge your large language model(LLM) workflows with AI Cache Boost. Exclusive to ASUS AMD 800 Series and 600 Series motherboards using AMD Ryzen™ 9000 Series Granite Ridge CPUs, this BIOS feature intelligently enhances cache efficiency, delivering up to 12.75% faster performance for your LLM tasks.
| 12V power connector | Yes |
| 1st M.2 highest PCI Express generation | 5.0 |
| 1st M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 5.0 |
| 3rd M.2 largest key size | 22110 |
| 4th M.2 highest PCI Express generation | 4.0 |
| 4th M.2 largest key size | 22110 |
| 5th M.2 highest PCI Express generation | 4.0 |
| 5th M.2 largest key size | 22110 |
| Antenna included | Yes |
| ATX Power connector (24-pin) | Yes |
| Audio chip | Realtek ALC4082 |
| Audio output channels | 7.1 channels |
| BIOS memory size | 512 Mbit |
| BIOS type | UEFI AMI |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Cables included | SATA |
| Compatible processor series | AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series |
| Component for | PC |
| CPU fan connector | Yes |
| Depth | 277 mm |
| Drivers included | Yes |
| ECC сompatibility | ECC & Non-ECC |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | 10 Gigabit Ethernet/5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| HDMI ports quantity | 1 |
| Maximum internal memory | 256 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Model | ROG CROSSHAIR X870E EXTREME |
| Motherboard chipset | AMD X870E |
| Motherboard chipset family | AMD |
| Motherboard form factor | Extended ATX |
| Number of chassis fan connectors | 2 |
| Number of M.2 (M) slots | 5 |
| Number of memory slots | 4 |
| Number of SATA III connectors | 4 |
| Number of storage drives supported | 10 |
| On-board graphics card | No |
| Package depth | 320 mm |
| Package height | 125 mm |
| Package weight | 5661 g |
| Package width | 380 mm |
| Parallel processing technology support | Not supported |
| PCI Express x16 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Product colour | Black |
| Product Net Weight | 0.7 kg |
| PS/2 ports quantity | 1 |
| RAID levels | 0/1/10/5 |
| RAID support | Yes |
| RGB LED pin header | Yes |
| S/PDIF out port | Yes |
| Shipping Box Depth | 56 cm |
| Shipping Box Height | 46 cm |
| Shipping Box Weight | 22.8999996185303 kg |
| Shipping Box Width | 39 cm |
| Summary | ASUS ROG CROSSHAIR X870E EXTREME. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, SlimSAS, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 5 Gigabit Ethernet, 10 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: Extended ATX, Motherboard chipset family: AMD |
| Supported memory types | DDR5-SDRAM |
| Supported processor sockets | Socket AM5 |
| Supported storage drive interfaces | M.2,SATA III,SlimSAS |
| Supported storage drive types | HDD & SSD |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Unbuffered memory | Yes |
| Unit Box Height | 0.125 |
| Unit Box Length | 0.385 |
| Unit Box Width | 0.325 |
| Unit Calculated Volume | 0.02512 cubm |
| Unit Calculated Weight | 5.72 kg |
| Units per Shipping Box | 4 |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 8 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB 3.2 Gen 2x2 connectors | 1 |
| USB4 Gen 3x2 ports quantity | 2 |
| Vendor Homepage | https://rog.asus.com/motherboards/rog-crosshair/rog-crosshair-x870e-extreme/ |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Width | 305 mm |
| WiFi-AP antenna jack | 1 |
| Windows operating systems supported | Windows 11 |
