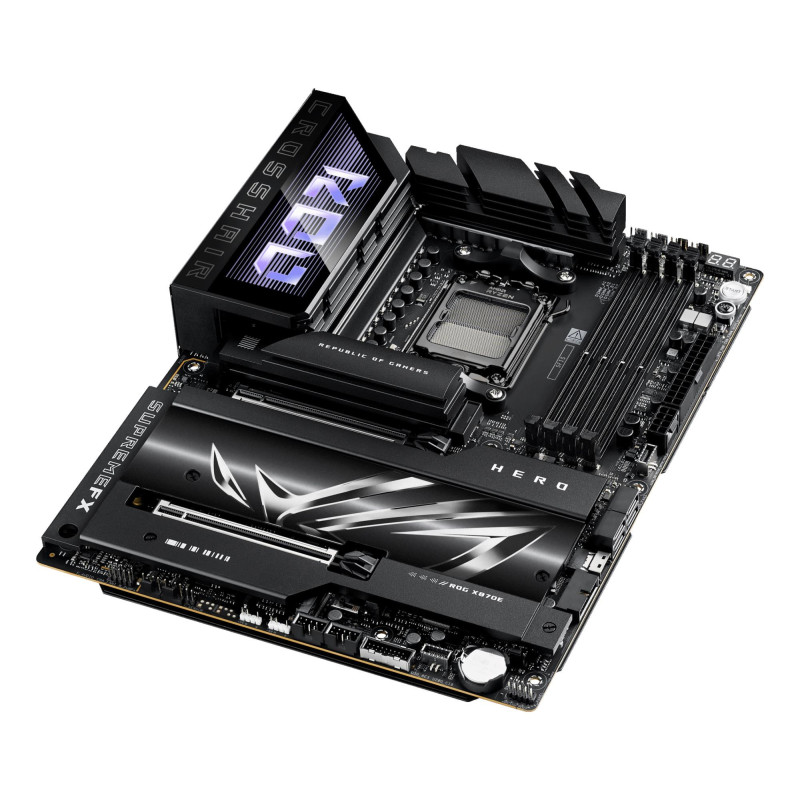

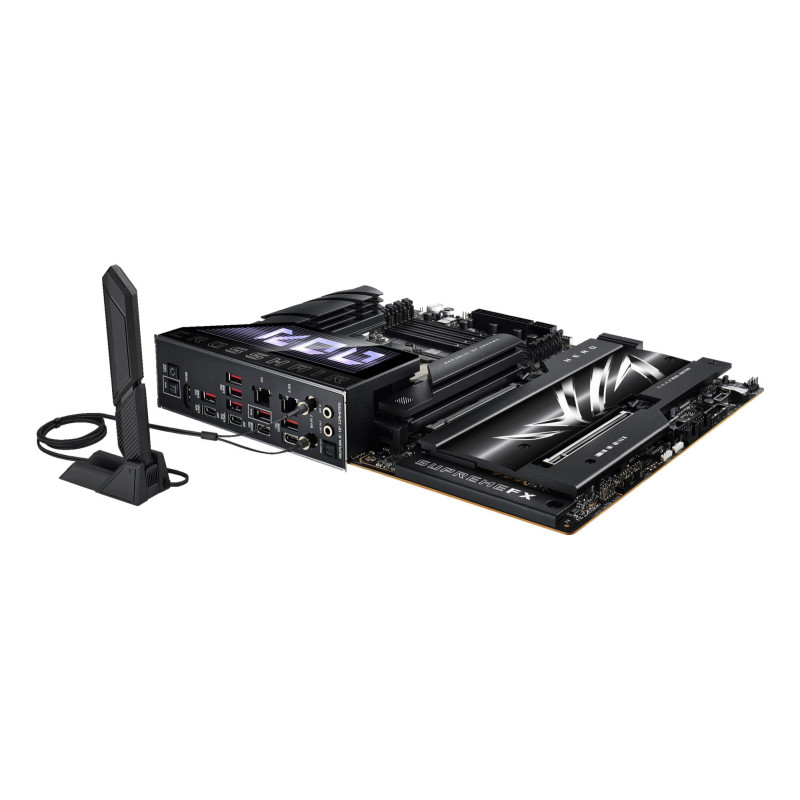

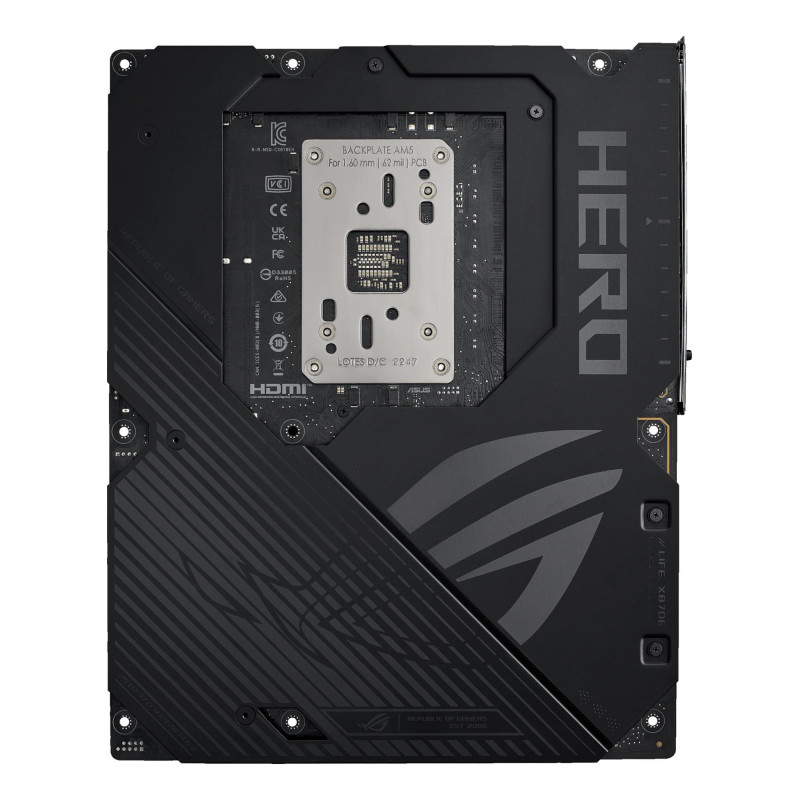

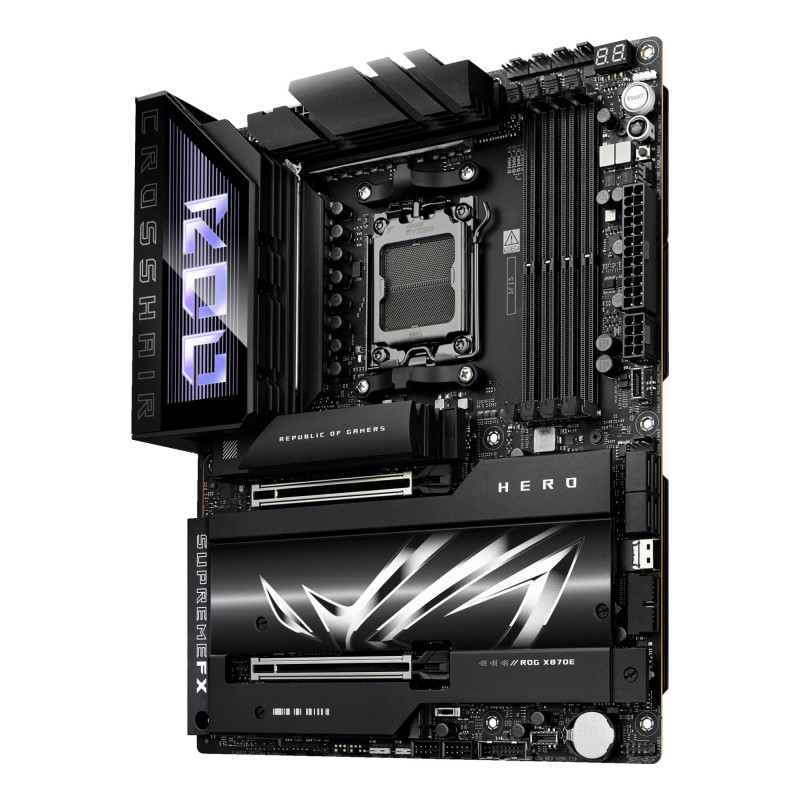

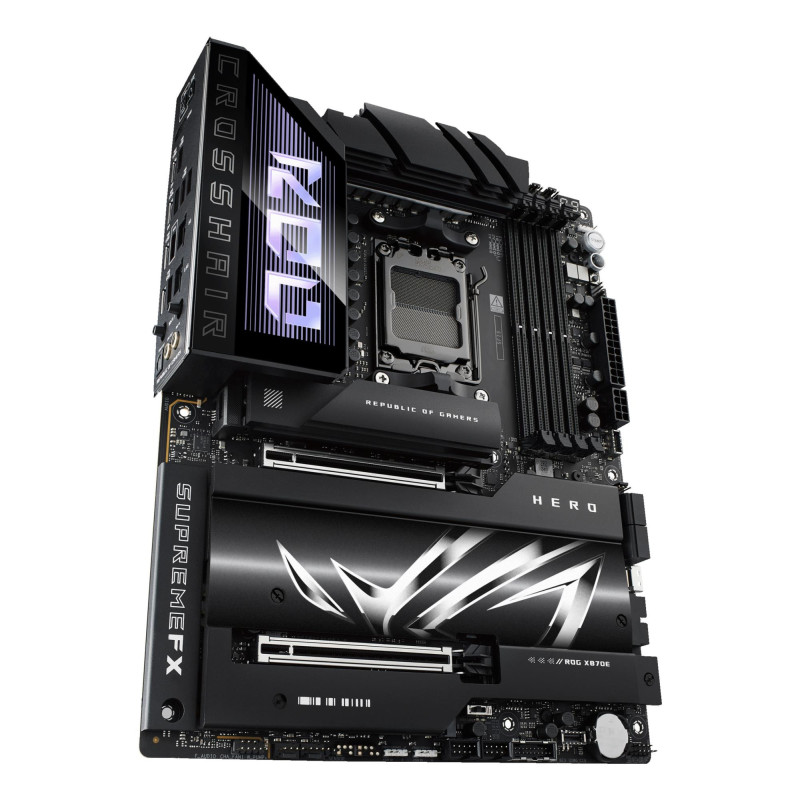

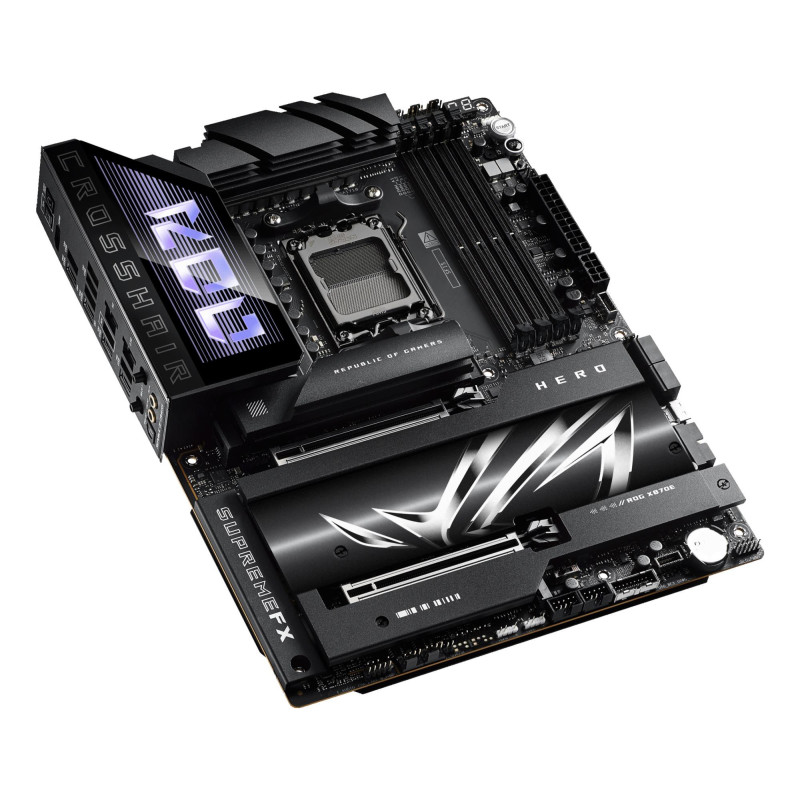

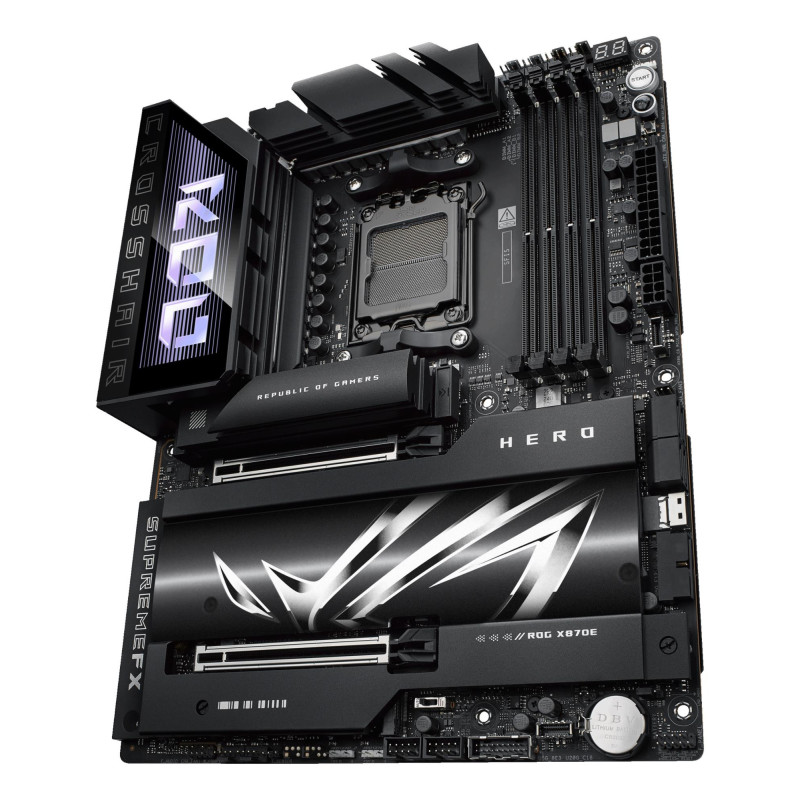

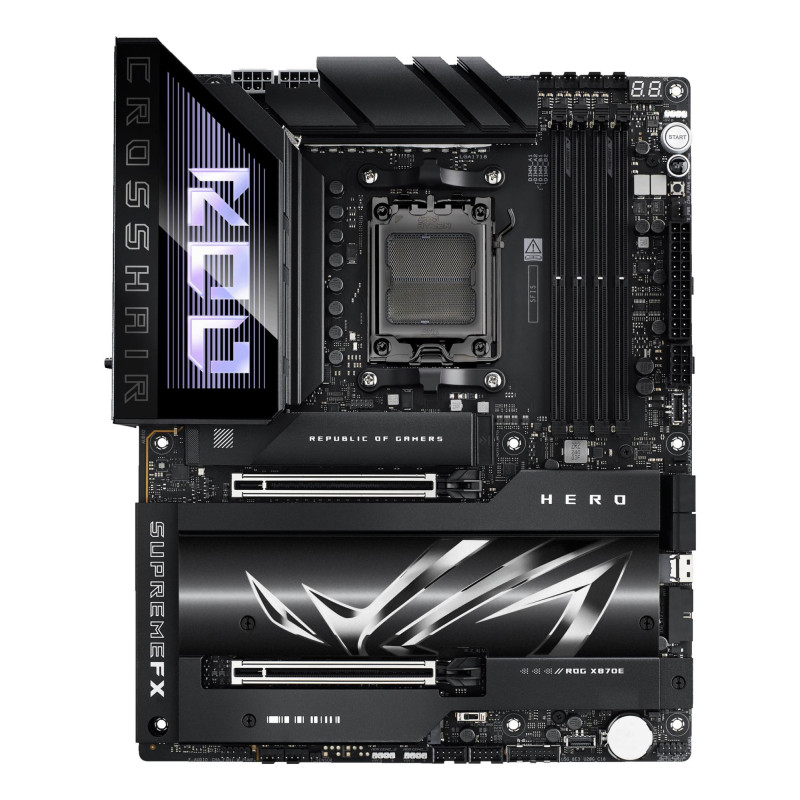

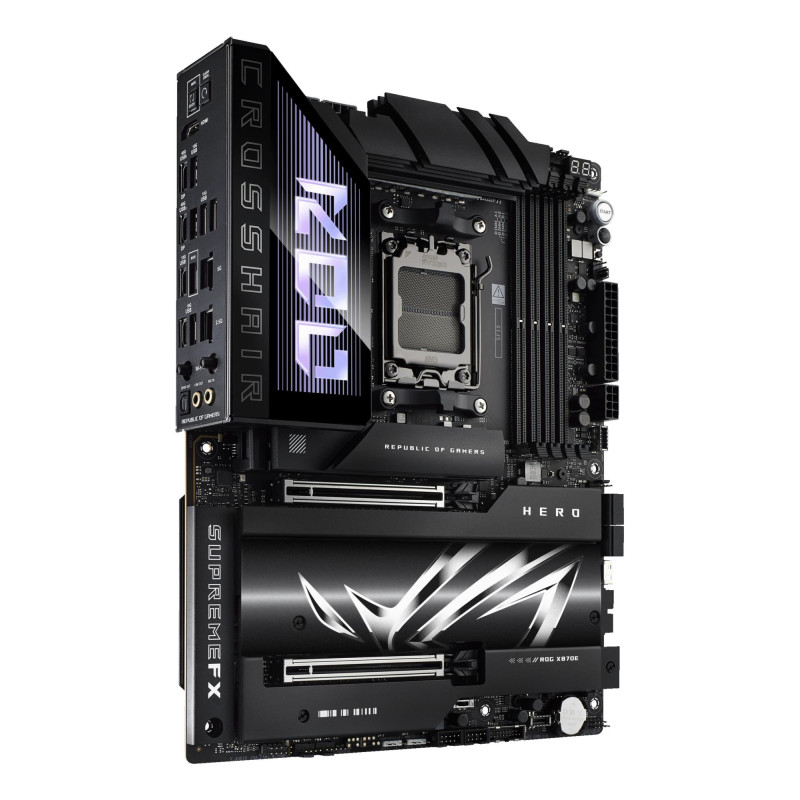

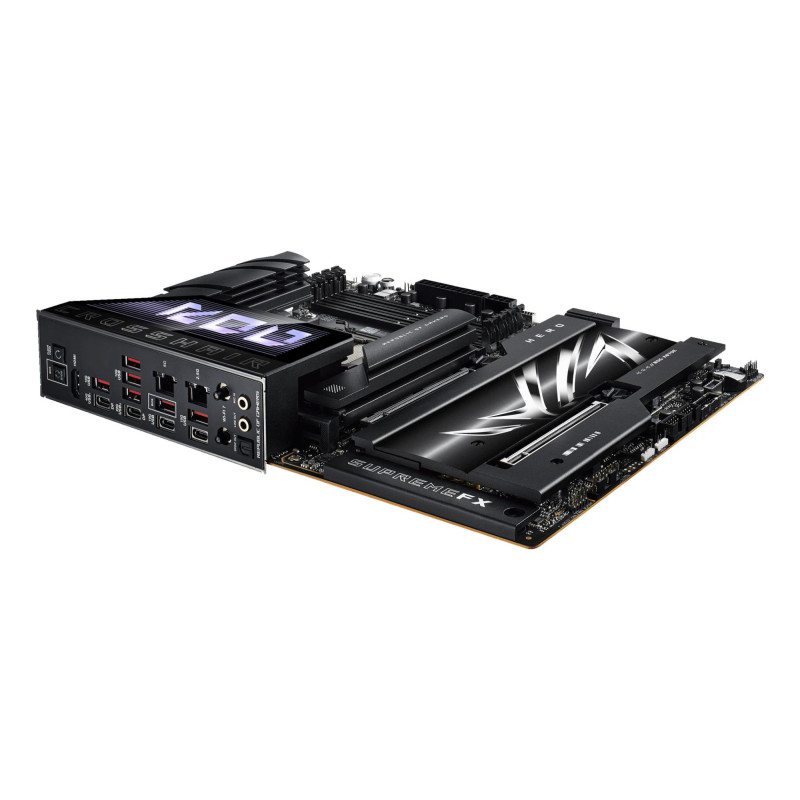

Mainboard, ASUS, AMD X870E, SAM5, ATX, Memory DDR5, Memory slots 4, 2xPCI-Express 4.0 16x, 2xPCI-Express 5.0 16x, 4xM.2,
Product reference:
2-4711387710302
Mainboard, ASUS, AMD X870E, SAM5, ATX, Memory DDR5, Memory slots 4, 2xPCI-Express 4.0 16x, 2xPCI-Express 5.0 16x, 4xM.2,
Product reference:
2-4711387710302
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Lithuania in
3 - 5
business days
ASUS AI INTELLIGENCE
AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.
ai OVERCLOCKING
Tuning is now faster and smarter than ever before.
AI COOLING II
Balance the thermals and acoustics of any build with a single click.
Performance
OVERCLOCKING
Dynamic OC Switcher
Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.
| 12V power connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Audio chip | Realtek ALC4082 |
| Audio output channels | 7.1 channels |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |

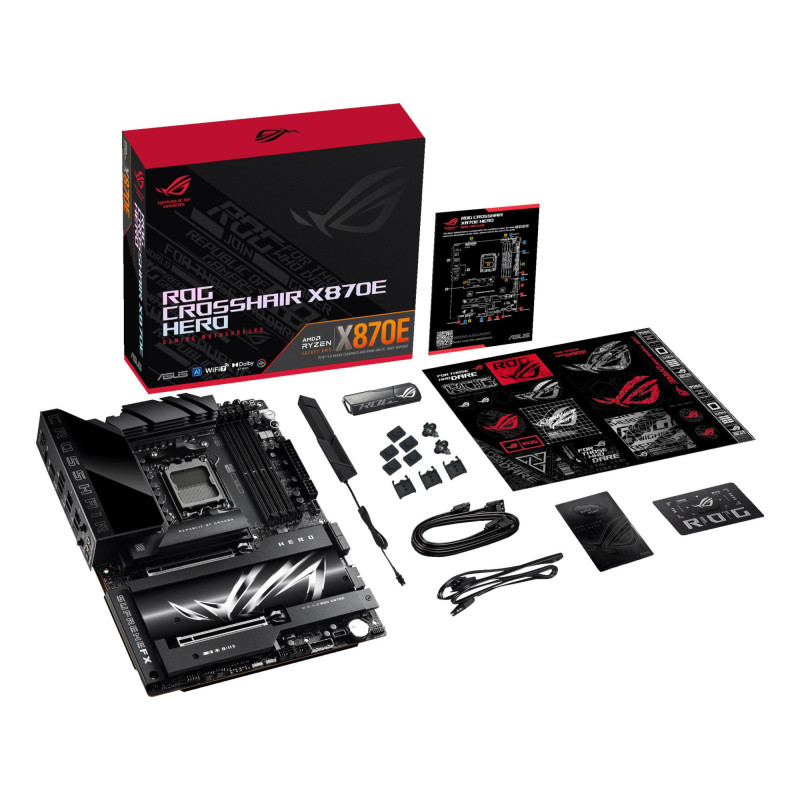

| Cables included | SATA |
| Clear CMOS button | Yes |
| Component for | PC |
| CPU fan connector | Yes |
| Depth | 244 mm |
| Drivers included | Yes |
| ECC сompatibility | ECC & Non-ECC |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet/5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Front panel audio connector | Yes |
| HDMI ports quantity | 1 |
| Headphone outputs | 1 |
| Height | 50 mm |
| Maximum internal memory | 192 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Model | ROG CROSSHAIR X870E HERO |
| Motherboard chipset | AMD X870E |
| Motherboard chipset family | AMD |
| Motherboard form factor | ATX |
| Number of chassis fan connectors | 4 |
| Number of HDDs supported | 5 |
| Number of M.2 (M) slots | 5 |
| Number of memory slots | 4 |
| Number of SATA III connectors | 4 |
| Number of storage drives supported | 10 |
| Package depth | 312 mm |
| Package height | 108 mm |
| Package weight | 4265 g |
| Package width | 370 mm |
| Parallel processing technology support | Not supported |
| Parameter Level | 3 |
| PCI Express x16 (Gen 4.x) slots | 4 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Product Net Weight | 3.2 kg |
| RAID levels | 0/1/10/5 |
| RAID support | Yes |
| S/PDIF out port | Yes |
| Shipping Box Depth | 46 cm |
| Shipping Box Height | 33.5 cm |
| Shipping Box Weight | 17.25 kg |
| Shipping Box Width | 38.5 cm |
| Summary | ASUS ROG CROSSHAIR X870E HERO. Processor manufacturer: AMD, Processor socket: Socket AM5, Supported processor sockets: Socket AM5. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, SlimSAS, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10, 5. Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD |
| Supported memory types | DDR5-SDRAM |
| Supported processor sockets | Socket AM5 |
| Supported storage drive interfaces | M.2,SATA III,SlimSAS |
| Supported storage drive types | HDD & SSD |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Unbuffered memory | Yes |
| Unit Box Height | 0.115 |
| Unit Box Length | 0.375 |
| Unit Box Width | 0.315 |
| Unit Calculated Volume | 0.01483 cubm |
| Unit Calculated Weight | 4.31 kg |
| Units per Shipping Box | 4 |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB 3.2 Gen 2x2 connectors | 2 |
| USB4 Gen 2x2 ports quantity | 2 |
| Vendor Homepage | https://rog.asus.com/motherboards/rog-crosshair/rog-crosshair-x870e-hero/ |
| Weight | 2546 g |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Width | 305 mm |
| WiFi-AP antenna jack | 1 |
| Windows operating systems supported | Windows 11 |
