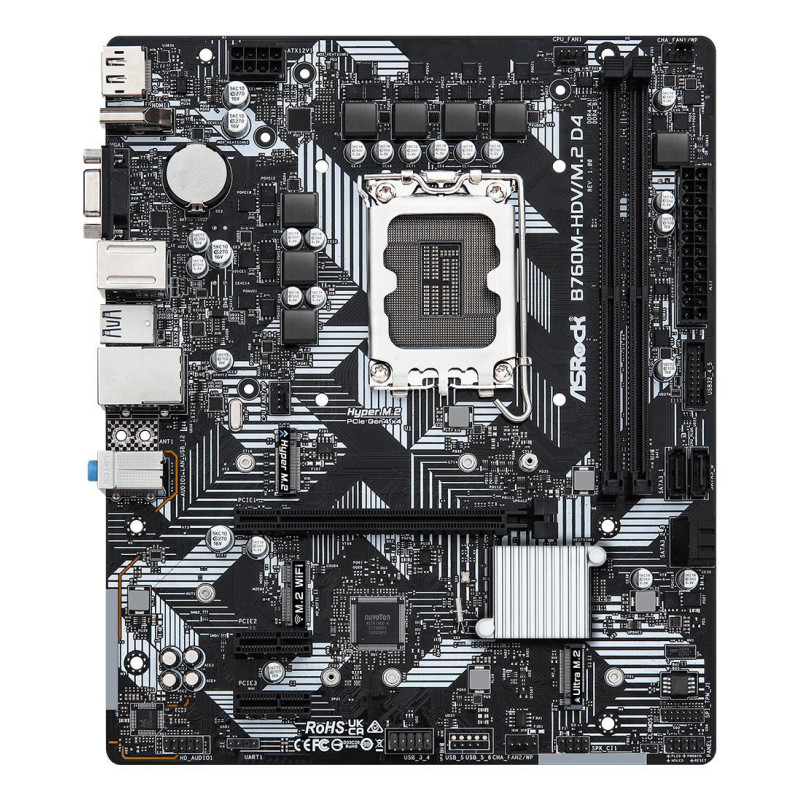

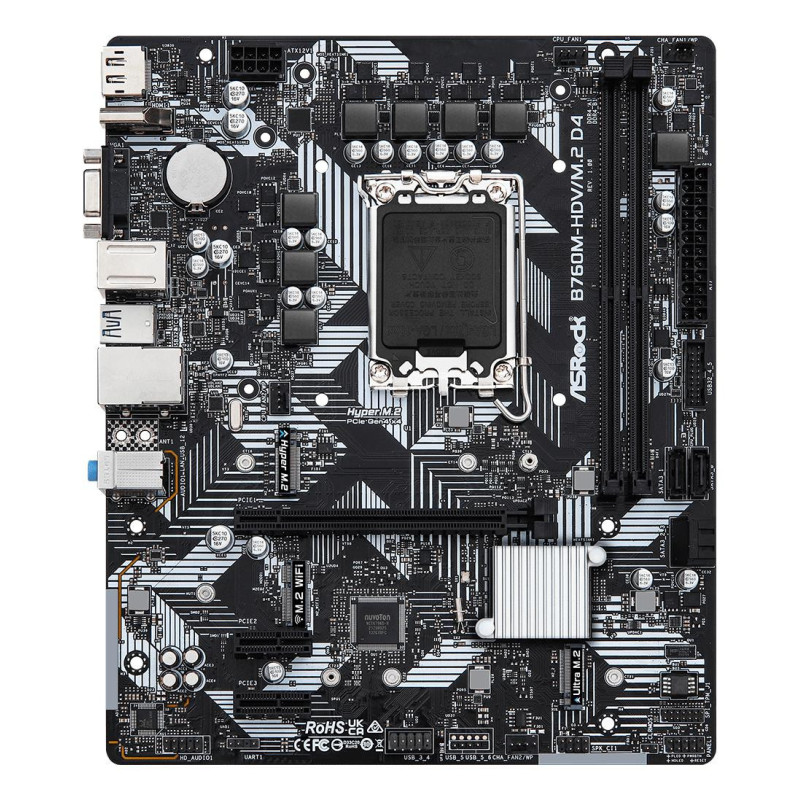

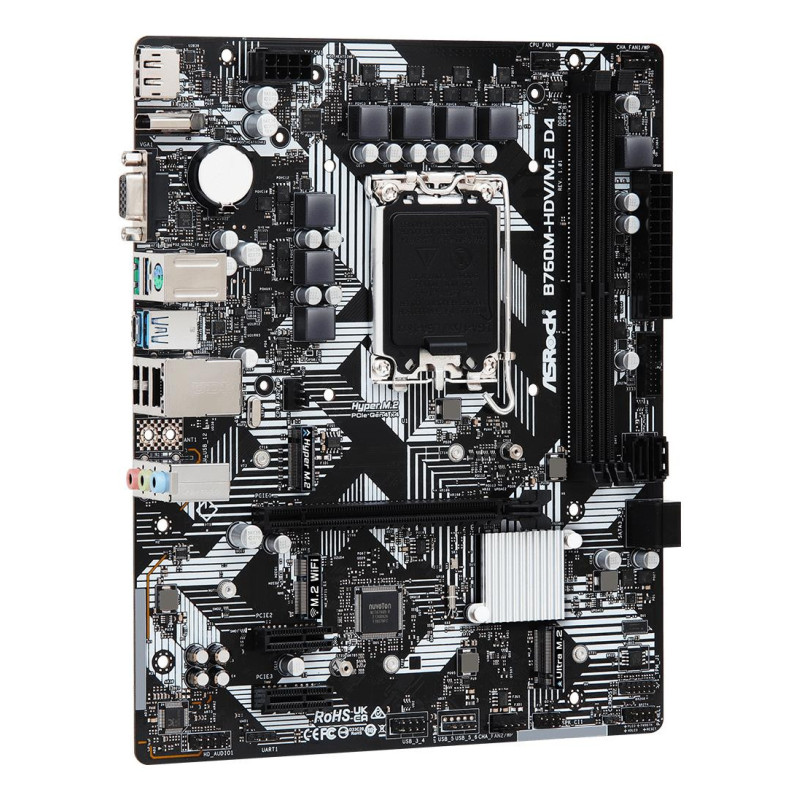

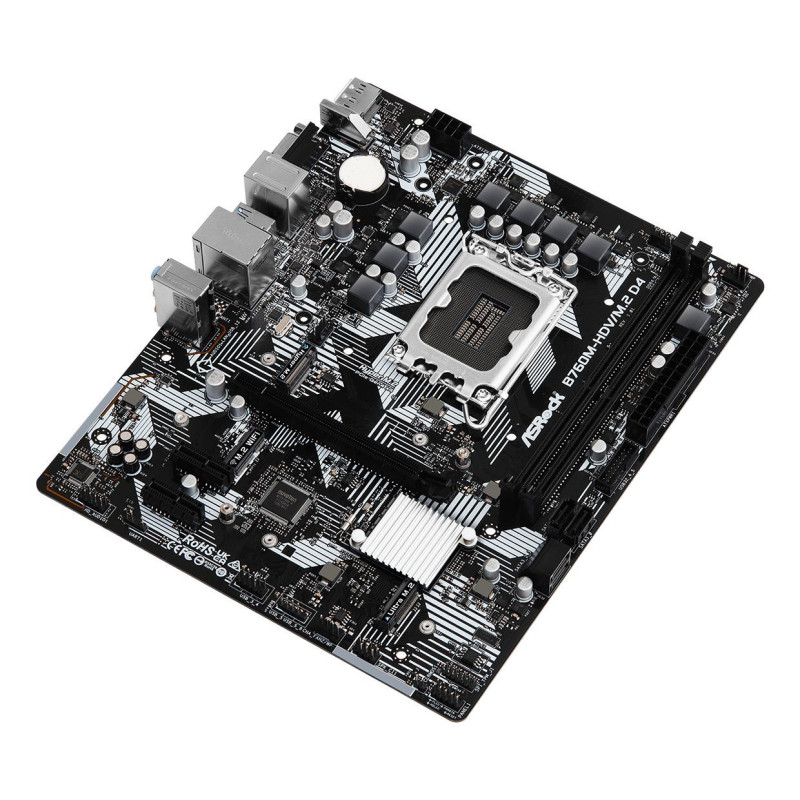

Mainboard, ASROCK, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR4, Memory slots 2, 2xPCI-Express 3.0 1x, 1xPCI-Expr

5+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

High Speed M.2 Solution(PCIe Gen4 x4)
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.

3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.

Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.

• Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
• 5+1+1 Power Phase
• Supports DDR4 5333MHz (OC)
• 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi

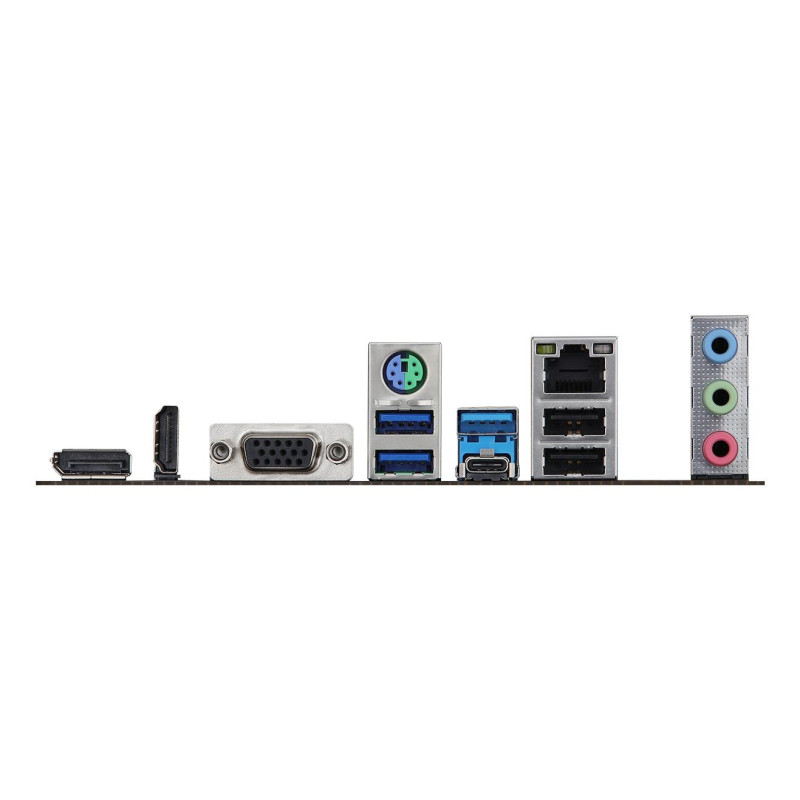

• Graphics Output Options: HDMI, DisplayPort, D-Sub
• Realtek ALC887/897 7.1 CH HD Audio Codec
• 4 SATA3, 1 Hyper M.2 (PCIe Gen4x4)
• 1 Ultra M.2 (PCIe Gen3x4 & SATA)
• 1 USB 3.2 Gen1 Type-C (Rear)
• 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
• 5 USB 2.0 (2 Rear, 3 Front)
• Realtek 1G LAN
• Supports ASRock Auto Driver Installer
