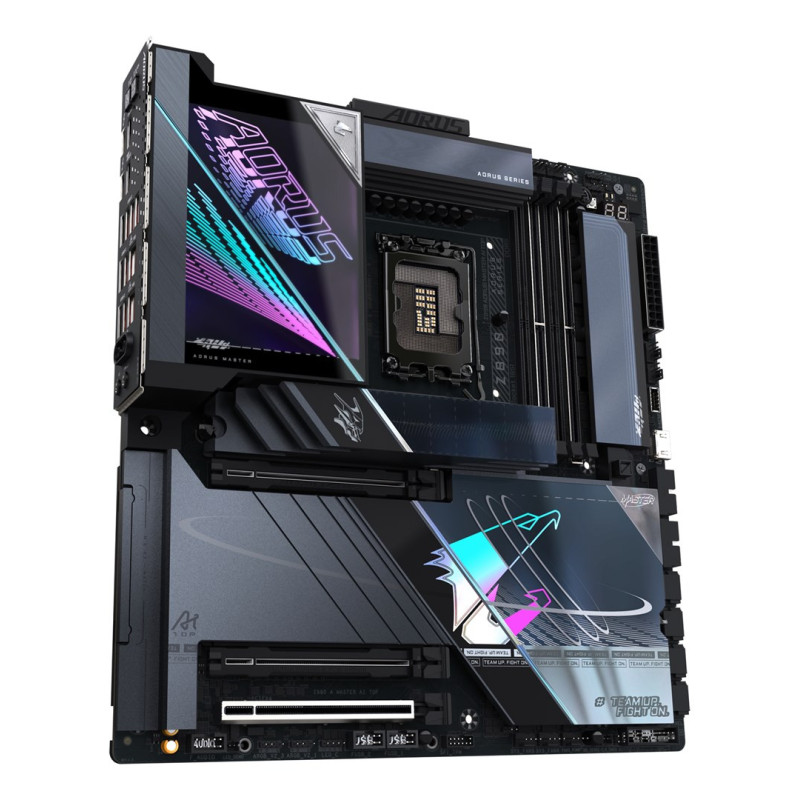

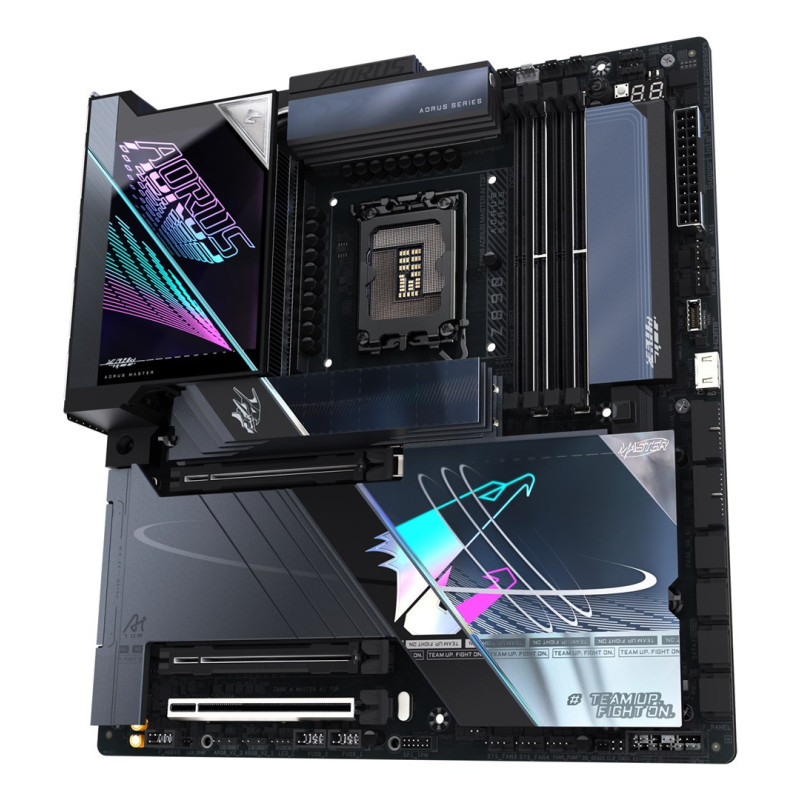

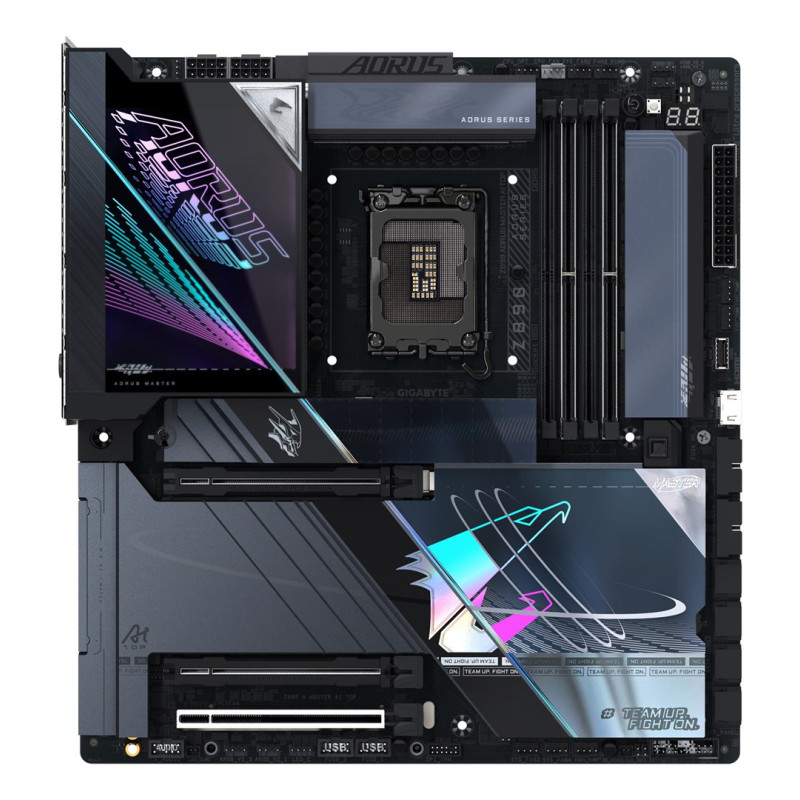

GIGABYTE Z890 AORUS MASTER AI TOP Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 20+1+2 phases VRM, up to 9500
Product reference:
6-Z890 A MASTER AI TOP
GIGABYTE Z890 AORUS MASTER AI TOP Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 20+1+2 phases VRM, up to 9500MHz DDR5 (OC), PCIe 5.0 M.2, Wi-Fi 7, Thunderbolt 4
GIGABYTE Z890 AORUS MASTER AI TOP Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 20+1+2 phases VRM, up to 9500
Product reference:
6-Z890 A MASTER AI TOP
GIGABYTE Z890 AORUS MASTER AI TOP Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 20+1+2 phases VRM, up to 9500MHz DDR5 (OC), PCIe 5.0 M.2, Wi-Fi 7, Thunderbolt 4
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
4 - 8
business days
| 1st M.2 highest PCI Express generation | 5.0 |
| 1st M.2 largest key size | 25110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 22110 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 22110 |
| 4th M.2 highest PCI Express generation | 4.0 |
| 4th M.2 largest key size | 22110 |

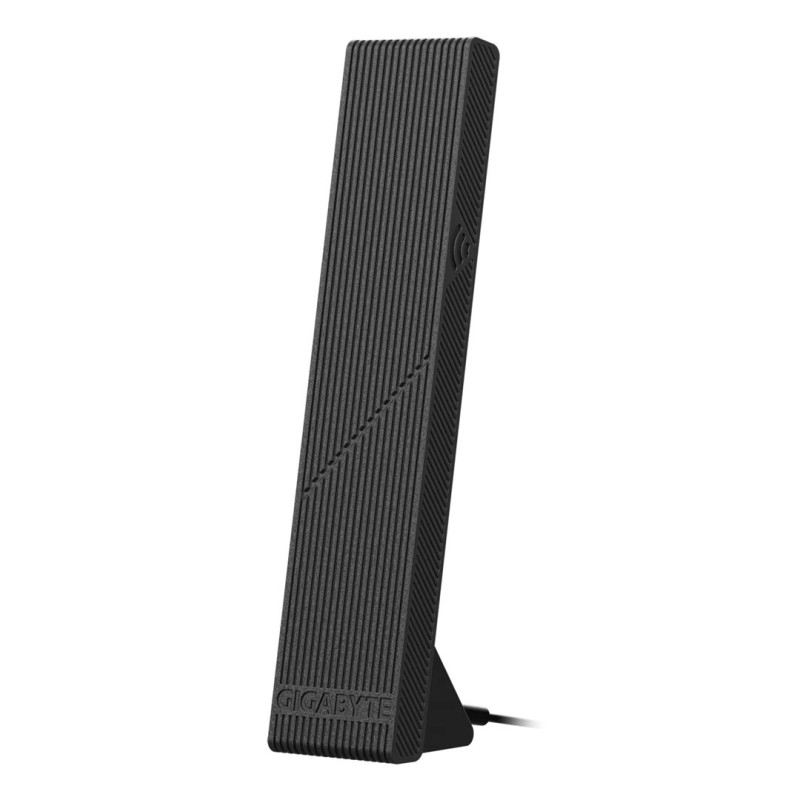

| Antenna included | Yes |
| ATX Power connector (24-pin) | Yes |
| Audio output channels | 2.0 channels |
| Batteries included | Yes |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Battery weight | 3 g |
| BIOS type | UEFI AMI |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Clear CMOS button | Yes |
| Clear CMOS jumper | Yes |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Country of origin | Taiwan |
| CPU fan connector | Yes |
| Depth | 285 mm |
| Desktop Management Interface (DMI) version | 2.7 |
| DirectX version | 12.0 |
| DisplayPort version | 2.1 |
| ECC сompatibility | ECC & Non-ECC |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| HDCP | Yes |
| Headphone outputs | 1 |
| Height | 35 mm |
| LAN controller | Marvell AQtion AQC113C |
| Lithium weight per battery | 0.07 g |
| Maximum internal memory | 256 GB |
| Maximum internal memory per slot | 64 GB |
| Maximum internal memory supported by processor | 256 GB |
| Maximum resolution | 5120 x 2880 pixels |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Motherboard chipset | Intel Z890 |
| Motherboard chipset family | Intel |
| Motherboard form factor | Extended ATX |
| Number of battery cells | 1 |
| Number of chassis fan connectors | 8 |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors (8-pin) | 2 |
| Number of HDDs supported | 4 |
| Number of M.2 (M) slots | 4 |
| Number of memory slots | 4 |
| Number of noise detection headers | 1 |
| Number of RGB LED pin headers | 5 |
| Number of SATA III connectors | 4 |
| Number of storage drives supported | 8 |
| Number of temperature sensor headers | 2 |
| Number of water pump connectors | 5 |
| Parallel processing technology support | Not supported |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Product colour | Black |
| Products per shipping (inner) case | 1 pc(s) |
| RAID levels | 1, 5, 10 |
| RAID support | Yes |
| RGB LED pin header | Yes |
| Screws included | Yes |
| Supported memory clock speed (max) | 9500 MHz |
| Supported memory clock speeds | 5600 MHz, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200 MHz, 8266, 8400, 8600, 9500 MHz |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB |
| Supported memory types | DDR5-SDRAM |
| Supported processor sockets | LGA 1851 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Thunderbolt ports quantity | 2 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 10 |
| USB 3.2 Gen 2x2 connectors | 1 |
| Warranty period | 3 year(s) |
| Weight | 3.76 kg |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Width | 305 mm |
| WiFi-AP antenna jack | 2 |
| Windows operating systems supported | Windows 11 x64 |
| WLAN controller model | Intel Wi-Fi 7 BE200 |
