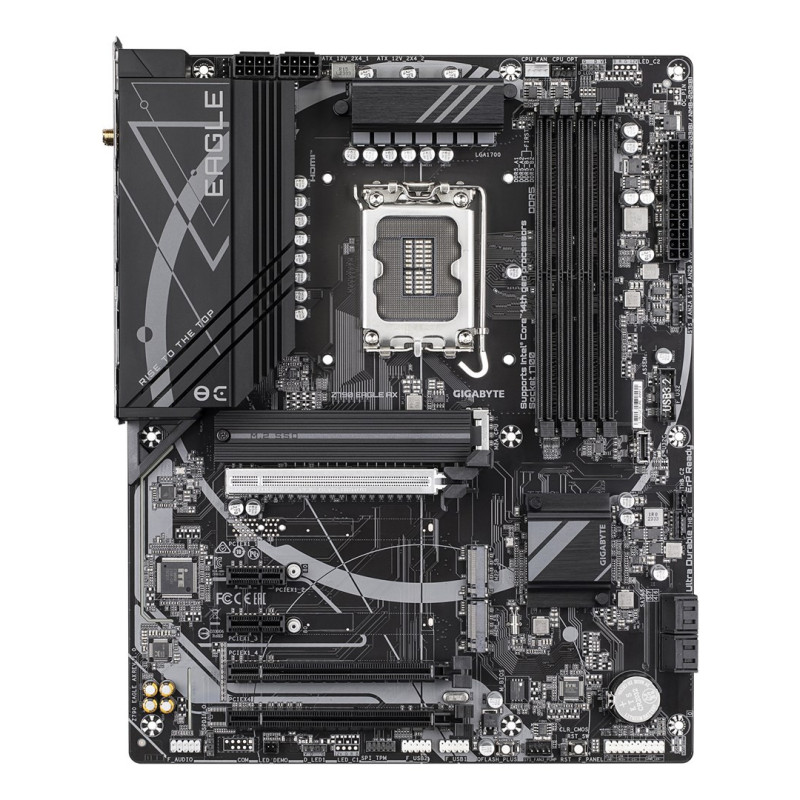

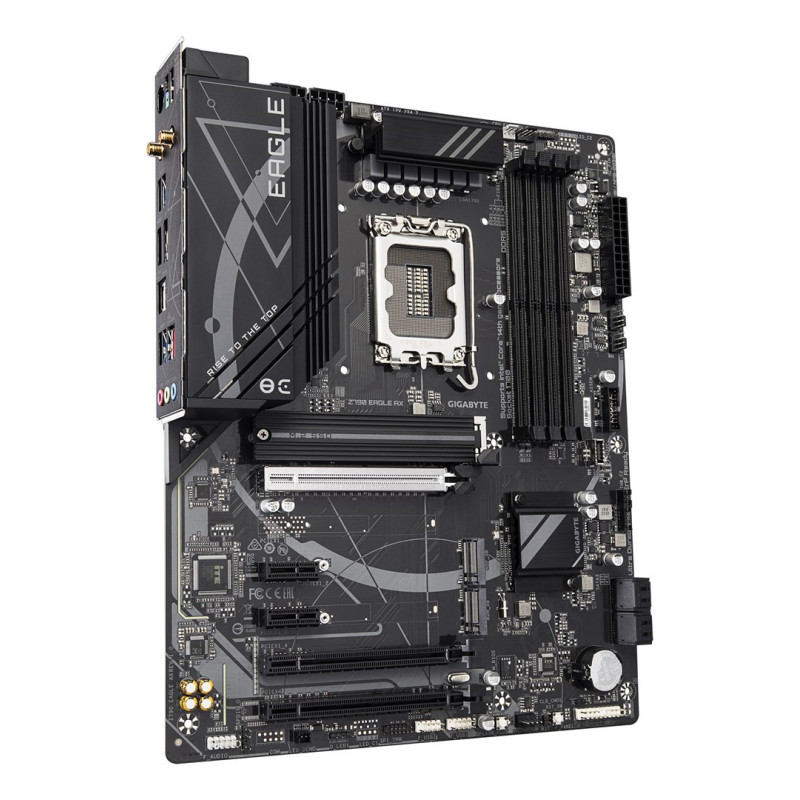

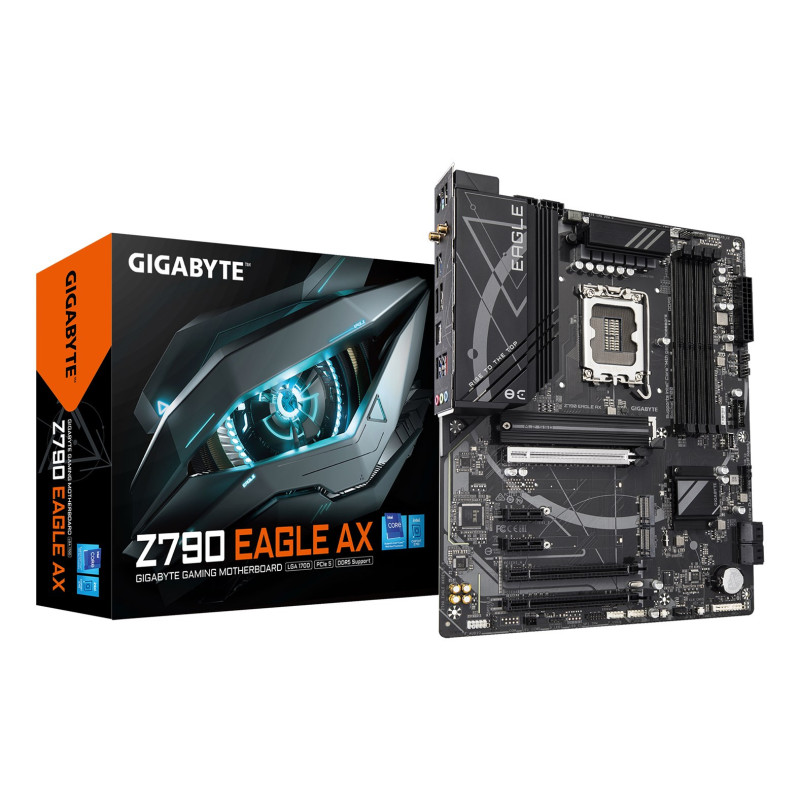

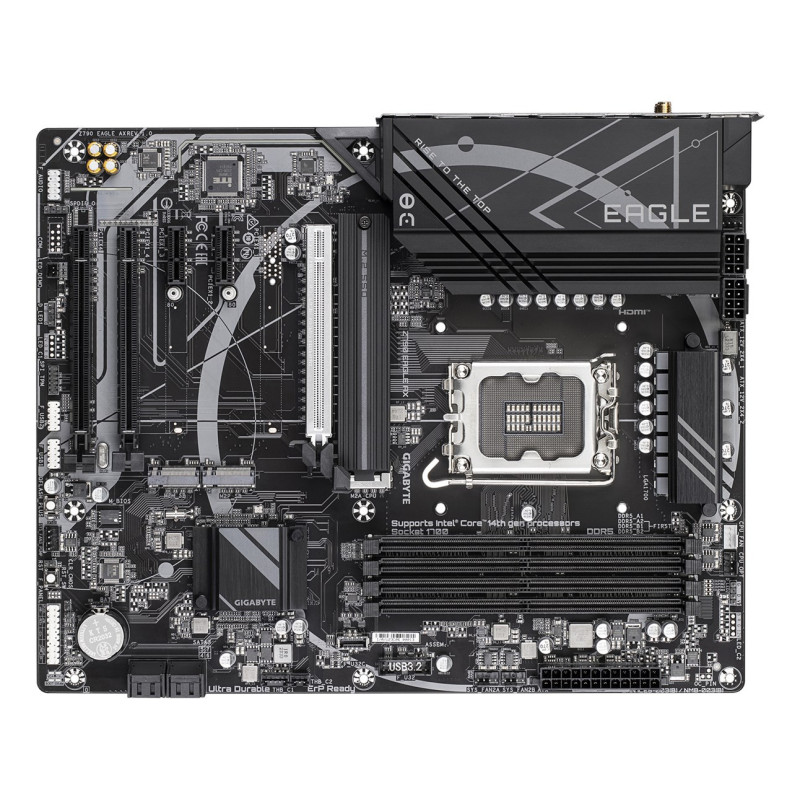

GIGABYTE Z790 EAGLE AX Motherboard - Supports Intel Core 14th Gen CPUs, 12+1+１Phases Digital VRM, up to 7600MHz DDR5 (OC
Product reference:
6-Z790 EAGLE AX
GIGABYTE Z790 EAGLE AX Motherboard - Supports Intel Core 14th Gen CPUs, 12+1+１Phases Digital VRM, up to 7600MHz DDR5 (OC), 3xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2
GIGABYTE Z790 EAGLE AX Motherboard - Supports Intel Core 14th Gen CPUs, 12+1+１Phases Digital VRM, up to 7600MHz DDR5 (OC
Product reference:
6-Z790 EAGLE AX
GIGABYTE Z790 EAGLE AX Motherboard - Supports Intel Core 14th Gen CPUs, 12+1+１Phases Digital VRM, up to 7600MHz DDR5 (OC), 3xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
4 - 8
business days
| Warranty period | 3 year(s) |
| Maximum internal memory supported by processor | 192 GB |
| Maximum number of SMP processors | 1 |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Processor manufacturer | Intel |
| Supported processor sockets | LGA 1700 |
| On-board graphics card | No |
| HDCP | Yes |
| Maximum resolution | 4096 x 2304 pixels |
| Parallel processing technology support | Not supported |
| Windows operating systems supported | Windows 11 x64, Windows 10 x64 |
| Audio output channels | 7.1 channels |
| Motherboard chipset | Intel Z790 Express |
| Power source type | ATX |
| Motherboard form factor | ATX |
| PC health monitoring | Temperature, Voltage, Water cooling, Fan |
| Product colour | Bronze |
| Motherboard chipset family | Intel |
| Audio chip | Realtek ALC897 |
| Memory channels | Dual-channel |
| Supported memory types | DDR5-SDRAM |
| Memory slots type | DIMM |
| Supported memory clock speed (max) | 7600 MHz |
| Number of memory slots | 4 |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 7400, 6600, 6000, 4400 MHz, 6200, 6400, 6800, 5800, 5400, 5200, 4800, 7600, 7000, 5600 MHz, 7200 |
| Unbuffered memory | Yes |
| Supported memory module capacities | 48GB, 1GB, 2GB, 4GB, 16GB, 8GB, 32GB, 12GB |
| Maximum internal memory | 192 GB |
| Height | 35 mm |
| Depth | 244 mm |
| Width | 305 mm |
| Wi-Fi standards | Wi-Fi 6E (802.11ax), 802.11g, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), 802.11b |
| Wi-Fi | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth version | 5.3 |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Ethernet LAN | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Bluetooth | Yes |
| TPM connector | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Total number of SATA connectors | 4 |
| RGB LED pin header | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Front panel connector | Yes |
| Number of EATX power connectors | 2 |
| 12V power connector | Yes |
| Front panel audio connector | Yes |
| Number of SATA III connectors | 4 |
| ATX Power connector (24-pin) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Thunderbolt headers | 2 |
| USB 2.0 connectors | 2 |
| Desktop Management Interface (DMI) version | 2.7 |
| Clear CMOS jumper | Yes |
| Clear CMOS button | Yes |
| BIOS type | UEFI AMI |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Antenna included | Yes |
| Cables included | SATA |
| Batteries included | Yes |
| RAID levels | 5, 1, 10 |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 7 |
| Supported storage drive types | HDD & SSD |
| RAID support | Yes |
| Supported storage drive interfaces | M.2, SATA III |

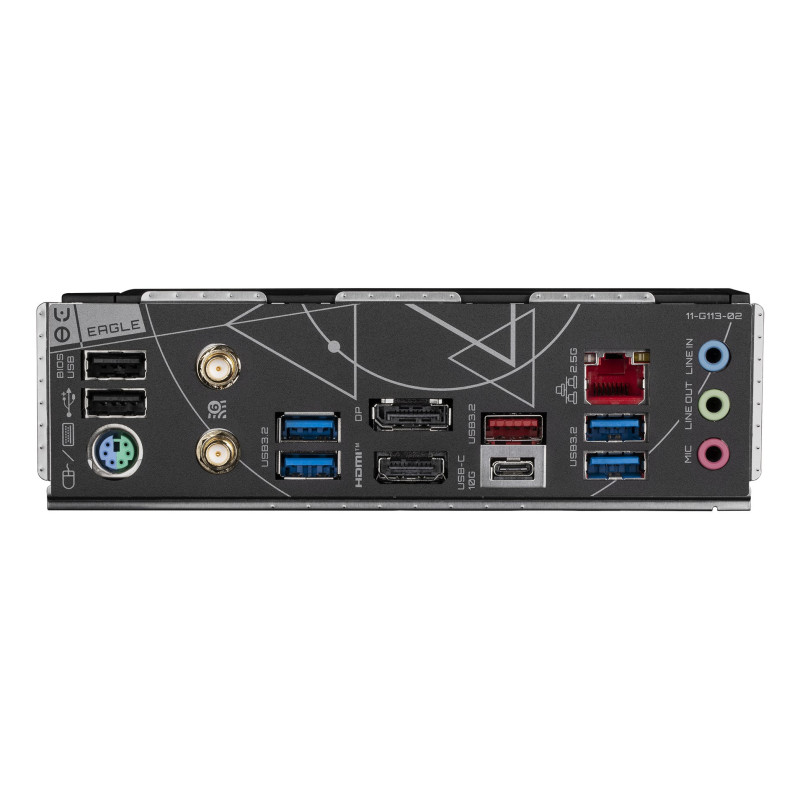

| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Headphone outputs | 1 |
| HDMI version | 2.1 |
| WiFi-AP antenna jack | 2 |
| Microphone in | Yes |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB connector type | USB Type-A, USB Type-C |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| S/PDIF out port | Yes |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 3 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| Number of battery cells | 1 |
| Battery type | CR2032 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Products per shipping (inner) case | 1 pc(s) |
| Country of origin | China |
| Warnings | Before starting any maintenance or installation, disconnect the product from the power supply., Avoid direct contact with electronics to prevent electrostatic damage., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal. |
