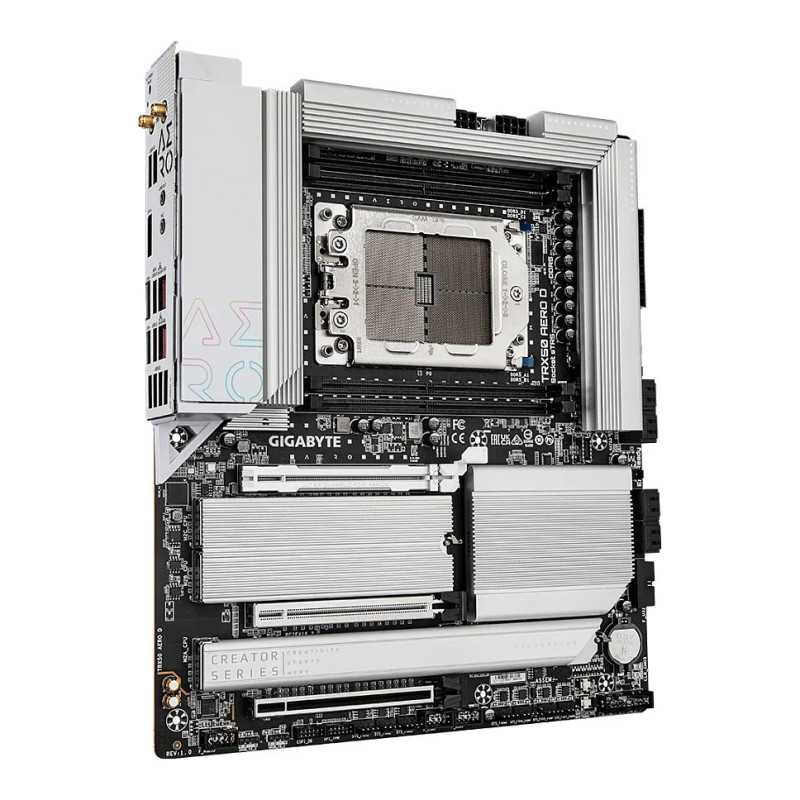

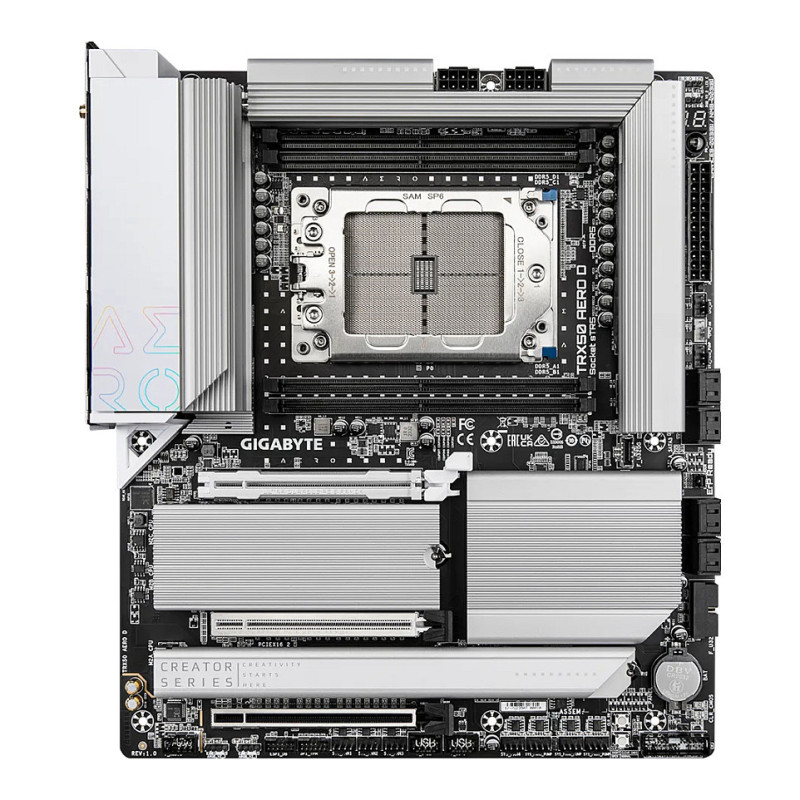

GIGABYTE TRX50 AERO D motherboard

GIGABYTE TRX50 AERO D Motherboard - Supports AMD Ryzen Threadripper 9000 Series CPUs, 16+8+4 Phases Digital VRM, up to 7800MHz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0 M.2, Wi-Fi 7, 10GbE LAN, USB4. Processor manufacturer: AMD, Processor socket: Socket sTR5, Compatible processor series: AMD Ryzen Threadripper 1000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 1 TB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, Supported storage drive types: SSD, RAID levels: 0, 1, 10. Ethernet interface type: 10 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7.... Component for: PC, Motherboard form factor: Extended ATX, Motherboard chipset family: AMD
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Processor

Processor manufacturer: AMD
Processor socket: Socket sTR5
Compatible processor series: AMD Ryzen Threadripper 1000 Series
Maximum number of SMP processors: 1
Maximum internal memory supported by processor: 1 TB

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Quad-channel
ECC сompatibility: ECC
Supported memory clock speeds: 4400,4800,5200,5600,6000,6400,6800,7000,7200,7600,7800 MHz
Supported memory clock speed (max): 7800 MHz
Maximum internal memory: 1 TB
Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB, 64GB, 128GB, 128MB, 256MB

Storage controllers

Supported storage drive types: SSD
Supported storage drive interfaces: M.2, SATA
Number of HDDs supported: 8
Number of storage drives supported: 12
Feature: RAID support
RAID levels: 0, 1, 10

Graphics

DirectX version: 12.0

Internal I/O

USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2x2 connectors: 1
Number of SATA III connectors: 8
Total number of SATA connectors: 8
Feature: Audio connector
Feature: ATX Power connector (24-pin)
Feature: CPU fan connector
Number of chassis fan connectors: 10
Feature: EPS power connector (8-pin)
Feature: RGB LED pin header

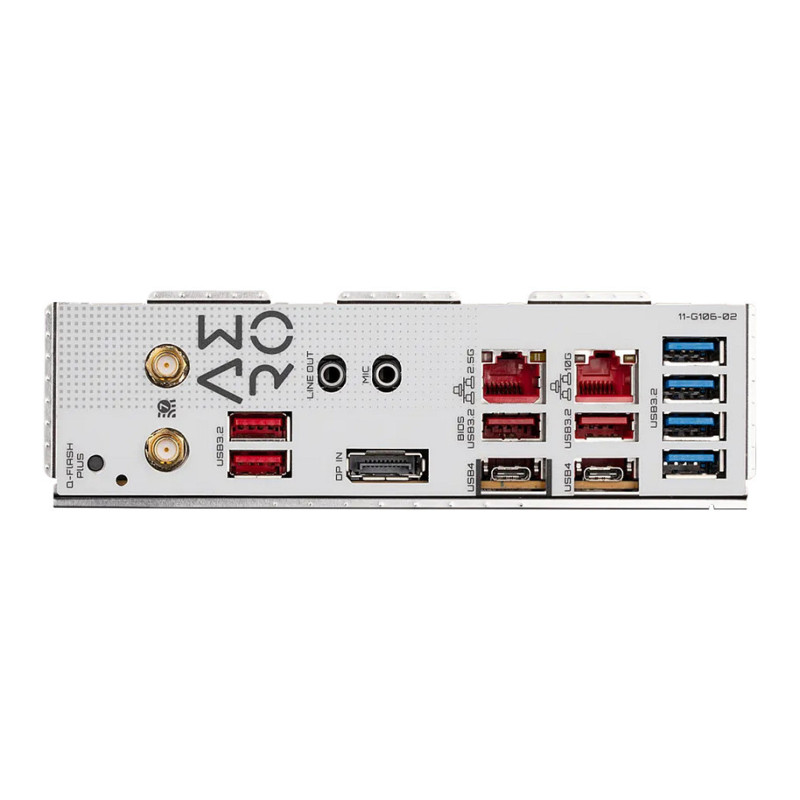

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
Ethernet LAN (RJ-45) ports: 2
DisplayPorts quantity: 1
Headphone outputs: 2

Network

Feature: Ethernet LAN
Ethernet interface type: 10 Gigabit Ethernet
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be)
Feature: Bluetooth
Bluetooth version: 5.3

Features

Motherboard chipset: AMD TRX50
Audio chip: Realtek ALC4080
Audio output channels: 2.0 channels
Product colour: Black
PC health monitoring: Fan, Temperature, Voltage, Water cooling
Component for: PC
Motherboard form factor: Extended ATX
Motherboard chipset family: AMD
Windows operating systems supported: Windows 11 x64

Expansion slots

PCI Express x16 slots: 3
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 2
Number of M.2 (M) slots: 4

BIOS

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
ACPI version: 5.0
Feature: Clear CMOS jumper
Feature: Clear CMOS button
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7

Logistics data

Country of origin: China
Products per shipping (inner) case: 1 pc(s)

Battery

Battery weight: 3 g
Lithium weight per battery: 0.07 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032

Packaging data

Package width: 345 mm
Package depth: 294 mm
Package height: 80 mm
Package weight: 3.04 kg

Weight dimensions

Width: 305 mm
Depth: 264 mm
Height: 35 mm

Packaging content

Feature: Batteries included
Bundled software: Norton Internet Security (OEM version),LAN bandwidth management software

Technical details

Warranty period: 3 year(s)
