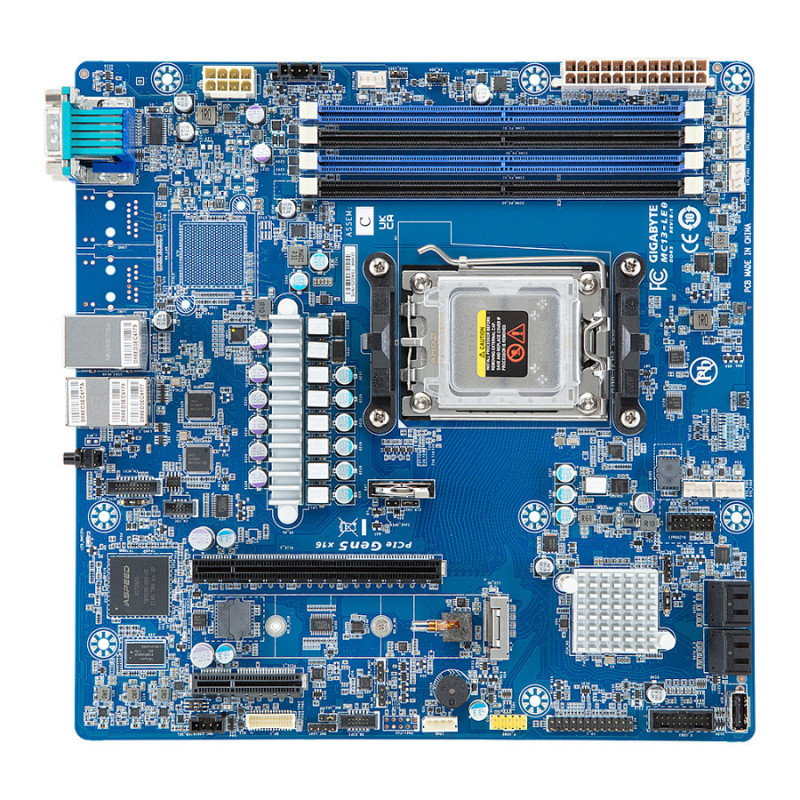

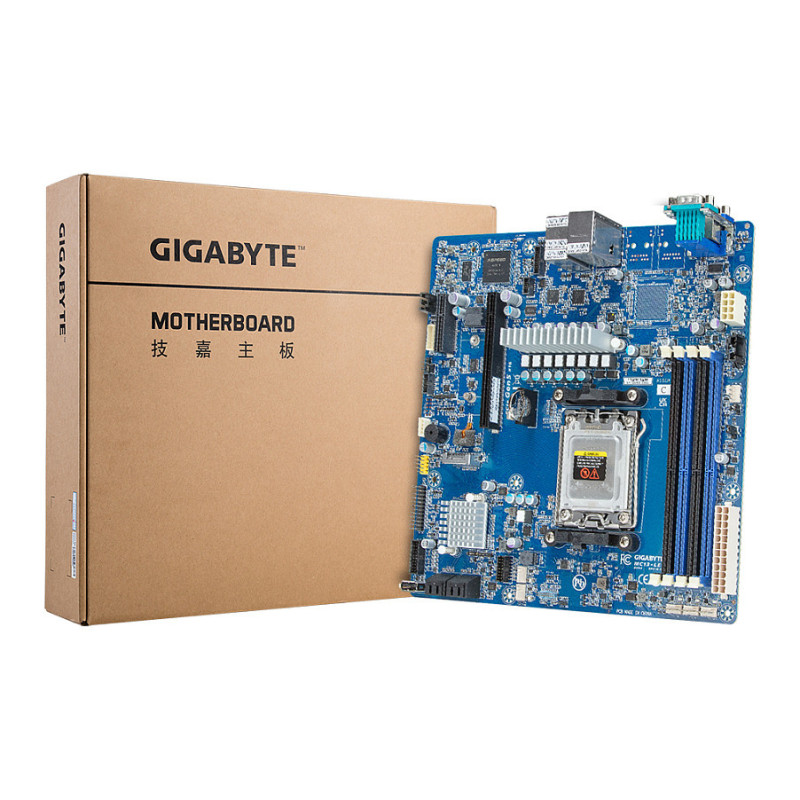

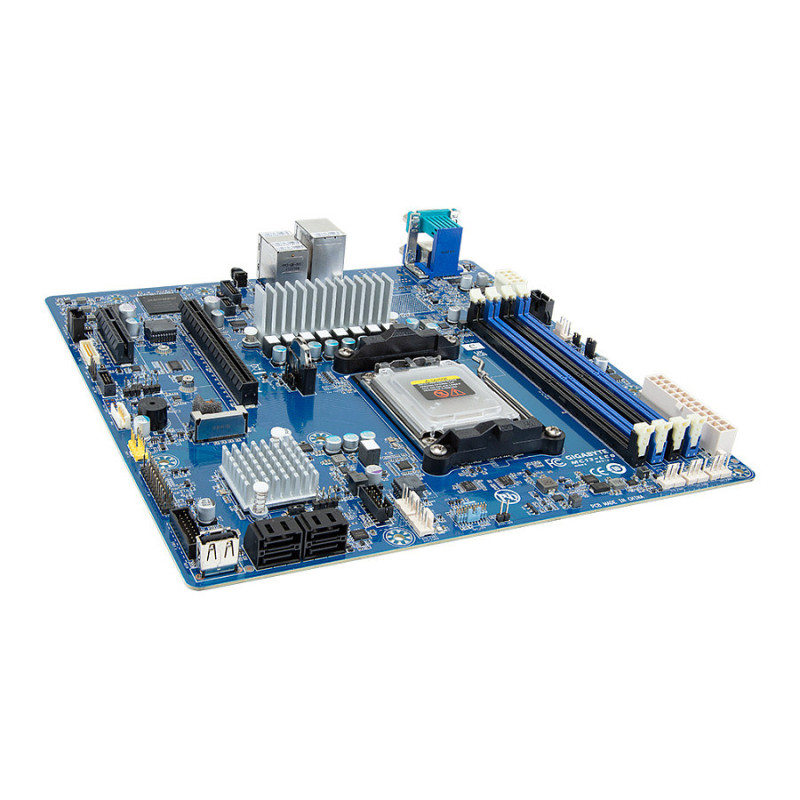

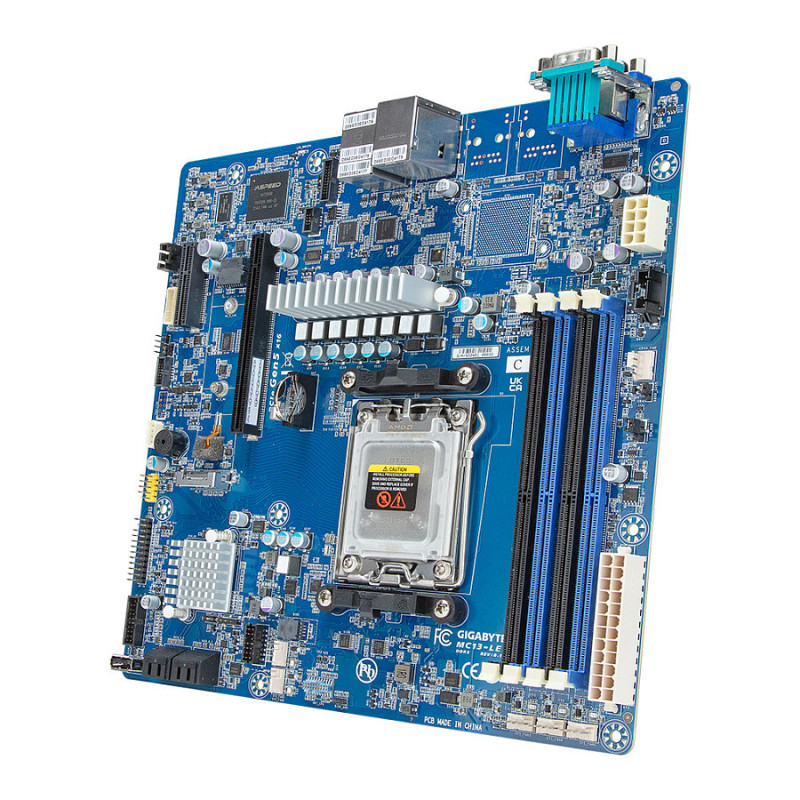

GIGABYTE MC13-LE0 motherboard

GIGABYTE MC13-LE0. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD EPYC 4004, AMD Ryzen 7000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM. Supported storage drive interfaces: M.2, SATA III, RAID levels: 0, 1, 10. On-board graphics card model: Aspeed AST2600. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
AMD EPYC™ 4004 for 24x7 Business Growth and Manageability
AMD EPYC™ 4004 Series Processors are a welcome addition to the 4th Gen AMD EPYC™ processor family, lowering the threshold for businesses and hosting services that have been wanting to move to a platform with a server OS and other enterprise features, yet at an optimal price point in GIGABYTE solutions. SMB and hosting services rely on server-grade reliability so they can continue running 24x7. At the same time, they need to have a higher degree of manageability. On top of validating, GIGABYTE provides GIGABYTE Management Console (GMC) for system management and GIGABYTE Server Management (GSM) software for monitoring multiple servers.
The Rising AM5 Platform
AMD AM5 Socket is versatile as it can support the consumer platform yet is able to step into the field of enterprise-level applications, and GIGABYTE has motherboards, workstations, and servers to support it. Taking advantage of its low cost per core and high core count options, the first processor on this platform, the AMD Ryzen™ 7000 Series, has proven its value in the enterprise server market. Its successor, the AMD EPYC™ 4004 Series, now further expands capabilities by including even more enterprise features. These "Zen 4" architecture processors can easily handle compute-heavy workloads yet are versatile enough for users to find an optimal choice for applications where performance, productivity, and efficiency matter.
PCIe 5.0 Ready Design
MC13 equip several new components to ensure the best PCIe 5.0 signal quality, including PCB, PCIe Slots, M.2 Connectors, Re-drivers, Switches that are specifically designed for PCIe 5.0.
There will be no compromised on PCIe 5.0 performance on PCIe and M.2 interface.
Hardware Security
Optional TPM 2.0 Module
For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. GIGABYTE TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.

Processor

Processor manufacturer: AMD
Processor socket: Socket AM5
Compatible processor series: AMD EPYC 4004, AMD Ryzen 7000 Series, AMD Ryzen 9000 Series

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 4

Storage controllers

Supported storage drive interfaces: M.2, SATA III
RAID support: Yes
RAID levels: 0, 1, 10

Graphics

On-board graphics card model: Aspeed AST2600

Internal I/O

USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
ATX Power connector (24-pin): Yes
EPS power connector (8-pin): Yes
TPM connector: Yes

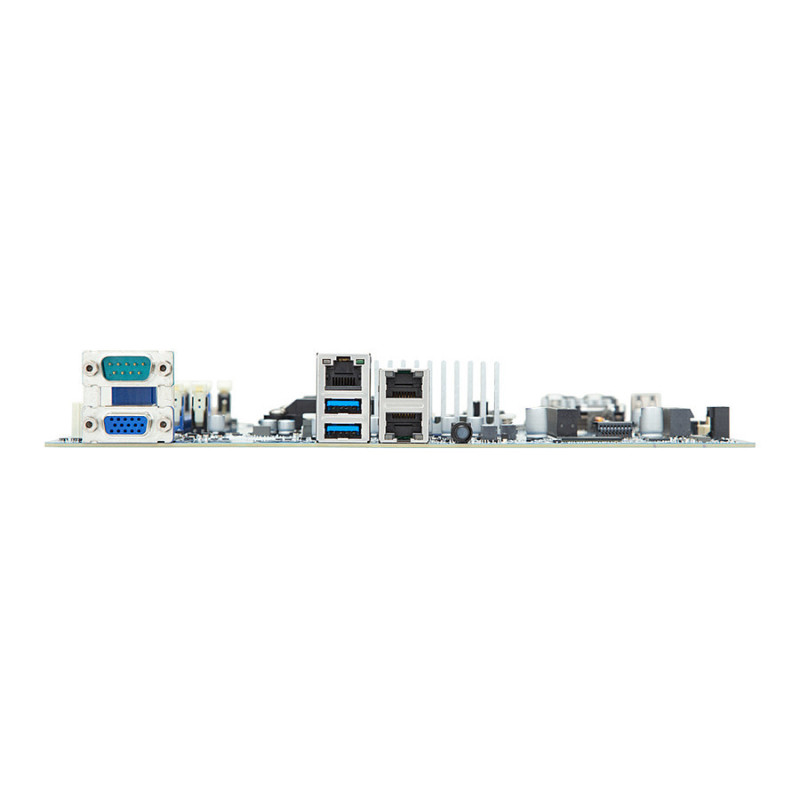

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 2
VGA (D-Sub) ports quantity: 1
COM ports quantity: 1

Network

Ethernet LAN: Yes
Wi-Fi: No

Features

Motherboard chipset: AMD B650
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Compatible operating systems: EPYC 4004 Series:Ubuntu 22.04Ubuntu 24.04Windows Server 2022Ryzen 9000/7000 Series:Windows 10 21H2Windows 11

Expansion slots

PCI Express x4 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 1

Operational conditions

Storage temperature (T-T): -40 - 60 °C
Operating temperature (T-T): 10 - 40 °C
Operating relative humidity (H-H): 8 - 80%
Storage relative humidity (H-H): 20 - 95%

Packaging data

Package width: 321 mm
Package depth: 308.5 mm
Package height: 78.5 mm

Weight dimensions

Width: 244 mm
Depth: 244 mm
