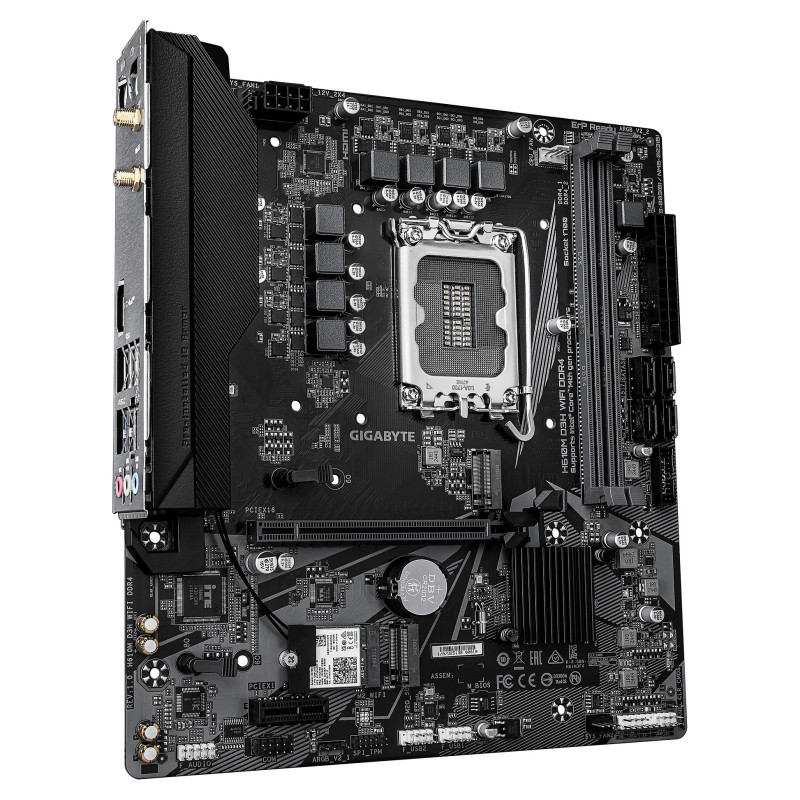

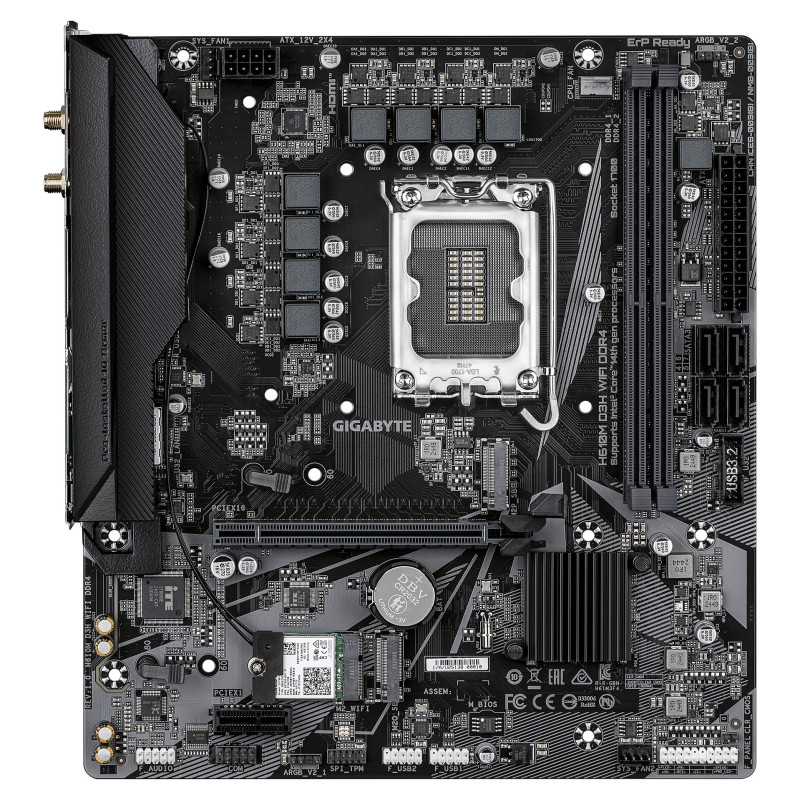

GIGABYTE H610M D3H WIFI DDR4 motherboard

GIGABYTE H610M D3H WIFI DDR4 Motherboard - Supports 14th Gen. Intel Core CPUs, 6+1+1 phases VRM, up to 3200MHz DDR4, 2xPCIe 3.0 M.2, WIFI 5, 1GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD SSD. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H, Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

Processor

Processor manufacturer: Intel
Processor socket: LGA 1700
Supported processor sockets: LGA 1700

Memory

Supported memory types: DDR4-SDRAM
Number of memory slots: 2
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: ECC Non-ECC
Supported memory clock speeds: 2133,2400,2666,2933,3000,3200 MHz
Supported memory clock speed (max): 3200 MHz
Maximum internal memory: 64 GB
Feature: Unbuffered memory
Maximum internal memory per slot: 32 GB

Storage controllers

Supported storage drive types: HDD SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
Number of storage drives supported: 6

Graphics

Parallel processing technology support: Not supported
Maximum resolution: 4096 x 2304 pixels
Feature: HDCP
DirectX version: 12.0

Internal I/O

USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
Feature: Front panel audio connector
Feature: Front panel connector
Feature: ATX Power connector (24-pin)
Feature: CPU fan connector
Number of CPU fan connectors: 1
Number of chassis fan connectors: 2
Feature: EPS power connector (8-pin)
Number of EPS power connectors (8-pin): 1
Feature: TPM connector
Serial port headers: 1
Feature: RGB LED pin header
Number of RGB LED pin headers: 2

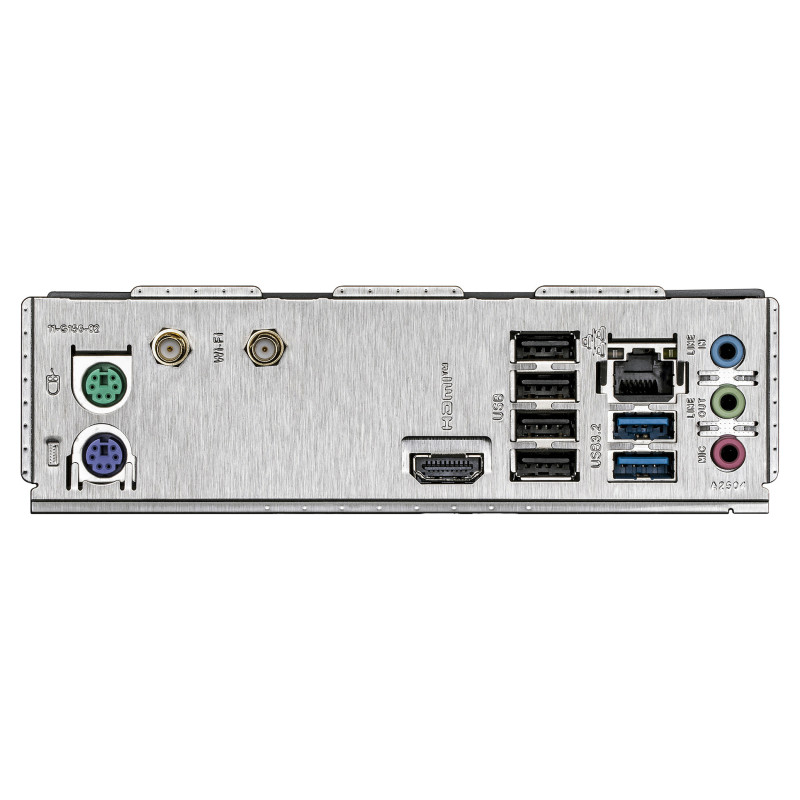

Rear panel I/O ports

USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 2
HDMI ports quantity: 1
HDMI version: 2.1
Headphone outputs: 1
Feature: Line-in
Feature: Microphone in
WiFi-AP antenna jack: 2

Network

Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
LAN controller: Realtek RTL8111H
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN controller model: Intel Dual Band Wireless-AC 9560
Feature: Bluetooth
Bluetooth version: 5.1

Features

Motherboard chipset: Intel H610
Audio chip: Realtek ALC897
Audio output channels: 7.1 channels
Product colour: Dark brown
PC health monitoring: Fan, Temperature, Voltage, Water cooling
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Cooling type: Passive
Power source type: ATX
Windows operating systems supported: Windows 10 x64, Windows 11 x64

Expansion slots

PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2
1st M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 3.0
2nd M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 3.0

BIOS

BIOS type: UEFI AMI
BIOS memory size: 128 Mbit
ACPI version: 5.0
Feature: Clear CMOS jumper
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7

Logistics data

Products per shipping (inner) case: 1 pc(s)

Battery

Battery weight: 3 g
Lithium weight per battery: 0.07 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032

Packaging data

Package width: 270 mm
Package depth: 268 mm
Package height: 68 mm
Package weight: 1.06 kg

Weight dimensions

Width: 244 mm
Depth: 220 mm
Height: 35 mm

Packaging content

Feature: Batteries included
Feature: Antenna included
Feature: Screws included
Bundled software: Norton® Internet Security (OEM version)LAN bandwidth management software

Other features

Weight: 930 g

Technical details

Warranty period: 3 year(s)
