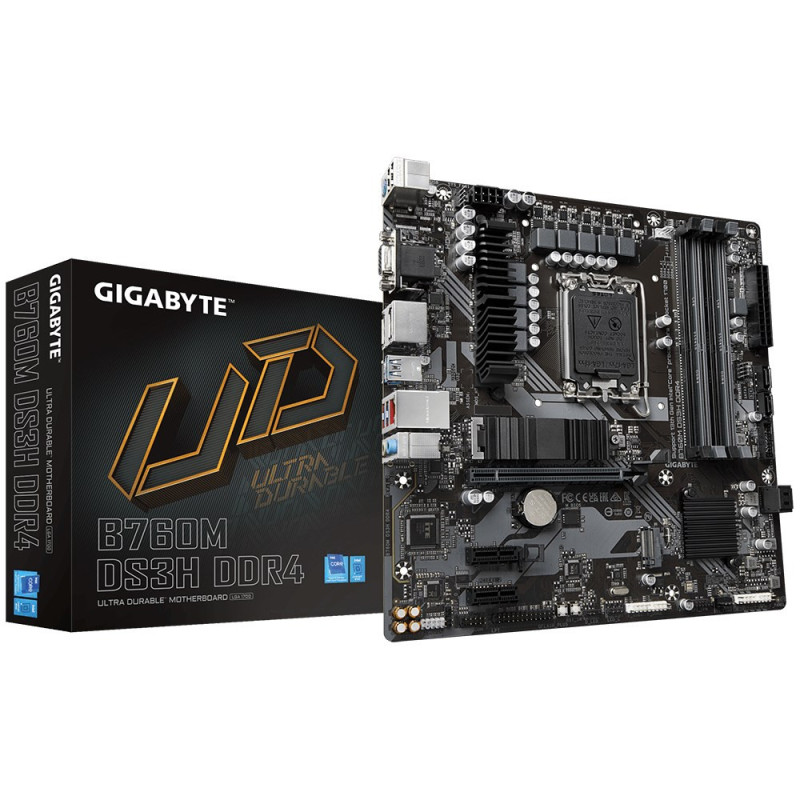

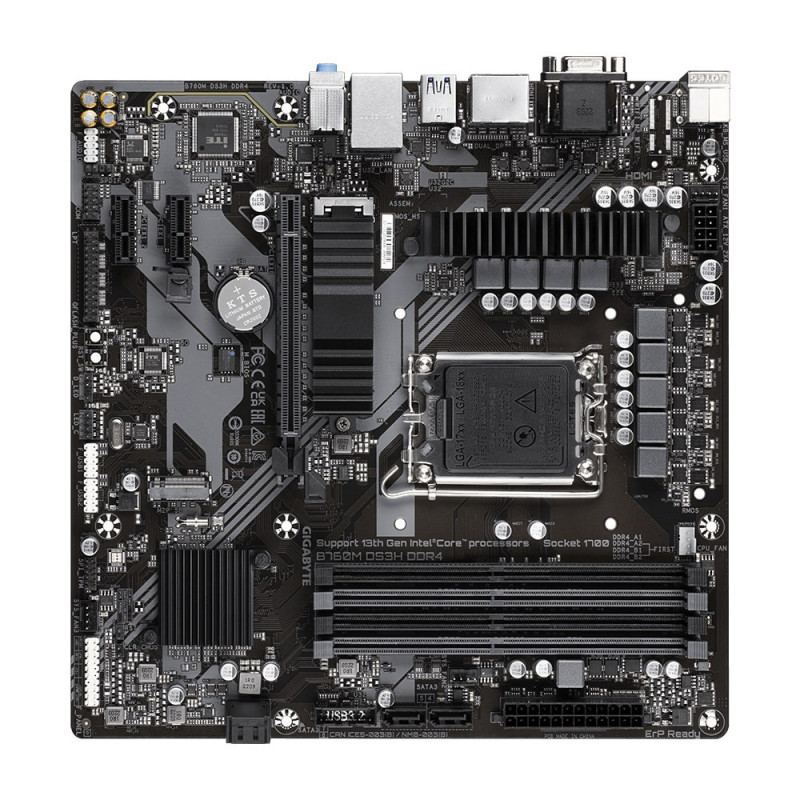

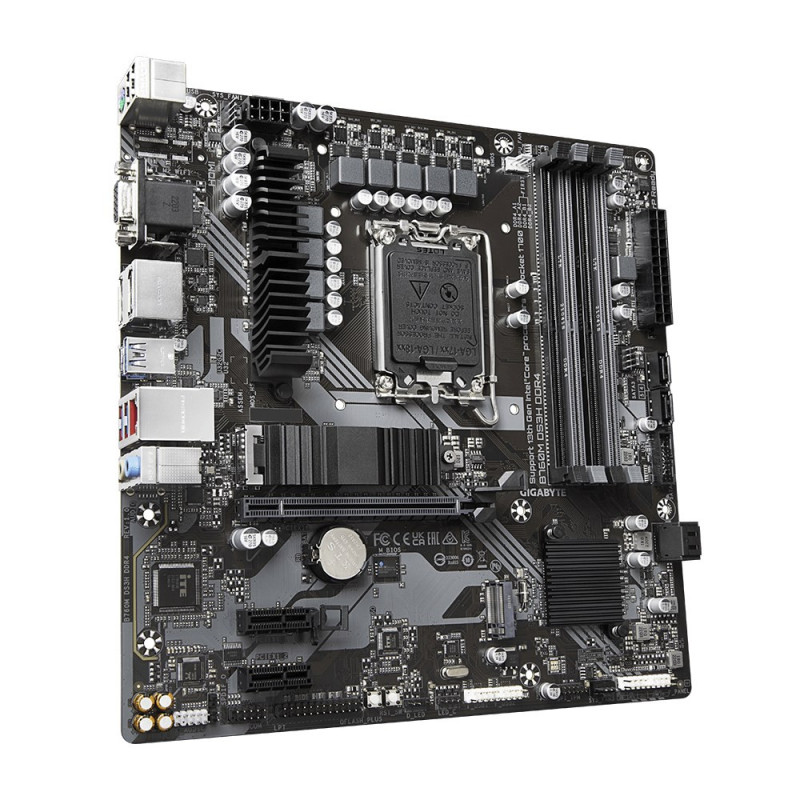

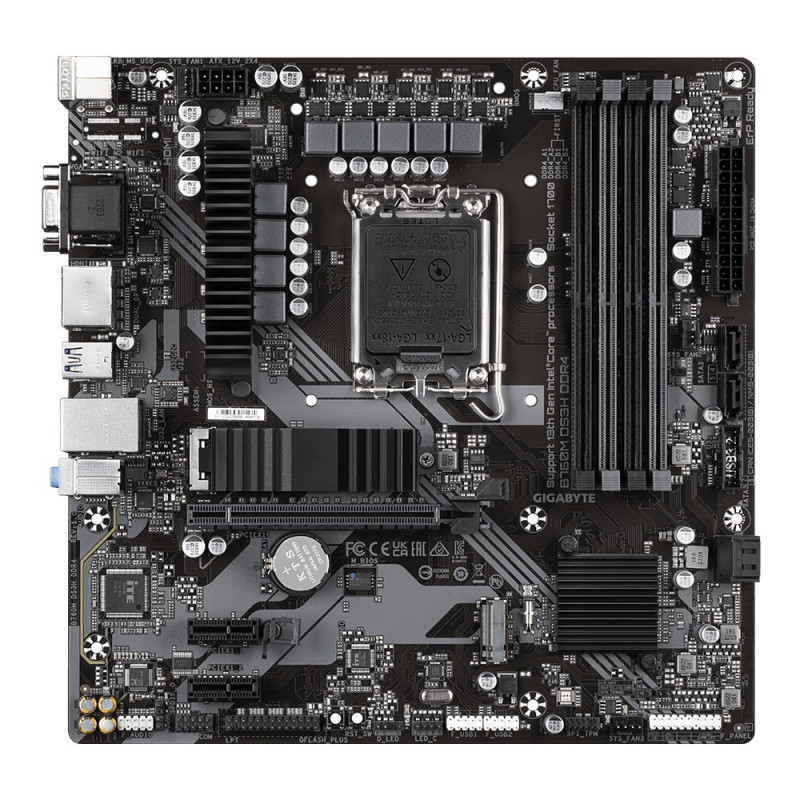

Gigabyte B760M DS3H DDR4 motherboard Intel B760 LGA 1700 micro ATX
Product reference:
6-B760M DS3H DDR4
Gigabyte B760M DS3H DDR4 motherboard Intel B760 LGA 1700 micro ATX
Gigabyte B760M DS3H DDR4 motherboard Intel B760 LGA 1700 micro ATX
Product reference:
6-B760M DS3H DDR4
Gigabyte B760M DS3H DDR4 motherboard Intel B760 LGA 1700 micro ATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
4 - 8
business days
| ATX Power connector (24-pin) | Yes |
| Audio output channels | 7.1 channels |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| CPU fan connector | Yes |
| Depth | 244 mm |
| Desktop Management Interface (DMI) version | 2.7 |
| DisplayPorts quantity | 2 |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| HDCP | Yes |
| HDMI ports quantity | 1 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Maximum internal memory | 128 GB |
| Maximum resolution | 4096 x 2304 pixels |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Memory types supported by processor | DDR4-SDRAM |
| Motherboard chipset | Intel B760 |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Number of chassis fan connectors | 3 |
| Number of displays supported | 4 |
| Number of M.2 (M) slots | 1, 2 |
| Number of memory slots | 4 |
| Number of SATA III connectors | 4 |
| Number of storage drives supported | 6 |
| Parallel connector | Yes |
| Parallel processing technology support | Not supported |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Power source type | ATX |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| PS/2 ports quantity | 1 |
| RAID levels | 1, 5, 10 |
| RAID support | Yes |
| RGB LED pin header | Yes |
| S/PDIF out connector | Yes |
| Serial port headers | 1 |
| Supported memory clock speed (max) | 4933 MHz |
| Supported memory clock speeds | 2133, 2400, 2666, 2933, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3666, 3733, 3800, 3866, 4000, 4133, 4266, 4300, 4400, 4500, 4600, 4700, 4800, 4933 |
| Supported memory types | DDR4-SDRAM |
| Supported processor sockets | LGA 1700 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Width | 244 mm |
| Windows operating systems supported | Windows 10, Windows 11 |
