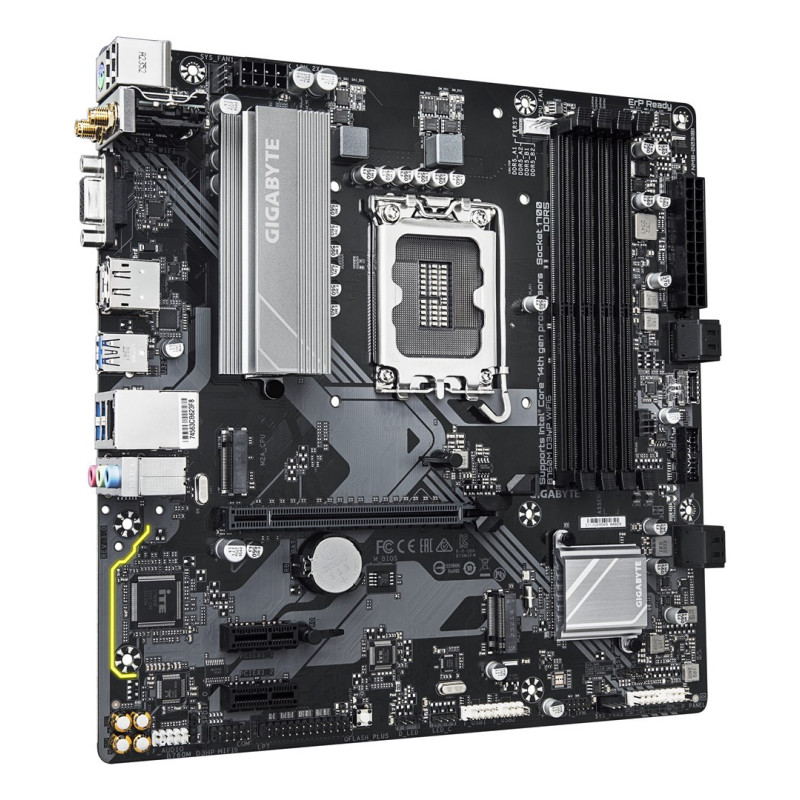

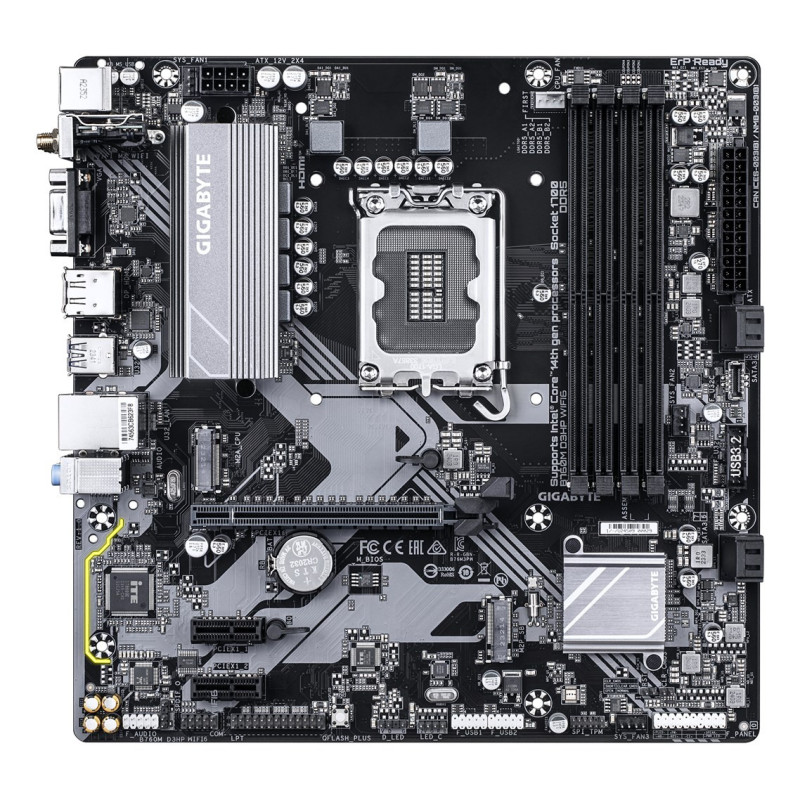

GIGABYTE B760M D3HP WIFI6 Motherboard - Supports Intel Core 14th Gen CPUs, 4+1+1 Phases Digital VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, Wi-Fi 6, GbE LAN, USB 3.2 Gen1
GIGABYTE B760M D3HP WIFI6 Motherboard - Supports Intel Core 14th Gen CPUs, 4+1+1 Phases Digital VRM, up to 5600MHz DDR5,
Product reference:
6-B760M D3HP WIFI6
GIGABYTE B760M D3HP WIFI6 Motherboard - Supports Intel Core 14th Gen CPUs, 4+1+1 Phases Digital VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, Wi-Fi 6, GbE LAN, USB 3.2 Gen1
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
4 - 8
business days
| 12V power connector | Yes |
| 1st M.2 highest PCI Express generation | 4.0 |
| 1st M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| Antenna included | Yes |
| ATX Power connector (24-pin) | Yes |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Batteries included | Yes |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Battery weight | 3 g |
| BIOS type | UEFI AMI |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Clear CMOS jumper | Yes |
| Compatible processor series | Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Celeron®, Intel® Pentium® Gold |
| Cooling type | Passive |
| CPU fan connector | Yes |
| Depth | 244 mm |
| Desktop Management Interface (DMI) version | 2.7 |
| DirectX version | 12.0 |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| ECC сompatibility | ECC & Non-ECC |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| HDCP | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Height | 35 mm |
| LAN controller | Realtek RTL8111H |
| Line-in | Yes |
| Lithium weight per battery | 0.07 g |
| Maximum internal memory | 192 GB |
| Maximum internal memory per slot | 48 GB |
| Maximum resolution | 4096 x 2304 pixels |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Motherboard chipset | Intel B760 Express |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Number of battery cells | 1 |
| Number of chassis fan connectors | 3 |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of HDDs supported | 4 |
| Number of M.2 (M) slots | 2 |
| Number of memory slots | 4 |
| Number of RGB LED pin headers | 2 |
| Number of SATA III connectors | 4 |
| Number of storage drives supported | 3 |
| Parallel connector | Yes |
| Parallel processing technology support | Not supported |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Power source type | ATX |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Product colour | Black, Grey |
| Products per shipping (inner) case | 1 pc(s) |
| PS/2 ports quantity | 1 |
| RAID levels | 1, 5, 10 |
| RAID support | Yes |
| RGB LED pin header | Yes |
| S/PDIF out connector | Yes |
| Screws included | Yes |
| Serial port headers | 1 |
| Supported memory clock speed (max) | 5600 MHz |
| Supported memory clock speeds | 4400, 4800, 5200, 5600 MHz |
| Supported memory types | DDR5-SDRAM |
| Supported processor sockets | LGA 1700 |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| Supported storage drive types | HDD & SSD |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| VGA (D-Sub) ports quantity | 1 |
| Warranty period | 3 year(s) |
| Weight | 1.11 kg |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11 b/g/n, 802.11a, 802.11ac, Wi-Fi 6 (802.11ax) |
| Width | 244 mm |
| WiFi-AP antenna jack | 2 |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| WLAN controller model | Realtek RTL8851BE |
