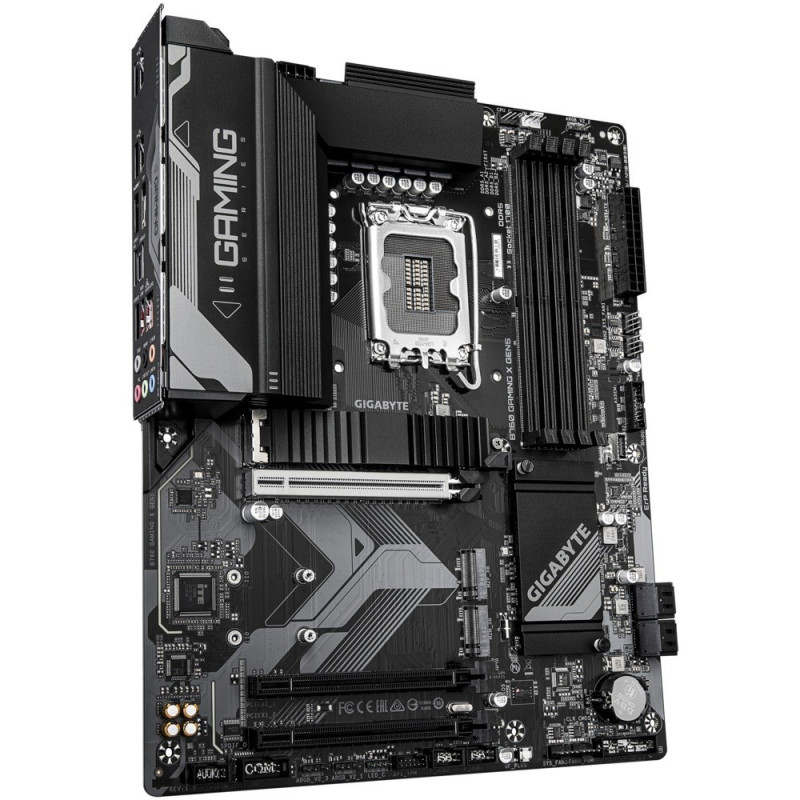

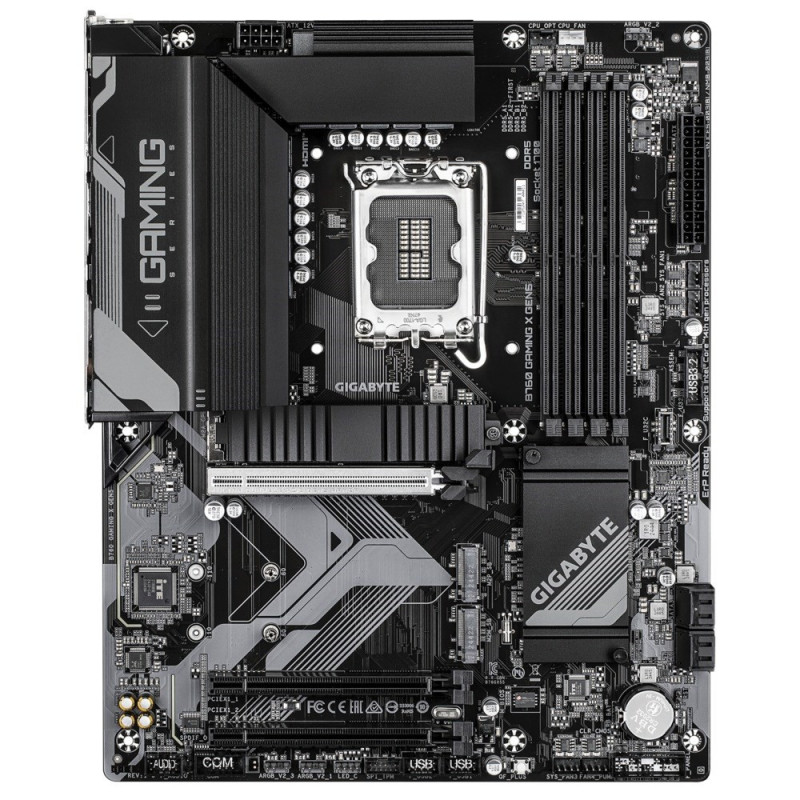

GIGABYTE B760 GAMING X GEN5 Motherboard - Supports 14th Gen. Intel Core CPUs, 8+1+1 phases VRM, up to 5600MHz DDR5, 3xPC
Product reference:
6-B760 GAMING X GEN5
GIGABYTE B760 GAMING X GEN5 Motherboard - Supports 14th Gen. Intel Core CPUs, 8+1+1 phases VRM, up to 5600MHz DDR5, 3xPCIe 4.0 M.2, 2.5 GbE LAN, USB 3.2 Gen 2
GIGABYTE B760 GAMING X GEN5 Motherboard - Supports 14th Gen. Intel Core CPUs, 8+1+1 phases VRM, up to 5600MHz DDR5, 3xPC
Product reference:
6-B760 GAMING X GEN5
GIGABYTE B760 GAMING X GEN5 Motherboard - Supports 14th Gen. Intel Core CPUs, 8+1+1 phases VRM, up to 5600MHz DDR5, 3xPCIe 4.0 M.2, 2.5 GbE LAN, USB 3.2 Gen 2
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
4 - 8
business days
| 12V power connector | Yes |
| 1st M.2 highest PCI Express generation | 4.0 |
| 1st M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 22110 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 22110 |
| ATX Power connector (24-pin) | Yes |
| Audio output channels | 7.1 channels |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| Compatible processor series | Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Celeron®, Intel® Pentium® |
| CPU fan connector | Yes |
| Depth | 244 mm |
| Desktop Management Interface (DMI) version | 2.7 |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| ECC сompatibility | ECC & Non-ECC |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| HDCP | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Maximum internal memory | 256 GB |
| Maximum internal memory per slot | 64 GB |
| Maximum resolution | 4096 x 2304 pixels |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Motherboard chipset | Intel B760 |
| Motherboard chipset family | Intel |
| Motherboard form factor | ATX |
| Number of chassis fan connectors | 4 |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of HDDs supported | 4 |
| Number of M.2 (M) slots | 3 |
| Number of memory slots | 4 |
| Number of RGB LED pin headers | 4 |
| Number of SATA III connectors | 4 |
| Number of storage drives supported | 7 |
| Number of water pump connectors | 2 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| PCI Express x16 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Power source type | ATX |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| RAID levels | 1, 5, 10 |
| RAID support | Yes |
| RGB LED pin header | Yes |
| S/PDIF out connector | Yes |
| Supported memory clock speed (max) | 7600 MHz |
| Supported memory clock speeds | 4000, 4800, 5200, 5400, 5600 MHz, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600 |
| Supported memory types | DDR5-SDRAM |
| Supported processor sockets | LGA 1700 |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| Supported storage drive types | HDD & SSD |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 2 |
| USB 2.0 ports quantity | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| Width | 305 mm |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
