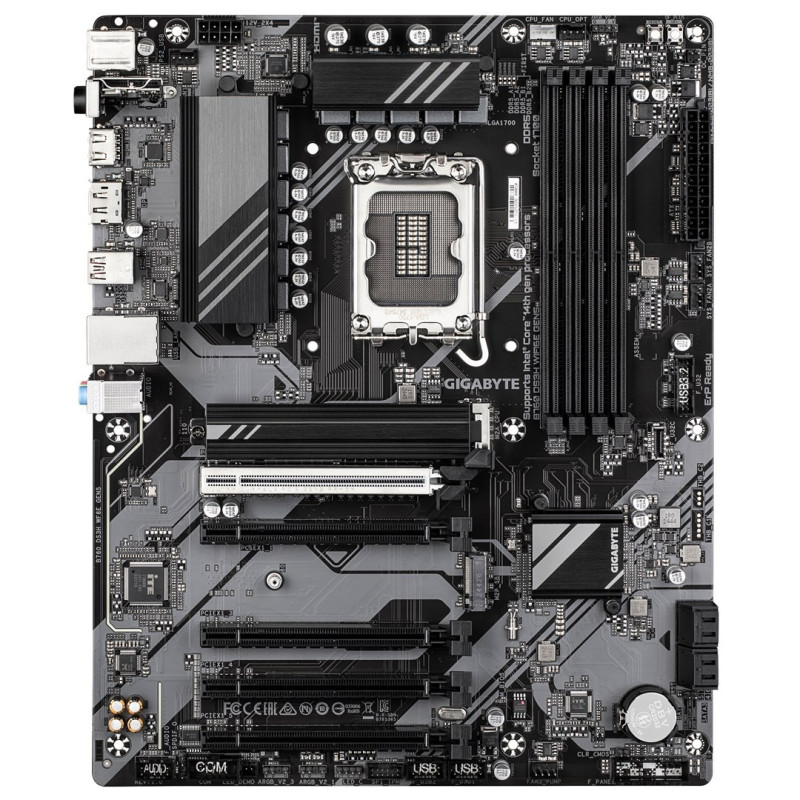

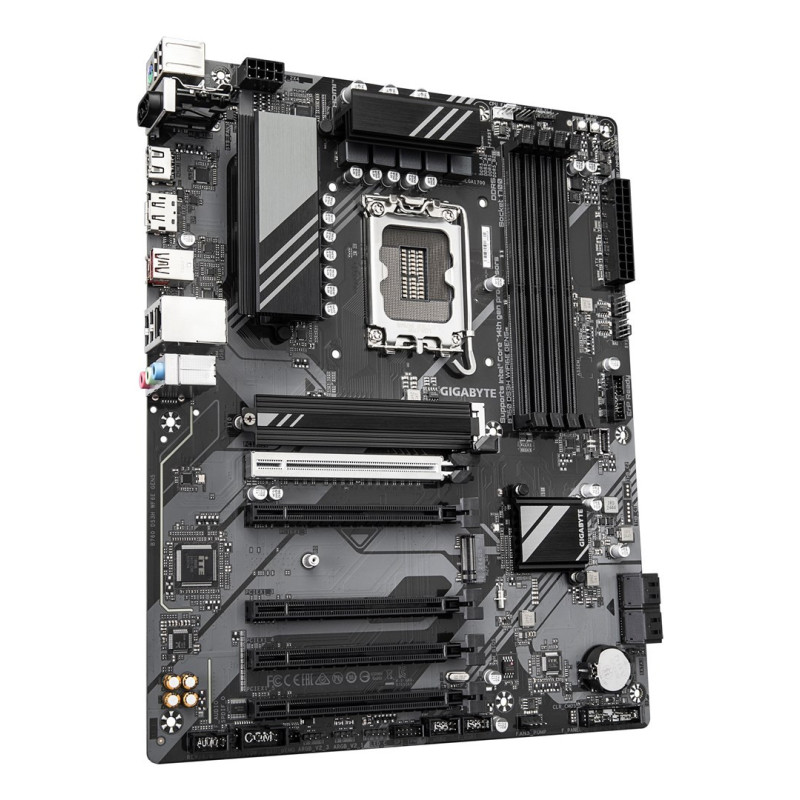

GIGABYTE B760 DS3H WIFI6E GEN5 Motherboard - Supports Intel Core 14th Gen CPUs, 8+2+1 Phases Digital VRM, up to 5600MHz
Product reference:
6-B760 DS3H WF6E GEN5
GIGABYTE B760 DS3H WIFI6E GEN5 Motherboard - Supports Intel Core 14th Gen CPUs, 8+2+1 Phases Digital VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, Wi-Fi 6E, 1GbE LAN, USB 3.2 Gen 2x2
GIGABYTE B760 DS3H WIFI6E GEN5 Motherboard - Supports Intel Core 14th Gen CPUs, 8+2+1 Phases Digital VRM, up to 5600MHz
Product reference:
6-B760 DS3H WF6E GEN5
GIGABYTE B760 DS3H WIFI6E GEN5 Motherboard - Supports Intel Core 14th Gen CPUs, 8+2+1 Phases Digital VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, Wi-Fi 6E, 1GbE LAN, USB 3.2 Gen 2x2
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
6 - 11
business days
| Supported processor sockets | LGA 1700 |
| Compatible processor series | Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i7 14th Gen, Intel Core i9 13th Gen, Intel® Pentium® Gold, Intel Core i7 12th Gen, Intel Core i5 14th Gen, Intel Core i3 13th Gen, Intel Core i9 14th Gen, Intel Core i7 13th Gen, Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i5 13th Gen, Intel Core i9 12th Gen |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| HDCP | Yes |
| Maximum resolution | 4096 x 2304 pixels |
| Motherboard chipset | Intel B760 Express |
| Motherboard form factor | ATX |
| Audio output channels | 7.1 channels |
| Motherboard chipset family | Intel |
| Power source type | ATX |
| Windows operating systems supported | Windows 11 x64, Windows 10 x64 |
| Unbuffered memory | Yes |
| Supported memory clock speeds | 6800, 7400, 7600, 6200, 6600, 5200, 6400 MHz, 6000, 5600, 7200, 5800, 5400, 7000, 4000 MHz, 4800 |
| Maximum internal memory | 256 GB |
| Memory channels | Dual-channel |
| Maximum internal memory per slot | 64 GB |
| ECC сompatibility | ECC & Non-ECC |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 7600 MHz |
| Supported memory types | DDR5-SDRAM |
| Memory slots type | DIMM |
| Width | 305 mm |
| Depth | 244 mm |
| Bluetooth | Yes |
| Wi-Fi standards | 802.11b, 802.11g, 802.11a, IEEE 802.11ac, Wi-Fi 6E (802.11ax), IEEE 802.11n |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| WLAN controller model | Intel Wi-Fi 6E AX210 |
| Bluetooth version | 5.3 |
| Wi-Fi | Yes |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| S/PDIF out connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Serial port headers | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 2.0 connectors | 2 |
| EPS power connector (8-pin) | Yes |
| Number of chassis fan connectors | 4 |
| CPU fan connector | Yes |
| TPM connector | Yes |
| Front panel connector | Yes |
| Number of RGB LED pin headers | 4 |
| RGB LED pin header | Yes |
| Number of water pump connectors | 2 |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors (8-pin) | 1 |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| RAID levels | 1, 10, 5 |
| Supported storage drive types | HDD & SSD |
| RAID support | Yes |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |

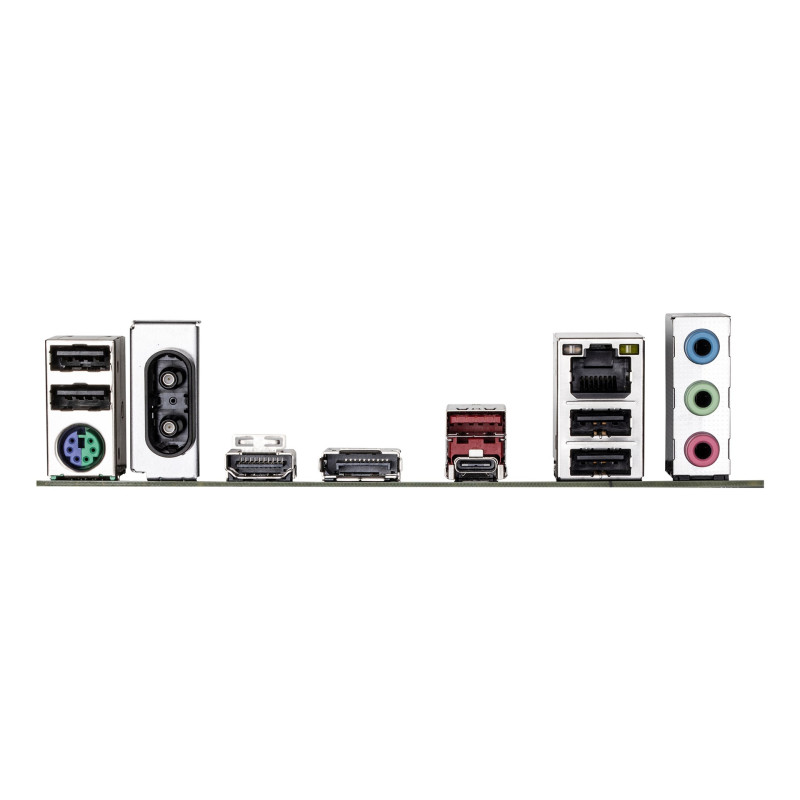

| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.2 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| WiFi-AP antenna jack | 2 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| PS/2 ports quantity | 1 |
| 1st M.2 highest PCI Express generation | 4.0 |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 4 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| 1st M.2 largest key size | 22110 |
| PCI Express x16 (Gen 5.x) slots | 1 |
