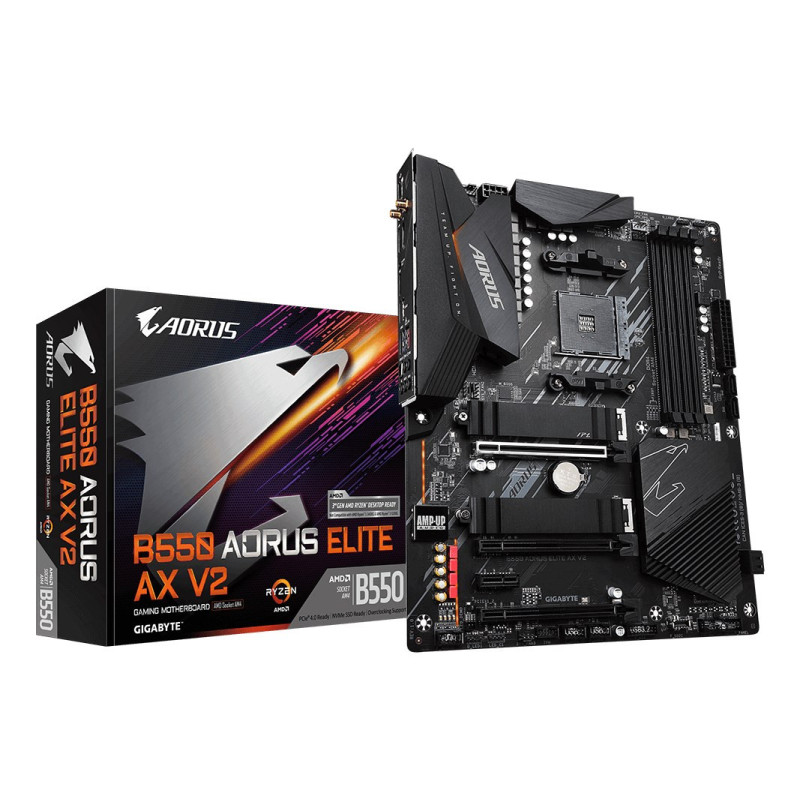

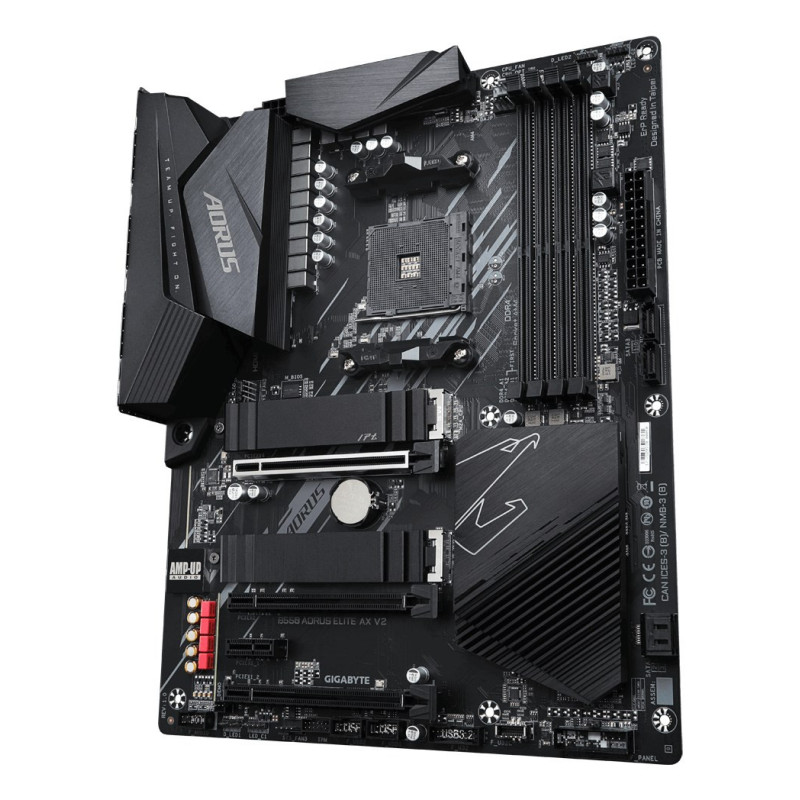

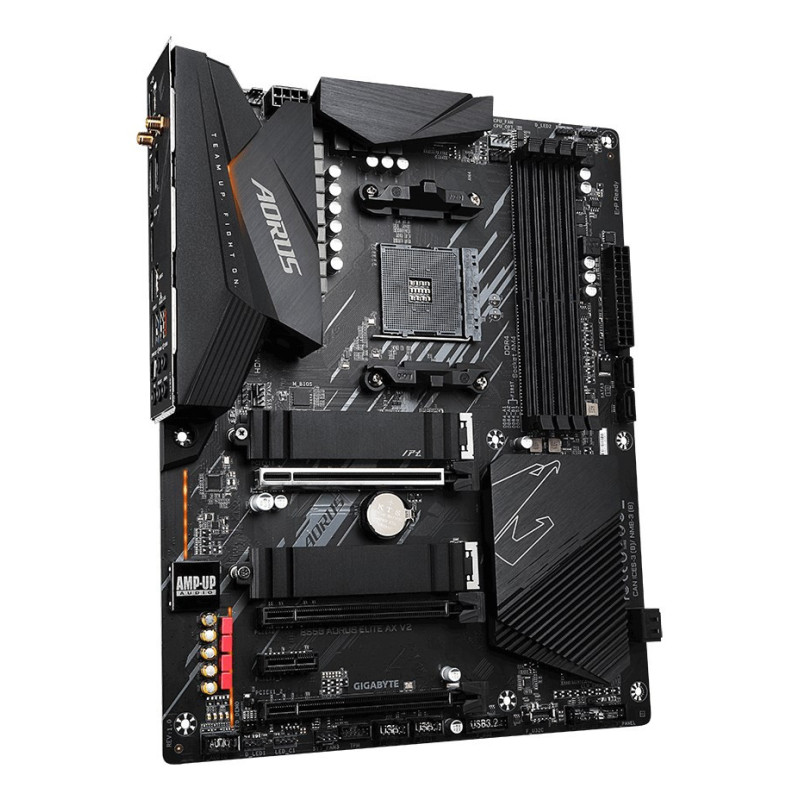

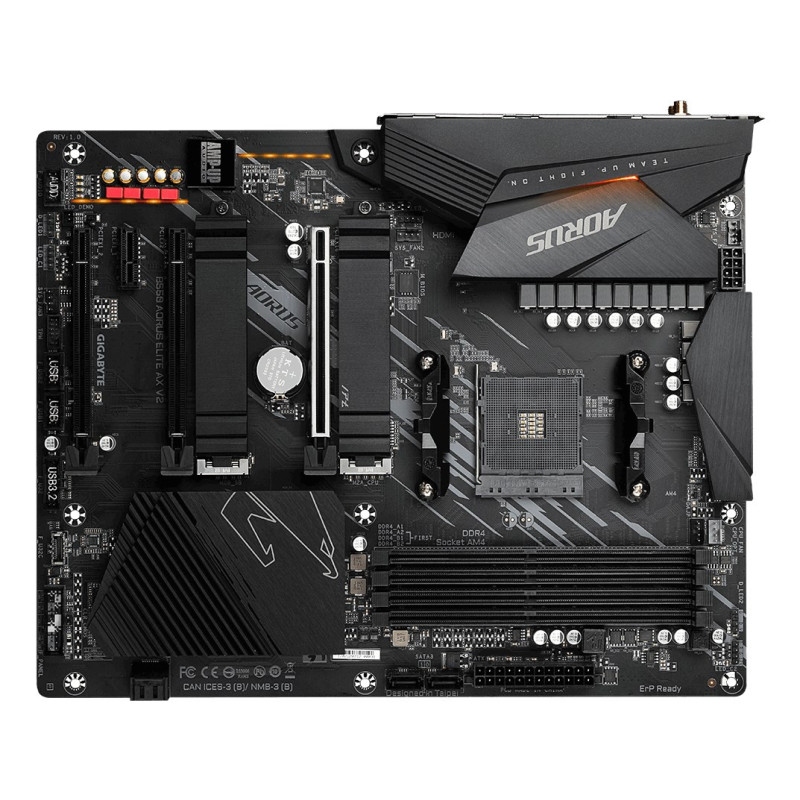

GIGABYTE B550 AORUS ELITE AX V2 Motherboard - AMD Ryzen 5000 CPUs, 12+2 Phases VRM, up to 4733MHz DDR4, 1xPCIe 4.0 + 1xP
Product reference:
6-B550 AORUS ELITE AX V2
GIGABYTE B550 AORUS ELITE AX V2 Motherboard - AMD Ryzen 5000 CPUs, 12+2 Phases VRM, up to 4733MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2
GIGABYTE B550 AORUS ELITE AX V2 Motherboard - AMD Ryzen 5000 CPUs, 12+2 Phases VRM, up to 4733MHz DDR4, 1xPCIe 4.0 + 1xP
Product reference:
6-B550 AORUS ELITE AX V2
GIGABYTE B550 AORUS ELITE AX V2 Motherboard - AMD Ryzen 5000 CPUs, 12+2 Phases VRM, up to 4733MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
12 - 17
business days
| Warranty period | 3 year(s) |
| Compatible processor series | AMD Ryzen 3000 Series, AMD Ryzen 5000 Series, AMD Ryzen 4000 Series |
| Processor manufacturer | AMD |
| Supported processor sockets | Socket AM4 |
| Maximum number of SMP processors | 1 |
| Processor socket | Socket AM4 |
| Maximum resolution | 5120 x 2880 pixels |
| DirectX version | 12.0 |
| HDCP | Yes |
| Parallel processing technology support | Not supported |
| Motherboard chipset | AMD B550 |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| PC health monitoring | Fan, Water cooling, Voltage, Temperature |
| Motherboard form factor | ATX |
| Power source type | ATX |
| Product colour | Black |
| Audio chip | Realtek ALC897 |
| Motherboard chipset family | AMD |
| Maximum internal memory | 128 GB |
| Memory slots type | DIMM |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Number of memory slots | 4 |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 4733 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory per slot | 32 GB |
| Supported memory clock speeds | 4133, 4000 MHz, 4600, 2400, 3400, 3866, 2133, 3200 MHz, 4266, 2667, 3733, 4400, 2933, 3600, 4733, 3466 |
| Height | 35 mm |
| Depth | 244 mm |
| Width | 305 mm |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Bluetooth version | 5.3 |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, Wi-Fi 6E (802.11ax), Wi-Fi 5 (802.11ac), 802.11g, Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax) |
| Ethernet LAN | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX210 |
| Bluetooth | Yes |
| LAN controller | Realtek RTL8125 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| Number of chassis fan connectors | 3 |
| RGB LED pin header | Yes |
| ATX Power connector (24-pin) | Yes |
| Front panel audio connector | Yes |
| Number of SATA III connectors | 4 |
| USB 2.0 connectors | 2 |
| CPU fan connector | Yes |
| TPM connector | Yes |
| Front panel connector | Yes |
| Number of EPS power connectors (8-pin) | 1 |
| Number of water pump connectors | 4 |
| Number of CPU fan connectors | 1 |
| Number of RGB LED pin headers | 5 |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Batteries included | Yes |
| Antenna included | Yes |
| Screws included | Yes |
| RAID levels | 1, 10 |
| RAID support | Yes |
| Number of storage drives supported | 6 |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 ports quantity | 2 |
| S/PDIF out port | Yes |
| Microphone in | Yes |
| WiFi-AP antenna jack | 2 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Line-in | Yes |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| 2nd M.2 highest PCI Express generation | 3.0 |
| 1st M.2 largest key size | 22110 |
| 2nd M.2 largest key size | 22110 |
| 1st M.2 highest PCI Express generation | 4.0 |
| Number of battery cells | 1 |
| Battery type | CR2032 |
| Battery weight | 3 g |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Lithium weight per battery | 0.07 g |
| Weight | 1.12 kg |
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
| Warnings | Dispose of according to local electro-waste regulations., Store away from water and sources of moisture., Avoid direct contact with sensitive electronic components. |
