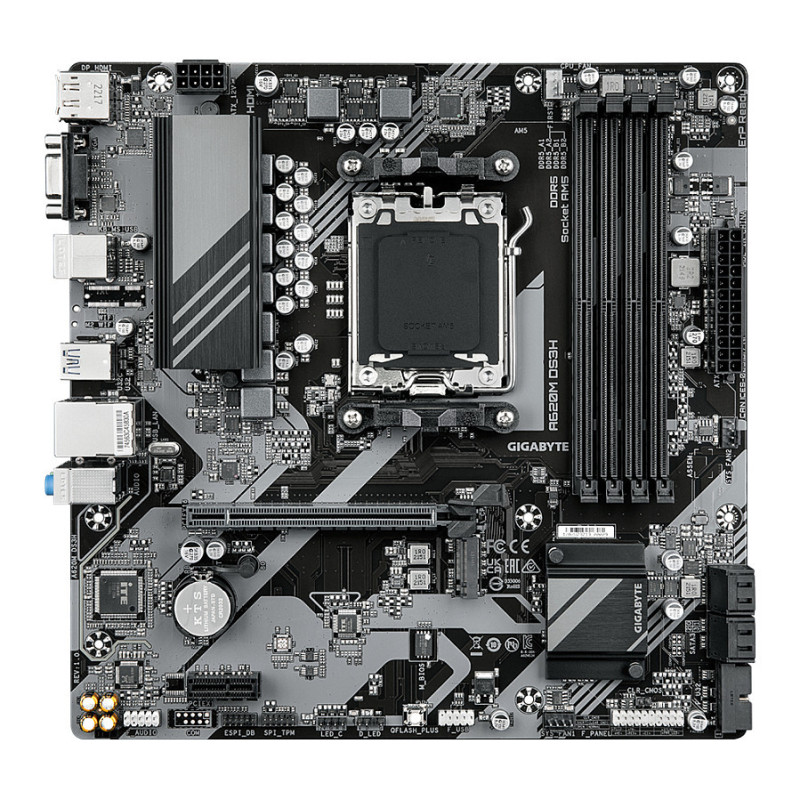

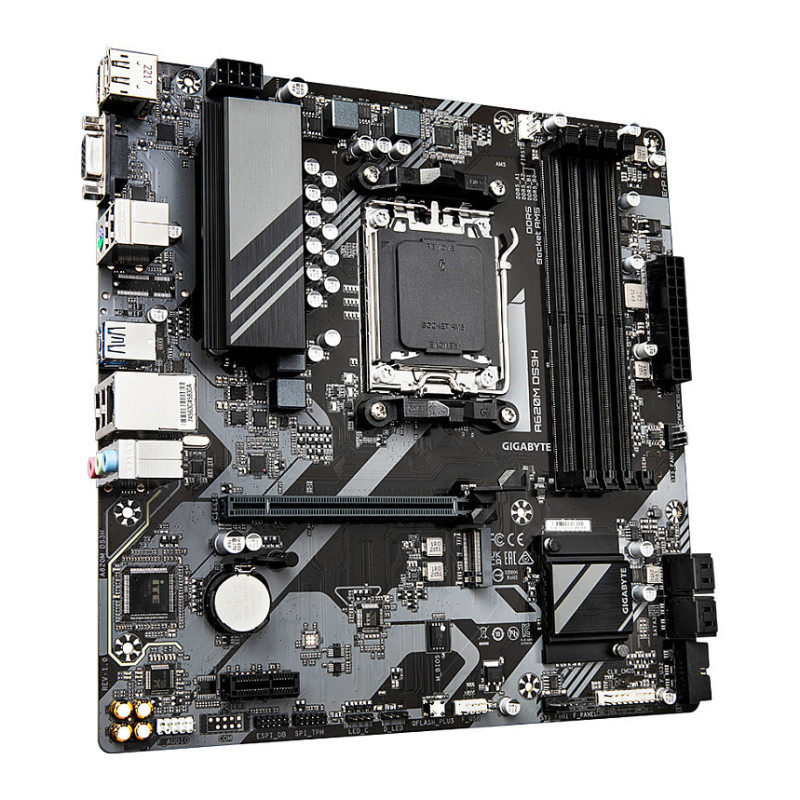

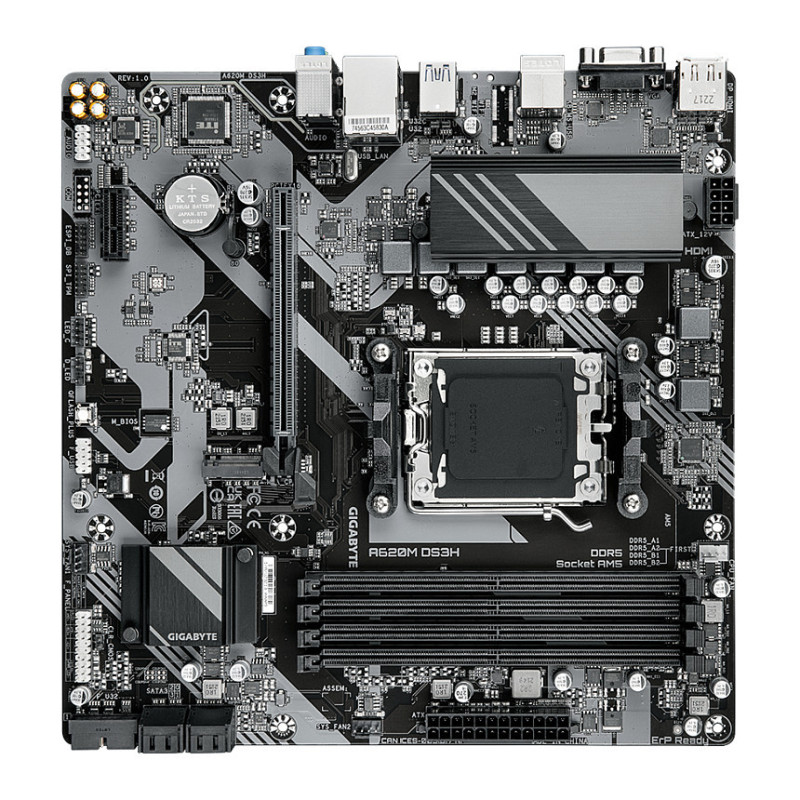

GIGABYTE A620M DS3H motherboard

GIGABYTE A620M DS3H Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 7600MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. USB connector type: USB Type-A, USB Type-C

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Processor

Processor manufacturer: AMD
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series
Supported processor sockets: Socket AM5
Maximum internal memory supported by processor: 192 GB

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speeds: 4800,5200,5600,6000,6200,6400,6800,7000,7200,7600 MHz
Supported memory clock speed (max): 7600 MHz
Maximum internal memory: 192 GB
Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Feature: Unbuffered memory

Storage controllers

Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 1
Number of storage drives supported: 4
Feature: RAID support
RAID levels: 0, 1, 10

Graphics

Parallel processing technology support: Not supported
Maximum resolution: 4096 x 2160 pixels
Feature: HDCP
DirectX version: 12.0

Internal I/O

USB 2.0 connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
Total number of SATA connectors: 4
Feature: Front panel audio connector
Feature: Front panel connector
Feature: ATX Power connector (24-pin)
Feature: CPU fan connector
Feature: EPS power connector (8-pin)
Feature: TPM connector
Feature: 12V power connector
Feature: RGB LED pin header

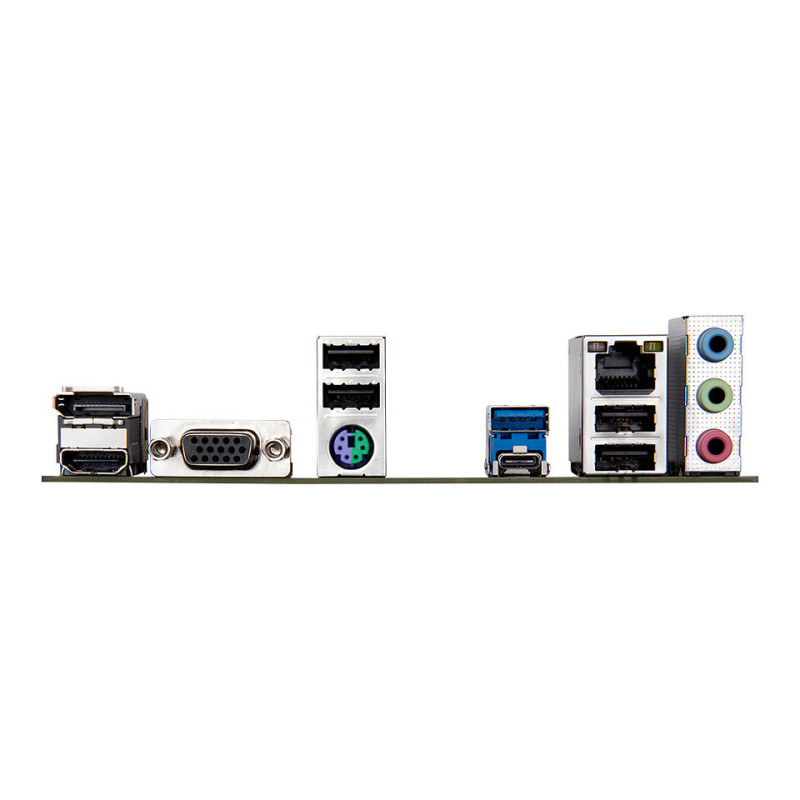

Rear panel I/O ports

USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 1
DisplayPort version: 1.4
Headphone outputs: 3
Feature: Microphone in
USB connector type: USB Type-A, USB Type-C

Network

Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet

Features

Motherboard chipset: AMD A620
Audio output channels: 7.1 channels
Product colour: Brown
PC health monitoring: Fan, Temperature, Voltage, Water cooling
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Windows operating systems supported: Windows 10 x64, Windows 11 x64

Expansion slots

PCI Express x1 slots: 1
PCI Express x16 slots: 1
Number of M.2 (M) slots: 1

BIOS

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
ACPI version: 5.0
Feature: Clear CMOS jumper
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7

Logistics data

Country of origin: China
Products per shipping (inner) case: 1 pc(s)

Battery

Battery weight: 3 g
Lithium weight per battery: 0.07 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032

Packaging data

Package width: 265 mm
Package depth: 265 mm
Package height: 54 mm
Package weight: 1.07 kg

Weight & dimensions

Width: 244 mm
Depth: 244 mm
Height: 35 mm

Packaging content

Cables included: SATA
Feature: Batteries included
Bundled software: Norton® Internet Security (OEM version)LAN bandwidth management software

Technical details

Warranty period: 3 year(s)
