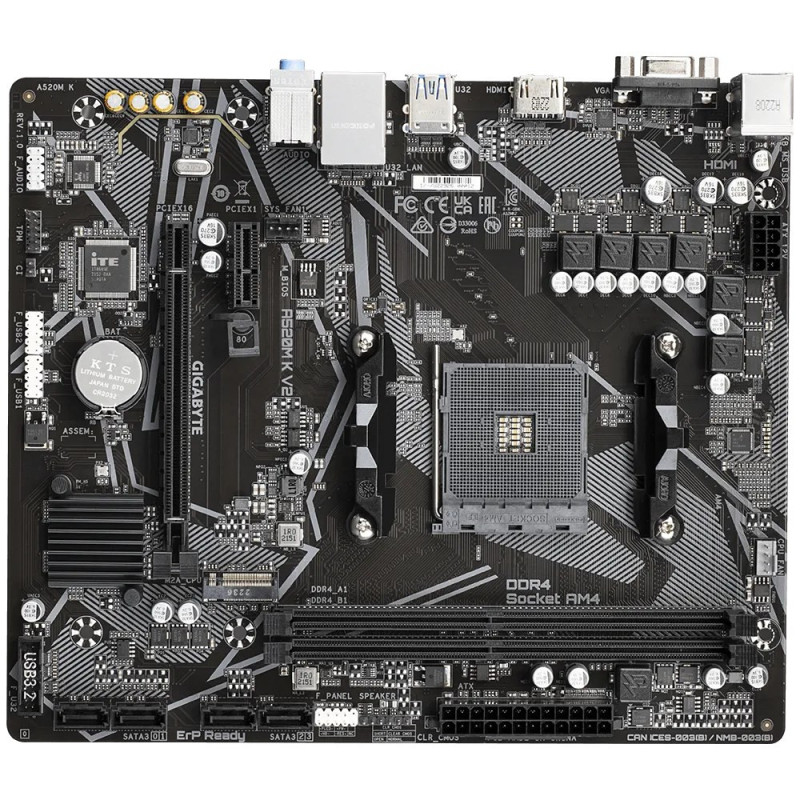

GIGABYTE A520M K V2 Motherboard
Product reference:
6-A520M K V2
GIGABYTE A520M K V2 Motherboard
GIGABYTE A520M K V2 Motherboard
Product reference:
6-A520M K V2
GIGABYTE A520M K V2 Motherboard
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
4 - 8
business days
| 12V power connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Audio output channels | 7.1 channels |
| Batteries included | Yes |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Battery weight | 3 g |
| BIOS type | UEFI AMI |
| Bundled software | Norton Internet Security |
| Cables included | SATA |
| Chassis intrusion connector | Yes |
| Clear CMOS jumper | Yes |
| Compatible processor series | AMD Ryzen 3000 Series, AMD Ryzen 5000 Series |
| Country of origin | China |
| CPU fan connector | Yes |
| Depth | 198 mm |
| Desktop Management Interface (DMI) version | 2.7 |
| ECC сompatibility | ECC & Non-ECC |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| HDCP | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 3 |
| Height | 35 mm |
| Lithium weight per battery | 0.07 g |
| Maximum internal memory | 64 GB |
| Maximum resolution | 4096 x 2160 pixels |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Motherboard chipset | AMD A520 |
| Motherboard chipset family | AMD |
| Motherboard form factor | micro ATX |
| Number of battery cells | 1 |
| Number of M.2 (M) slots | 1 |
| Number of memory slots | 2 |
| Number of SATA III connectors | 4 |
| Number of storage drives supported | 5 |
| Parallel processing technology support | Not supported |
| PC health monitoring | Fan, Temperature, Voltage |
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Products per shipping (inner) case | 1 pc(s) |
| PS/2 ports quantity | 1 |
| RAID levels | 1, 10 |
| RAID support | Yes |
| Supported memory clock speed (max) | 5100 MHz |
| Supported memory clock speeds | 2133, 2400, 2667, 2933, 3200, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4600, 4800, 5100 |
| Supported memory types | DDR4-SDRAM |
| Supported processor sockets | Socket AM4 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB connector type | USB Type-A |
| VGA (D-Sub) ports quantity | 1 |
| Warnings | Avoid direct contact with sensitive electronic components., Dispose of according to local electro-waste regulations., Store away from water and sources of moisture. |
| Warranty period | 3 year(s) |
| Wi-Fi | No |
| Width | 233 mm |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
