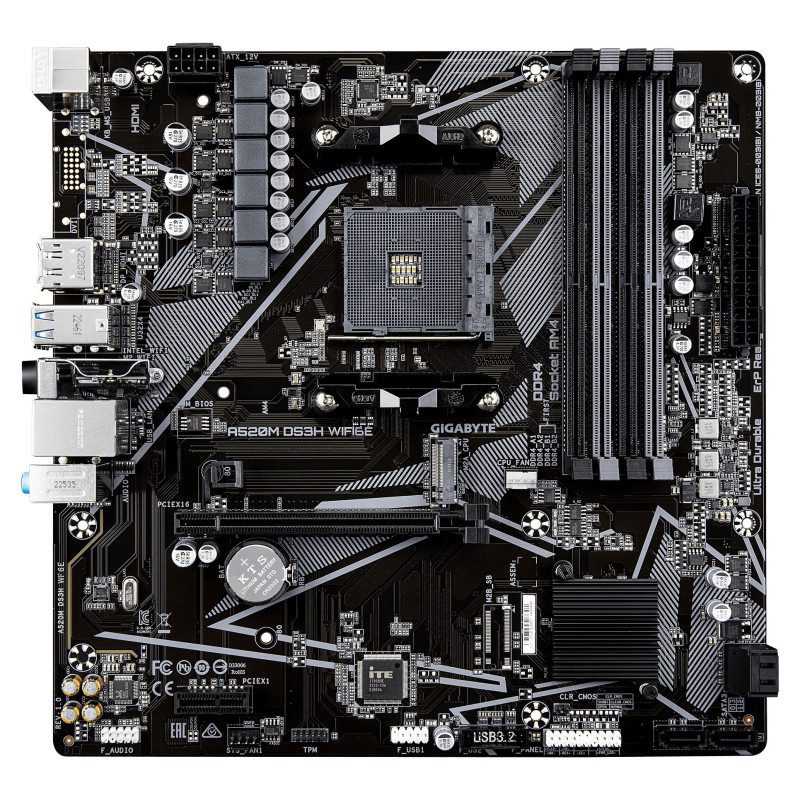

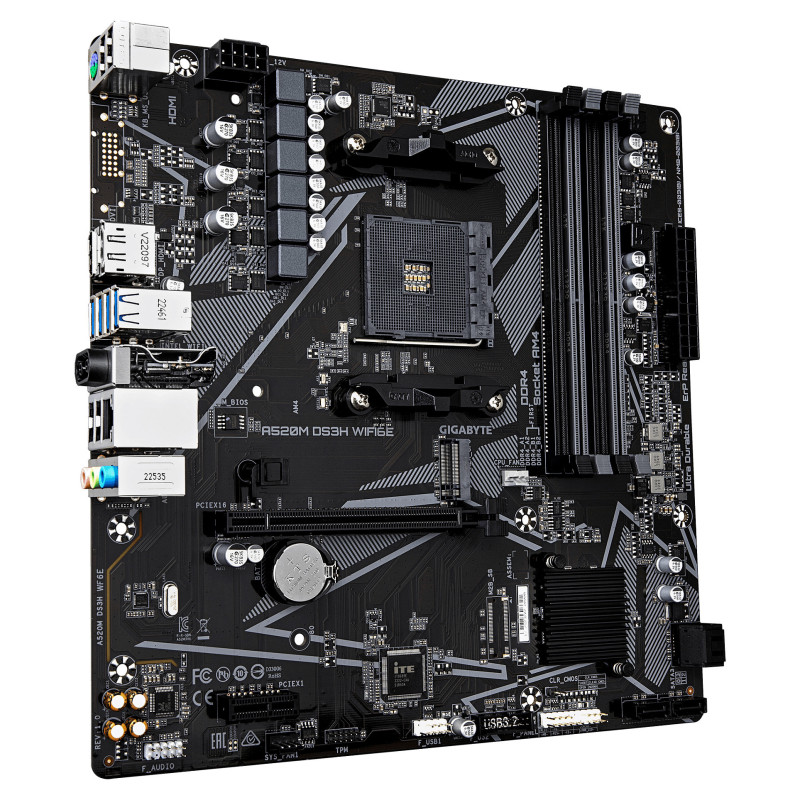

GIGABYTE A520M DS3H WIFI6E

GIGABYTE A520M DS3H WIFI6E Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 4733MHz DDR4 (OC), 1xPCIe 3.0 M.2, WIFI 6E, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 5000 Series, AMD Ryzen 4000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 5120 x 2880 pixels. Ethernet interface type: Gigabit Ethernet, Fast Ethernet, LAN controller: Realtek RTL8111H, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

Processor

Processor manufacturer: AMD
Processor socket: Socket AM4
Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 5000 Series, AMD Ryzen 4000 Series
Supported processor sockets: Socket AM4

Memory

Supported memory types: DDR4-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: ECC & Non-ECC
Supported memory clock speeds: 2133,2400,2667,2933,3200,3600,4000,4400,4733,3400,3466,3733,3866,4133,4266,4600 MHz
Supported memory clock speed (max): 4733 MHz
Maximum internal memory: 128 GB
Feature: Unbuffered memory
Maximum internal memory per slot: 32 GB

Storage controllers

Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
Number of storage drives supported: 5
Feature: RAID support
RAID levels: 0, 1, 10

Graphics

Parallel processing technology support: Not supported
Maximum resolution: 5120 x 2880 pixels
Feature: HDCP
HDCP version: 2.3
DirectX version: 12.0

Internal I/O

USB 2.0 connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
Feature: Front panel audio connector
Feature: Front panel connector
Feature: ATX Power connector (24-pin)
Feature: CPU fan connector
Number of CPU fan connectors: 1
Number of chassis fan connectors: 1
Feature: EPS power connector (8-pin)
Number of EPS power connectors (8-pin): 1
Feature: TPM connector
Feature: 12V power connector

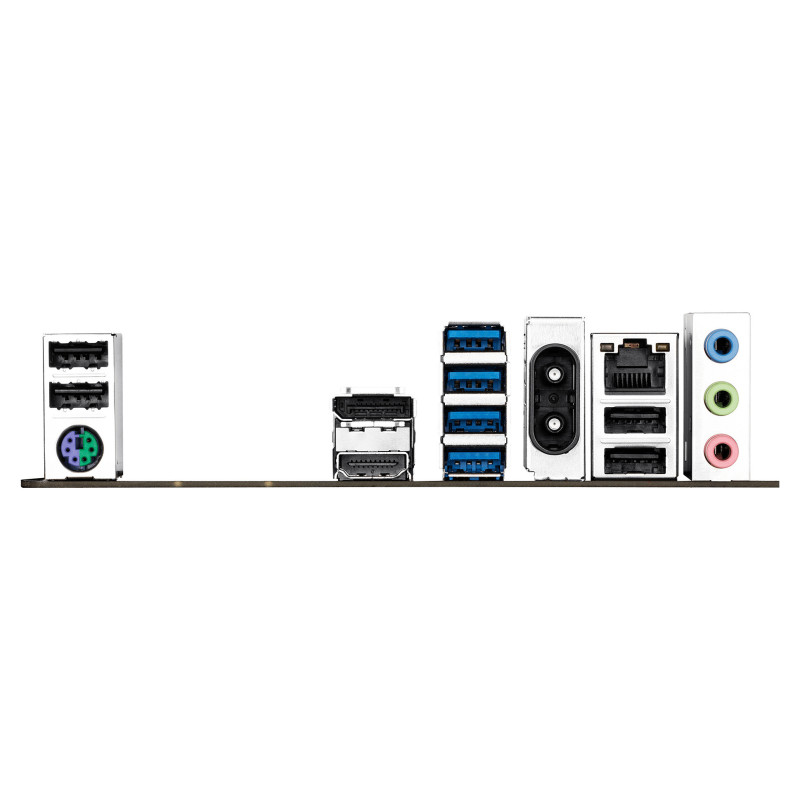

Rear panel I/O ports

USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 1
DisplayPort version: 1.4
Headphone outputs: 1
Feature: Line-in
Feature: Microphone in
WiFi-AP antenna jack: 2

Network

Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet, Fast Ethernet
LAN controller: Realtek RTL8111H
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN controller model: MediaTek MT7902
Feature: Bluetooth
Bluetooth version: 5.3

Features

Motherboard chipset: AMD A520
Audio chip: Realtek ALC897
Audio output channels: 7.1 channels
Product colour: Dark brown
PC health monitoring: Temperature, Voltage, Fan
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Cooling type: Passive
Power source type: ATX
Windows operating systems supported: Windows 10 x64, Windows 11 x64

Expansion slots

PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 1
1st M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 3.0

BIOS

BIOS type: UEFI AMI
BIOS memory size: 128 Mbit
ACPI version: 5.0
Feature: Clear CMOS jumper
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7

Logistics data

Country of origin: China
Products per shipping (inner) case: 1 pc(s)

Battery

Battery weight: 3 g
Lithium weight per battery: 0.07 g
Number of battery cells: 1
Battery capacity: 220 mAh
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032

Packaging data

Package width: 270 mm
Package depth: 268 mm
Package height: 68 mm
Package weight: 972 g

Weight & dimensions

Width: 244 mm
Depth: 244 mm
Height: 35 mm

Packaging content

Feature: Batteries included
Feature: Antenna included
Feature: Screws included
Feature: Drivers included
Bundled software: Norton® Internet Security (OEM version)

Other features

Weight: 880 g

Technical details

Warranty period: 3 year(s)
