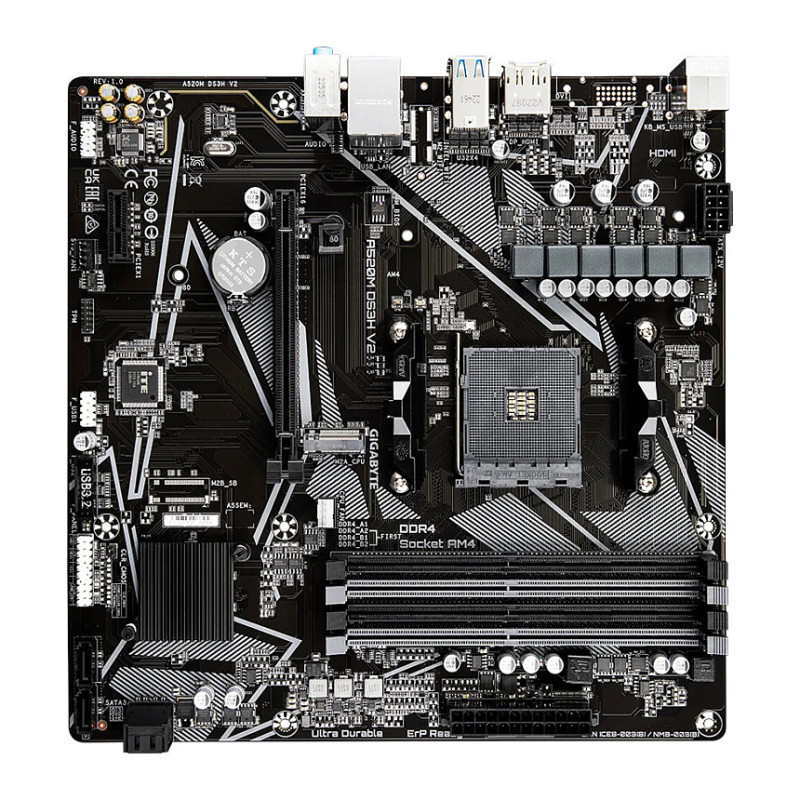

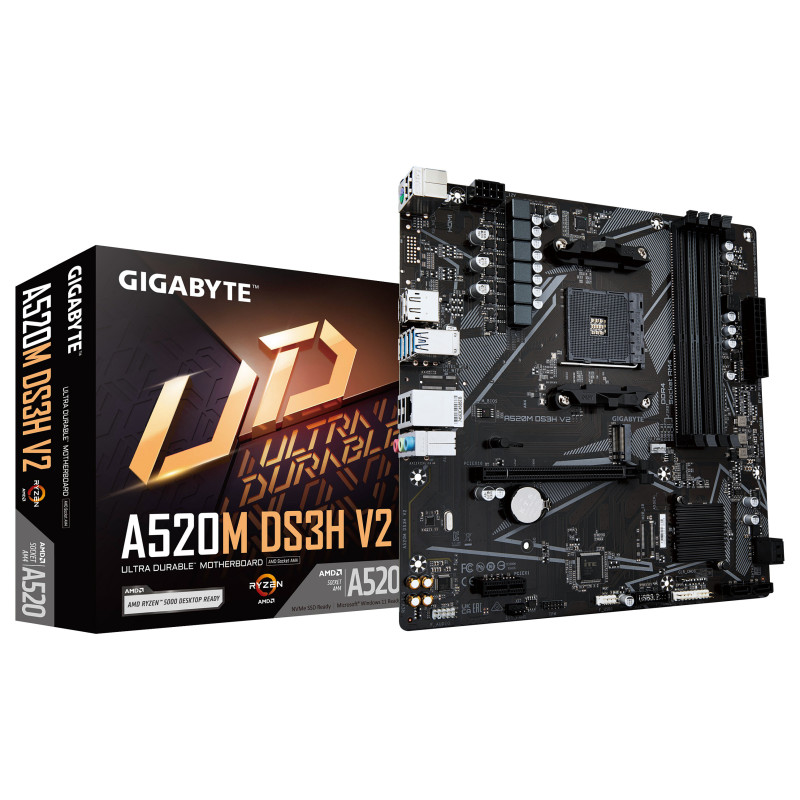

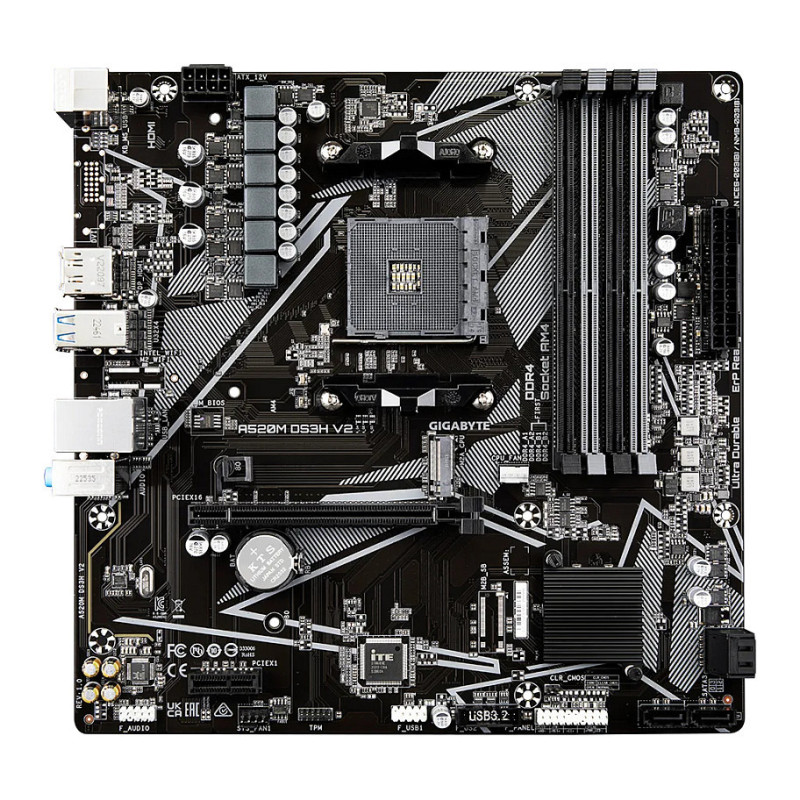

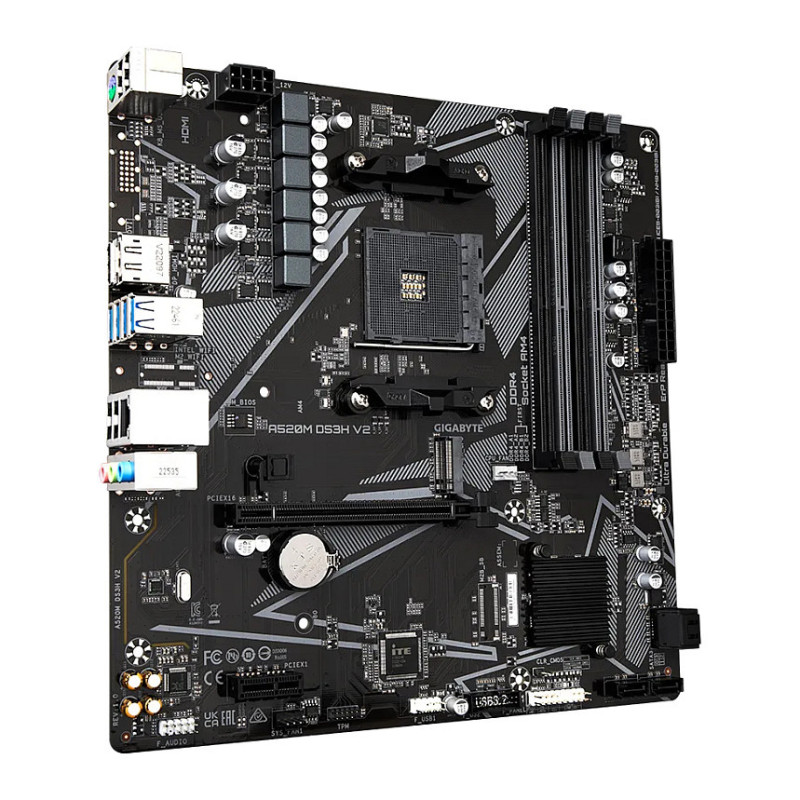

GIGABYTE A520M DS3H V2 motherboard

GIGABYTE A520M DS3H V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 4733MHz DDR4 (OC), PCIe 3.0 x16, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 5120 x 2880 pixels. USB connector type: USB Type-A

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

Processor

Processor manufacturer: AMD
Processor socket: Socket AM4
Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series
Maximum number of SMP processors: 1
Supported processor sockets: Socket AM4
Maximum internal memory supported by processor: 128 GB

Memory

Supported memory types: DDR4-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: ECC & Non-ECC
Supported memory clock speeds: 2133,2400,2667,2933,3200,3333,3600,4000,4400,4733 MHz
Maximum internal memory: 128 GB
Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 16GB, 32GB
Feature: Unbuffered memory

Storage controllers

Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
Number of storage drives supported: 5
Feature: RAID support
RAID levels: 0, 1, 10

Graphics

Maximum resolution: 5120 x 2880 pixels
Feature: HDCP
Feature: Discrete graphics support
Number of displays supported: 3

Internal I/O

USB 2.0 connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
Total number of SATA connectors: 4
Feature: Front panel audio connector
Feature: Front panel connector
Feature: ATX Power connector (24-pin)
Number of EATX power connectors: 1
Feature: Power fan connector
Feature: CPU fan connector
Feature: TPM connector
Serial port headers: 1
Feature: 12V power connector

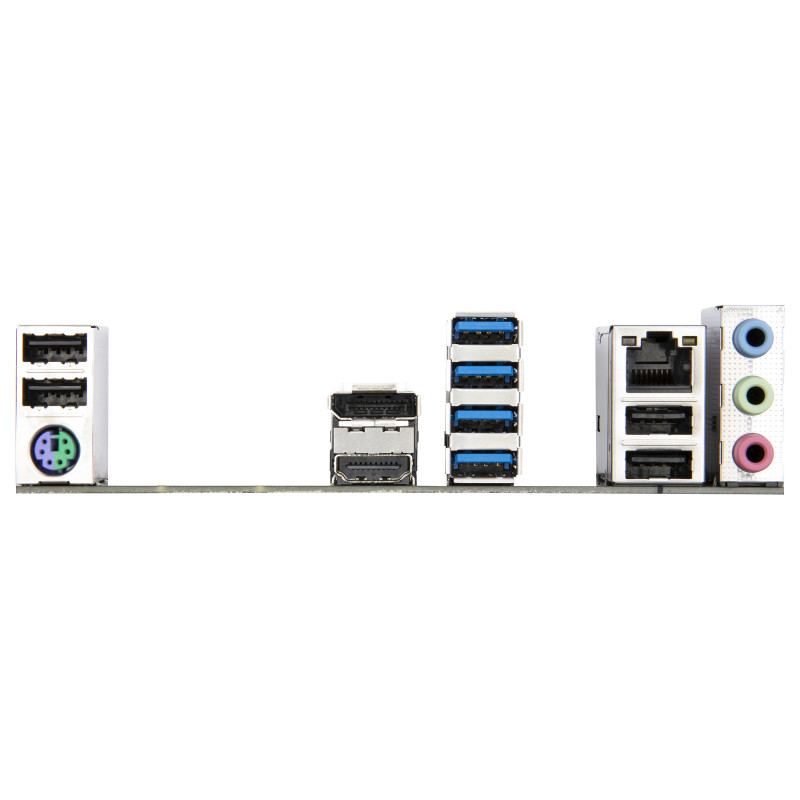

Rear panel I/O ports

USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
DVI-D ports quantity: 1
DisplayPorts quantity: 1
DisplayPort version: 2.0
Headphone outputs: 1
Feature: Microphone in
Digital audio optical out: 1
USB connector type: USB Type-A

Network

Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet

Features

Audio chip: Realtek ALC887
Audio output channels: 7.1 channels
Product colour: Black
PC health monitoring: CPU, LED, Power supply, Temperature, Voltage
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Cooling type: Active
Power source type: ATX
Windows operating systems supported: Windows 10 x64

Expansion slots

PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 1

BIOS

BIOS type: UEFI AMI
BIOS memory size: 128 Mbit
ACPI version: 5.0
Feature: Clear CMOS jumper
Feature: Clear CMOS button
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7

Logistics data

Country of origin: China
Products per shipping (inner) case: 1 pc(s)

Battery

Battery weight: 3 g
Lithium weight per battery: 0.07 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032

Packaging data

Package width: 265 mm
Package depth: 265 mm
Package height: 54 mm
Package weight: 810 g

Weight & dimensions

Width: 244 mm
Depth: 244 mm
Height: 35 mm

Packaging content

Cables included: SATA
Feature: Batteries included
Feature: Drivers included
Bundled software: Norton Internet Security (OEM version)Realtek 8118 Gaming LAN Bandwidth Control Utility

Technical details

Warranty period: 3 year(s)
