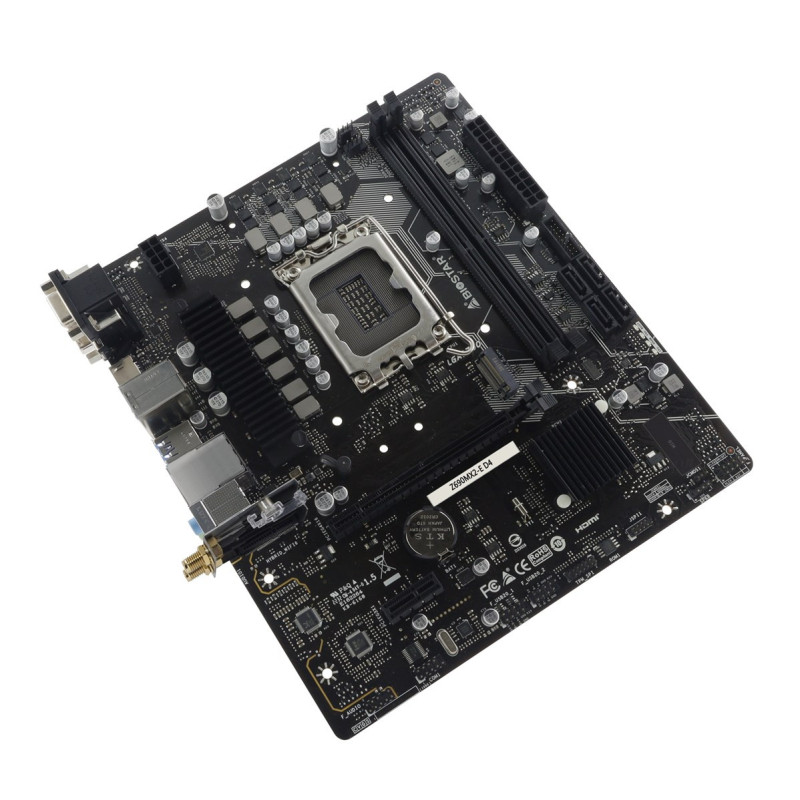

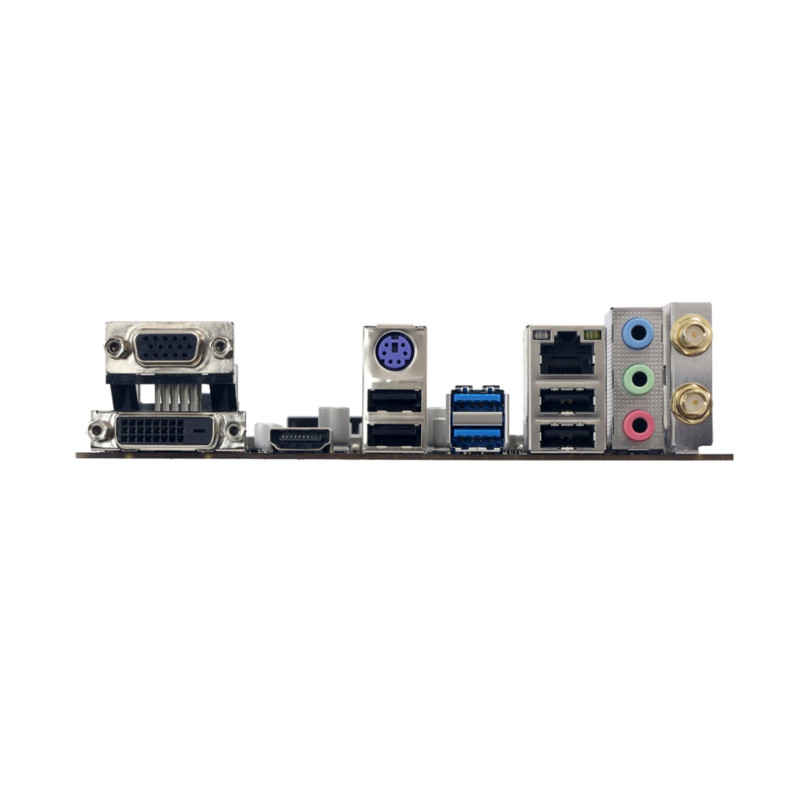

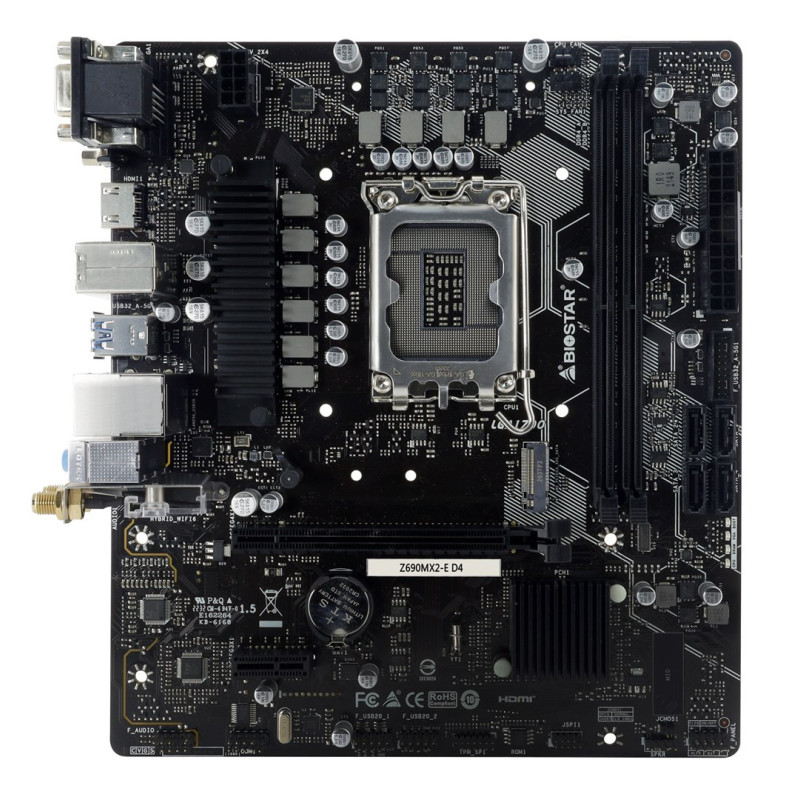

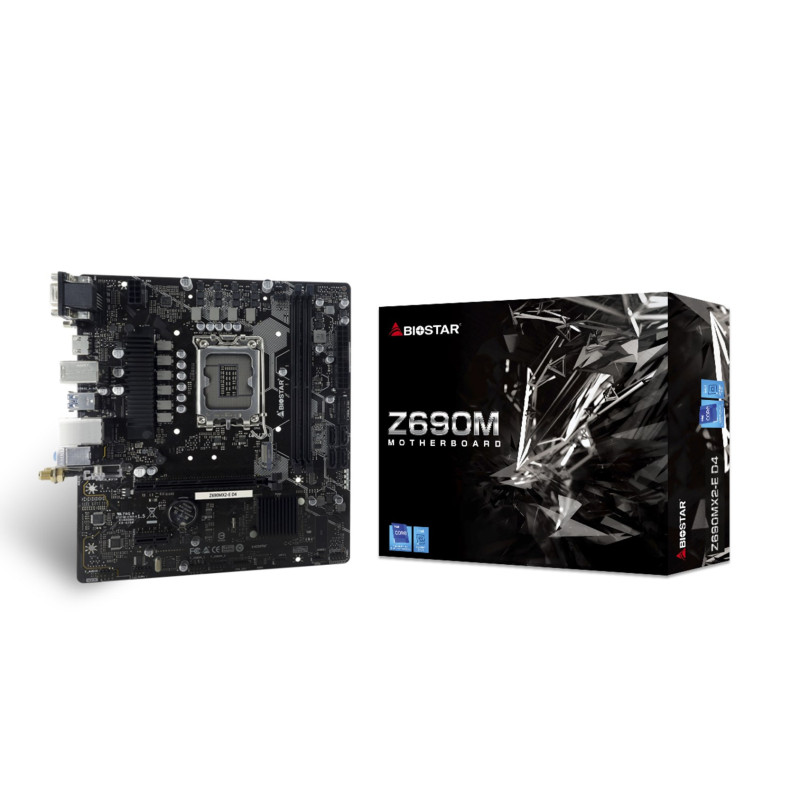

Biostar Z690MX2-E D4 motherboard Intel Z690 LGA 1700 micro ATX
Product reference:
6-Z690MX2-E D4
Biostar Z690MX2-E D4 motherboard Intel Z690 LGA 1700 micro ATX
Biostar Z690MX2-E D4 motherboard Intel Z690 LGA 1700 micro ATX
Product reference:
6-Z690MX2-E D4
Biostar Z690MX2-E D4 motherboard Intel Z690 LGA 1700 micro ATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
4 - 8
business days
| ATX Power connector (24-pin) | Yes |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| BIOS type | UEFI |
| Bundled software | BullGuard |
| Cables included | SATA |
| Compatible processor series | Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen |
| CPU fan connector | Yes |
| Depth | 236 mm |
| Drivers included | Yes |
| DVI-D ports quantity | 1 |
| ECC сompatibility | Non-ECC |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel connector | Yes |
| HDMI ports quantity | 1 |
| LAN controller | Realtek RTL8125B |
| Maximum internal memory | 64 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Motherboard chipset | Intel Z690 |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Number of chassis fan connectors | 1 |
| Number of COM connectors | 1 |
| Number of HDDs supported | 5 |
| Number of M.2 (M) slots | 1 |
| Number of memory slots | 2 |
| Number of SATA III connectors | 4 |
| PC health monitoring | CPU, Fan, Temperature |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| PS/2 ports quantity | 1 |
| RAID levels | 1, 5, 10 |
| RAID support | Yes |
| Supported memory clock speeds | 1866, 2133, 2400, 2666, 2933, 3200, 3600, 3800, 4000, 4400 |
| Supported memory types | DDR4-SDRAM |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| TPM connector | Yes |
| USB 2.0 connectors | 4 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Warnings | Avoid direct contact with electronics to prevent electrostatic damage., Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal. |
| Wi-Fi | No |
| Width | 208 mm |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
