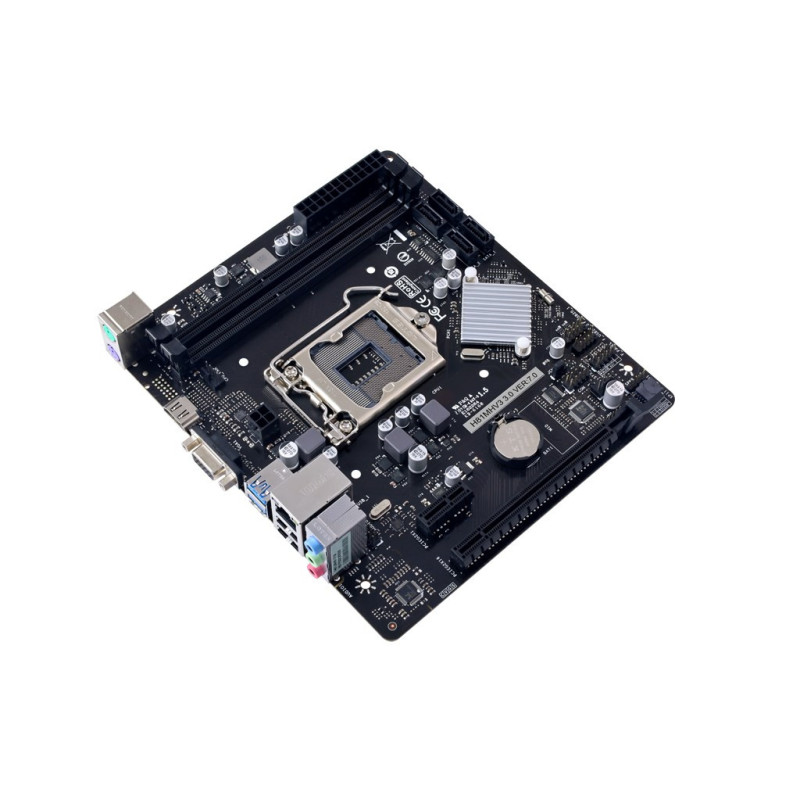

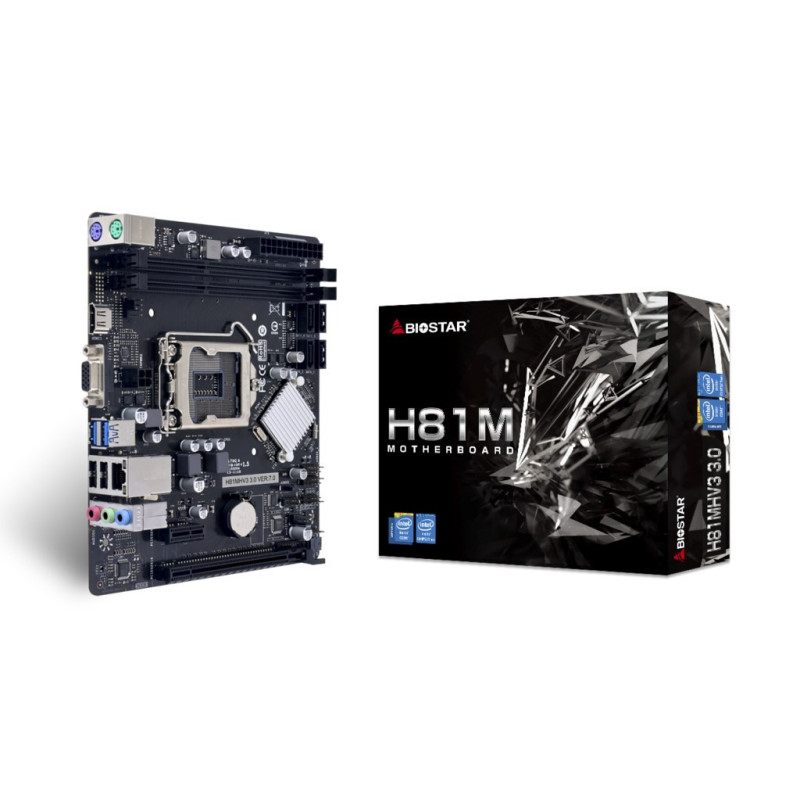

Biostar H81MHV3 3.0 H81 Intel® H81 LGA 1150 (Socket H3) micro ATX
Product reference:
6-H81MHV3 3.0
Biostar H81MHV3 3.0 H81 Intel® H81 LGA 1150 (Socket H3) micro ATX
Biostar H81MHV3 3.0 H81 Intel® H81 LGA 1150 (Socket H3) micro ATX
Product reference:
6-H81MHV3 3.0
Biostar H81MHV3 3.0 H81 Intel® H81 LGA 1150 (Socket H3) micro ATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 8
business days
| ATX Power connector (24-pin) | Yes |
| Audio chip | Realtek ALC887 |
| Audio output channels | 5.1 channels |
| Cables included | SATA |
| Clear CMOS jumper | Yes |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium® |
| CPU fan connector | Yes |
| Depth | 190 mm |
| DirectX version | 11.1 |
| ECC сompatibility | Non-ECC |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| HDCP | Yes |
| HDMI ports quantity | 1 |
| Headphone outputs | 3 |
| Maximum internal memory | 16 GB |
| Maximum number of SMP processors | 1 |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Motherboard chipset | Intel® H81 |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Number of memory slots | 2 |
| Number of SATA II connectors | 2 |
| Number of SATA III connectors | 2 |
| PCI Express x1 (Gen 2.x) slots | 1 |
| PCI Express x16 (Gen 2.x) slots | 1 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Processor manufacturer | Intel |
| Processor socket | LGA 1150 (Socket H3) |
| PS/2 ports quantity | 2 |
| Supported memory clock speeds | 1066, 1333, 1600 |
| Supported memory types | DDR3-SDRAM |
| Supported storage drive interfaces | SATA II, SATA III |
| USB 2.0 connectors | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Warnings | Dispose of used toner cartridges according to local hazardous waste regulations., Do not place on conductive surfaces or in areas of high humidity., Do not tamper with the design of the board or its components, this risks damaging the equipment. |
| Wi-Fi | No |
| Width | 170 mm |
| Windows operating systems supported | Windows 7, Windows 8, Windows 8.1, Windows 10 |
