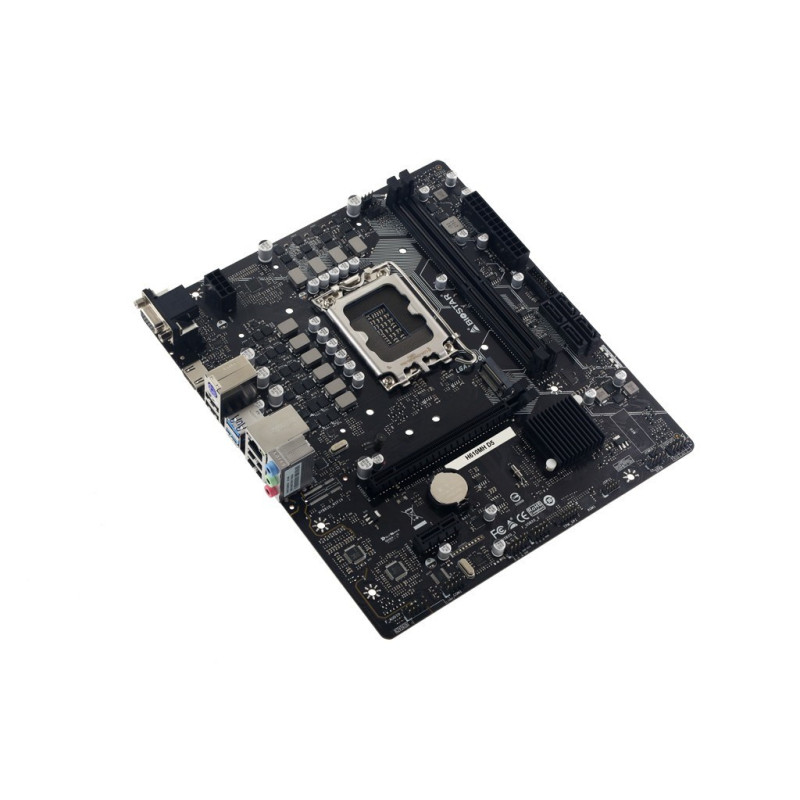

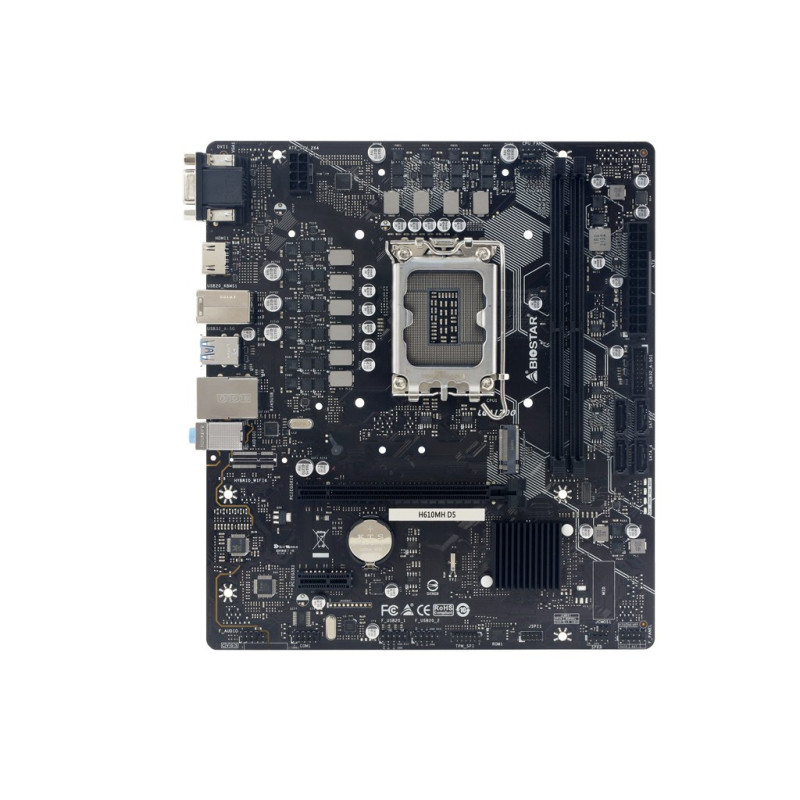

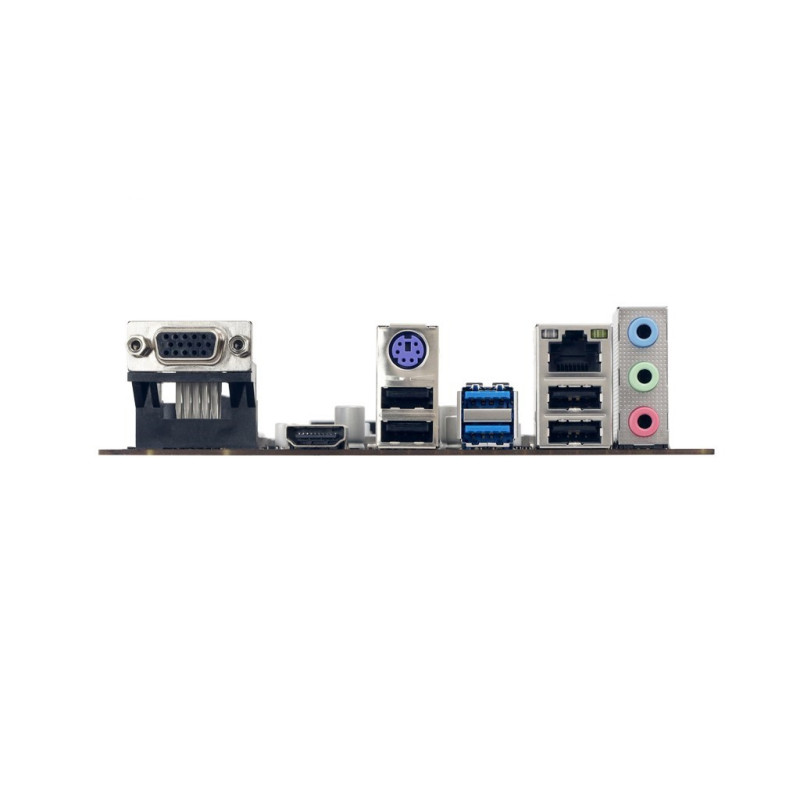

BIOSTAR H610MH D5 motherboard

Product reference: 6-H610MH D5

You have 3 products in compare list, please remove someone and try again

Add to compare

82,10 €

82,93 €

Product in warehouse

Guarantee
24 month

Delivery from Europe in
4 - 8
business days

Your message has been successfully sent!

Fill in the required fields*

ATX Power connector (24-pin)	Yes
Audio chip	Realtek ALC897
Audio output channels	7.1 channels
BIOS type	UEFI
Compatible processor series	Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
CPU fan connector	Yes
Depth	236 mm
DirectX version	12.0
EPS power connector (8-pin)	Yes
Ethernet interface type	Gigabit Ethernet
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Front panel audio connector	Yes
Front panel connector	Yes
Harmonized System (HS) code	84733020
HDCP	Yes
HDMI ports quantity	1
LAN controller	Intel® I219-V
Maximum internal memory	96 GB
Maximum number of SMP processors	1
Memory channels	Dual-channel
Memory slots type	DIMM
Motherboard chipset	Intel H610
Motherboard chipset family	Intel
Motherboard form factor	micro ATX
Number of COM connectors	1
Number of memory slots	2
Number of SATA III connectors	4
PC health monitoring	CPU, Fan, Temperature, Voltage
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
Power fan connector	Yes
Processor manufacturer	Intel
Processor socket	LGA 1700
PS/2 ports quantity	1
Supported memory clock speeds	4800
Supported memory module capacities	8GB, 16GB, 24GB, 32GB, 48GB
Supported memory types	DDR5-SDRAM
Supported storage drive interfaces	M.2, SATA III
TPM connector	Yes
USB 2.0 connectors	2
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
VGA (D-Sub) ports quantity	1
Width	208 mm
