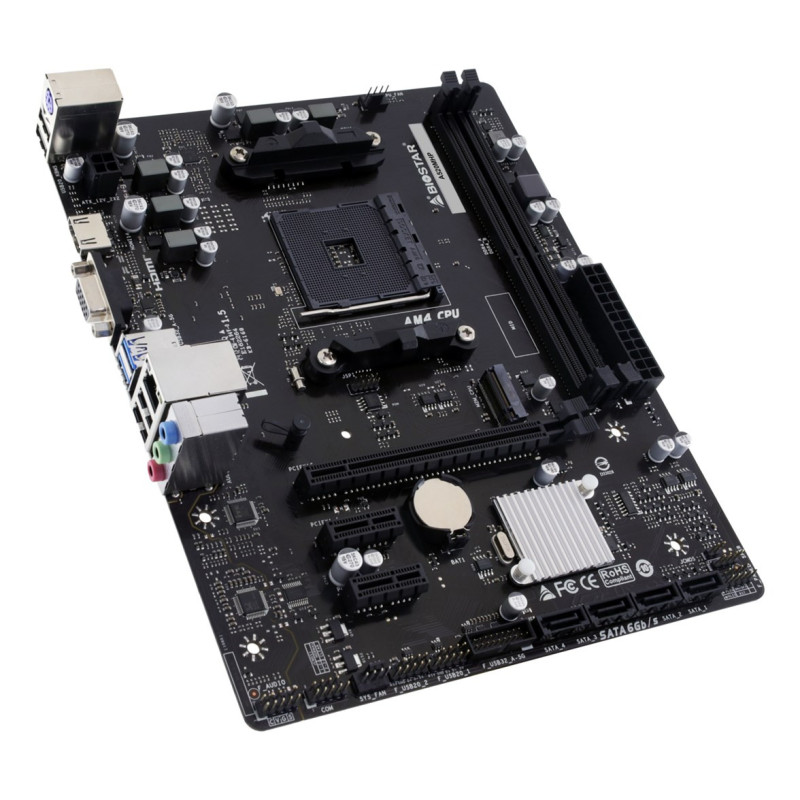

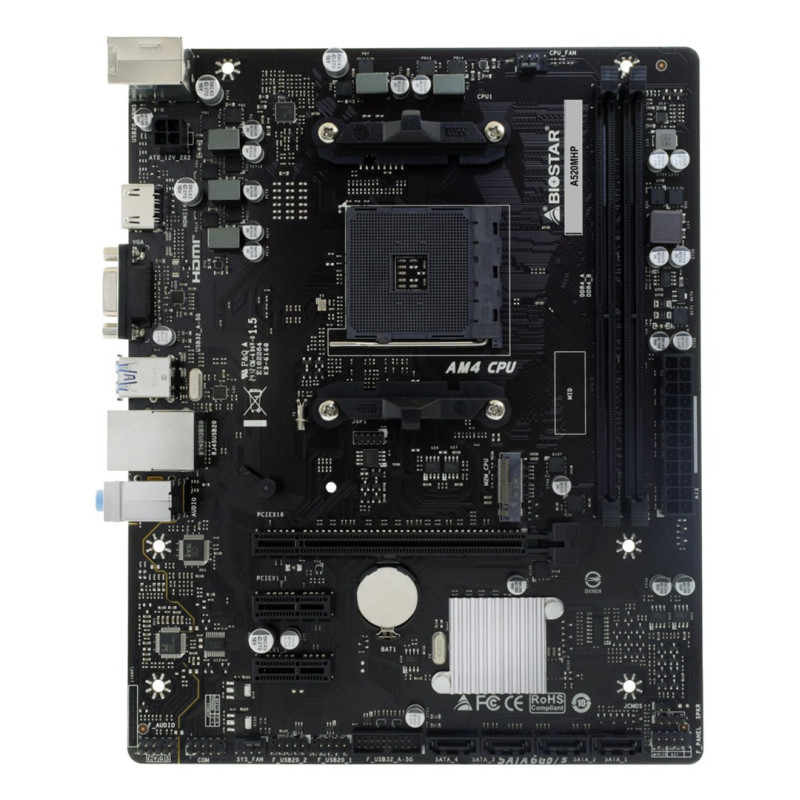

Biostar A520MHP motherboard AMD A520 Socket AM4 micro ATX
Product reference:
6-A520MHP
Biostar A520MHP motherboard AMD A520 Socket AM4 micro ATX
Biostar A520MHP motherboard AMD A520 Socket AM4 micro ATX
Product reference:
6-A520MHP
Biostar A520MHP motherboard AMD A520 Socket AM4 micro ATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 8
business days
| ATX Power connector (24-pin) | Yes |
| Audio chip | Realtek ALC897 |
| Audio connector | Yes |
| Audio output channels | 7.1 channels |
| BIOS type | UEFI |
| Bluetooth | No |
| Compatible processor series | AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series |
| CPU fan connector | Yes |
| Depth | 190 mm |
| DirectX version | 12.0 |
| ECC сompatibility | Non-ECC |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| HDCP | Yes |
| HDMI ports quantity | 1 |
| Headphone outputs | 1 |
| LAN controller | Realtek RTL8111H |
| Line-in | Yes |
| Maximum internal memory | 64 GB |
| Memory channels | Dual-channel |
| Memory slots type | SO-DIMM |
| Microphone in | Yes |
| Motherboard chipset | AMD A520 |
| Motherboard chipset family | AMD |
| Motherboard form factor | micro ATX |
| Number of HDDs supported | 4 |
| Number of memory slots | 2 |
| Number of SATA III connectors | 4 |
| Number of storage drives supported | 1 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 slots | 1 |
| Power fan connector | Yes |
| Power source type | ATX |
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| PS/2 ports quantity | 1 |
| RAID levels | 1, 10 |
| RAID support | Yes |
| Supported memory clock speed (max) | 4400 MHz |
| Supported memory clock speeds | 2133, 2400, 2667, 2933, 3200, 3600 MHz, 3800, 4000, 4133, 4266, 4400 |
| Supported memory module capacities | 8GB, 16GB, 32GB |
| Supported memory types | DDR4-SDRAM |
| Supported processor sockets | Socket AM4 |
| Supported processor sockets (cooler) | Socket AM4 |
| Supported storage drive interfaces | M.2, PCI Express 3.0, SATA III |
| Supported storage drive types | HDD & SSD |
| USB 2.0 connectors | 2 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Wi-Fi | No |
| Width | 235 mm |
| Windows operating systems supported | Windows 10, Windows 11 |
