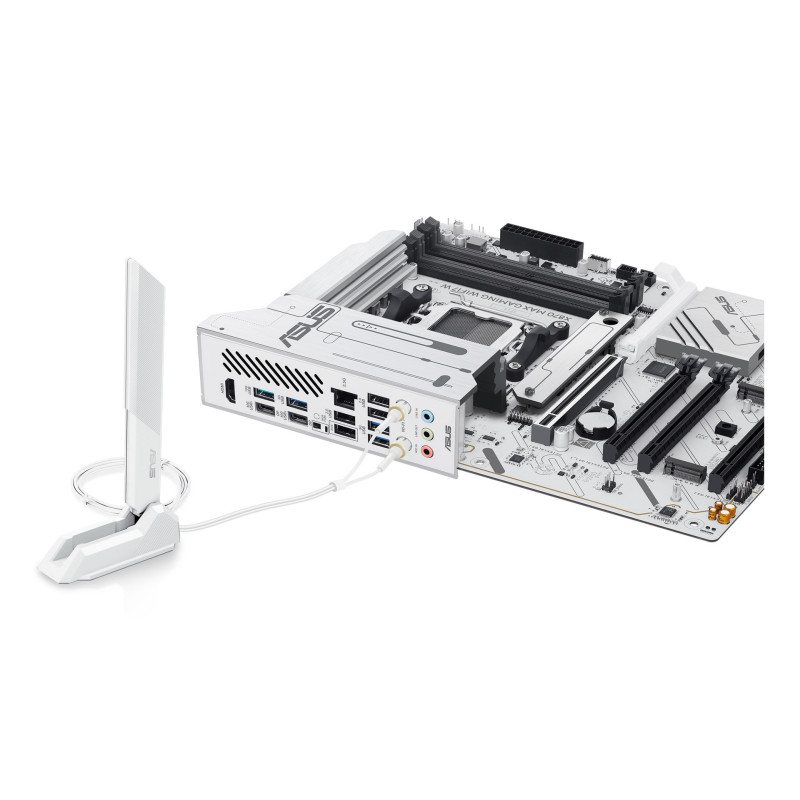

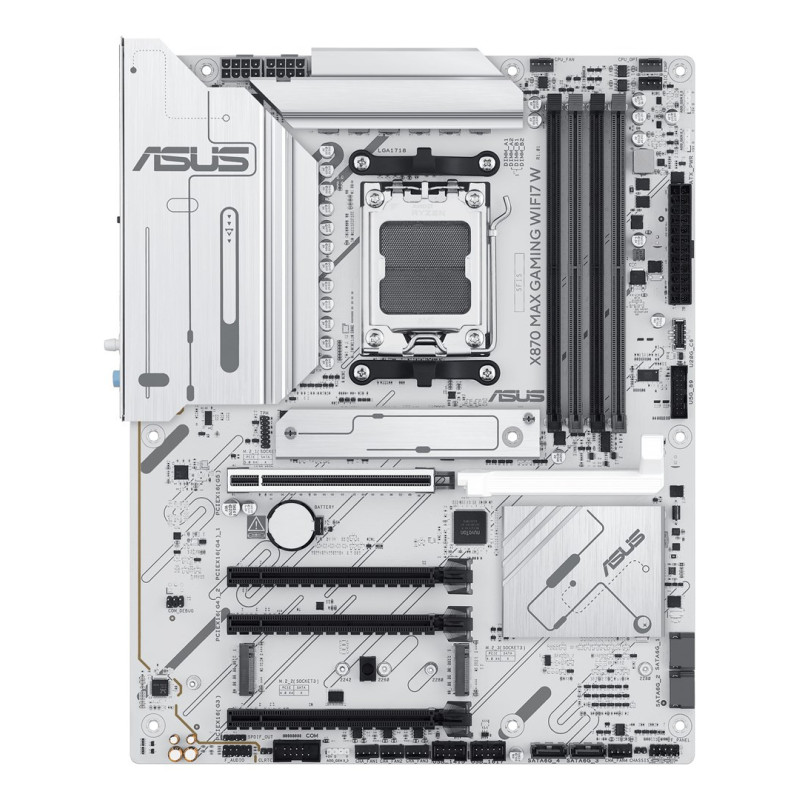

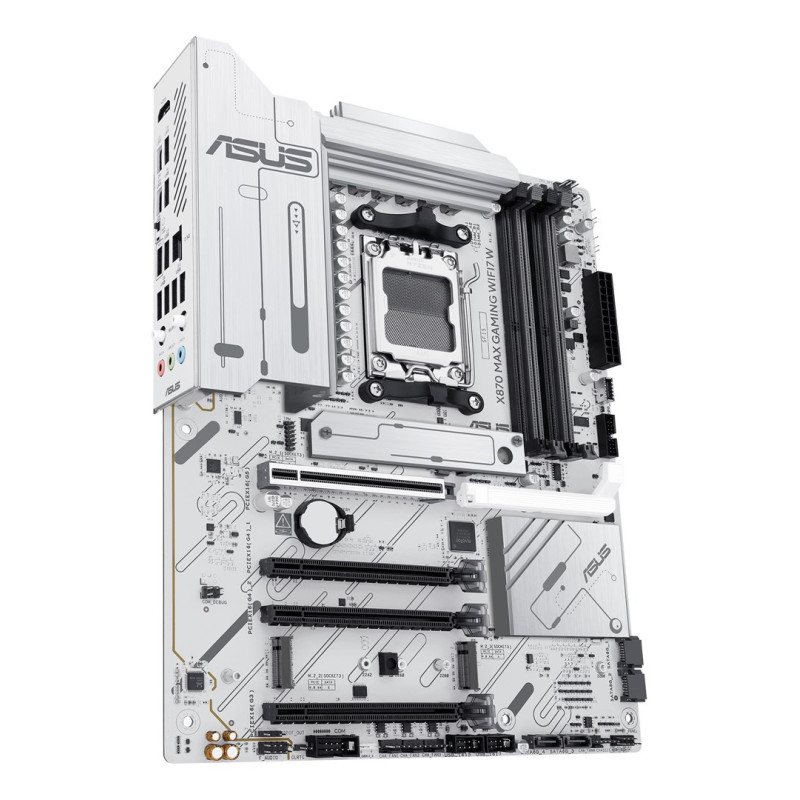

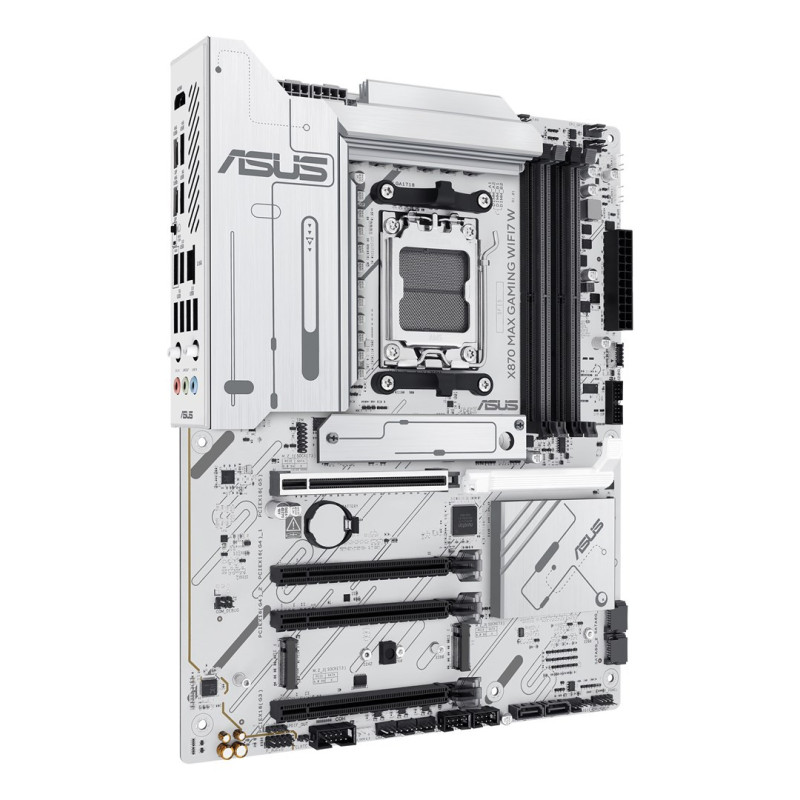

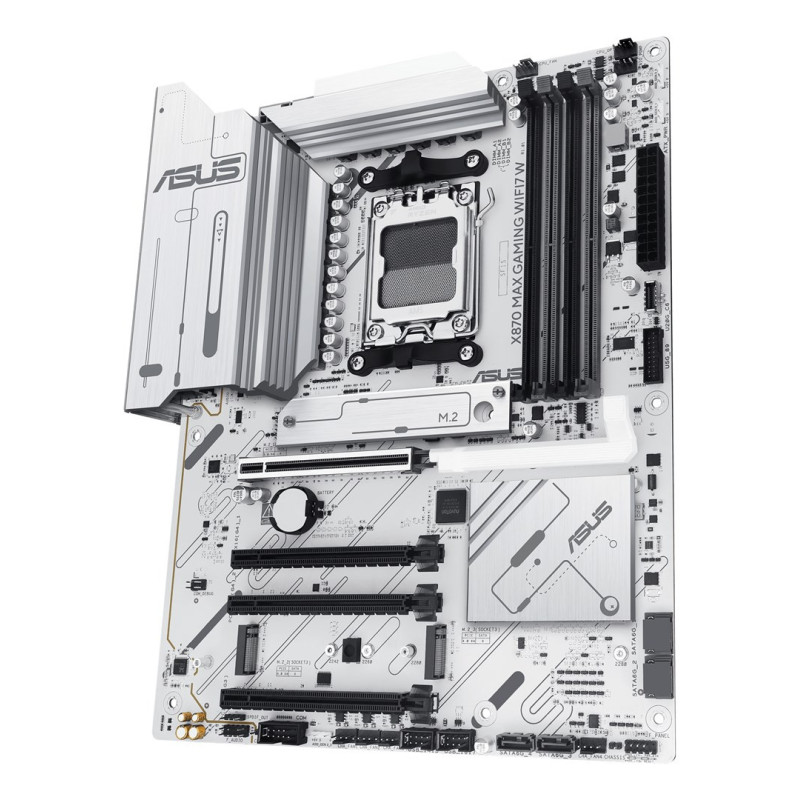

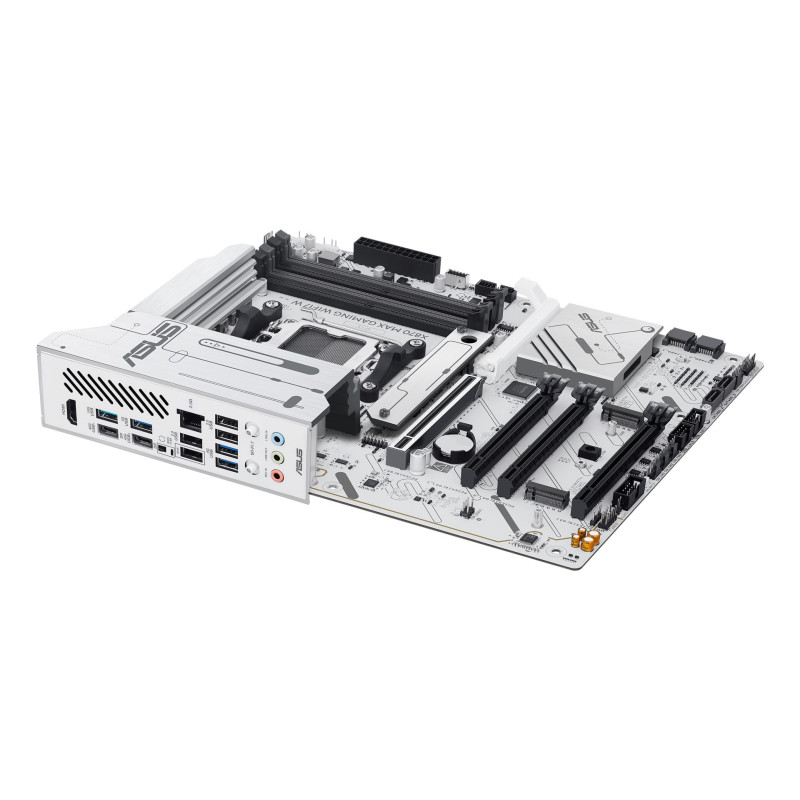

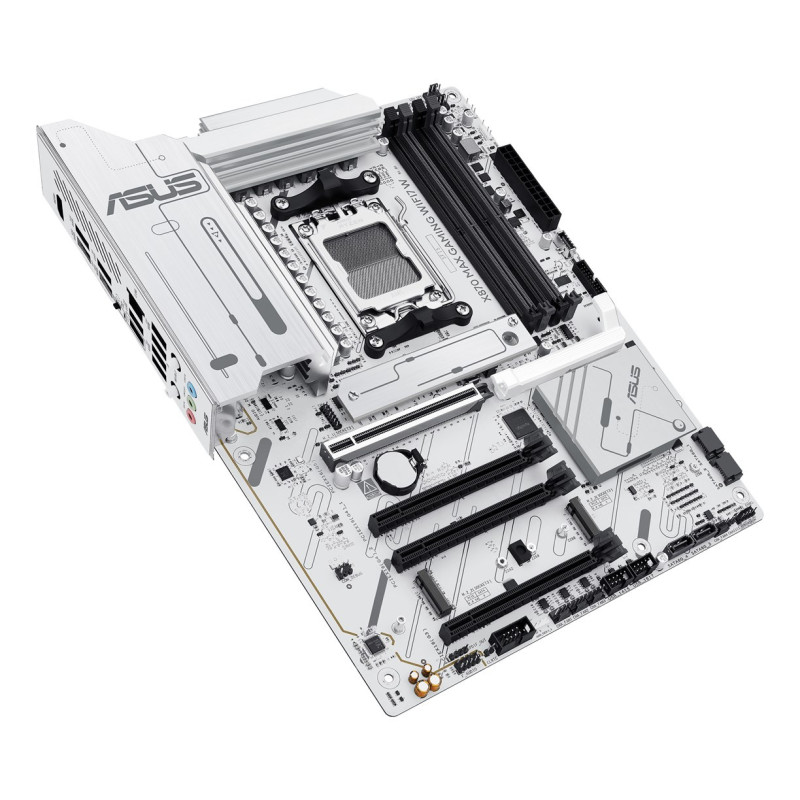

ASUS X870 MAX GAMING WIFI7 W AMD X870 Socket AM5 ATX
Product reference:
6-90MB1LZ0-M0EAY0
ASUS X870 MAX GAMING WIFI7 W AMD X870 Socket AM5 ATX
ASUS X870 MAX GAMING WIFI7 W AMD X870 Socket AM5 ATX
Product reference:
6-90MB1LZ0-M0EAY0
ASUS X870 MAX GAMING WIFI7 W AMD X870 Socket AM5 ATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
6 - 11
business days
| Supported processor sockets | Socket AM5 |
| Compatible processor series | AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, AMD Ryzen 7000 Series |
| Processor socket | Socket AM5 |
| Processor manufacturer | AMD |
| Maximum resolution | 3840 x 2160 pixels |
| Parallel processing technology support | Not supported |
| Motherboard chipset family | AMD |
| Product colour | White |
| Motherboard form factor | ATX |
| Audio output channels | 7.1 channels |
| Motherboard chipset | AMD X870 |
| Windows operating systems supported | Windows 11 |
| Unbuffered memory | Yes |
| Maximum internal memory | 256 GB |
| Supported memory clock speed (max) | 8000 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Memory channels | Dual-channel |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Depth | 244 mm |
| Width | 305 mm |
| Wake-on-LAN ready | Yes |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Ethernet LAN | Yes |
| Bluetooth version | 5.4 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of EPS power connectors (8-pin) | 2 |
| Number of SATA III connectors | 4 |
| Number of RGB LED pin headers | 3 |
| ATX Power connector (24-pin) | Yes |
| Chassis intrusion connector | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| USB 2.0 connectors | 2 |
| S/PDIF out connector | Yes |
| Number of water pump connectors | 1 |
| Number of chassis fan connectors | 4 |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of COM connectors | 1 |
| TPM connector | Yes |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| Cables included | SATA |
| Screws included | Yes |
| Antenna included | Yes |
| Supported storage drive types | HDD & SSD |
| RAID support | Yes |
| RAID levels | 10, 1, 5 |
| Supported storage drive interfaces | PCI Express 4.0, PCI Express 5.0, SATA III |
| Number of storage drives supported | 7 |

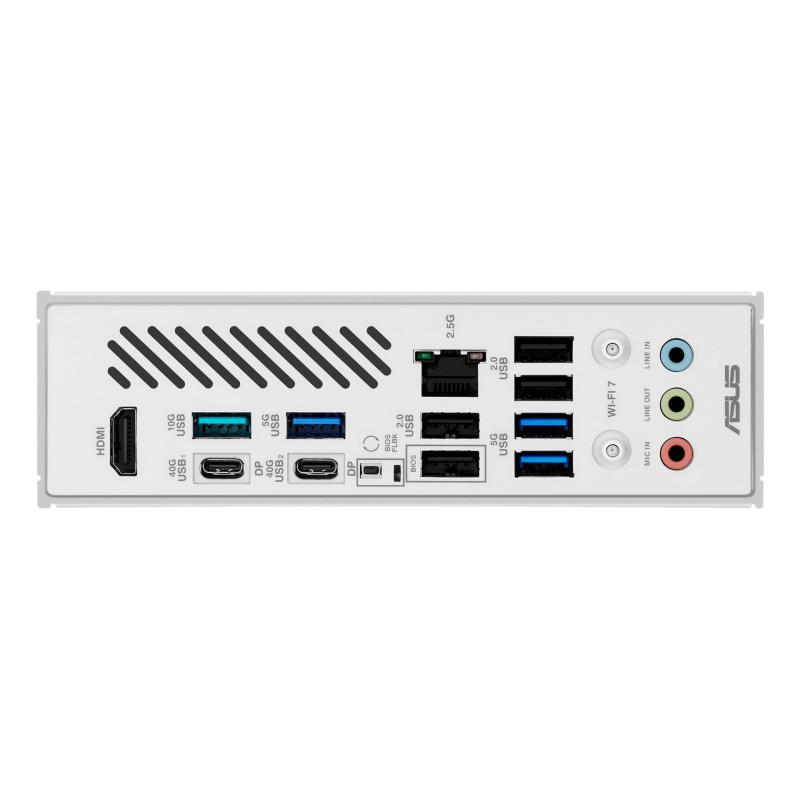

| USB connector type | USB Type-C, USB Type-A |
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 3 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| HDMI version | 2.1 |
| WiFi-AP antenna jack | 2 |
| Microphone in | Yes |
| USB4 Gen 3x2 ports quantity | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 3 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
